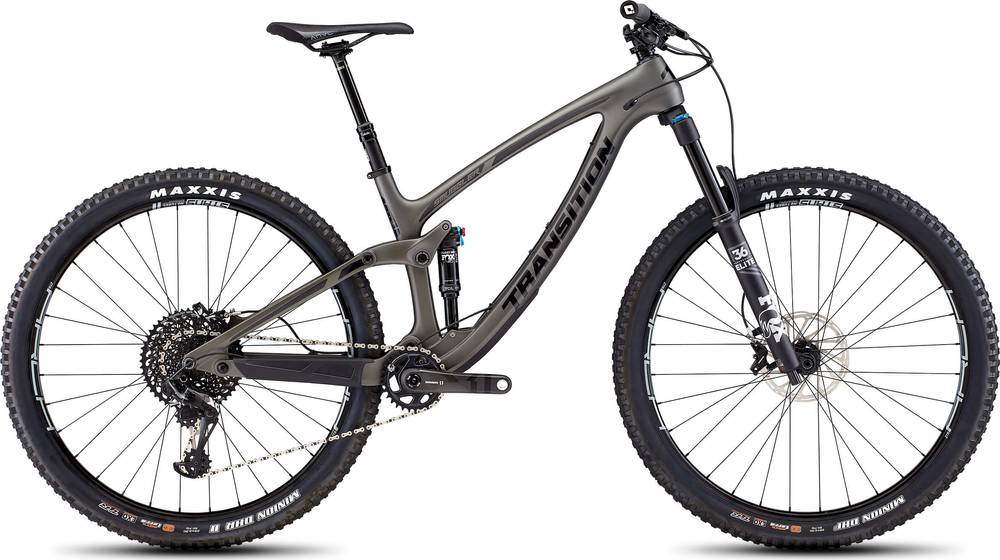

Transition SMUGGLER CARBON COMPLETE XO1 2019
2019 Mountain
Estimate price |
5,999$
Weight | 12.99 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 140mm -
Travel Rear 120mm -
Fork Fox Performance Elite Float 36
-
Groupset X01 Eagle, X1 -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 170cm
MD
164cm - 182cm
LG
175cm - 190cm
XL
184cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Smuggler Carbon 120mm Rear/140mm Front
Suspension Fork
Fox Float 36 Grip 2 Performance Elite (140mm)
Rear Shock
Fox DPS Performance Elite
Drivetrain
Rear Derailleur
SRAM XO1 Eagle
Shift Levers
SRAM XO1 Eagle
Cassette
SRAM XG 1275 (10-50t)
Crank
SRAM X1 Carbon DUB (170mm x 30t)
Chain
SRAM GX Eagle
Wheels
Rims
Stans Arch MK3 Pro
Tires
Front: Maxxis Minion DHF 3C WT (29x2.3), Rear: Maxxis Minion DHRII 3C (29x2.3)
Brakes
Brakes
SRAM Guide RSC
Disk Rotors
SRAM Centerline (180mm)
Cockpit
Stem
ANVL Swage (40mm)
Handlebar
ANVL Mandrel Alloy 35, SM/MD (800 x 20mm), LG/XL (800 x 30mm)
Grips
ODI Elite Flow
Headset
Cane Creek 40 Series
Seat
Saddle
ANVL Forge Ti
Seatpost
RockShox Reverb Stealth 1x Remote, SM (100mm), MD (125mm), LG (150mm), XL (170mm)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.447 mm | 1.367 mm | 1.314 mm | 1.266 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm | 340 mm |
| Front Center | 731 mm | 756 mm | 785 mm | 814 mm |
| Rake | 43 mm | 43 mm | 43 mm | 43 mm |
| Trail | 120 mm | 120 mm | 120 mm | 120 mm |
| Stack | 615 mm | 615 mm | 624 mm | 633 mm |
| Reach | 425 mm | 450 mm | 475 mm | 500 mm |
| Seat Tube Angle | 77 ° | 76.3 ° | 75.8 ° | 75.3 ° |
| Seat Tube Length | 400 mm | 410 mm | 450 mm | 495 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 100 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1159 mm | 1184 mm | 1213 mm | 1242 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm |
| Standover Height | 688 mm | 695 mm | 705 mm | 720 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 164 cm | 175 cm | 184 cm |
| Rider Max Height | 170 cm | 182 cm | 190 cm | 200 cm |
Model Overview
SMUGGLER CARBON COMPLETE XO1 belongs to the Transition Smuggler model. Transition launched 28 bikes of this model so far. You can easily view all of the Transition Smuggler bikes models from 2019, here.
Model range prices
The most economical model, the Transition SMUGGLER CARBON COMPLETE NX 2019 has a starting price of 3999$. Transition SMUGGLER CARBON COMPLETE XO1 2019 on the other hand is the most expensive at 5999$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Trail bikes average price
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
This bike was released in 2019 and its price was 5999$. Comparing this to the average Trail bike price, we see that the price is 117.2% more expensive.
Trail bikes average weight
On a deeper look, we notice that the average weight of a Trail bike is 12.98 kg (28.62 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
slightly heavier than average, SMUGGLER CARBON COMPLETE XO1 has a weight of 12.99 kg (28.64 lbs). In other words, this model is 0.08% heavier than the average Trail bike.
SMUGGLER CARBON COMPLETE XO1 components
Fork
This bike has the Fox Performance Elite Float 36 fork installed. The fork’s travel is 140mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
As for the rear shock, this bike has the Fox DPS Performance Elite model, with a travel of 120mm. Rear shocks improve riding comfort and give you greater control over all terrains. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
The SMUGGLER CARBON COMPLETE XO1 2019 bike is equipped with 29″ aluminum wheels when leaving the factory. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The SMUGGLER CARBON COMPLETE XO1 comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
Transition SMUGGLER CARBON COMPLETE XO1 bike has 4 sizes, in the range of 154 cm – 200 cm (5.05 ft – 6.56 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
A dropper post is included with the SMUGGLER CARBON COMPLETE XO1. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
