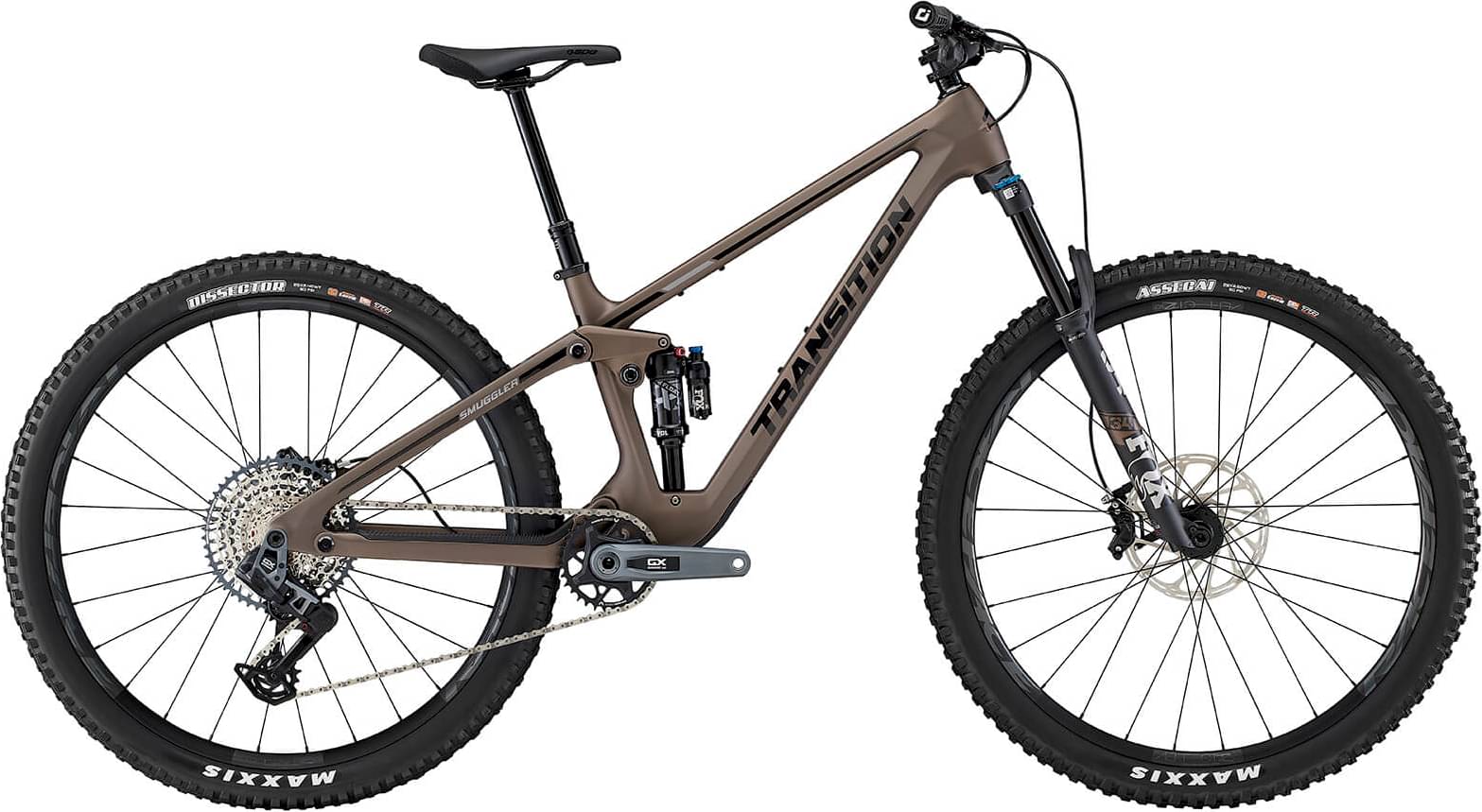

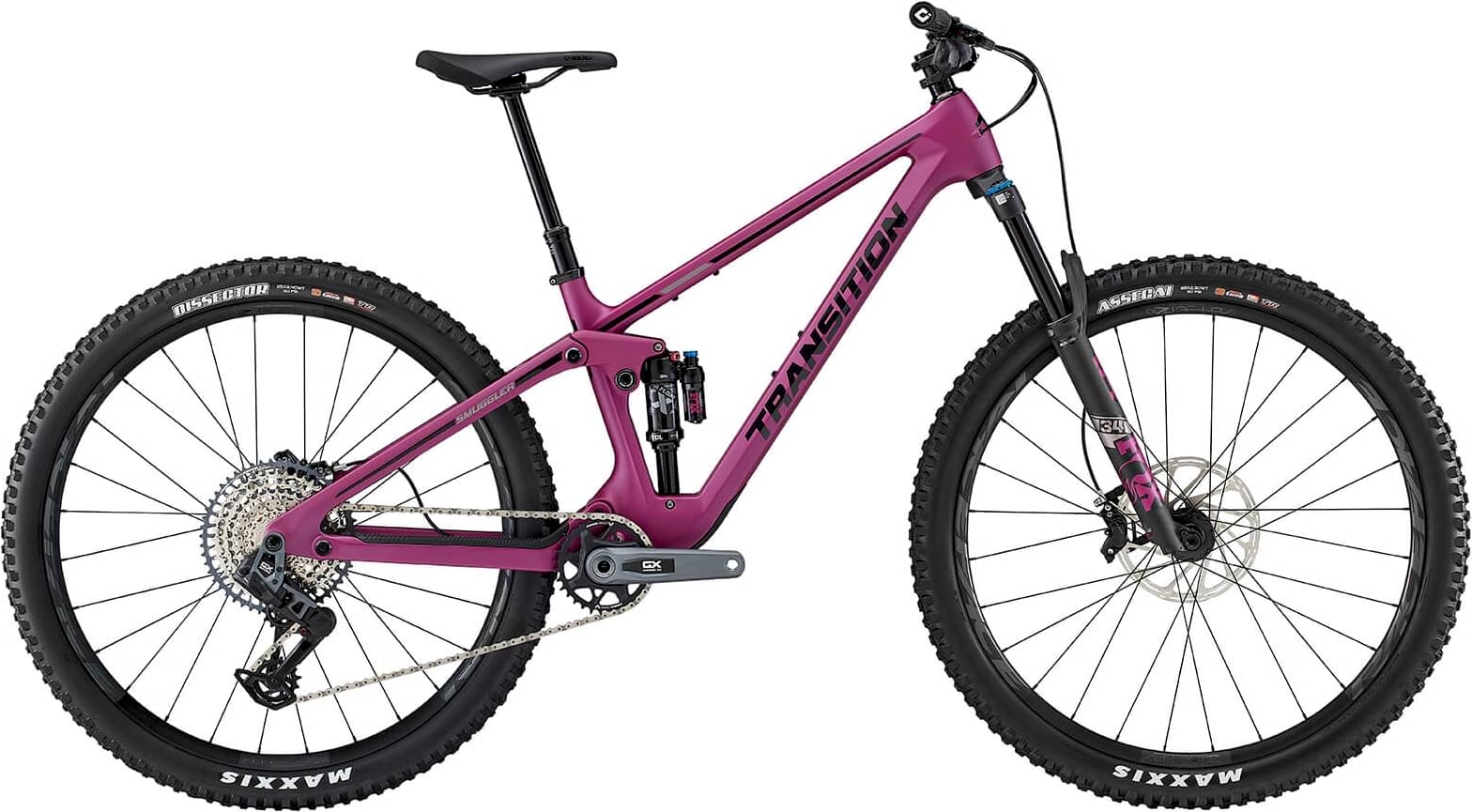

Transition Smuggler Carbon GX AXS 2023
2023 Mountain
Estimate price |
7,299$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 140mm -
Travel Rear 130mm -
Fork Fox Performance Elite Float 34
-
Groupset GX Eagle Transmission, SRAM -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 170cm
MD
164cm - 182cm
LG
175cm - 190cm
XL
184cm - 200cm
XXL
190cm - 207cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Smuggler Carbon 130mm
Suspension Fork
Fox Float 34 Grip 2 Performance Elite, (140mm)
Rear Shock
Fox Float X Performance Elite, (210x50mm)
Drivetrain
Rear Derailleur
SRAM GX AXS Eagle Transmission
Shift Levers
SRAM POD Bridge MMX
Cassette
SRAM XS 1275 T-Type (10-52t)
Crank
SRAM GX Eagle DUB T-Type, (170mm x 32t)
Bottom Bracket
73mm BSA Threaded
Chain
SRAM GX Eagle Transmission
Wheels
Front Hub
Raceface Trace 28H
Rear Hub
Raceface Trace 28H
Rims
Raceface Aeffect R
Spokes
Raceface 2.0/1.7/2.0
Tires
Front: Maxxis Assegai EXO+ (2.5), Rear: Maxxis Dissector 3C EXO+ (2.4)
Brakes
Brakes
SRAM Code Silver Stealth
Cockpit
Stem
ANVL Swage (40mm)
Handlebar
ANVL Mandrel Alloy 35, SM(800x20) MD/LG/XL(800x30) XXL(800x40)
Grips
ODI Elite Flow
Headset
FSA NO.42/48/ACB
Seat
Saddle
SDG Bel Air V3
Seatpost
OneUp Dropper Post, SM(150mm) MD(180mm) LG/XL/XXL(210mm)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.35 mm | 1.29 mm | 1.25 mm | 1.21 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm | 340 mm | 340 mm |
| Front Center | 746 mm | 780 mm | 809 mm | 839 mm | 868 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 126 mm | 126 mm | 126 mm | 126 mm | 126 mm |
| Stack | 599 mm | 608 mm | 617 mm | 627 mm | 636 mm |
| Reach | 422 mm | 452 mm | 477 mm | 502 mm | 527 mm |
| Top Tube Length | 547 mm | 580 mm | 609 mm | 637 mm | 662 mm |
| Seat Tube Angle | 79.3 ° | 78.6 ° | 78.1 ° | 77.6 ° | 77.3 ° |
| Seat Tube Length | 375 mm | 390 mm | 430 mm | 460 mm | 490 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 429 mm | 429 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1173 mm | 1207 mm | 1242 mm | 1272 mm | 1301 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 164 cm | 175 cm | 184 cm | 190 cm |
| Rider Max Height | 170 cm | 182 cm | 190 cm | 200 cm | 207 cm |
About this model
Smuggler Carbon GX AXS completes the Transition Smuggler model. There are 28 bikes that carry this model name. You can easily view all of the Transition Smuggler bikes models from 2023, here.
Model range prices
Transition Smuggler Alloy NX 2023 is the most affordable bike of this model and has a price of 3999$. On the other hand, Transition Smuggler Carbon XO AXS 2023, is the most expensive and costs 8499$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Trail bikes average price
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2023 for 7299$. Doing a quick comparison, we notice that Smuggler Carbon GX AXS price is 164.27% more expensive than the average cost of a Trail bike.
Overview of components
Fork
Transition Smuggler Carbon GX AXS 2023 bike is equipped with the Fox Performance Elite Float 34 fork, and has 140mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
The shock that’s installed on this bike is Fox Float X Performance Elite, with a travel distance of 130mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
The wheels on Smuggler Carbon GX AXS are the 29″ aluminum type. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
For your safety, it is important to have quality breaks on your bike. Transition Smuggler Carbon GX AXS has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
Smuggler Carbon GX AXS comes in 5 sizes, that range from 154 cm – 207 cm (5.05 ft – 6.79 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
A dropper post is included with the Smuggler Carbon GX AXS. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
