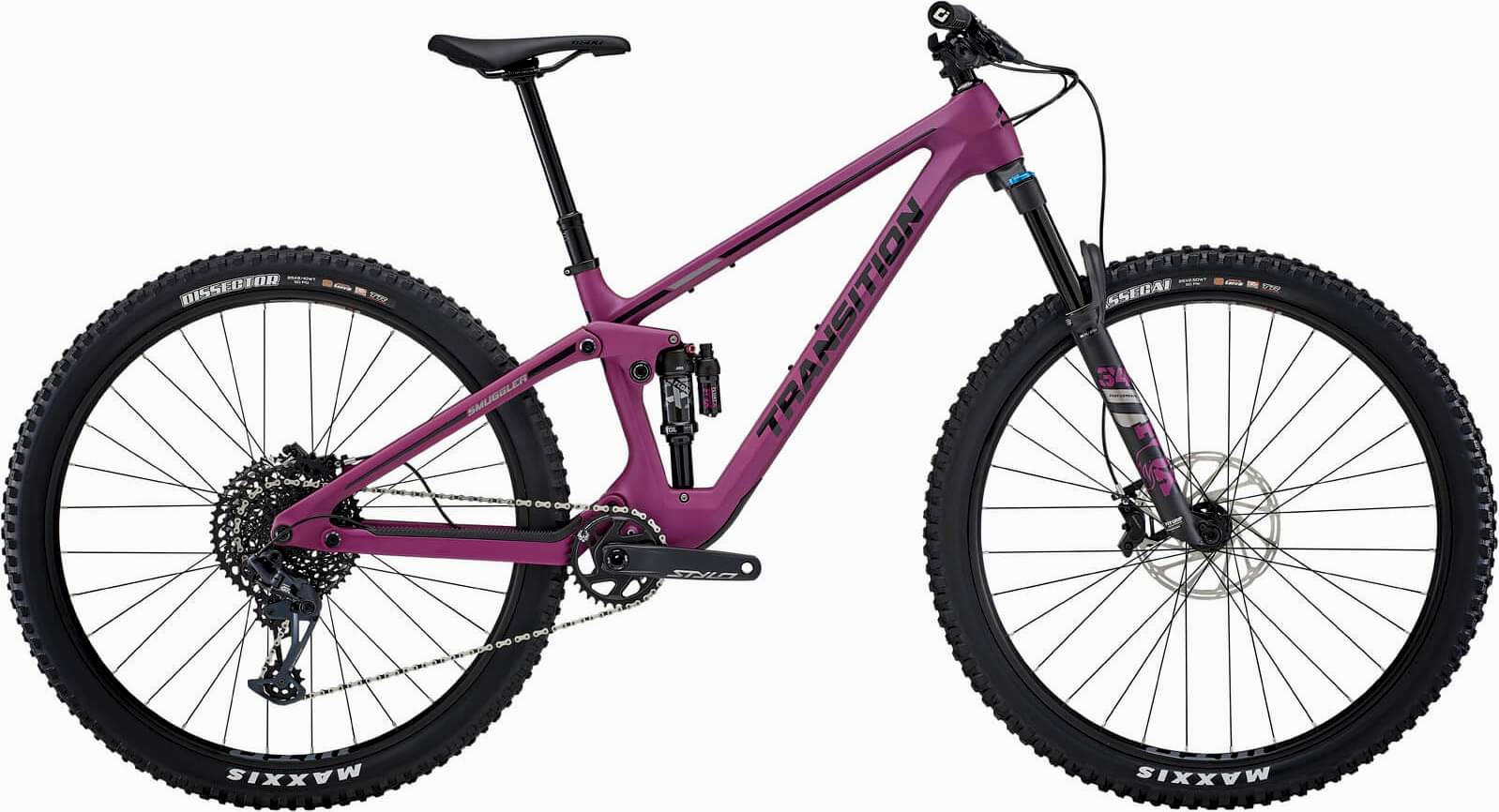

Transition Smuggler Carbon GX Mechanical 2023
2023 Mountain
Estimate price |
5,999$
Weight | 14.09 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 140mm -
Travel Rear 130mm -
Fork Fox Performance Float 34
-
Groupset GX Eagle, NX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 170cm
MD
164cm - 182cm
LG
175cm - 190cm
XL
184cm - 200cm
XXL
190cm - 207cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Smuggler Carbon 130mm
Suspension Fork
Fox Float 34 Grip Performance, (140mm)
Rear Shock
Fox Float X Performance, (210x50mm)
Drivetrain
Rear Derailleur
SRAM GX Eagle
Shift Levers
SRAM NX Eagle MMX
Cassette
SRAM XG 1275 (10-52t)
Crank
SRAM Stylo 6K DUB, (170mm x 32t)
Bottom Bracket
73mm BSA Threaded
Chain
SRAM GX Eagle
Wheels
Front Hub
Novatech D791SB/D902SB
Rear Hub
Novatech D791SB/D902SB
Rims
WTB ST i30
Spokes
Pillar Double Butted
Tires
Front: Maxxis Assegai EXO+ (2.5), Rear: Maxxis Dissector 3C EXO+ (2.4)
Brakes
Brakes
SRAM Code R
Cockpit
Stem
RaceFace Aeffect R (40mm)
Handlebar
RaceFace Chester 35, SM(800x20) MD/LG/XL/XXL(800x35)
Grips
ODI Elite Flow
Headset
FSA NO.42/48/ACB
Seat
Saddle
SDG Bel Air V3
Seatpost
OneUp Dropper Post, SM(150mm) MD(180mm) LG/XL/XXL(210mm)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.35 mm | 1.29 mm | 1.25 mm | 1.21 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm | 340 mm | 340 mm |
| Front Center | 746 mm | 780 mm | 809 mm | 839 mm | 868 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 126 mm | 126 mm | 126 mm | 126 mm | 126 mm |
| Stack | 599 mm | 608 mm | 617 mm | 627 mm | 636 mm |
| Reach | 422 mm | 452 mm | 477 mm | 502 mm | 527 mm |
| Top Tube Length | 547 mm | 580 mm | 609 mm | 637 mm | 662 mm |
| Seat Tube Angle | 79.3 ° | 78.6 ° | 78.1 ° | 77.6 ° | 77.3 ° |
| Seat Tube Length | 375 mm | 390 mm | 430 mm | 460 mm | 490 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 429 mm | 429 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1173 mm | 1207 mm | 1242 mm | 1272 mm | 1301 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 164 cm | 175 cm | 184 cm | 190 cm |
| Rider Max Height | 170 cm | 182 cm | 190 cm | 200 cm | 207 cm |
About this model
Smuggler Carbon GX Mechanical is a Transition Smuggler model. There are 28 bikes that carry this model name. Take a sneak peek at all Transition Smuggler bikes models from 2023, by clicking here.
Model range prices
Transition Smuggler Alloy NX 2023 is the cheapest bike model and costs 3999$. Transition Smuggler Carbon XO AXS 2023 is the most expensive one and costs 8499$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Trail bikes average price
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
When Transition released this model in 2023, its price was 5999$. Doing a quick comparison, we notice that Smuggler Carbon GX Mechanical price is 117.2% higher than the average cost of a Trail bike.
Average weight for Trail bikes
The average weight for Trail bikes is 12.98 kg (28.62 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Smuggler Carbon GX Mechanical weighs 14.09 kg (31.06 lbs) and is a bit heavier than the average. In short, the average Trail bike weight is 8.55% lower than this one.
Smuggler Carbon GX Mechanical components
Fork
The fork installed on this bike is the Fox Performance Float 34 model. The travel on this model is 140mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
From the factory, it comes with the Fox Float X Performance rear shock model, which has a travel of 130mm. Rear shocks improve riding comfort and give you greater control over all terrains. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
The Smuggler Carbon GX Mechanical 2023 bike is equipped with 29″ aluminum wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
Transition Smuggler Carbon GX Mechanical bike has 5 sizes, in the range of 154 cm – 207 cm (5.05 ft – 6.79 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Transition Smuggler Carbon GX Mechanical includes a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
