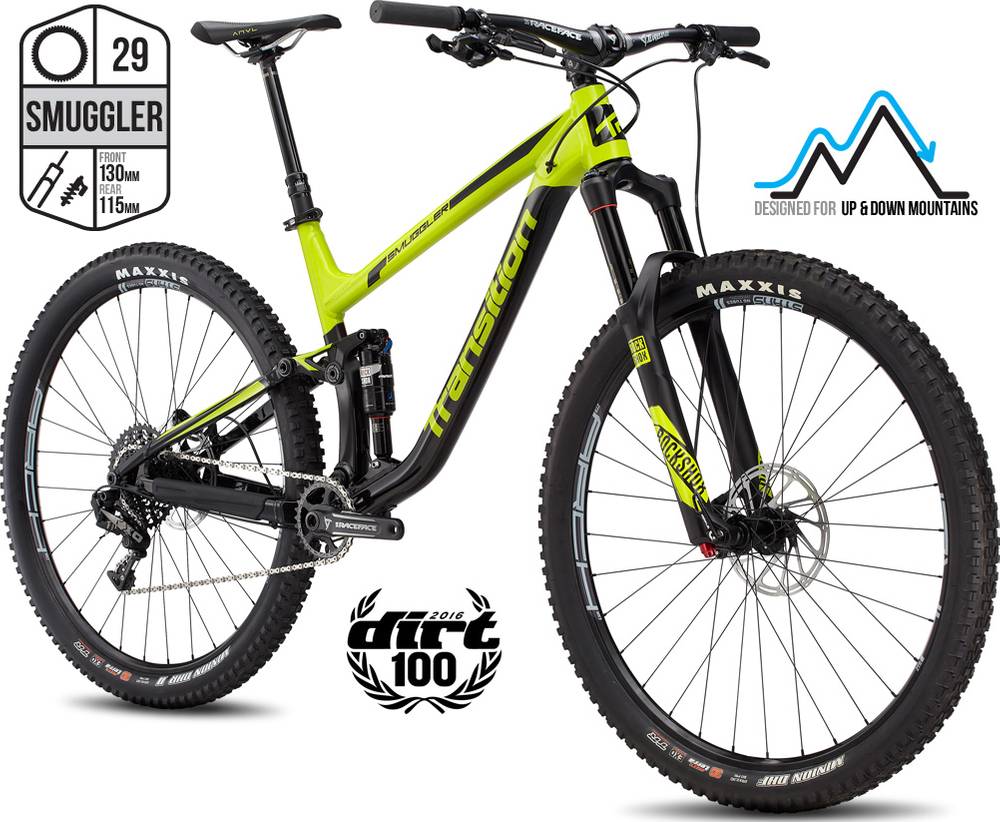

Transition SMUGGLER Complete 2017
2017 Mountain
Estimate price |
2,999$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 29" -
Travel Front 130mm -
Fork RockShox Yari RC
-
Groupset NX -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 170cm
MD
164cm - 182cm
LG
175cm - 190cm
XL
184cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
RockShox Yari RC Solo Air 130mm (Color Match Fork Decals Included)
Rear Shock
RockShox Monarch RT Debonair
Drivetrain
Rear Derailleur
SRAM NX
Shift Levers
SRAM NX
Cassette
SRAM PG1130 (11-42)
Crank
SRAM NX 24mm GXP (30t, 170mm or 175mm)***
Chain
SRAM PC1110
Wheels
Front Hub
SRAM MTH 716/746
Rear Hub
SRAM MTH 716/746
Rims
WTB STP i25 29
Tires
Maxxis Minion DHF 29x2.3 EXO Dual Front, Maxxis Minion DHR II 29x2.3 EXO Dual Rear
Brakes
Brakes
SRAM DB5
Disk Rotors
SRAM Centerline (180mm)
Cockpit
Stem
RaceFace Aeffect 35 50mm
Handlebar
RaceFace Ride 35 (760mm x 20mm)
Grips
Velo Single Clamp
Headset
FSA No.57SC
Seat
Saddle
WTB Volt Comp
Seatpost
KS eTen Integra (100mm)***
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.42 mm | 1.36 mm | 1.31 mm |
| Bottom Bracket Height | 335 mm | 335 mm | 335 mm | 335 mm |
| Front Center | 700 | 726 mm | 755 mm | 784 mm |
| Rake | 51 mm | 51 mm | 51 mm | 50 mm |
| Trail | 100 mm | 100 mm | 100 mm | 101 mm |
| Stack | 603 mm | 603 mm | 613 mm | 622 mm |
| Reach | 399 mm | 425 mm | 450 mm | 476 mm |
| Top Tube Length | 557 mm | 583 mm | 612 mm | 640 mm |
| Seat Tube Angle | 76 ° | 75.4 ° | 74.9 ° | 74.5 ° |
| Seat Tube Length | 393 mm | 419 mm | 457 mm | 495 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 100 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 429 mm | 429 mm | 429 mm | 429 mm |
| Wheelbase | 1127 mm | 1153 mm | 1182 mm | 1211 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm |
| Standover Height | 670 mm | 679 mm | 689 mm | 702 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 164 cm | 175 cm | 184 cm |
| Rider Max Height | 170 cm | 182 cm | 190 cm | 200 cm |
About this model
SMUGGLER Complete is part of the Transition Smuggler model. There are 28 bikes that carry this model name. Take a sneak peek at all Transition Smuggler bikes models from 2017, by clicking here.
Model range prices
The most economical model, the Transition SMUGGLER Complete 2017 has a starting price of 2999$. Transition SMUGGLER Complete Kit 1 2017 on the other hand is the most expensive at 4999$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Trail bikes
If you want an acceptable Trail bike you should know that the average price is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
At the moment of the release date, Transition SMUGGLER Complete price was 2999$. Comparing the average cost of a Trail bike to this one, you will see that SMUGGLER Complete price is 8.58% higher.
SMUGGLER Complete components
Fork
The fork installed on this bike is the RockShox Yari RC model. The travel on this model is 130mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
The SMUGGLER Complete 2017 bike is equipped with 29″ aluminum wheels when leaving the factory. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
For your safety, it is important to have quality breaks on your bike. Transition SMUGGLER Complete has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 154 cm – 200 cm (5.05 ft – 6.56 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Every bike should have a dropper post, and this one does. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
