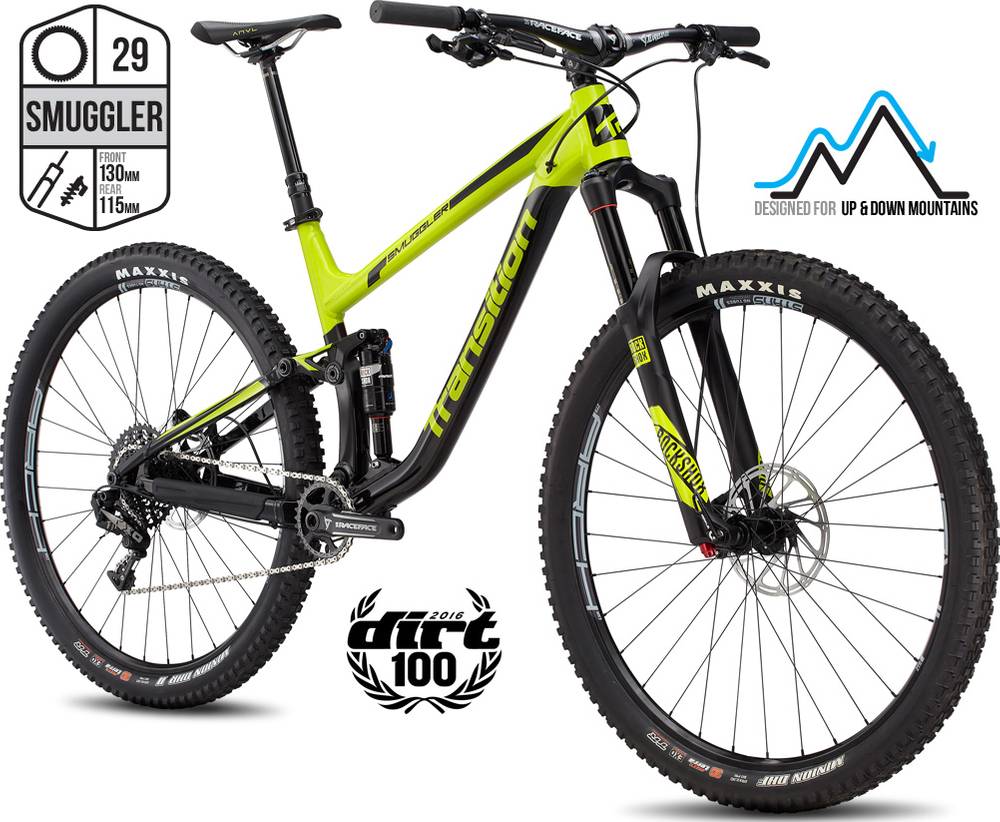

Transition SMUGGLER Complete Kit 1 2017
2017 Mountain
Estimate price |
4,999$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 29" -
Travel Front 130mm -
Fork RockShox Pike RCT3
-
Groupset X01, X1 -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 170cm
MD
164cm - 182cm
LG
175cm - 190cm
XL
184cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
RockShox Pike RCT3 Solo Air 130mm (Color Match Fork Decals Included)
Rear Shock
RockShox Monarch RT3 Debonair
Drivetrain
Rear Derailleur
SRAM XO1
Shift Levers
SRAM X1
Cassette
SRAM XG1175 (10-42)
Crank
RaceFace Turbine Cinch (DM30t, 170mm or 175mm)*
Chain
SRAM PC1130
Wheels
Front Hub
Stans Neo
Rear Hub
Stans Neo
Rims
Stan's Arch MK3 29 32h
Tires
Maxxis Minion DHF 29x2.3 EXO 3C Front, Maxxis Minion DHR II 29x2.3 EXO 3C Rear
Brakes
Brakes
SRAM Guide RSC
Disk Rotors
SRAM Centerline (180mm)
Cockpit
Stem
RaceFace Turbine Basic 35 50mm
Handlebar
RaceFace Turbine 35 (760mm x 20mm)
Grips
Velo Single Clamp
Headset
Cane Creek 40 Series
Seat
Saddle
ANVL Forge Stealth CroMo
Seatpost
Rockshox Reverb Stealth (170mm, 125mm)*
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.42 mm | 1.36 mm | 1.31 mm |
| Bottom Bracket Height | 335 mm | 335 mm | 335 mm | 335 mm |
| Front Center | 700 | 726 mm | 755 mm | 784 mm |
| Rake | 51 mm | 51 mm | 51 mm | 50 mm |
| Trail | 100 mm | 100 mm | 100 mm | 101 mm |
| Stack | 603 mm | 603 mm | 613 mm | 622 mm |
| Reach | 399 mm | 425 mm | 450 mm | 476 mm |
| Top Tube Length | 557 mm | 583 mm | 612 mm | 640 mm |
| Seat Tube Angle | 76 ° | 75.4 ° | 74.9 ° | 74.5 ° |
| Seat Tube Length | 393 mm | 419 mm | 457 mm | 495 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 100 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 429 mm | 429 mm | 429 mm | 429 mm |
| Wheelbase | 1127 mm | 1153 mm | 1182 mm | 1211 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm |
| Standover Height | 670 mm | 679 mm | 689 mm | 702 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 164 cm | 175 cm | 184 cm |
| Rider Max Height | 170 cm | 182 cm | 190 cm | 200 cm |
Model Overview
SMUGGLER Complete Kit 1 is part of the Transition Smuggler model. Transition released 28 bikes variations of this model so far. You can easily view all of the Transition Smuggler bikes models from 2017, here.
Model range prices
Transition SMUGGLER Complete 2017 is the most economical model, with a starting price of 2999$. Transition SMUGGLER Complete Kit 1 2017 on the other hand costs 4999$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Trail bikes average price
According to our math, the average price for a trustworthy Trail bike is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
When Transition released this model in 2017, its price was 4999$. Comparing this to the average Trail bike price, we see that the price is 80.99% more expensive.
SMUGGLER Complete Kit 1 components
Fork
The RockShox Pike RCT3 is included from the factory. It has a travel distance of 130mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
The wheels on SMUGGLER Complete Kit 1 are the 29″ aluminum type. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
For your safety, it is important to have quality breaks on your bike. Transition SMUGGLER Complete Kit 1 has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
This bike is available in 4 sizes. They vary from 154 cm – 200 cm (5.05 ft – 6.56 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Transition SMUGGLER Complete Kit 1 comes with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
