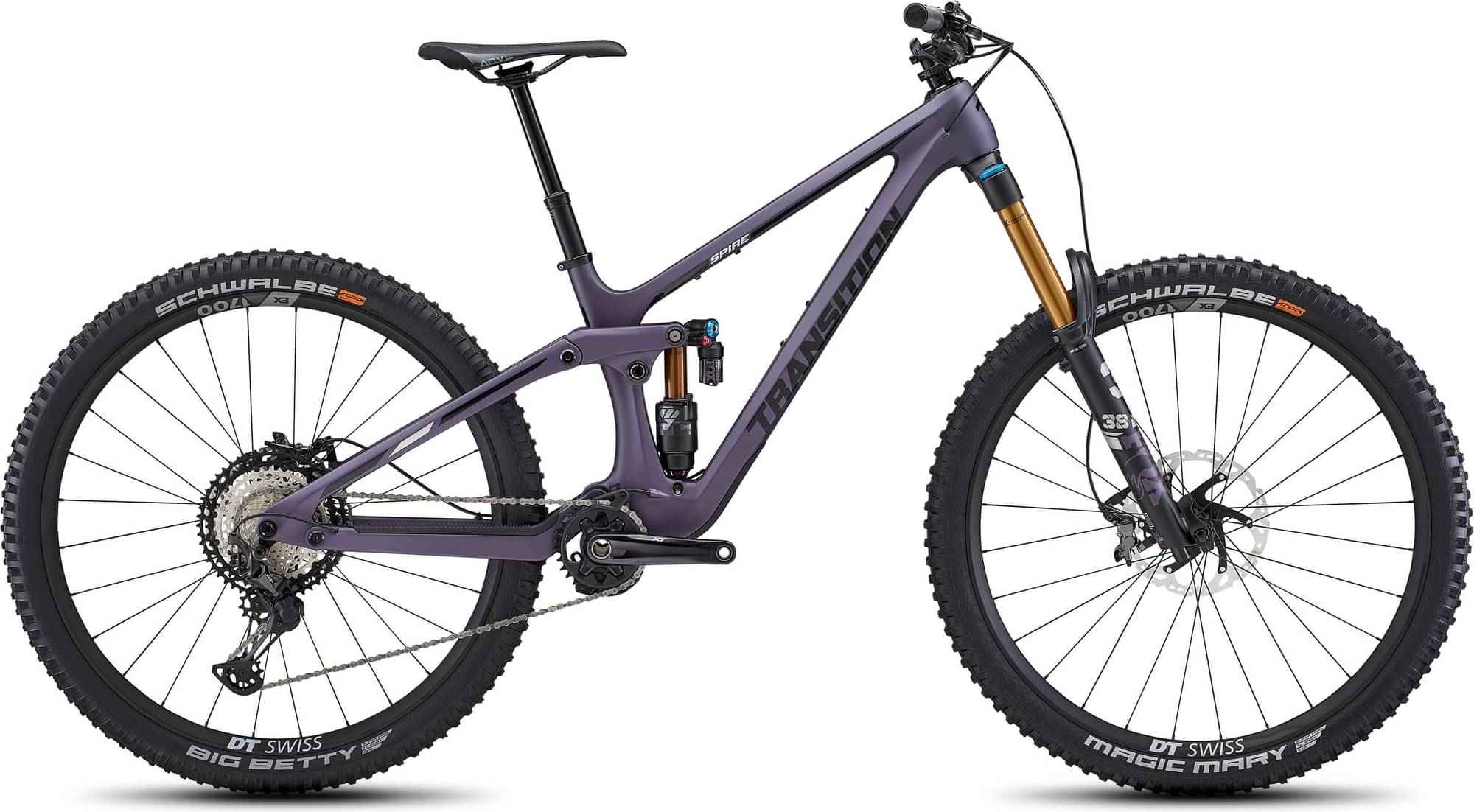

Transition Spire Carbon GX 2022
2022 Mountain
Estimate price |
5,999$
Weight | 15.1 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 170mm -
Travel Rear 170mm -
Fork RockShox ZEB Ultimate
-
Groupset GX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM High
154cm - 170cm
SM Low
154cm - 170cm
MD High
164cm - 182cm
MD Low
164cm - 182cm
LG High
175cm - 190cm
LG Low
175cm - 190cm
XL High
184cm - 200cm
XL Low
184cm - 200cm
XXL High
190cm - 207cm
XXL Low
190cm - 207cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Spire Carbon 170mm
Suspension Fork
RockShox ZEB Ultimate, 170mm Travel/44mm Offset
Rear Shock
RockShox Super Deluxe, Ultimate Air (205x65)
Drivetrain
Rear Derailleur
SRAM GX Eagle
Shift Levers
SRAM GX Eagle
Cassette
SRAM XG 1275 (10-52t)
Crank
SRAM GX Alloy DUB (30t/165mm)
Chain
SRAM GX Eagle
Chain Guide
OneUp Bash Guide
Wheels
Front Hub
Stans Neo Durasync
Rear Hub
Stans Neo Durasync
Rims
Stans Flow S1
Spokes
Sapim Race Double Butted
Tires
Front: Schwalbe Magic Mary, Super Trail, Soft (29x2.4), Rear: Schwalbe Big Betty, Super Trail, Soft (29x2.4)
Brakes
Brakes
SRAM Code RSC
Disk Rotors
SRAM Centerline (220mm/200mm)
Cockpit
Stem
ANVL Swage (40mm)
Handlebar
ANVL Mandrel Alloy 35, SM (800x20), MD/LG/XL (800x30), XXL (800x40)
Grips
Sensus Lite
Headset
FSA NO.55R/57
Seat
Saddle
ANVL Forge Cromo
Seatpost
OneUp Dropper Post
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low | XXL High | XXL Low |
|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.47 mm | 1.35 mm | 1.38 mm | 1.3 mm | 1.32 mm | 1.25 mm | 1.27 mm | 1.21 mm | 1.23 mm |
| Bottom Bracket Height | 350 mm | 343 mm | 350 mm | 343 mm | 350 mm | 343 mm | 350 mm | 343 mm | 350 mm | 343 mm |
| Front Center | 782 mm | 783 mm | 812 mm | 813 mm | 842 mm | 843 mm | 871 mm | 872 mm | 901 mm | 902 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 141 mm | 146 mm | 141 mm | 146 mm | 141 mm | 145 mm | 141 mm | 146 mm | 141 mm | 146 mm |
| Stack | 613 mm | 618 mm | 613 mm | 618 mm | 622 mm | 627 mm | 631 mm | 636 mm | 640 mm | 645 mm |
| Reach | 424 mm | 419 mm | 454 mm | 449 mm | 479 mm | 474 mm | 504 mm | 499 mm | 529 mm | 524 mm |
| Top Tube Length | 541 mm | 544 mm | 571 mm | 574 mm | 599 mm | 602 mm | 627 mm | 630 mm | 655 mm | 658 mm |
| Seat Tube Angle | 79.6 ° | 79.1 ° | 78.8 ° | 78.3 ° | 78.1 ° | 77.6 ° | 77.5 ° | 77 ° | 77.2 ° | 76.7 ° |
| Seat Tube Length | 360 mm | 360 mm | 390 mm | 390 mm | 430 mm | 430 mm | 460 mm | 460 mm | 490 mm | 490 mm |
| Head Tube Angle | 63 ° | 62.5 ° | 63 ° | 62.5 ° | 63 ° | 62.5 ° | 63 ° | 62.5 ° | 63 ° | 62.5 ° |
| Head Tube Length | 100 mm | 100 mm | 100 mm | 100 mm | 110 mm | 110 mm | 120 mm | 120 mm | 130 mm | 130 mm |
| Chainstay Length | 440 mm | 442 mm | 440 mm | 442 mm | 440 mm | 442 mm | 446 mm | 448 mm | 446 mm | 448 mm |
| Wheelbase | 1221 mm | 1223 mm | 1251 mm | 1253 mm | 1281 mm | 1283 mm | 1316 mm | 1318 mm | 1346 mm | 1348 mm |
| Bottom Bracket Drop | 25 mm | 32 mm | 25 mm | 32 mm | 25 mm | 32 mm | 25 mm | 32 mm | 25 mm | 32 mm |
| Standover Height | 679 mm | 674 mm | 694 mm | 689 mm | 709 mm | 704 mm | 724 mm | 719 mm | 739 mm | 734 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 154 cm | 164 cm | 164 cm | 175 cm | 175 cm | 184 cm | 184 cm | 190 cm | 190 cm |
| Rider Max Height | 170 cm | 170 cm | 182 cm | 182 cm | 190 cm | 190 cm | 200 cm | 200 cm | 207 cm | 207 cm |
Model Overview
Spire Carbon GX is a Transition Spire model. Transition launched 28 bikes of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
Transition Spire Alloy Deore 2022 is the most affordable bike of this model and has a price of 3799$. On the other hand, Transition Spire Carbon XT 2022, is the most expensive and costs 6699$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Enduro bikes
If you want to purchase a solid Enduro bike, it is important to know that the average cost is 3599$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Transition Spire Carbon GX price was 5999$. Comparing this to the average Enduro bike price, we see that the price is 66.69% higher.
Average weight for Enduro bikes
The average weight for Enduro bikes is 14.27 kg (31.46 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Transition Spire Carbon GX it’s weighing 15.1 kg (33.29 lbs). At this weight, is a bit heavier than average. In short, the average Enduro bike weight is 5.82% lower than this one.
Spire Carbon GX components
Fork
This bike has the RockShox ZEB Ultimate fork installed. The fork’s travel is 170mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
The Spire Carbon GX has a rear shock with a travel of 170mm. The model RockShox Super Deluxe is the one installed in this bike. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
When it comes to wheels, the Spire Carbon GX bike is equipped with the 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
For your safety, it is important to have quality breaks on your bike. Transition Spire Carbon GX has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 10 sizes. They vary from 154 cm – 207 cm (5.05 ft – 6.79 ft). In short, you can easily find one that suits you.
Dropper post
Transition Spire Carbon GX comes with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
