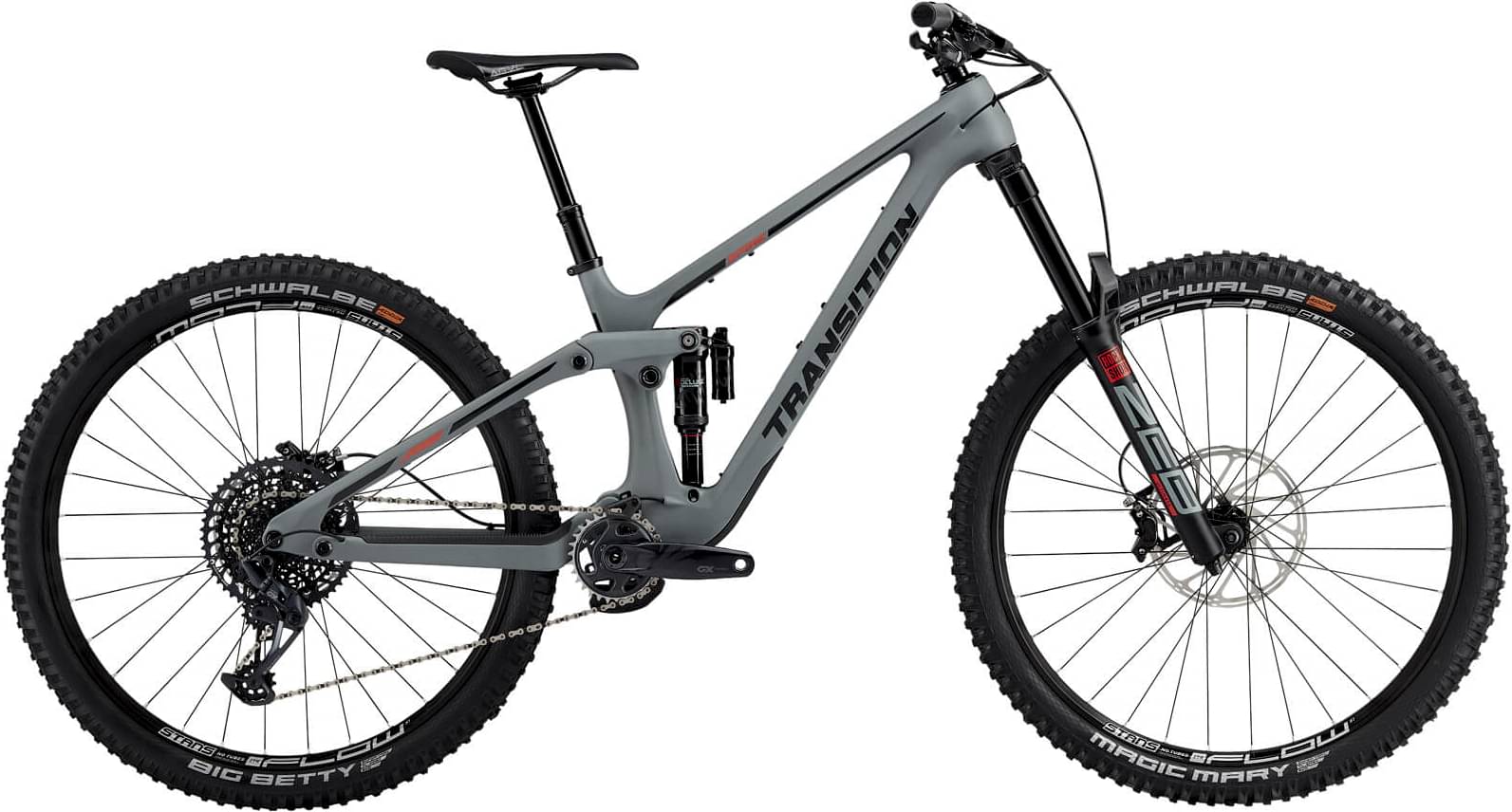

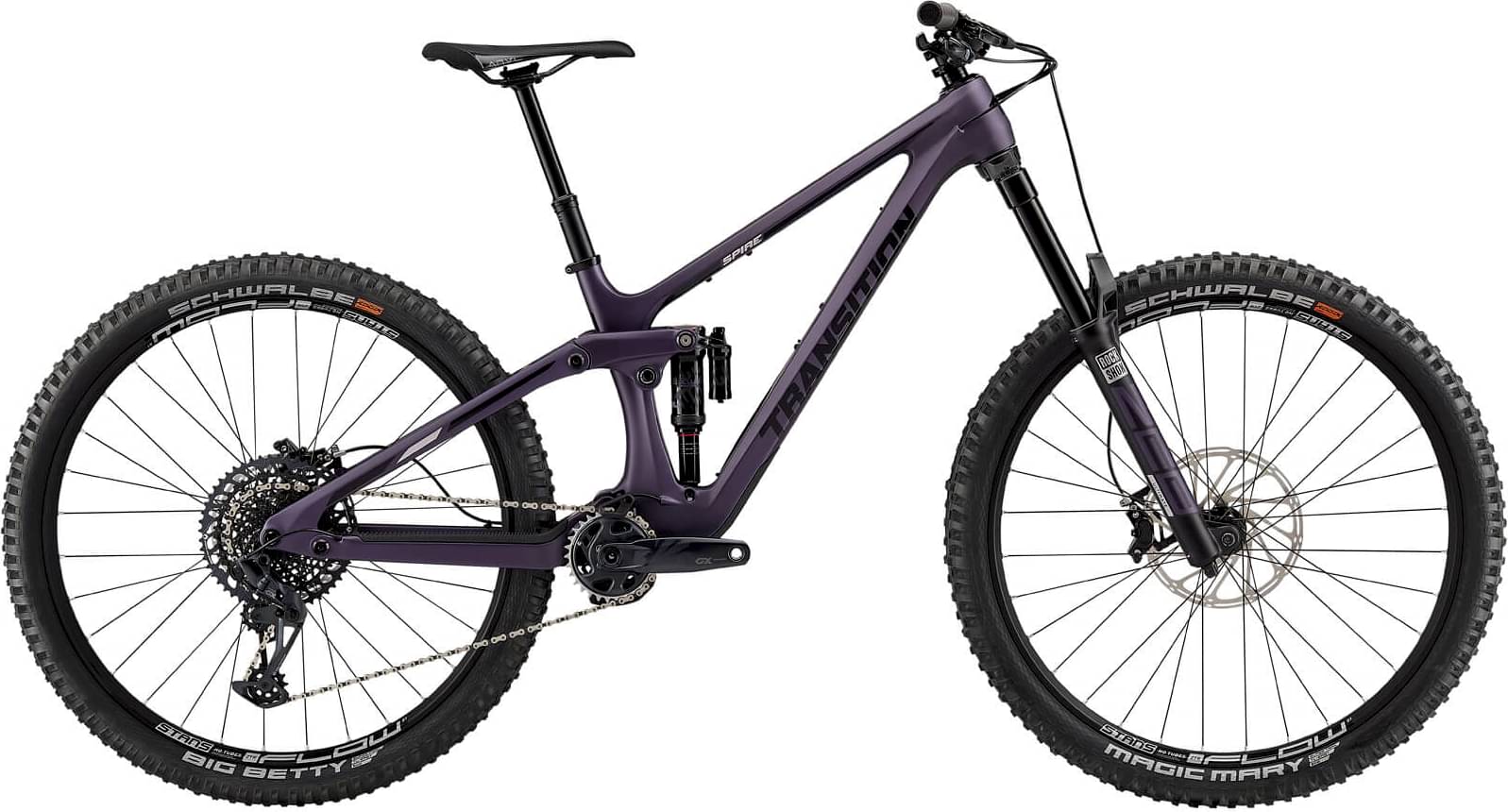

Transition Spire Carbon GX Code 2022
2022 Mountain
Estimate price |
6,299$
Weight | 15.1 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 170mm -
Travel Rear 170mm -
Fork RockShox ZEB Ultimate
-
Groupset GX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM High
154cm - 170cm
SM Low
154cm - 170cm
MD High
164cm - 182cm
MD Low
164cm - 182cm
LG High
175cm - 190cm
LG Low
175cm - 190cm
XL High
184cm - 200cm
XL Low
184cm - 200cm
XXL High
190cm - 207cm
XXL Low
190cm - 207cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Spire Carbon 170mm
Suspension Fork
RockShox ZEB Ultimate, 170mm Travel/44mm Offset
Rear Shock
RockShox Super Deluxe, Ultimate Air (205x65)
Drivetrain
Rear Derailleur
SRAM GX Eagle
Shift Levers
SRAM GX Eagle
Cassette
SRAM XG 1275 (10-52t)
Crank
SRAM GX Alloy DUB (30t/165mm)
Bottom Bracket
73mm BSA Threaded
Chain
SRAM GX Eagle
Chain Guide
OneUp Bash Guide
Wheels
Front Hub
Stans Neo Durasync
Rear Hub
Stans Neo Durasync
Rims
Stans Flow S1
Spokes
Sapim Race Double Butted
Tires
Front: Schwalbe Magic Mary, Super Trail, Soft (29x2.4), Rear: Schwalbe Big Betty, Super Trail, Soft (29x2.4)
Brakes
Brakes
SRAM Code RSC
Cockpit
Stem
ANVL Swage (40mm)
Handlebar
ANVL Mandrel Alloy 35, SM (800x20), MD/LG/XL (800x30), XXL (800x40)
Grips
ODI Elite Flow
Headset
FSA NO.55R/57
Seat
Saddle
ANVL Forge Cromo
Seatpost
OneUp Dropper Post
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low | XXL High | XXL Low |
|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.47 mm | 1.35 mm | 1.38 mm | 1.3 mm | 1.32 mm | 1.25 mm | 1.27 mm | 1.21 mm | 1.23 mm |
| Bottom Bracket Height | 350 mm | 343 mm | 350 mm | 343 mm | 350 mm | 343 mm | 350 mm | 343 mm | 350 mm | 343 mm |
| Front Center | 782 mm | 783 mm | 812 mm | 813 mm | 842 mm | 843 mm | 871 mm | 872 mm | 901 mm | 902 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 141 mm | 146 mm | 141 mm | 146 mm | 141 mm | 145 mm | 141 mm | 146 mm | 141 mm | 146 mm |
| Stack | 613 mm | 618 mm | 613 mm | 618 mm | 622 mm | 627 mm | 631 mm | 636 mm | 640 mm | 645 mm |
| Reach | 424 mm | 419 mm | 454 mm | 449 mm | 479 mm | 474 mm | 504 mm | 499 mm | 529 mm | 524 mm |
| Top Tube Length | 541 mm | 544 mm | 571 mm | 574 mm | 599 mm | 602 mm | 627 mm | 630 mm | 655 mm | 658 mm |
| Seat Tube Angle | 79.6 ° | 79.1 ° | 78.8 ° | 78.3 ° | 78.1 ° | 77.6 ° | 77.5 ° | 77 ° | 77.2 ° | 76.7 ° |
| Seat Tube Length | 360 mm | 360 mm | 390 mm | 390 mm | 430 mm | 430 mm | 460 mm | 460 mm | 490 mm | 490 mm |
| Head Tube Angle | 63 ° | 62.5 ° | 63 ° | 62.5 ° | 63 ° | 62.5 ° | 63 ° | 62.5 ° | 63 ° | 62.5 ° |
| Head Tube Length | 100 mm | 100 mm | 100 mm | 100 mm | 110 mm | 110 mm | 120 mm | 120 mm | 130 mm | 130 mm |
| Chainstay Length | 440 mm | 442 mm | 440 mm | 442 mm | 440 mm | 442 mm | 446 mm | 448 mm | 446 mm | 448 mm |
| Wheelbase | 1221 mm | 1223 mm | 1251 mm | 1253 mm | 1281 mm | 1283 mm | 1316 mm | 1318 mm | 1346 mm | 1348 mm |
| Bottom Bracket Drop | 25 mm | 32 mm | 25 mm | 32 mm | 25 mm | 32 mm | 25 mm | 32 mm | 25 mm | 32 mm |
| Standover Height | 679 mm | 674 mm | 694 mm | 689 mm | 709 mm | 704 mm | 724 mm | 719 mm | 739 mm | 734 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 154 cm | 164 cm | 164 cm | 175 cm | 175 cm | 184 cm | 184 cm | 190 cm | 190 cm |
| Rider Max Height | 170 cm | 170 cm | 182 cm | 182 cm | 190 cm | 190 cm | 200 cm | 200 cm | 207 cm | 207 cm |
About this model
Spire Carbon GX Code completes the Transition Spire model. 28 bikes variations carry this model name so far. Take a sneak peek at all Transition Spire bikes models from 2022, by clicking here.
Model range prices
Transition Spire Alloy Deore 2022 is the cheapest bike model and costs 3799$. Transition Spire Carbon XT 2022 is the most expensive one and costs 6699$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Enduro bikes average price
According to our calculations, the average cost of an Enduro bike that is reliable is 3599$. However, this doesn’t mean that if you spend less money on an Enduro bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2022 for 6299$. In conclusion, this bike price is 75.02% more expensive than the price of the average Enduro bike.
Average weight for Enduro bikes
On a deeper look, we notice that the average weight of an Enduro bike is 14.27 kg (31.46 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Transition Spire Carbon GX Code it’s weighing 15.1 kg (33.29 lbs). At this weight, is a bit heavier than average. To sum up, it’s 5.82% heavier than the average weight of Enduro bikes.
Overview of components
Fork
This bike has the RockShox ZEB Ultimate fork installed. The fork’s travel is 170mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
As for the rear shock, this bike has the RockShox Super Deluxe model, with a travel of 170mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
The wheels on Spire Carbon GX Code are the 29″ aluminum type. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
When you want to stop the bike in time, the brakes are vital. The Spire Carbon GX Code has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
This bike is available in 10 sizes. They vary from 154 cm – 207 cm (5.05 ft – 6.79 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
The Transition model is also equipped with a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
