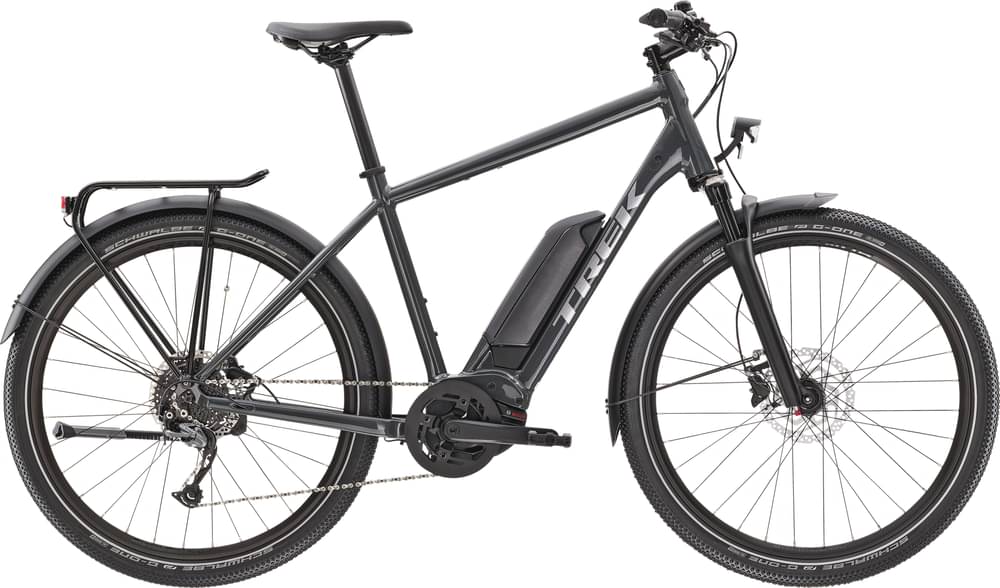

Trek Allant+ 5 2022
2022 E-bike
Estimate price |
3,956$
Weight | 19.16 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 650b -
Travel Front 45mm -
Fork SunTour MOBIE
-
Groupset Alivio, Altus -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch Powerpack Performance 500 downtube -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 176cm
LG
174cm - 187cm
XL
185cm - 197cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
High-performance hydroformed alloy, internal cable routing, Motor Armour, post-mount disc, 135x5 mm QR
Suspension Fork
SR Suntour Mobie25, 45 mm travel, preload, rebound and lockout, tapered alloy steerer, post-mount disc
Drivetrain
Rear Derailleur
Size: M, L, XL, Shimano Alivio M3100, long cage; Size: M, L, XL, Shimano Alivio M4000, long cage, 36T max cog
Shift Levers
Shimano Altus M2010, 9-speed
Cassette
Shimano HG200, 11-36, 9-speed
Crank
Size: M, ProWheel alloy, 170 mm; Size: L, XL, ProWheel alloy, 175mm
Chain
KMC E9S, 9-speed
Wheels
Front Hub
Bontrager Disc, 32-hole, 6-bolt disc, 15 mm alloy thru-axle
Rear Hub
Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR
Rims
Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23 mm width, Presta valve
Tires
Schwalbe G-One, 650Bx57 c
Brakes
Brakes
Shimano MT200 hydraulic disc
Disk Rotors
Shimano RT26, 6-bolt,180 mm
Cockpit
Stem
Size: M, Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length; Size: L, Bontrager alloy, 31.8 mm clamp, Blendr-compatible, 7-degree, 90 mm length; Size: XL, Bontrager alloy, 31.8 mm clamp, Blendr-compatible, 7-degree, 100 mm length
Handlebar
Aluminium comfort
Grips
Bontrager Satellite Elite, alloy lock-on
Seat
Saddle
Bontrager Commuter Comp
Seatpost
Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length
Motor & Battery
Motor
Bosch Performance CX, magnesium motor body, 250 watt, 85 Nm, 25 km/h (15.5 mph) max assist, 32 km/h for New Zealand
Battery
Bosch Powerpack Performance 500 downtube
Charger
Bosch standard 4A (220-240 V) charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.617 mm | 1.668 mm | 1.705 mm |
| Bottom Bracket Height | 299 mm | 299 mm | 299 mm |
| Front Center | 645 mm | 656 mm | 675 mm |
| Rake | 45 mm | 44 mm | 45 mm |
| Trail | 86 mm | 83 mm | 79 mm |
| Stack | 621 mm | 652 mm | 687 mm |
| Reach | 384 mm | 391 mm | 403 mm |
| Top Tube Length | 574 mm | 590 mm | 613 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Head Tube Angle | 69.5 ° | 70 ° | 70.5 ° |
| Head Tube Length | 165 mm | 195 mm | 230 mm |
| Chainstay Length | 483 mm | 483 mm | 483 mm |
| Wheelbase | 1121 mm | 1133 mm | 1152 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Standover Height | 777 mm | 813 mm | 851 mm |
| Wheels | 650 | 650 | 650 |
| Rider Min Height | 165 cm | 174 cm | 185 cm |
| Rider Max Height | 176 cm | 187 cm | 197 cm |
About this model
Allant+ 5 is a Trek E Allantplus model. Trek released 60 e-bikes variations of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
The most economical model, the Trek Allant+ 5 Lowstep 2022 has a starting price of 3662$. Trek Allant+ 9.9S Stagger 2022 on the other hand is the most expensive at 7431$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Commuter e-bikes
According to our calculations, the average cost of a Commuter e-bike that is reliable is 2569$. However, even though the average price of a Commuter e-bike is lower, you might still be able to get a top-quality e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
At the moment of the release date, Trek Allant+ 5 price was 3662$. Doing a quick comparison, we notice that Allant+ 5 price is 42.55% higher than the average cost of a Commuter e-bike.
Average weight for Commuter e-bikes
Commuter e-bikes weigh an average of 25.2 kg (55.56 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Allant+ 5 weighs 19.16 kg (42.24 lbs) and is much lighter than the average. In other words, this model is 31.52% lighter than the average Commuter e-bike.
Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Allant+ 5 components
Fork
The fork installed on this bike is the SunTour MOBIE model. The travel on this model is 45mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Fork material
Allant+ 5 has an aluminum fork, so there won’t be much extra weight added to the e-bike. However, they are not so stiff as carbon forks are.
Wheels size
The wheels on Allant+ 5 are the aluminum type. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
Trek Allant+ 5 e-bike has 3 sizes, in the range of 165 cm – 197 cm (5.41 ft – 6.46 ft). In short, it won’t be difficult to find the right one for you.
