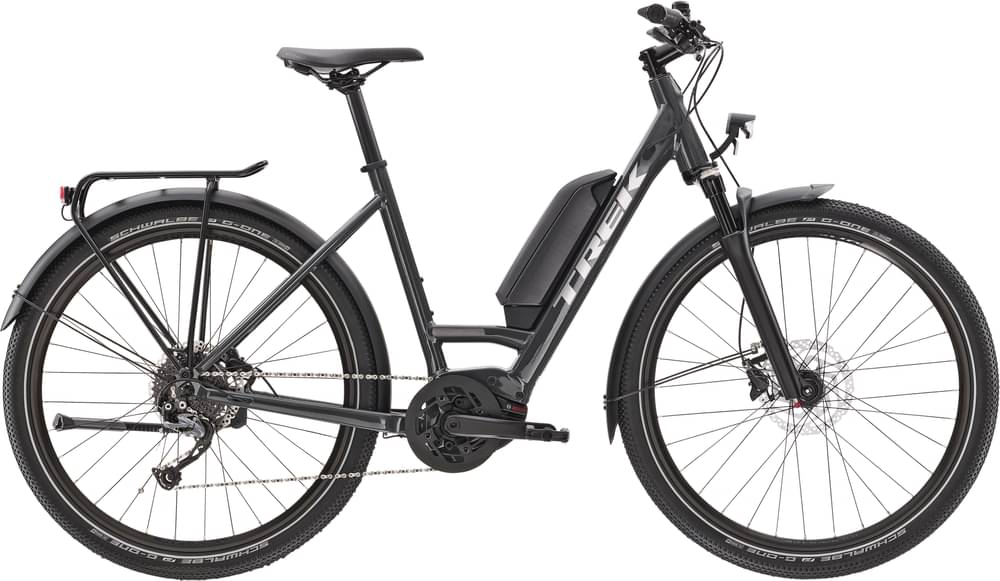

Trek Allant+ 5 Lowstep 2021
2021 E-bike
Estimate price |
3,898$
Weight | 19.26 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 650b -
Travel Front 50mm -
Fork SunTour MOBIE
-
Groupset Alivio, Altus -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch Powerpack Performance 500 downtube -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
High-performance hydroformed alloy, internal cable routing, Motor Armour, post-mount disc, 135x5 mm QR
Suspension Fork
SR Suntour Mobie25, coil spring, tapered alloy steerer, preload, rebound, lockout, post mount disc, 100x15 mm thru-axle, 50 mm travel
Drivetrain
Rear Derailleur
Size: S, M, L, Shimano Alivio M3100, long cage; Size: S, M, L, Shimano Alivio M4000, long cage, 36T max cog
Shift Levers
Shimano Altus M2010, 9-speed
Cassette
Shimano HG200, 11-36, 9-speed
Crank
Size: S, M, ProWheel alloy, 170 mm; Size: L, ProWheel alloy, 175mm
Chain
KMC E9S, 9-speed
Wheels
Front Hub
Bontrager Disc, 32-hole, 6-bolt disc, 15 mm alloy thru-axle
Rear Hub
Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR
Rims
Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23 mm width, Presta valve
Tires
Schwalbe G-One, 650Bx57 c
Brakes
Brakes
Shimano MT200 hydraulic disc
Disk Rotors
Shimano RT26, 6-bolt,180 mm
Cockpit
Stem
Size: S, Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length; Size: M, Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length; Size: L, Bontrager alloy, 31.8 mm clamp, Blendr-compatible, 7-degree, 90 mm length
Handlebar
Alloy lowriser, 31.8 mm, 25 mm rise, 11-degree backsweep, 660 mm width
Grips
Bontrager Satellite Elite, alloy lock-on
Seat
Saddle
Bontrager Commuter Comp
Seatpost
Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length
Motor & Battery
Motor
Bosch Performance CX, magnesium motor body, 250 watt, 85 Nm, 25 km/h (15.5 mph) max assist, 32 km/h for New Zealand
Battery
Bosch Powerpack Performance 500 downtube
Charger
Bosch standard 4A (220-240 V) charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG |
|---|---|---|
| Stack Reach Ratio | 1.66 mm | 1.71 mm |
| Bottom Bracket Height | 299 mm | 299 mm |
| Front Center | 645 mm | 656 mm |
| Rake | 45 mm | 45 mm |
| Trail | 86 mm | 83 mm |
| Stack | 629 mm | 659 mm |
| Reach | 378 mm | 385 mm |
| Top Tube Length | 571 mm | 587 mm |
| Seat Tube Angle | 73 ° | 73 ° |
| Seat Tube Length | 500 mm | 550 mm |
| Head Tube Angle | 69.5 ° | 70 ° |
| Head Tube Length | 170 mm | 205 mm |
| Chainstay Length | 481 mm | 481 mm |
| Wheelbase | 1119 mm | 1131 mm |
| Bottom Bracket Drop | 60 mm | 60 mm |
| Standover Height | 581 mm | 570 mm |
| Wheels | 650 | 650 |
About this model
Allant+ 5 Lowstep is a Trek E Allantplus model. There are 60 e-bikes that carry this model name. Take a sneak peek at all Trek E Allantplus e-bikes models from 2021, by clicking here.
Model range prices
The most economical model, the Trek Allant+ 7 Lowstep 2021 has a starting price of 3599$. Trek Allant+ 9.9 Stagger 2021 on the other hand is the most expensive at 7113$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Commuter e-bikes
According to our calculations, the average cost of a Commuter e-bike that is reliable is 2569$. However, even if your budget is less than the average, you might still be able to get a top-quality Commuter e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
This e-bike was released in 2021 and its price was 3609$. In conclusion, this e-bike price is 40.48% higher than the price of the average Commuter e-bike.
Average weight for Commuter e-bikes
On a deeper look, we notice that the average weight of a Commuter e-bike is 25.2 kg (55.56 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
much lighter than average, Allant+ 5 Lowstep has a weight of 19.26 kg (42.46 lbs). In short, the average Commuter e-bike weight is 30.84% higher than this one.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork
The Allant+ 5 Lowstep comes factory-installed with the SunTour MOBIE fork. This has a travel range of 50mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Fork material
Allant+ 5 Lowstep has an aluminum fork, which doesn’t add too much extra weight to the e-bike. However, it is not so stiff as steel or carbon forks are.
Wheels size
As for the wheels, Trek Allant+ 5 Lowstep 2021, has a aluminum model. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Trek Allant+ 5 Lowstep has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
