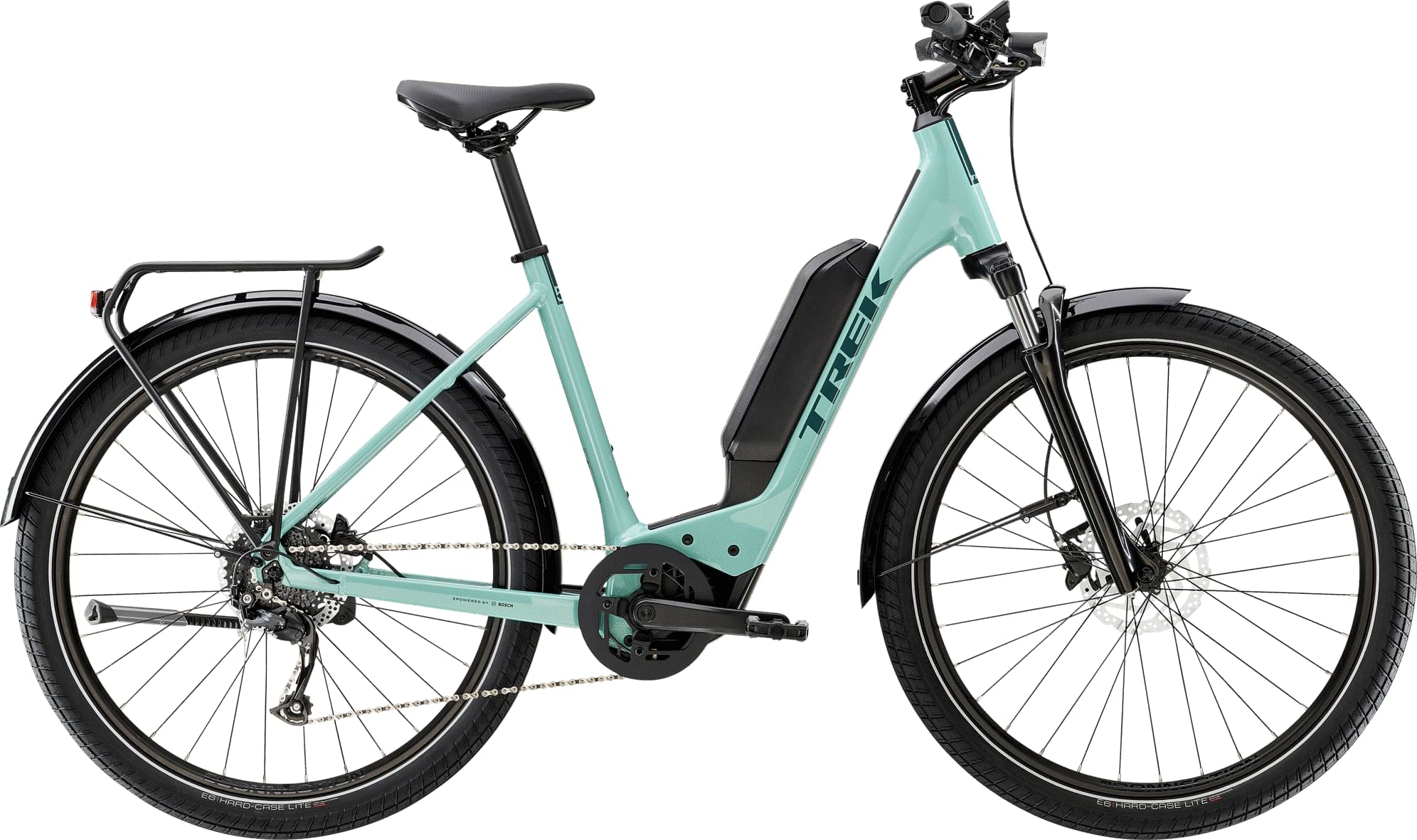

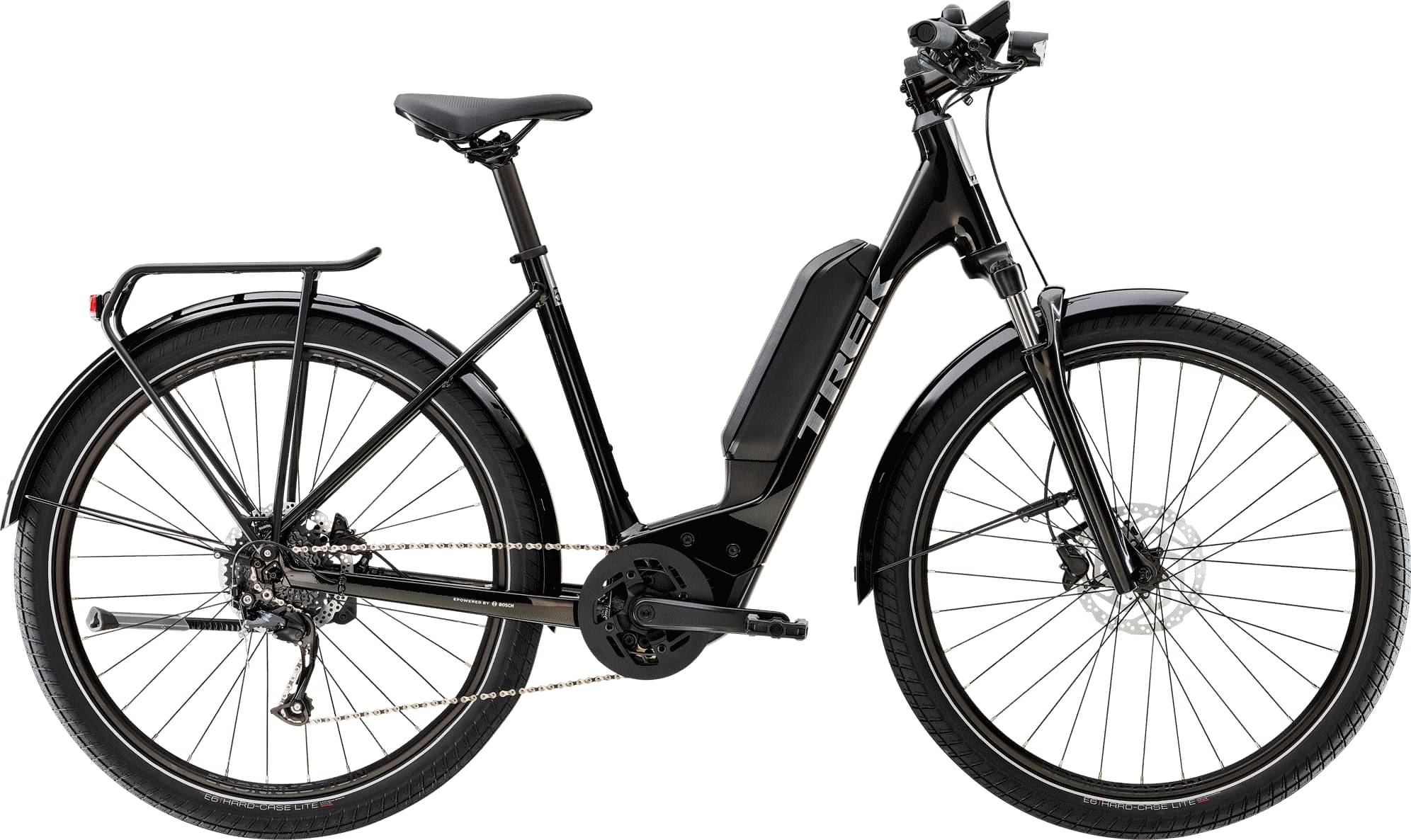

Trek Allant+ 5 Lowstep 2023
2023 E-bike
Estimate price |
3,898$
Weight | 24.3 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 60mm -
Fork Suntour NVX
-
Groupset Altus -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
45cm
155cm - 166cm
50cm
164cm - 176cm
55cm
174cm - 187cm
60cm
185cm - 197cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
High-performance hydroformed alloy, internal cable routing, external battery mount, post-mount disc, 135x5mm QR
Suspension Fork
SR Suntour NVX30, coil spring, preload adjuster, 100 mm QR, 60 mm travel
Drivetrain
Rear Derailleur
Shimano Altus M2000, long cage
Shift Levers
Shimano Altus M2010, 9-speed
Cassette
Shimano HG200, 11-36, 9-speed
Crank
Size: S, M, ProWheel alloy, 170 mm length; Size: L, XL, ProWheel alloy, 175 mm length
Chain
KMC E9S, 9-speed
Pedals
slip-proof pedals with reflectors
Wheels
Front Hub
Shimano TX505, CenterLock
Rear Hub
Shimano TX505, CenterLock
Rims
Bontrager Connection, double-wall, 32-hole, 20 mm width, Presta valve
Tires
Bontrager E6 Hard-Case Lite, reflective strip, 27.5x2.40"
Brakes
Brakes
Shimano MT200 hydraulic disc
Cockpit
Stem
Size: S, Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 70 mm length; Size: M, Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 80 mm length; Size: L, XL, Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 90 mm length
Handlebar
Alloy lowriser, 31.8 mm, 25 mm rise, 11-degree backsweep, 690 mm width
Grips
Herrmans Clik, ergonomic, lock-on
Seat
Saddle
Selle Royal Vivo Moderate Ergo
Seatpost
Size: S, M, Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length; Size: L, XL, Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length
Motor & Battery
Motor
Bosch Performance Line CX, 20 mph (25 km/h in Europe)
Charger
Bosch standard 4A, 230V, smart system
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 45cm | 50cm | 55cm | 60cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.62 mm | 1.68 mm | 1.71 mm | 1.75 mm |
| Bottom Bracket Height | 289 mm | 289 mm | 289 mm | 299 mm |
| Front Center | 681 mm | 652 mm | 662 mm | 671 mm |
| Rake | 90 mm | 50 mm | 50 mm | 50 mm |
| Trail | 79 mm | 86 mm | 83 mm | 79 mm |
| Stack | 604 mm | 635 mm | 660 mm | 686 mm |
| Reach | 372 mm | 379 mm | 386 mm | 393 mm |
| Top Tube Length | 558 mm | 575 mm | 589 mm | 603 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 450 mm | 500 mm | 550 mm | 600 mm |
| Head Tube Angle | 69 ° | 69.5 ° | 70 ° | 70.5 ° |
| Head Tube Length | 150 mm | 175 mm | 205 mm | 230 mm |
| Chainstay Length | 474 mm | 474 mm | 474 mm | 474 mm |
| Wheelbase | 1149 mm | 1119 mm | 1129 mm | 1139 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 615 mm | 621 mm | 629 mm | 677 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 155 cm | 164 cm | 174 cm | 185 cm |
| Rider Max Height | 166 cm | 176 cm | 187 cm | 197 cm |
Model Overview
Allant+ 5 Lowstep completes the Trek E Allantplus model. 60 e-bikes variations carry this model name so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Trek Allant+ 7 Lowstep 2023 is the cheapest e-bike model and costs 3499$. Trek Allant+ 9S Stagger 2023 is the most expensive one and costs 5626$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Commuter e-bikes
Our math shows that the average cost of a dependable Commuter e-bike is 2569$. However, you could also get a good Commuter e-bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3609$. Doing a quick comparison, we notice that Allant+ 5 Lowstep price is 40.48% higher than the average cost of a Commuter e-bike.
Average weight for Commuter e-bikes
Commuter e-bikes have an average weight of 25.2 kg (55.56 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
With a weight of 24.3 kg (53.57 lbs), Trek e-bike is slightly lighter than average. To sum up, it’s 3.7% lighter than the average weight of Commuter e-bikes.
Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork
The Allant+ 5 Lowstep comes factory-installed with the Suntour NVX fork. This has a travel range of 60mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
The Allant+ 5 Lowstep 2023 e-bike is equipped with aluminum wheels when leaving the factory. After 700c wheels, 650b is the second most popular choice for road bikes. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Allant+ 5 Lowstep comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 155 cm – 197 cm (5.09 ft – 6.46 ft). In conclusion, finding one for you shouldn’t be a problem.
