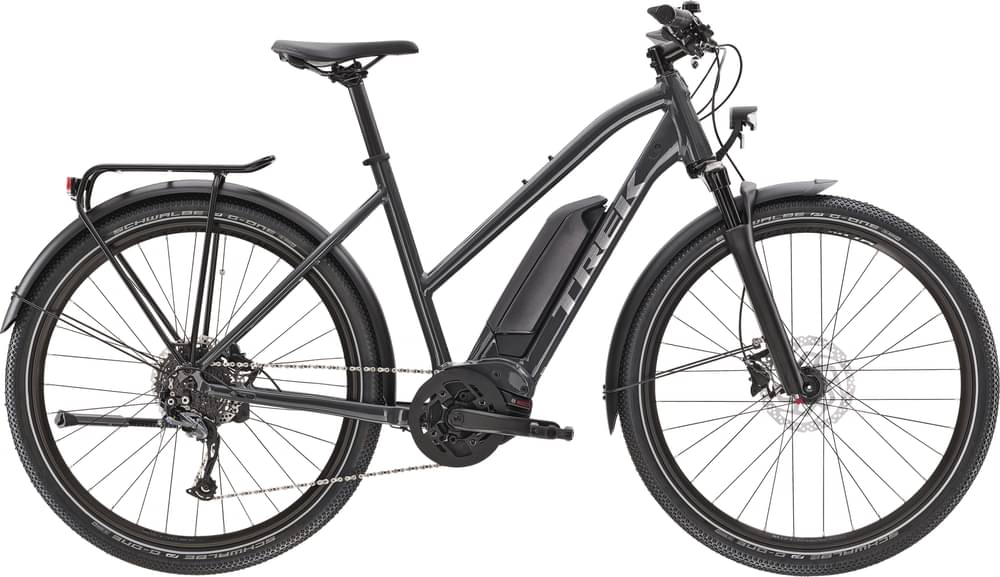

Trek Allant+ 5 Stagger 2021
2021 E-bike
Estimate price |
3,898$
Weight | 19.36 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 650b -
Travel Front 50mm -
Fork SunTour MOBIE
-
Groupset Alivio, Altus -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch Powerpack Performance 500 downtube -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
155cm - 166cm
MD
164cm - 176cm
LG
174cm - 186cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
High-performance hydroformed alloy, internal cable routing, Motor Armour, post-mount disc, 135x5 mm QR
Suspension Fork
SR Suntour Mobie25, coil spring, tapered alloy steerer, preload, rebound, lockout, post mount disc, 100x15 mm thru-axle, 50 mm travel
Drivetrain
Rear Derailleur
Size: S, M, L, Shimano Alivio M3100, long cage; Size: S, M, L, Shimano Alivio M4000, long cage, 36T max cog
Shift Levers
Shimano Altus M2010, 9-speed
Cassette
Shimano HG200, 11-36, 9-speed
Crank
Size: S, M, ProWheel alloy, 170 mm; Size: L, ProWheel alloy, 175mm
Chain
KMC E9S, 9-speed
Wheels
Front Hub
Bontrager Disc, 32-hole, 6-bolt disc, 15 mm alloy thru-axle
Rear Hub
Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR
Rims
Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23 mm width, Presta valve
Tires
Schwalbe G-One, 650Bx57 c
Brakes
Brakes
Shimano MT200 hydraulic disc
Disk Rotors
Shimano RT26, 6-bolt,180 mm
Cockpit
Stem
Size: S, Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length; Size: M, Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length; Size: L, Bontrager alloy, 31.8 mm clamp, Blendr-compatible, 7-degree, 90 mm length
Handlebar
Alloy lowriser, 31.8 mm, 25 mm rise, 11-degree backsweep, 660 mm width
Grips
Bontrager Satellite Elite, alloy lock-on
Seat
Saddle
Bontrager Commuter Comp
Seatpost
Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length
Motor & Battery
Motor
Bosch Performance CX, magnesium motor body, 250 watt, 85 Nm, 25 km/h (15.5 mph) max assist, 32 km/h for New Zealand
Battery
Bosch Powerpack Performance 500 downtube
Charger
Bosch standard 4A (220-240 V) charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.62 mm | 1.62 mm | 1.67 mm |
| Bottom Bracket Height | 299 mm | 299 mm | 299 mm |
| Front Center | 634 mm | 645 mm | 656 mm |
| Rake | 45 mm | 45 mm | 44 mm |
| Trail | 89 mm | 86 mm | 83 mm |
| Stack | 604 mm | 620 mm | 651 mm |
| Reach | 372 mm | 383 mm | 390 mm |
| Top Tube Length | 557 mm | 573 mm | 589 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 450 mm | 500 mm | 550 mm |
| Head Tube Angle | 69 ° | 69.5 ° | 70 ° |
| Head Tube Length | 150 mm | 165 mm | 195 mm |
| Chainstay Length | 482 mm | 482 mm | 482 mm |
| Wheelbase | 1109 mm | 1120 mm | 1132 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Standover Height | 592 mm | 657 mm | 689 mm |
| Wheels | 650 | 650 | 650 |
| Rider Min Height | 155 cm | 164 cm | 174 cm |
| Rider Max Height | 166 cm | 176 cm | 186 cm |
Model Overview
Allant+ 5 Stagger is a Trek E Allantplus model. Trek released 60 e-bikes variations of this model so far. Check out the entire range from 2021 of this model, by clicking this link.
Model range prices
Trek Allant+ 7 Lowstep 2021 is the most affordable e-bike of this model and has a price of 3599$. On the other hand, Trek Allant+ 9.9 Stagger 2021, is the most expensive and costs 7113$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Commuter e-bikes average price
According to our math, the average price for a trustworthy Commuter e-bike is 2569$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Commuter e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
At the moment of the release date, Trek Allant+ 5 Stagger price was 3609$. In conclusion, this e-bike price is 40.48% higher than the price of the average Commuter e-bike.
Average weight for Commuter e-bikes
Commuter e-bikes weigh an average of 25.2 kg (55.56 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Allant+ 5 Stagger weighs 19.36 kg (42.68 lbs) and is much lighter than the average. In other words, this model is 30.17% lighter than the average Commuter e-bike.
Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Allant+ 5 Stagger components
Fork
The SunTour MOBIE is included from the factory. It has a travel distance of 50mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Fork material
When it comes to the fork, this e-bike has an aluminum one, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels size
The wheels on Allant+ 5 Stagger are the aluminum type. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Trek Allant+ 5 Stagger has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
This e-bike is available in 3 sizes. They vary from 155 cm – 186 cm (5.09 ft – 6.1 ft). In conclusion, you won’t have a problem finding one that suits you.
