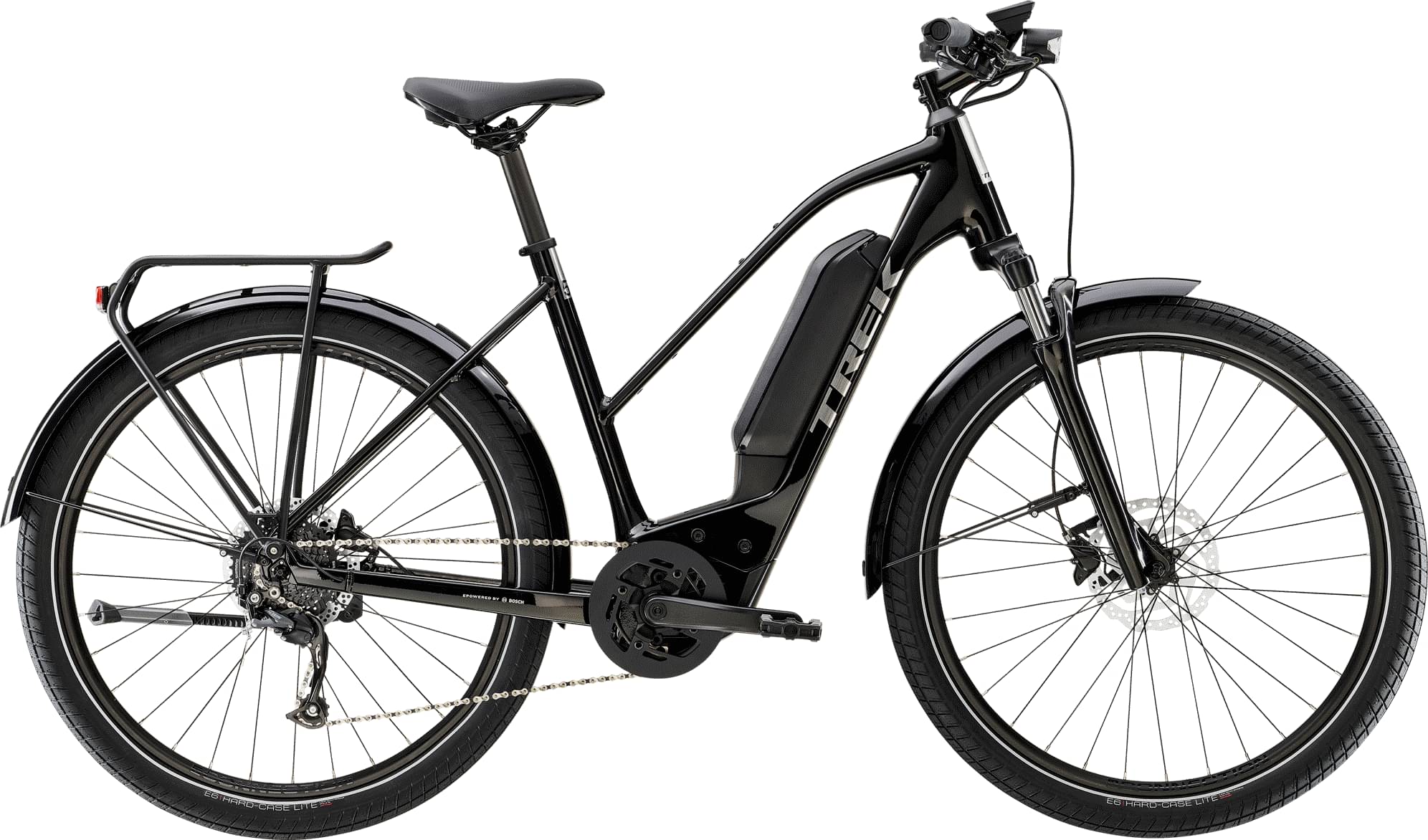

Trek Allant+ 5 Stagger 2023
2023 E-bike
Estimate price |
3,898$
Weight | 24.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 60mm -
Fork Suntour NVX
-
Groupset Altus -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
45cm
155cm - 166cm
50cm
164cm - 176cm
55cm
174cm - 186cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
High-performance hydroformed alloy, internal cable routing, external battery mount, post-mount disc, 135x5mm QR
Suspension Fork
SR Suntour NVX30, coil spring, preload adjuster, 100 mm QR, 60 mm travel
Drivetrain
Rear Derailleur
Shimano Altus M2000, long cage
Shift Levers
Shimano Altus M2010, 9-speed
Cassette
Shimano HG200, 11-36, 9-speed
Crank
Size: S, M, ProWheel alloy, 170 mm length; Size: L, ProWheel alloy, 175 mm length
Chain
KMC E9S, 9-speed
Pedals
slip-proof pedals with reflectors
Wheels
Front Hub
Shimano TX505, CenterLock
Rear Hub
Shimano TX505, CenterLock
Rims
Bontrager Connection, double-wall, 32-hole, 20 mm width, Presta valve
Tires
Bontrager E6 Hard-Case Lite, reflective strip, 27.5x2.40"
Brakes
Brakes
Shimano MT200 hydraulic disc
Cockpit
Stem
Size: S, Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 70 mm length; Size: M, Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 80 mm length; Size: L, Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 90 mm length
Handlebar
Alloy lowriser, 31.8 mm, 25 mm rise, 11-degree backsweep, 690 mm width
Grips
Herrmans Clik, ergonomic, lock-on
Seat
Saddle
Selle Royal Vivo Moderate Ergo
Seatpost
Size: S, M, Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length; Size: L, Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length
Motor & Battery
Motor
Bosch Performance Line CX, 20 mph (25 km/h in Europe)
Charger
Bosch standard 4A, 230V, smart system
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 45cm | 50cm | 55cm |
|---|---|---|---|
| Stack Reach Ratio | 1.58 mm | 1.62 mm | 1.64 mm |
| Bottom Bracket Height | 289 mm | 289 mm | 289 mm |
| Front Center | 642 mm | 652 mm | 662 mm |
| Rake | 52 mm | 52 mm | 43 mm |
| Trail | 89 mm | 86 mm | 83 mm |
| Stack | 595 mm | 620 mm | 651 mm |
| Reach | 376 mm | 383 mm | 397 mm |
| Top Tube Length | 558 mm | 575 mm | 589 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 450 mm | 500 mm | 550 mm |
| Head Tube Angle | 69 ° | 69.5 ° | 70 ° |
| Head Tube Length | 140 mm | 165 mm | 195 mm |
| Chainstay Length | 474 mm | 474 mm | 474 mm |
| Wheelbase | 1109 mm | 1119 mm | 1129 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Standover Height | 681 mm | 686 mm | 726 mm |
| Wheels | 650 | 650 | 650 |
| Rider Min Height | 155 cm | 164 cm | 174 cm |
| Rider Max Height | 166 cm | 176 cm | 186 cm |
Model Overview
Allant+ 5 Stagger is a Trek E Allantplus model. 60 e-bikes variations carry this model name so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Trek Allant+ 7 Lowstep 2023 is the most economical model, with a starting price of 3499$. Trek Allant+ 9S Stagger 2023 on the other hand costs 5626$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Commuter e-bikes
According to our calculations, the average cost of a Commuter e-bike that is reliable is 2569$. However, this doesn’t mean that if you spend less money on a Commuter e-bike, you couldn’t get a decent one. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, Trek Allant+ 5 Stagger price was 3609$. Comparing the average cost of a Commuter e-bike to this one, you will see that Allant+ 5 Stagger price is 40.48% more expensive.
Average weight for Commuter e-bikes
Commuter e-bikes weigh an average of 25.2 kg (55.56 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Weighing 24.5 kg (54.01 lbs), the Allant+ 5 Stagger model is slightly lighter than average. In other words, this model is 2.86% lighter than the average Commuter e-bike.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork
Trek Allant+ 5 Stagger 2023 e-bike is equipped with the Suntour NVX fork, and has 60mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
When leaving the production line, the Allant+ 5 Stagger model has aluminum wheels. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The Allant+ 5 Stagger has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
This e-bike is available in 3 sizes. They vary from 155 cm – 186 cm (5.09 ft – 6.1 ft). In short, it won’t be difficult to find the right one for you.
