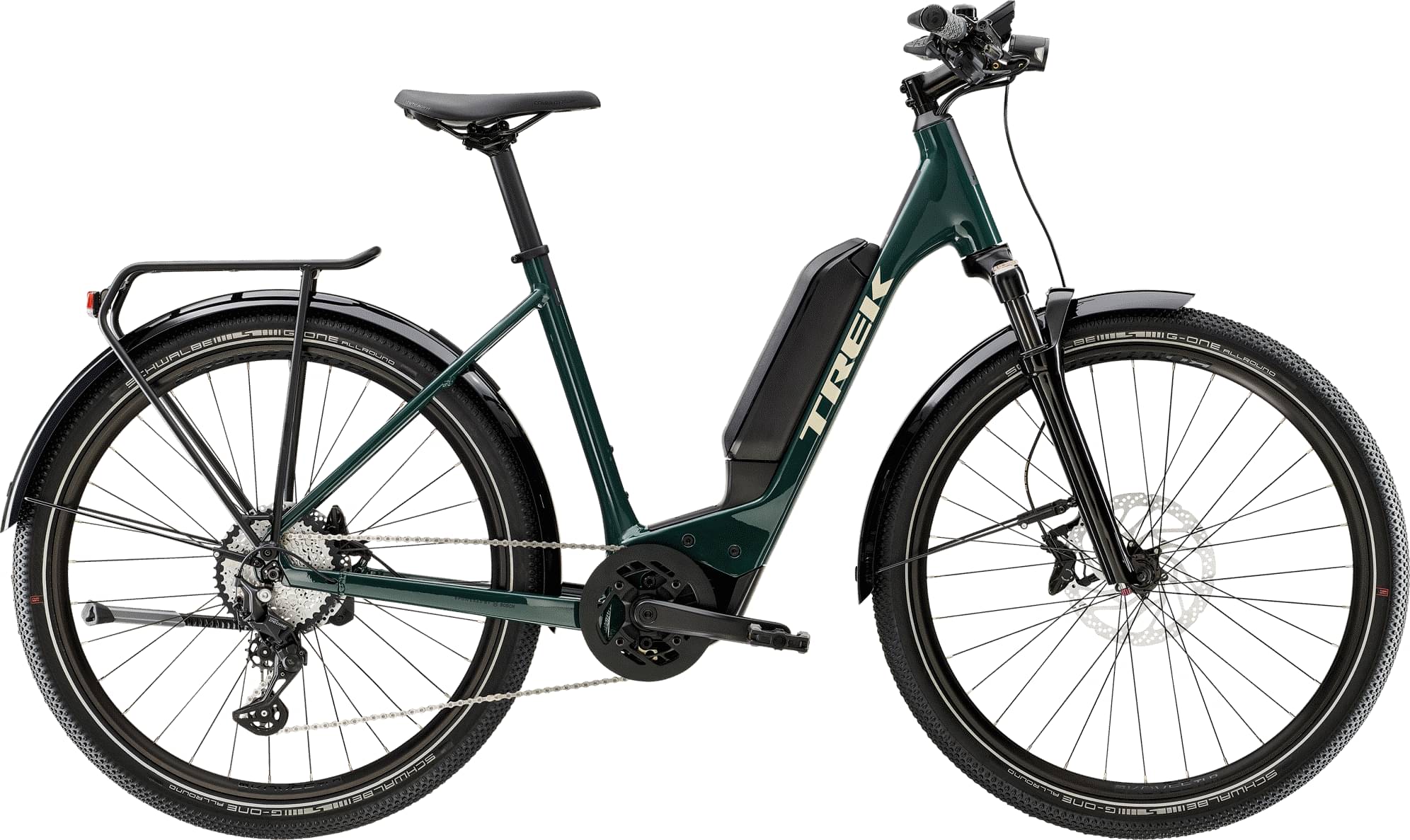

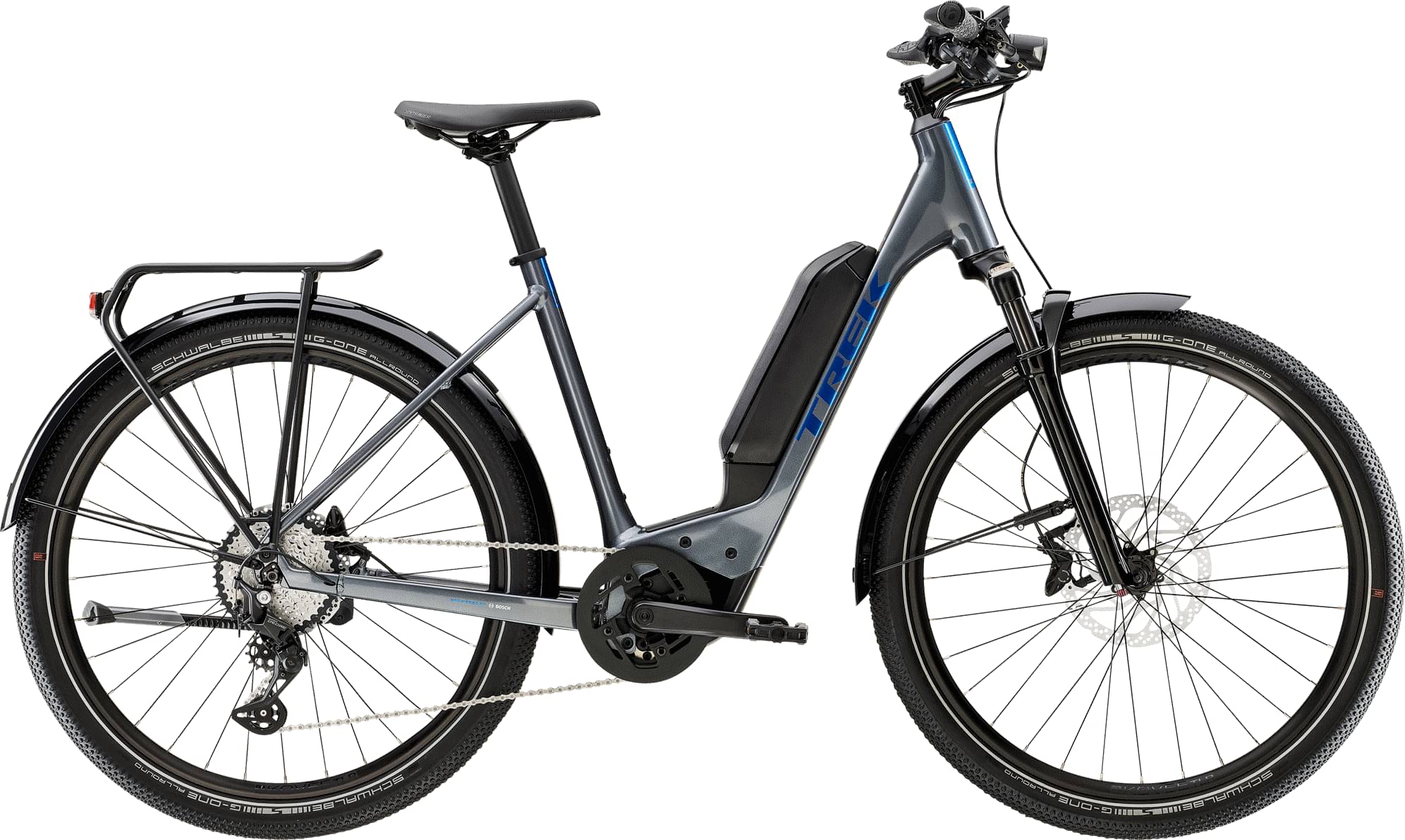

Trek Allant+ 6 Lowstep 2023
2023 E-bike
Estimate price |
4,472$
Weight | 23.1 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 60mm -
Fork Suntour MOBIE
-
Groupset Deore -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
45cm
155cm - 166cm
50cm
164cm - 176cm
55cm
174cm - 187cm
60cm
185cm - 197cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
High-performance hydroformed alloy, internal cable routing, external battery mount, post-mount disc, 135x5mm QR
Suspension Fork
SR Suntour Mobie 34, air spring, rebound and compression adjust, tapered alloy steerer, 100x15 mm thru axle, 60 mm travel
Drivetrain
Rear Derailleur
Shimano Deore M5130
Shift Levers
Shimano Deore M5130, 10-speed
Cassette
Size: S, M, L, XL, Shimano LG600, 11-43, 10-speed; Size: S, M, L, XL, Shimano LG400, 11-43, 10-speed
Crank
Size: S, M, ProWheel alloy, 170 mm length; Size: L, XL, ProWheel alloy, 175 mm length
Chain
Shimano LG500, 9/10/11-speed
Pedals
slip-proof pedals with reflectors
Wheels
Front Hub
Bontrager sealed bearing, 32-hole, 15 mm alloy thru-axle
Rear Hub
Formula CL-52 alloy, 135x5 mm QR
Rims
Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23 mm width, Presta valve
Tires
Schwalbe G-One, 650x57 mm
Brakes
Brakes
Shimano MT401 / MT420 hydraulic disc, 180 mm rotor
Cockpit
Stem
Size: S, M, Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 80 mm length; Size: L, XL, Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 90 mm length
Handlebar
Alloy lowriser, 31.8 mm, 25 mm rise, 11-degree backsweep, 690 mm width
Grips
Bontrager XR Endurance Elite
Seat
Saddle
Bontrager Commuter Comp
Seatpost
Size: S, M, Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length; Size: L, XL, Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length
Motor & Battery
Motor
Bosch Performance Line CX, 20 mph (25 km/h in Europe)
Charger
Bosch standard 4A, 230V, smart system
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 45cm | 50cm | 55cm | 60cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.62 mm | 1.68 mm | 1.71 mm | 1.75 mm |
| Bottom Bracket Height | 289 mm | 289 mm | 289 mm | 299 mm |
| Front Center | 681 mm | 652 mm | 662 mm | 671 mm |
| Rake | 90 mm | 50 mm | 50 mm | 50 mm |
| Trail | 79 mm | 86 mm | 83 mm | 79 mm |
| Stack | 604 mm | 635 mm | 660 mm | 686 mm |
| Reach | 372 mm | 379 mm | 386 mm | 393 mm |
| Top Tube Length | 558 mm | 575 mm | 589 mm | 603 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 450 mm | 500 mm | 550 mm | 600 mm |
| Head Tube Angle | 69 ° | 69.5 ° | 70 ° | 70.5 ° |
| Head Tube Length | 150 mm | 175 mm | 205 mm | 230 mm |
| Chainstay Length | 474 mm | 474 mm | 474 mm | 474 mm |
| Wheelbase | 1149 mm | 1119 mm | 1129 mm | 1139 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 615 mm | 621 mm | 629 mm | 677 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 155 cm | 164 cm | 174 cm | 185 cm |
| Rider Max Height | 166 cm | 176 cm | 187 cm | 197 cm |
About this model
Allant+ 6 Lowstep is a Trek E Allantplus model. Trek released 60 e-bikes variations of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Trek Allant+ 7 Lowstep 2023 is the most affordable e-bike of this model and has a price of 3499$. On the other hand, Trek Allant+ 9S Stagger 2023, is the most expensive and costs 5626$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Commuter e-bikes average price
According to our calculations, the average cost of a Commuter e-bike that is reliable is 2569$. However, this doesn’t mean that if you spend less money on a Commuter e-bike, you couldn’t get a decent one. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Trek Allant+ 6 Lowstep price was 4140$. Doing a quick comparison, we notice that Allant+ 6 Lowstep price is 61.15% higher than the average cost of a Commuter e-bike.
Average weight for Commuter e-bikes
If we make a quick analysis of the average weight of a Commuter e-bike, we get 25.2 kg (55.56 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
a bit lighter than average, Allant+ 6 Lowstep has a weight of 23.1 kg (50.93 lbs). In other words, this model is 9.09% lighter than the average Commuter e-bike.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Allant+ 6 Lowstep components
Fork
The Allant+ 6 Lowstep comes factory-installed with the Suntour MOBIE fork. This has a travel range of 60mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Fork material
Allant+ 6 Lowstep has an aluminum fork, so there won’t be much extra weight added to the e-bike. However, they are not so stiff as carbon forks are.
Wheels
The Allant+ 6 Lowstep 2023 e-bike is equipped with aluminum wheels when leaving the factory. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
This e-bike is available in 4 sizes. They vary from 155 cm – 197 cm (5.09 ft – 6.46 ft). In conclusion, it won’t take much to find one that’s right for you.
