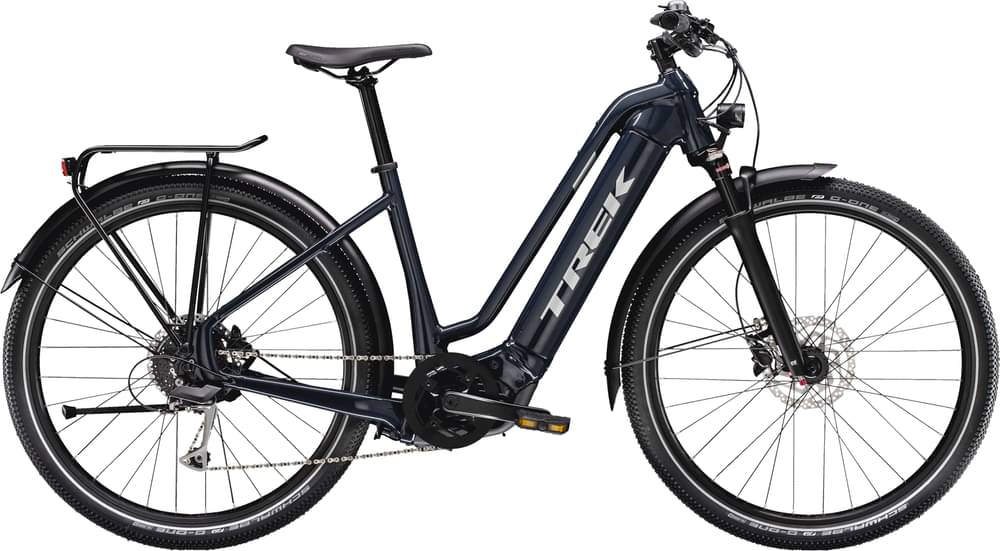

Trek Allant+ 7 Lowstep 2022
2022 E-bike
Estimate price |
3,699$
Weight | 24.86 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 650b -
Travel Front 45mm -
Fork SunTour MOBIE
-
Groupset Alivio -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube 500 -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
155cm - 166cm
MD
164cm - 176cm
LG
174cm - 186cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Size: S, M, L, High-performance hydroformed alloy, Removable Integrated Battery, internal cable routing, Motor Armour, post-mount disc, 135x5 mm QR; Size: M, High-performance hydroformed e-bike frame w/integrated battery and Motor Armor, Lowstep design internal cable routing, post-mount disc, 5mm QR dropouts
Suspension Fork
SR Suntour Mobie25, 45mm travel, preload, rebound and lockout, tapered alloy steerer, post mount disc
Drivetrain
Rear Derailleur
Shimano Alivio T4000, long cage
Shift Levers
Size: S, M, L, Shimano Alivio M3100, 9 speed; Size: S, M, L, Shimano Alivio M4000, 9 speed
Cassette
Shimano HG200, 11-36, 9 speed
Crank
Size: S, M, ProWheel alloy, 170mm; Size: L, ProWheel alloy, 175mm
Chain
KMC E9S, 9 speed
Wheels
Front Hub
Bontrager Disc, 32-hole, 6-bolt disc, 15mm alloy thru-axle
Rear Hub
Bontrager alloy, sealed bearing, 6-bolt, 135x5mm QR
Rims
Alex MD35, tubeless compatible, 32-hole, 35mm width, presta valve
Spokes
DT Swiss 14g, black
Tires
Schwalbe G-One, 650Bx57c
Brakes
Brakes
Shimano MT200 hydraulic disc
Disk Rotors
Shimano RT26, 6-bolt,180mm
Cockpit
Stem
Size: S, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 60mm length; Size: M, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 70mm length; Size: L, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 90mm length
Handlebar
Size: S, M, Bontrager alloy, 31.8mm, 15mm rise, 600mm width; Size: L, Bontrager alloy, 31.8mm, 15mm rise, 660mm width
Grips
Bontrager Satellite Elite, alloy lock-on
Headset
Size: S, M, L, FSA Integrated, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom; Size: S, M, L, FSA IS-2 alloy, integrated, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom
Seat
Saddle
Bontrager Commuter Comp
Seatpost
Bontrager Comp, 6061 alloy, 31.6mm, 8mm offset, 330mm length
Motor & Battery
Motor
Bosch Performance CX, magnesium motor body, 250 watt, 85 Nm, 20mph or 32km/h max assist
Battery
Bosch PowerTube 500
Charger
Bosch standard 4A (100-240V) charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.58 mm | 1.65 mm |
| Bottom Bracket Height | 299 mm | 299 mm | 295 mm |
| Front Center | 657 mm | 660 mm | 667 mm |
| Rake | 44 mm | 41 mm | 41 mm |
| Trail | 90 mm | 86 mm | 81 mm |
| Stack | 605 mm | 630 mm | 660 mm |
| Reach | 397 mm | 399 mm | 401 mm |
| Top Tube Length | 582 mm | 592 mm | 603 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 450 mm | 450 mm | 491 mm |
| Head Tube Angle | 69 ° | 69.5 ° | 70 ° |
| Head Tube Length | 150 mm | 175 mm | 205 mm |
| Chainstay Length | 486 mm | 486 mm | 486 mm |
| Wheelbase | 1137 mm | 1140 mm | 1147 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Standover Height | 475 mm | 477 mm | 476 mm |
| Wheels | 650 | 650 | 650 |
| Rider Min Height | 155 cm | 164 cm | 174 cm |
| Rider Max Height | 166 cm | 176 cm | 186 cm |
Model Overview
Allant+ 7 Lowstep is part of the Trek E Allantplus model. Trek released 60 e-bikes variations of this model so far. Take a sneak peek at all Trek E Allantplus e-bikes models from 2022, by clicking here.
Model range prices
Trek Allant+ 5 Lowstep 2022 is the most affordable e-bike of this model and has a price of 3662$. On the other hand, Trek Allant+ 9.9S Stagger 2022, is the most expensive and costs 7431$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Commuter e-bikes average price
If you want an acceptable Commuter e-bike you should know that the average price is 2569$. However, even though the average price of a Commuter e-bike is lower, you might still be able to get a top-quality e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
This e-bike was released in 2022 and its price was 3699$. Comparing the average cost of a Commuter e-bike to this one, you will see that Allant+ 7 Lowstep price is 43.99% higher.
Average weight for Commuter e-bikes
On a deeper look, we notice that the average weight of a Commuter e-bike is 25.2 kg (55.56 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
slightly lighter than average, Allant+ 7 Lowstep has a weight of 24.86 kg (54.81 lbs). In conclusion, the average Commuter e-bike weighs 1.37% more than Allant+ 7 Lowstep.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Allant+ 7 Lowstep components
Fork
The fork installed on this bike is the SunTour MOBIE model. The travel on this model is 45mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Fork material
The fork is made out of aluminum, which doesn’t add too much extra weight to the e-bike. However, it is not so stiff as steel or carbon forks are.
Wheels size
The Allant+ 7 Lowstep 2022 e-bike is equipped with aluminum wheels when leaving the factory. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
This e-bike is available in 3 sizes. They vary from 155 cm – 186 cm (5.09 ft – 6.1 ft). In conclusion, finding one for you shouldn’t be a problem.
