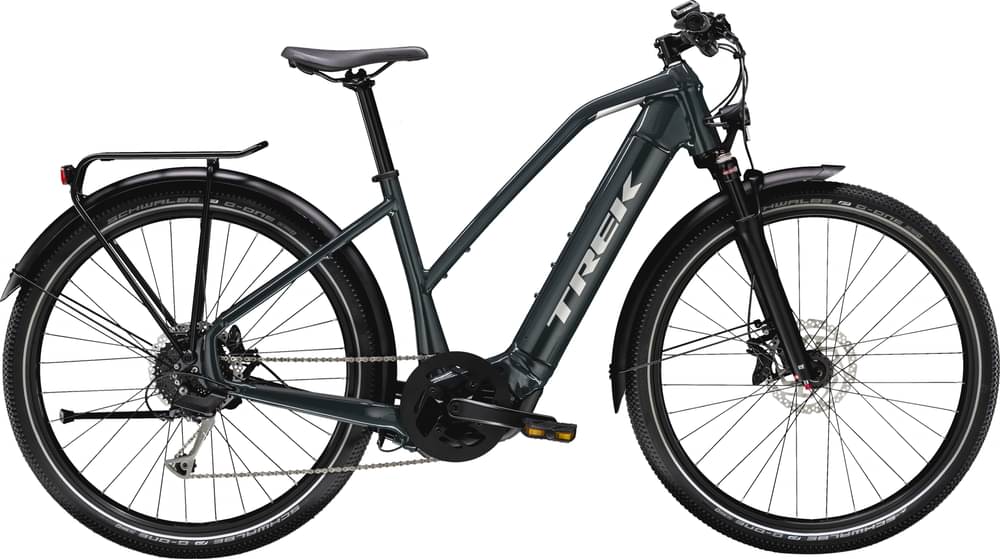

Trek Allant+ 7-Speed Stagger 2021
2021 E-bike
Estimate price |
3,899$
Weight | 24.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 650b -
Travel Front 50mm -
Fork SunTour MOBIE
-
Groupset Alivio -
Suspension Hardtail -
Motor Bosch 250W 63Nm mid-drive -
Battery Bosch PowerTube 500 -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
155cm - 166cm
MD
164cm - 176cm
LG
174cm - 186cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Size: S, M, L, High-performance hydroformed alloy, Removable Integrated Battery, Range Boost-compatible, internal cable routing, Motor Armour, post-mount disc, 135x5 mm QR; Size: S, M, L, High-performance hydroformed alloy, Removable Integrated Battery, Range Boost compatible, internal cable routing, Motor Armor, post-mount disc, 135x5mm QR
Suspension Fork
Size: S, M, L, SR Suntour Mobie25, coil spring, tapered alloy steerer, preload, rebound, lockout, post mount disc, 100x15mm thru-axle, 50mm travel; Size: S, M, L, SR Suntour Mobie25, 45mm travel, preload, rebound and lockout, tapered alloy steerer, post mount disc
Drivetrain
Rear Derailleur
Shimano Alivio T4000, long cage
Shift Levers
Size: S, M, L, Shimano Alivio M3100, 9 speed; Size: S, M, L, Shimano Alivio M4000, 9 speed
Cassette
Shimano HG200, 11-36, 9 speed
Crank
Size: S, M, ProWheel alloy, 170mm; Size: L, ProWheel alloy, 175mm
Chain
KMC X9
Wheels
Front Hub
Bontrager Disc, 32-hole, 6-bolt disc, 15mm alloy thru-axle
Rear Hub
Bontrager alloy, sealed bearing, 6-bolt, 135x5mm QR
Rims
Alex MD35, Tubeless Ready, 32-hole, 35mm width, presta valve
Spokes
Size: S, M, L, NA; Size: S, M, L, J-Bend, 14g, Steel, Black; Size: S, M, L, DT Swiss 14g, black
Tires
Schwalbe G-One, 650Bx57c
Brakes
Brakes
Shimano MT520 4-piston hydraulic disc, post-mount 180mm rotor
Disk Rotors
Shimano RT26, 6-bolt,180mm
Cockpit
Stem
Size: S, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 60mm length; Size: M, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 70mm length; Size: L, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 90mm length
Handlebar
Size: S, M, Bontrager alloy, 31.8mm, 15mm rise, 600mm width; Size: L, Bontrager alloy, 31.8mm, 15mm rise, 660mm width
Grips
Bontrager Satellite Elite, alloy lock-on
Headset
FSA Integrated, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom
Seat
Saddle
Bontrager Commuter Comp
Seatpost
Bontrager Comp, 6061 alloy, 31.6mm, 8mm offset, 330mm length
Motor & Battery
Motor
Bosch Performance Speed, 75 Nm, 28 mph / 45 kph
Battery
Bosch PowerTube 500
Charger
Bosch standard 4A (100-240V) charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.53 mm | 1.6 mm |
| Bottom Bracket Height | 295 mm | 295 mm | 295 mm |
| Front Center | 658 mm | 661 mm | 673 mm |
| Rake | 44 mm | 41 mm | 44 mm |
| Trail | 89 mm | 84 mm | 82 mm |
| Stack | 596 mm | 620 mm | 652 mm |
| Reach | 401 mm | 404 mm | 407 mm |
| Top Tube Length | 583 mm | 594 mm | 607 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 450 mm | 450 mm | 491 mm |
| Head Tube Angle | 69 ° | 69.5 ° | 70 ° |
| Head Tube Length | 140 mm | 165 mm | 195 mm |
| Chainstay Length | 486 mm | 486 mm | 486 mm |
| Wheelbase | 1138 mm | 1141 mm | 1153 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Standover Height | 705 mm | 709 mm | 755 mm |
| Wheels | 650 | 650 | 650 |
| Rider Min Height | 155 cm | 164 cm | 174 cm |
| Rider Max Height | 166 cm | 176 cm | 186 cm |
Model Overview
Allant+ 7-Speed Stagger is a Trek E Allantplus model. There are 60 e-bikes that carry this model name. Check out the entire range from 2021 of this model, by clicking this link.
Model range prices
Trek Allant+ 7 Lowstep 2021 is the cheapest e-bike model and costs 3599$. Trek Allant+ 9.9 Stagger 2021 is the most expensive one and costs 7113$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Commuter e-bikes
If you want an acceptable Commuter e-bike you should know that the average price is 2569$. However, even if your budget is less than the average, you might still be able to get a top-quality Commuter e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3899$. Comparing the average cost of a Commuter e-bike to this one, you will see that Allant+ 7-Speed Stagger price is 51.77% more expensive.
Average weight for Commuter e-bikes
Commuter e-bikes weigh an average of 25.2 kg (55.56 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Allant+ 7-Speed Stagger weighs 24.5 kg (54.01 lbs) and is slightly lighter than the average. In conclusion, the average Commuter e-bike weighs 2.86% more than Allant+ 7-Speed Stagger.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Allant+ 7-Speed Stagger components
Fork
The SunTour MOBIE is included from the factory. It has a travel distance of 50mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Fork material
The fork on this e-bike is made out of aluminum, so there won’t be much extra weight added to the e-bike. However, they are not so stiff as carbon forks are.
Wheels
As for the wheels, Trek Allant+ 7-Speed Stagger 2021, has a aluminum model. After 700c wheels, 650b is the second most popular choice for road bikes. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Allant+ 7-Speed Stagger comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
Allant+ 7-Speed Stagger comes in 3 sizes, that range from 155 cm – 186 cm (5.09 ft – 6.1 ft). In short, it won’t be difficult to find the right one for you.
