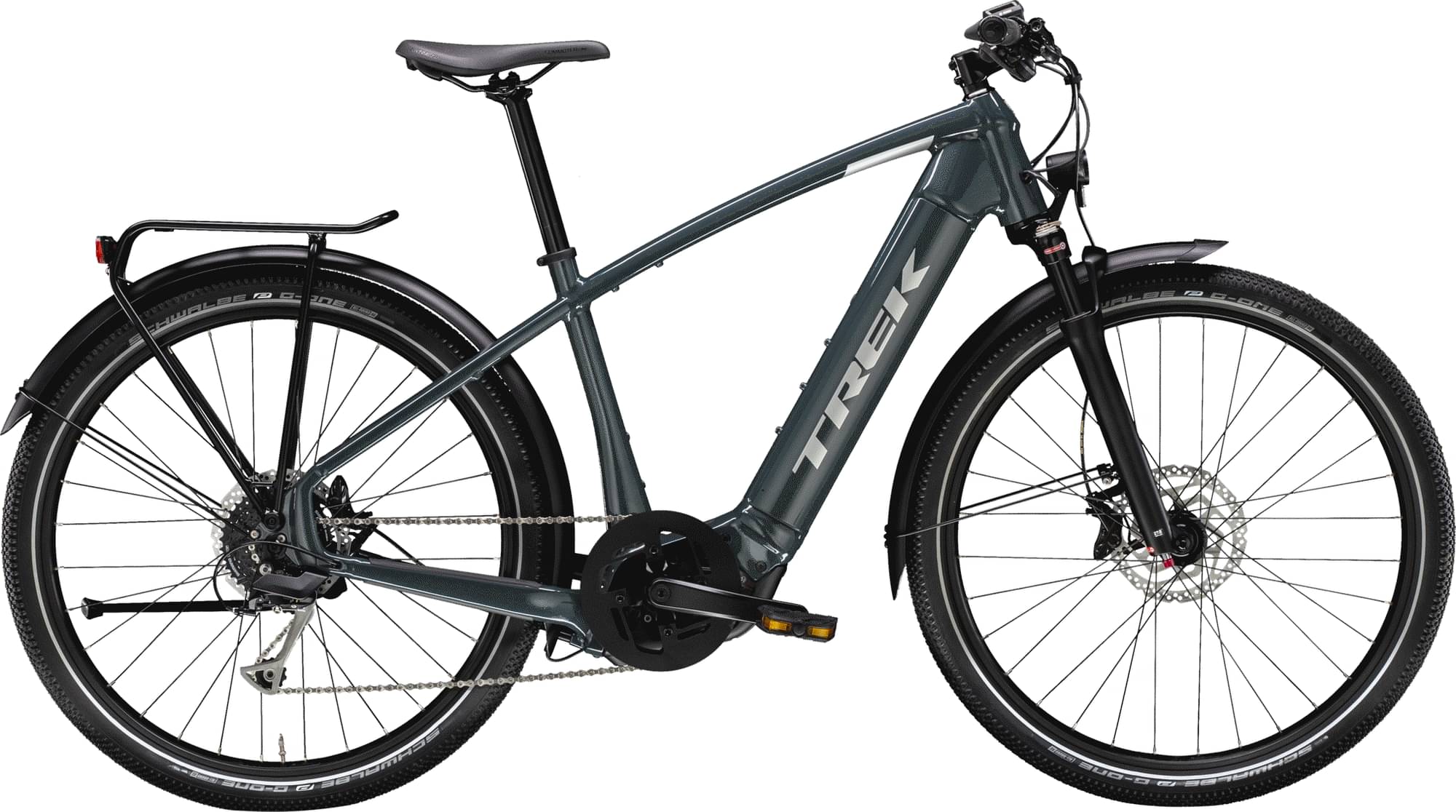

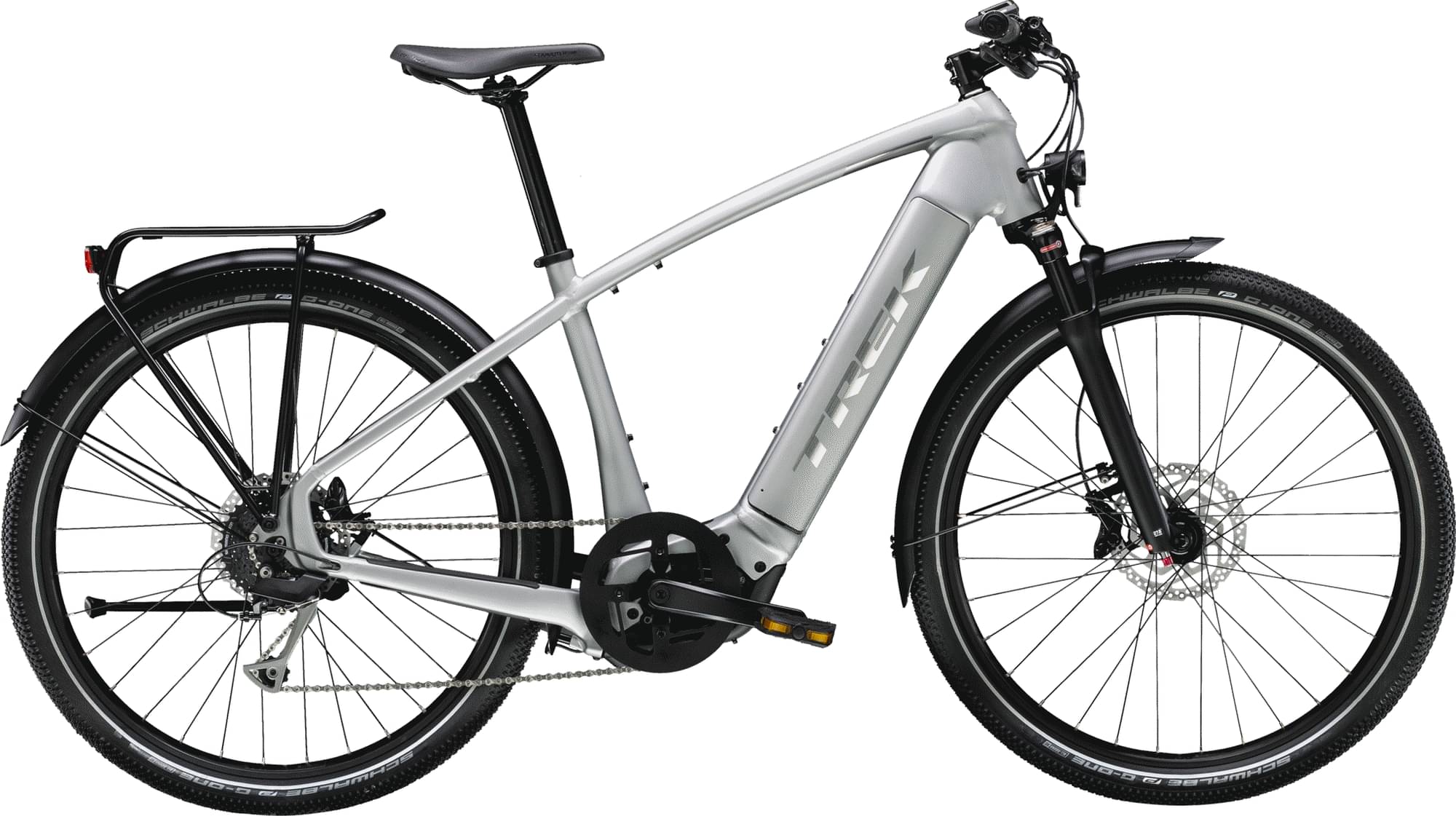

Trek Allant+ 7S 2023
2023 E-bike
Estimate price |
3,799$
Weight | 24.52 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 45mm -
Fork Suntour MOBIE
-
Groupset Alivio -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube 500Wh -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 176cm
LG
174cm - 187cm
XL
185cm - 197cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
High-performance hydroformed alloy, Removable Integrated Battery, Range Boost-compatible, internal cable routing, Motor Armour, post-mount disc, 135x5 mm QR
Suspension Fork
SR Suntour Mobie 25, coil spring, lockout, rebound adjust, tapered alloy steerer, 15x100mm thru axle, 45mm travel
Drivetrain
Rear Derailleur
Shimano Alivio T4000, long cage
Shift Levers
Shimano Alivio M3100, 9 speed
Cassette
Shimano HG200, 11-36, 9 speed
Crank
Size: M, ProWheel alloy, 170mm length; Size: L, XL, ProWheel alloy, 175mm length
Chain
KMC X9
Pedals
Bontrager City pedals
Wheels
Front Hub
Bontrager Disc, 32-hole, 6-bolt disc, 15mm alloy thru-axle
Rear Hub
Bontrager alloy, sealed bearing, 6-bolt, 135x5mm QR
Rims
Alex MD35, tubeless compatible, 32-hole, 35mm width, Presta valve
Tires
Schwalbe G-One, 650x57mm
Brakes
Brakes
Shimano MT520 4-piston hydraulic disc, post-mount, 180mm rotor
Cockpit
Stem
Size: M, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 70mm length; Size: L, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 90mm length; Size: XL, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 100mm length
Handlebar
Size: M, Bontrager alloy, 31.8mm, 15mm rise, 600mm width; Size: L, XL, Bontrager alloy, 31.8mm, 15mm rise, 660mm width
Grips
Bontrager Satellite Elite, alloy lock-on
Headset
FSA Integrated, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom
Seat
Saddle
Bontrager Commuter Comp
Seatpost
Bontrager Comp, 6061 alloy, 31.6mm, 8mm offset, 330mm length
Motor & Battery
Motor
Bosch Performance Speed, 85 Nm, 28 mph / 45 kph
Battery
Bosch PowerTube 500Wh
Charger
Bosch standard 4A, 100-240V
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.55 mm | 1.61 mm | 1.68 mm |
| Bottom Bracket Height | 295 mm | 295 mm | 295 mm |
| Front Center | 665 mm | 669 mm | 683 mm |
| Rake | 44 mm | 41 mm | 44 mm |
| Trail | 86 mm | 81 mm | 79 mm |
| Stack | 618 mm | 647 mm | 683 mm |
| Reach | 400 mm | 403 mm | 407 mm |
| Top Tube Length | 590 mm | 602 mm | 617 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 446 mm | 491 mm | 534 mm |
| Head Tube Angle | 69.5 ° | 70 ° | 70.5 ° |
| Head Tube Length | 165 mm | 195 mm | 230 mm |
| Chainstay Length | 482 mm | 482 mm | 482 mm |
| Wheelbase | 1141 mm | 1145 mm | 1159 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Standover Height | 790 mm | 832 mm | 874 mm |
| Wheels | 650 | 650 | 650 |
| Rider Min Height | 165 cm | 174 cm | 185 cm |
| Rider Max Height | 176 cm | 187 cm | 197 cm |
About this model
Allant+ 7S belongs to the Trek E Allantplus model. 60 e-bikes variations carry this model name so far. Take a sneak peek at all Trek E Allantplus e-bikes models from 2023, by clicking here.
Model range prices
Trek Allant+ 7 Lowstep 2023 is the most affordable e-bike of this model and has a price of 3499$. On the other hand, Trek Allant+ 9S Stagger 2023, is the most expensive and costs 5626$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Commuter e-bikes average price
If you want an acceptable Commuter e-bike you should know that the average price is 2569$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Commuter e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2023 for 3799$. Comparing the average cost of a Commuter e-bike to this one, you will see that Allant+ 7S price is 47.88% more expensive.
Commuter e-bikes average weight
Commuter e-bikes weigh an average of 25.2 kg (55.56 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
slightly lighter than average, Allant+ 7S has a weight of 24.52 kg (54.06 lbs). In conclusion, the average Commuter e-bike weighs 2.77% more than Allant+ 7S.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork
The fork installed on this bike is the Suntour MOBIE model. The travel on this model is 45mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Fork material
Allant+ 7S has an aluminum fork, which doesn’t add too much extra weight to the e-bike. However, it is not so stiff as steel or carbon forks are.
Wheels
When it comes to wheels, the Allant+ 7S e-bike is equipped with the aluminum model. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
This e-bike is available in 3 sizes. They vary from 165 cm – 197 cm (5.41 ft – 6.46 ft). In conclusion, it won’t take much to find one that’s right for you.
