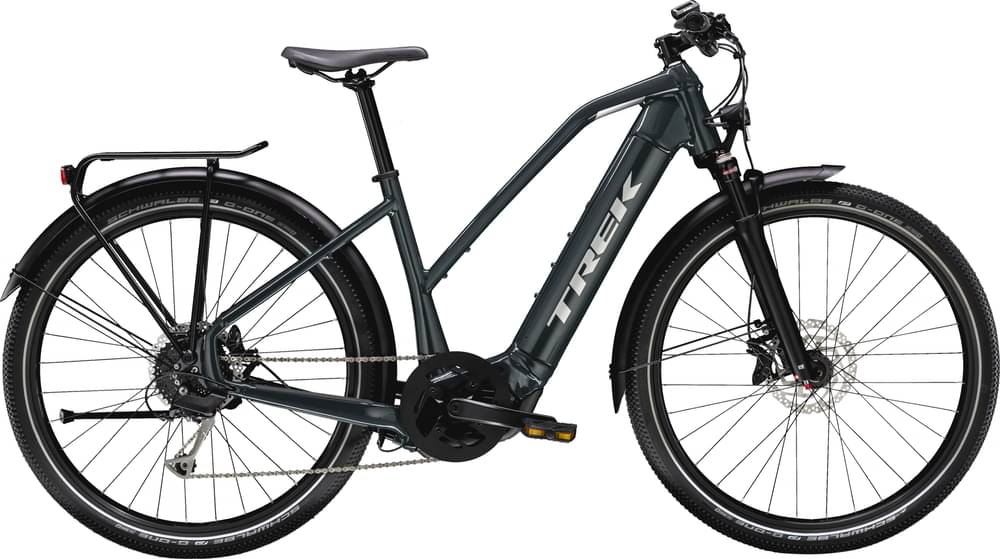

Trek Allant+ 7S Stagger 2022
2022 E-bike
Estimate price |
3,999$
Weight | 24.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 650b -
Travel Front 45mm -
Fork SunTour MOBIE
-
Groupset Alivio -
Suspension Hardtail -
Motor Bosch 250W 63Nm mid-drive -
Battery Bosch PowerTube 500 -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
155cm - 166cm
MD
164cm - 176cm
LG
174cm - 186cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
High-performance hydroformed alloy, Removable Integrated Battery, Range Boost-compatible, internal cable routing, Motor Armour, post-mount disc, 135x5 mm QR
Suspension Fork
SR Suntour Mobie25, 45mm travel, preload, rebound and lockout, tapered alloy steerer, post mount disc
Drivetrain
Rear Derailleur
Shimano Alivio T4000, long cage
Shift Levers
Size: S, M, L, Shimano Alivio M3100, 9 speed; Size: S, M, L, Shimano Alivio M4000, 9 speed
Cassette
Shimano HG200, 11-36, 9 speed
Crank
Size: S, M, ProWheel alloy, 170mm; Size: L, ProWheel alloy, 175mm
Chain
KMC X9
Wheels
Front Hub
Bontrager Disc, 32-hole, 6-bolt disc, 15mm alloy thru-axle
Rear Hub
Bontrager alloy, sealed bearing, 6-bolt, 135x5mm QR
Rims
Alex MD35, tubeless compatible, 32-hole, 35mm width, presta valve
Spokes
J-Bend, 14g, Steel, Black
Tires
Schwalbe G-One, 650Bx57c
Brakes
Brakes
Shimano MT520 4-piston hydraulic disc, post-mount 180mm rotor
Disk Rotors
Shimano RT26, 6-bolt,180mm
Cockpit
Stem
Size: S, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 60mm length; Size: M, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 70mm length; Size: L, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 90mm length
Handlebar
Size: S, M, Bontrager alloy, 31.8mm, 15mm rise, 600mm width; Size: L, Bontrager alloy, 31.8mm, 15mm rise, 660mm width
Grips
Bontrager Satellite Elite, alloy lock-on
Headset
FSA Integrated, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom
Seat
Saddle
Bontrager Commuter Comp
Seatpost
Bontrager Comp, 6061 alloy, 31.6mm, 8mm offset, 330mm length
Motor & Battery
Motor
Bosch Performance Speed, 75 Nm, 28 mph / 45 kph
Battery
Bosch PowerTube 500
Charger
Bosch standard 4A (100-240V) charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.53 mm | 1.6 mm |
| Bottom Bracket Height | 295 mm | 295 mm | 295 mm |
| Front Center | 658 mm | 661 mm | 673 mm |
| Rake | 44 mm | 41 mm | 44 mm |
| Trail | 89 mm | 84 mm | 82 mm |
| Stack | 596 mm | 620 mm | 652 mm |
| Reach | 401 mm | 404 mm | 407 mm |
| Top Tube Length | 583 mm | 594 mm | 607 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 450 mm | 450 mm | 491 mm |
| Head Tube Angle | 69 ° | 69.5 ° | 70 ° |
| Head Tube Length | 140 mm | 165 mm | 195 mm |
| Chainstay Length | 486 mm | 486 mm | 486 mm |
| Wheelbase | 1138 mm | 1141 mm | 1153 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Standover Height | 705 mm | 709 mm | 755 mm |
| Wheels | 650 | 650 | 650 |
| Rider Min Height | 155 cm | 164 cm | 174 cm |
| Rider Max Height | 166 cm | 176 cm | 186 cm |
About this model
Allant+ 7S Stagger is part of the Trek E Allantplus model. Trek launched 60 e-bikes of this model so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
Trek Allant+ 5 Lowstep 2022 is the cheapest e-bike model and costs 3662$. Trek Allant+ 9.9S Stagger 2022 is the most expensive one and costs 7431$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Commuter e-bikes average price
If you want to purchase a solid Commuter e-bike, it is important to know that the average cost is 2569$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Commuter e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
At the moment of the release date, Trek Allant+ 7S Stagger price was 3999$. Comparing the average cost of a Commuter e-bike to this one, you will see that Allant+ 7S Stagger price is 55.66% more expensive.
Average weight for Commuter e-bikes
The average weight for Commuter e-bikes is 25.2 kg (55.56 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Weighing 24.5 kg (54.01 lbs), the Allant+ 7S Stagger model is slightly lighter than average. In short, the average Commuter e-bike weight is 2.86% higher than this one.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Allant+ 7S Stagger components
Fork
Trek Allant+ 7S Stagger 2022 e-bike is equipped with the SunTour MOBIE fork, and has 45mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Fork material
The fork on this e-bike is made out of aluminum, which doesn’t add too much extra weight to the e-bike. However, it is not so stiff as steel or carbon forks are.
Wheels size
When it comes to wheels, the Allant+ 7S Stagger e-bike is equipped with the aluminum model. After 700c wheels, 650b is the second most popular choice for road bikes. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Trek Allant+ 7S Stagger is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
This e-bike is available in 3 sizes. They vary from 155 cm – 186 cm (5.09 ft – 6.1 ft). In conclusion, you won’t have a problem finding one that suits you.
