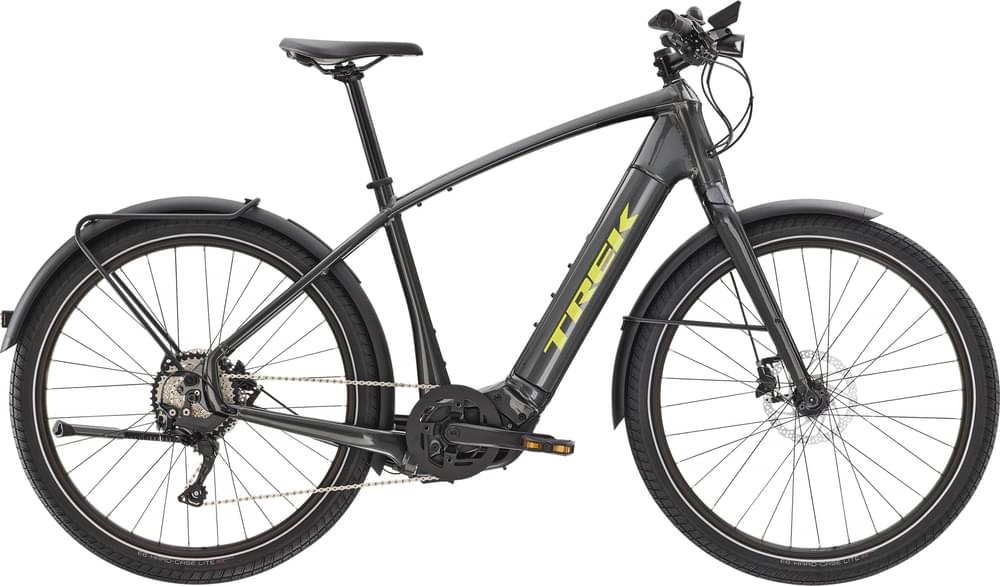

Trek Allant+ 8 2022
2022 E-bike
Estimate price |
5,390$
Weight | 22.75 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 650b -
Groupset Deore -
Suspension Rigid -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube 625 -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 176cm
LG
174cm - 187cm
XL
185cm - 197cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Size: M, L, XL, High-performance hydroformed alloy, Removable Integrated Battery, Range Boost-compatible, internal cable routing, Motor Armour, post-mount disc, 135x5 mm QR; Size: L, High-performance hydroformed e-bike frame w/integrated battery and Motor Armour, internal cable routing, post-mount disc, 5 mm QR dropouts
Suspension Fork
Allant+ rigid alloy fork, 1-1/8'' steel steerer, 100x15 mm thru axle, post-mount disc brake
Drivetrain
Rear Derailleur
Size: M, L, XL, Shimano Deore M6000, mid cage, 42T max cog; Size: M, L, XL, Shimano Deore M5120, long cage
Shift Levers
Shimano Deore M4100, 10 speed
Cassette
Size: M, L, XL, Shimano Deore M4100, 11-42, 10-speed; Size: M, L, XL, Shimano HG500, 10-speed
Crank
Size: M, ProWheel alloy, 170 mm; Size: L, XL, ProWheel alloy, 175mm
Chain
KMC E10
Wheels
Front Hub
Bontrager sealed bearing, 32-hole 15 mm alloy thru-axle
Rear Hub
Bontrager alloy, sealed bearing, 6-bolt, 135x5 mm QR
Rims
Alex MD35, tubeless compatible, 32-hole, 35 mm width, Presta valve
Spokes
Size: M, L, XL, J-Bend, 14g, Steel, Black; Size: M, L, XL, DT Swiss 14g, black
Tires
Bontrager E6 Hard-Case Lite, reflective, wire bead, 60 tpi, 27.5x2.40"
Brakes
Brakes
Shimano MT200 hydraulic disc
Disk Rotors
Shimano RT56, 6-bolt, 180 mm
Cockpit
Stem
Size: M, L, Bontrager Elite, 31.8 mm, Blendr light mount, 7-degree rise, 70 mm length; Size: M, L, Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length; Size: XL, Bontrager Elite Blendr, 90mm length, 7 degree rise, 31.8 mm clamp, with mount for Supernova M99 light; Size: XL, Bontrager alloy, 31.8 mm clamp, Blendr-compatible, 7-degree, 90 mm length
Handlebar
Aluminium comfort
Grips
Bontrager Satellite Elite, alloy lock-on
Seat
Saddle
Bontrager Commuter Comp
Seatpost
Bontrager Comp, 6061 alloy, 31.6 mm, 8 mm offset, 330mm length
Motor & Battery
Motor
Bosch Performance CX, magnesium motor body, 250 watt, 85 Nm, 25 km/h (15.5 mph) max assist, 32 km/h for New Zealand
Battery
Bosch PowerTube 625
Charger
Bosch standard 4A (220-240 V) charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.55 mm | 1.61 mm | 1.68 mm |
| Bottom Bracket Height | 295 mm | 295 mm | 295 mm |
| Front Center | 665 mm | 669 mm | 683 mm |
| Rake | 44 mm | 41 mm | 44 mm |
| Trail | 86 mm | 81 mm | 79 mm |
| Stack | 618 mm | 647 mm | 683 mm |
| Reach | 400 mm | 403 mm | 407 mm |
| Top Tube Length | 590 mm | 602 mm | 617 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 446 mm | 491 mm | 534 mm |
| Head Tube Angle | 69.5 ° | 70 ° | 70.5 ° |
| Head Tube Length | 165 mm | 195 mm | 230 mm |
| Chainstay Length | 482 mm | 482 mm | 482 mm |
| Wheelbase | 1141 mm | 1145 mm | 1159 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Standover Height | 790 mm | 832 mm | 874 mm |
| Wheels | 650 | 650 | 650 |
| Rider Min Height | 165 cm | 174 cm | 185 cm |
| Rider Max Height | 176 cm | 187 cm | 197 cm |
About this model
Allant+ 8 is part of the Trek E Allantplus model. There are 60 e-bikes that carry this model name. You can easily view all of the Trek E Allantplus e-bikes models from 2022, here.
Model range prices
The most economical model, the Trek Allant+ 5 Lowstep 2022 has a starting price of 3662$. Trek Allant+ 9.9S Stagger 2022 on the other hand is the most expensive at 7431$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Commuter e-bikes average price
If you want to purchase a solid Commuter e-bike, it is important to know that the average cost is 2569$. However, even though the average price of a Commuter e-bike is lower, you might still be able to get a top-quality e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 4989$. Doing a quick comparison, we notice that Allant+ 8 price is 94.2% higher than the average cost of a Commuter e-bike.
Average weight for Commuter e-bikes
If we make a quick analysis of the average weight of a Commuter e-bike, we get 25.2 kg (55.56 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
With a weight of 22.75 kg (50.16 lbs), Trek e-bike is considerably lighter than average. In short, the average Commuter e-bike weight is 10.77% higher than this one.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork material
The fork on this e-bike is made out of aluminum, so there won’t be much extra weight added to the e-bike. However, they are not so stiff as carbon forks are.
Wheels
The Allant+ 8 2022 e-bike is equipped with aluminum wheels when leaving the factory. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Trek Allant+ 8 has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
This e-bike is available in 3 sizes. They vary from 165 cm – 197 cm (5.41 ft – 6.46 ft). In conclusion, it won’t take much to find one that’s right for you.
