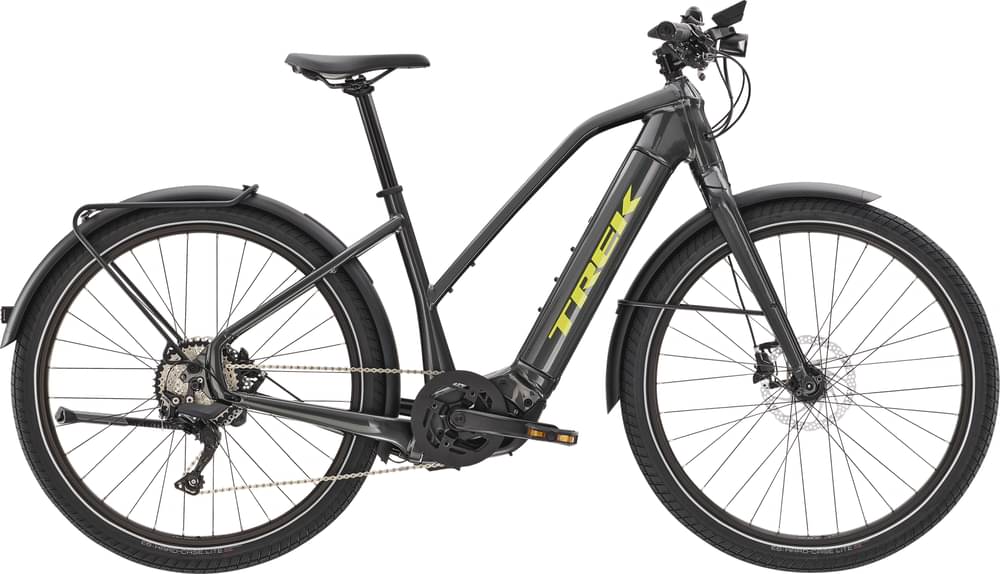

Trek Allant+ 8 Stagger 2022
2022 E-bike
Estimate price |
5,390$
Weight | 22.35 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 650b -
Groupset Deore -
Suspension Rigid -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube 625 -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
155cm - 166cm
MD
164cm - 176cm
LG
174cm - 186cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Size: S, M, L, High-performance hydroformed alloy, Removable Integrated Battery, Range Boost-compatible, internal cable routing, Motor Armour, post-mount disc, 135x5 mm QR; Size: M, High-performance hydroformed e-bike frame w/integrated battery and Motor Armour, Stagger design internal cable routing, post-mount disc, 5 mm QR dropouts
Suspension Fork
Allant+ rigid alloy fork, 1-1/8'' steel steerer, 100x15 mm thru axle, post-mount disc brake
Drivetrain
Rear Derailleur
Size: S, M, L, Shimano Deore M6000, mid cage, 42T max cog; Size: S, M, L, Shimano Deore M5120, long cage
Shift Levers
Shimano Deore M4100, 10 speed
Cassette
Size: S, M, L, Shimano Deore M4100, 11-42, 10-speed; Size: S, M, L, Shimano HG500, 10-speed
Crank
Size: S, M, ProWheel alloy, 170 mm; Size: L, ProWheel alloy, 175mm
Chain
KMC E10
Wheels
Front Hub
Bontrager sealed bearing, 32-hole 15 mm alloy thru-axle
Rear Hub
Bontrager alloy, sealed bearing, 6-bolt, 135x5 mm QR
Rims
Alex MD35, tubeless compatible, 32-hole, 35 mm width, Presta valve
Spokes
Size: S, M, L, J-Bend, 14g, Steel, Black; Size: S, M, L, DT Swiss 14g, black
Tires
Bontrager E6 Hard-Case Lite, reflective, wire bead, 60 tpi, 27.5x2.40"
Brakes
Brakes
Shimano MT200 hydraulic disc
Disk Rotors
Shimano RT56, 6-bolt, 180 mm
Cockpit
Stem
Size: S, M, L, Bontrager Elite, 31.8 mm, Blendr light mount, 7-degree rise, 70 mm length; Size: S, M, L, Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
Handlebar
Aluminium comfort
Grips
Bontrager Satellite Elite, alloy lock-on
Seat
Saddle
Bontrager Commuter Comp
Seatpost
Bontrager Comp, 6061 alloy, 31.6 mm, 8 mm offset, 330mm length
Motor & Battery
Motor
Bosch Performance CX, magnesium motor body, 250 watt, 85 Nm, 25 km/h (15.5 mph) max assist, 32 km/h for New Zealand
Battery
Bosch PowerTube 625
Charger
Bosch standard 4A (220-240 V) charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.53 mm | 1.6 mm |
| Bottom Bracket Height | 295 mm | 295 mm | 295 mm |
| Front Center | 658 mm | 661 mm | 673 mm |
| Rake | 44 mm | 41 mm | 44 mm |
| Trail | 89 mm | 84 mm | 82 mm |
| Stack | 596 mm | 620 mm | 652 mm |
| Reach | 401 mm | 404 mm | 407 mm |
| Top Tube Length | 583 mm | 594 mm | 607 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 450 mm | 450 mm | 491 mm |
| Head Tube Angle | 69 ° | 69.5 ° | 70 ° |
| Head Tube Length | 140 mm | 165 mm | 195 mm |
| Chainstay Length | 486 mm | 486 mm | 486 mm |
| Wheelbase | 1138 mm | 1141 mm | 1153 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Standover Height | 705 mm | 709 mm | 755 mm |
| Wheels | 650 | 650 | 650 |
| Rider Min Height | 155 cm | 164 cm | 174 cm |
| Rider Max Height | 166 cm | 176 cm | 186 cm |
Model Overview
Allant+ 8 Stagger is part of the Trek E Allantplus model. Trek launched 60 e-bikes of this model so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
The most economical model, the Trek Allant+ 5 Lowstep 2022 has a starting price of 3662$. Trek Allant+ 9.9S Stagger 2022 on the other hand is the most expensive at 7431$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Commuter e-bikes
According to our math, the average price for a trustworthy Commuter e-bike is 2569$. However, even if your budget is less than the average, you might still be able to get a top-quality Commuter e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
This e-bike was released in 2022 and its price was 4989$. In conclusion, this e-bike price is 94.2% higher than the price of the average Commuter e-bike.
Commuter e-bikes average weight
On a deeper look, we notice that the average weight of a Commuter e-bike is 25.2 kg (55.56 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
With a weight of 22.35 kg (49.27 lbs), Trek e-bike is considerably lighter than average. To sum up, it’s 12.75% lighter than the average weight of Commuter e-bikes.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Allant+ 8 Stagger components
Fork material
The fork on this e-bike is made out of aluminum, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels
When it comes to wheels, the Allant+ 8 Stagger e-bike is equipped with the aluminum model. After 700c wheels, 650b is the second most popular choice for road bikes. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 155 cm – 186 cm (5.09 ft – 6.1 ft). In conclusion, you won’t have a problem finding one that suits you.
