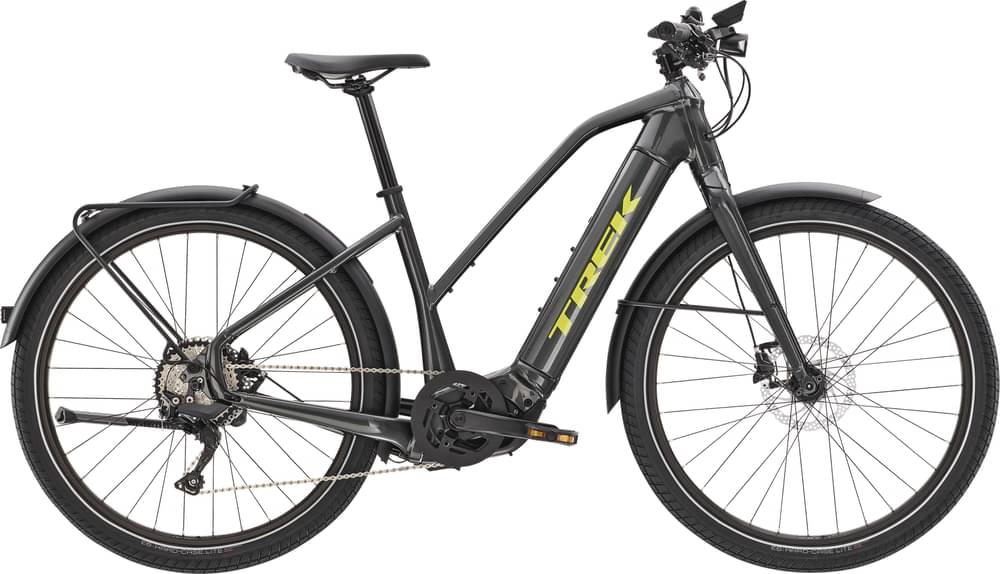

Trek Allant+ 8S Stagger 2022
2022 E-bike
Estimate price |
4,399$
Weight | 25.58 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 650b -
Groupset Deore -
Suspension Rigid -
Motor Bosch 250W 63Nm mid-drive -
Battery Bosch PowerTube 625 -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
155cm - 166cm
MD
164cm - 176cm
LG
174cm - 186cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
High-performance hydroformed alloy, Removable Integrated Battery, Range Boost compatible, internal cable routing, Motor Armor, post-mount disc, 135x5mm QR
Suspension Fork
Allant+ rigid alloy fork, 1-1/8" steel steerer, 100x15mm thru-axle, post-mount disc brake
Drivetrain
Rear Derailleur
Shimano Deore M5120, long cage
Shift Levers
Shimano Deore M4100, 10 speed
Cassette
Shimano Deore M4100, 11-42, 10 speed
Crank
ProWheel 46T narrow/wide steel, w/alloy guard
Chain
KMC E10
Pedals
Bontrager Satellite City pedal
Wheels
Front Hub
Bontrager sealed bearing, 32-hole 15mm alloy thru-axle
Rear Hub
Bontrager sealed cartridge bearing rear hub, 32-hole, 6-bolt disc, 5mm QR
Rims
Alex MD35 27.5", Tubeless Ready, 32-hole, 35mm width, presta valve
Tires
Bontrager E6 Hard-Case Lite, reflective, wire bead, 60tpi, 27.5x2.4"
Brakes
Brakes
Shimano MT520 4-piston hydraulic disc, post-mount 180mm rotor
Cockpit
Stem
Bontrager alloy, 31.8mm, Blendr compatible, 7 degree
Handlebar
Bontrager alloy, 31.8mm, 15mm rise
Grips
Bontrager Satellite Elite, alloy lock-on
Headset
FSA IS-2 alloy, integrated, sealed cartridge bearing, 1-1/8" top, 1.5" bottom
Seat
Saddle
Bontrager Commuter Comp, 185mm width
Seatpost
Bontrager Comp, 6061 alloy, 31.6mm, 8mm offset
Motor & Battery
Motor
Bosch Performance Speed (28 mph), 250 Watt, 75Nm
Battery
Bosch PowerTube 625
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.53 mm | 1.6 mm |
| Bottom Bracket Height | 295 mm | 295 mm | 295 mm |
| Front Center | 658 mm | 661 mm | 673 mm |
| Rake | 44 mm | 41 mm | 44 mm |
| Trail | 89 mm | 84 mm | 82 mm |
| Stack | 596 mm | 620 mm | 652 mm |
| Reach | 401 mm | 404 mm | 407 mm |
| Top Tube Length | 583 mm | 594 mm | 607 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 450 mm | 450 mm | 491 mm |
| Head Tube Angle | 69 ° | 69.5 ° | 70 ° |
| Head Tube Length | 140 mm | 165 mm | 195 mm |
| Chainstay Length | 486 mm | 486 mm | 486 mm |
| Wheelbase | 1138 mm | 1141 mm | 1153 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Standover Height | 705 mm | 709 mm | 755 mm |
| Wheels | 650 | 650 | 650 |
| Rider Min Height | 155 cm | 164 cm | 174 cm |
| Rider Max Height | 166 cm | 176 cm | 186 cm |
About this model
Allant+ 8S Stagger completes the Trek E Allantplus model. There are 60 e-bikes that carry this model name. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
Trek Allant+ 5 Lowstep 2022 is the most economical model, with a starting price of 3662$. Trek Allant+ 9.9S Stagger 2022 on the other hand costs 7431$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Commuter e-bikes average price
Our math shows that the average cost of a dependable Commuter e-bike is 2569$. However, you could also get a good Commuter e-bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Trek Allant+ 8S Stagger price was 4399$. In conclusion, this e-bike price is 71.23% higher than the price of the average Commuter e-bike.
Average weight for Commuter e-bikes
On a deeper look, we notice that the average weight of a Commuter e-bike is 25.2 kg (55.56 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Allant+ 8S Stagger weighs 25.58 kg (56.39 lbs) and is slightly heavier than the average. In conclusion, the average Commuter e-bike weighs 1.51% less than Allant+ 8S Stagger.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork material
The fork on this e-bike is made out of aluminum, so there won’t be much extra weight added to the e-bike. However, they are not so stiff as carbon forks are.
Wheels
As for the wheels, Trek Allant+ 8S Stagger 2022, has a aluminum model. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
This e-bike is available in 3 sizes. They vary from 155 cm – 186 cm (5.09 ft – 6.1 ft). In conclusion, you won’t have a problem finding one that suits you.
