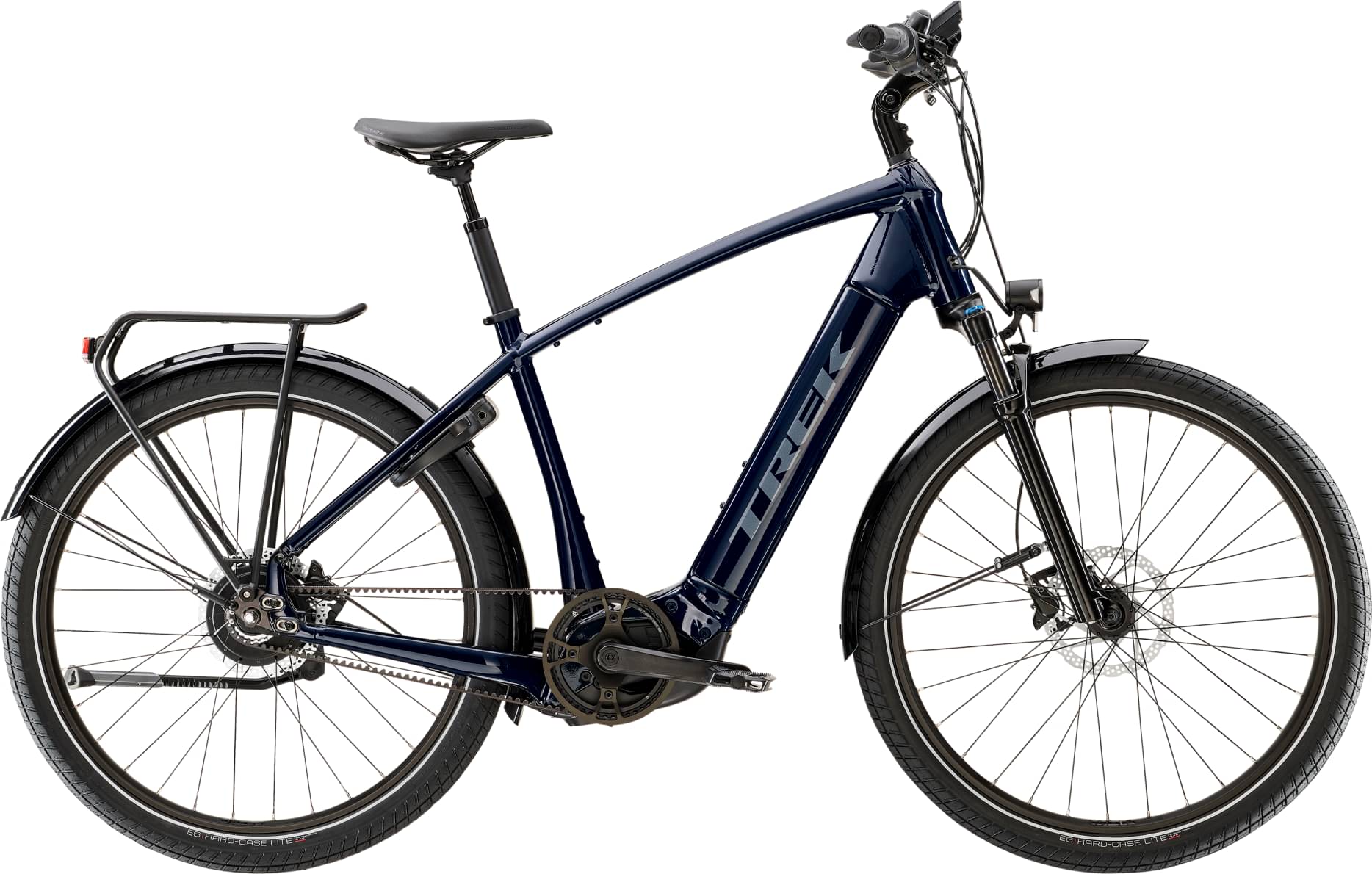

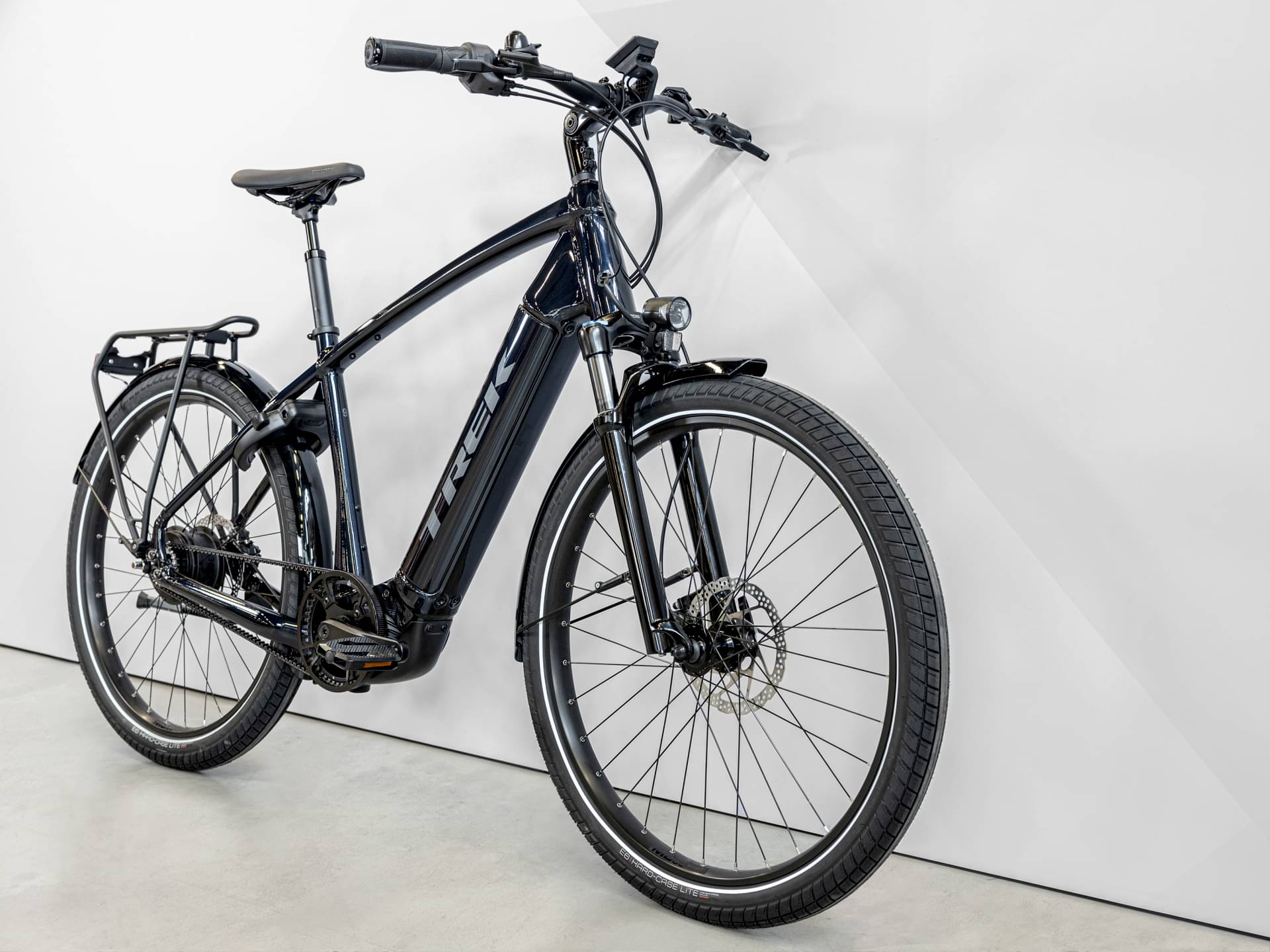

Trek Allant+ 9 2024
2024 E-bike
Estimate price |
5,234$
Weight | 26.4 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 60mm -
Fork Suntour XCR
-
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube 625Wh, smart system -
Drivetrain Belt Drive, Internally Geared Hub -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 176cm
LG
174cm - 187cm
XL
185cm - 197cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
High-performance hydroformed e-bike frame, Removable Integrated Battery, Motor Armor, internal cable routing, post-mount disc
Suspension Fork

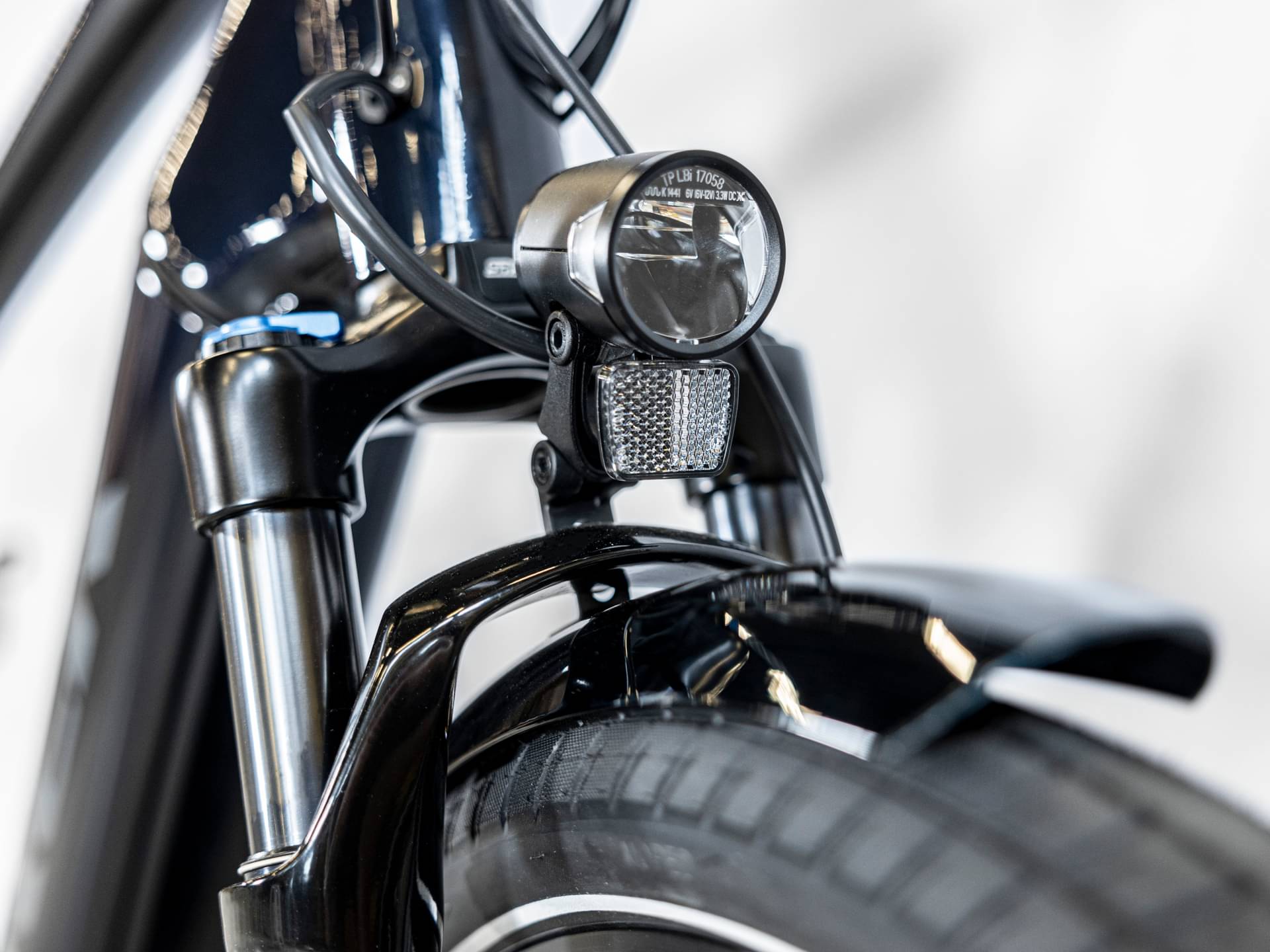

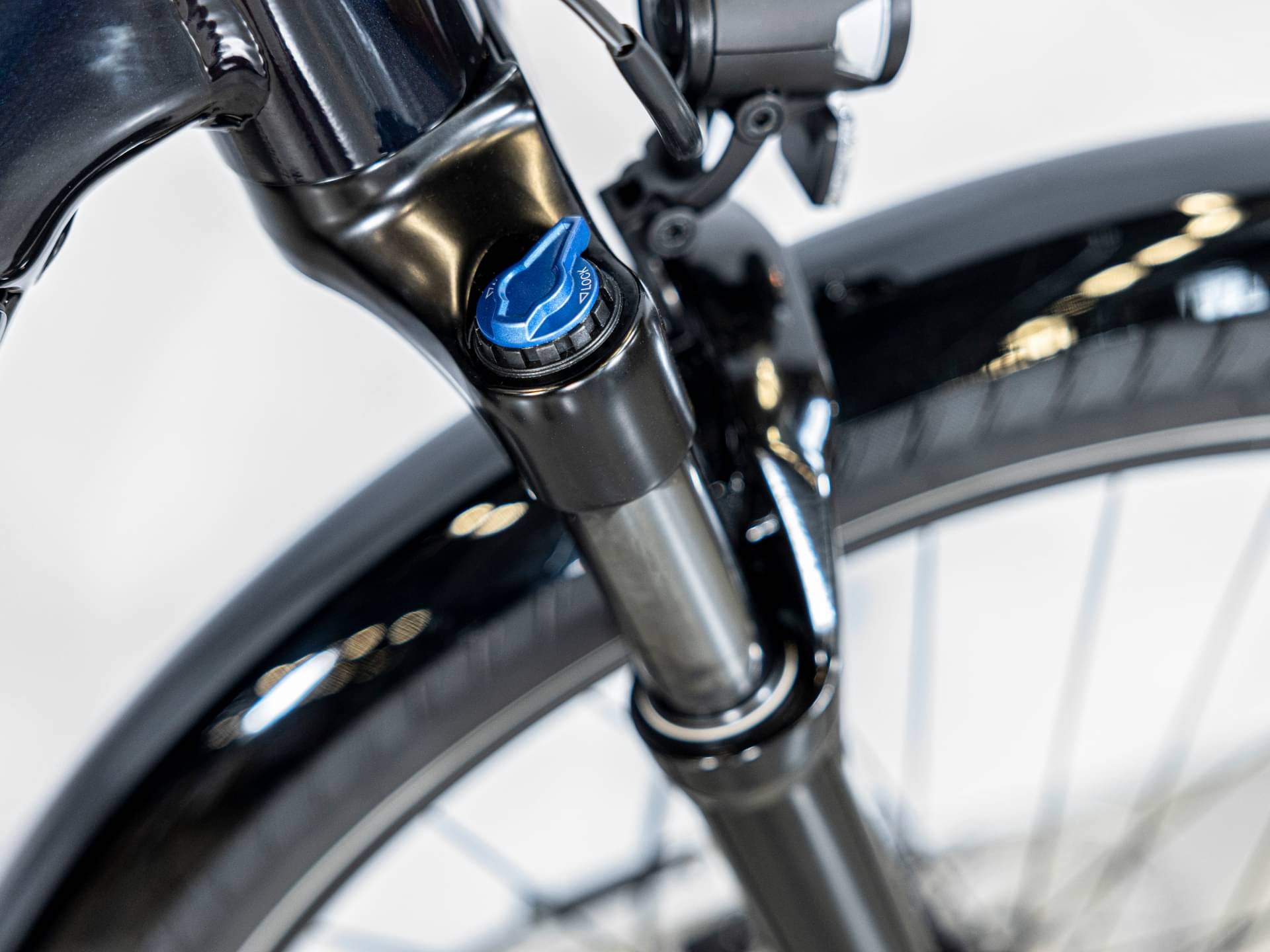

SR Suntour XCR32, coil spring, preload adjuster, lockout,100 mm QR, 60mm travel

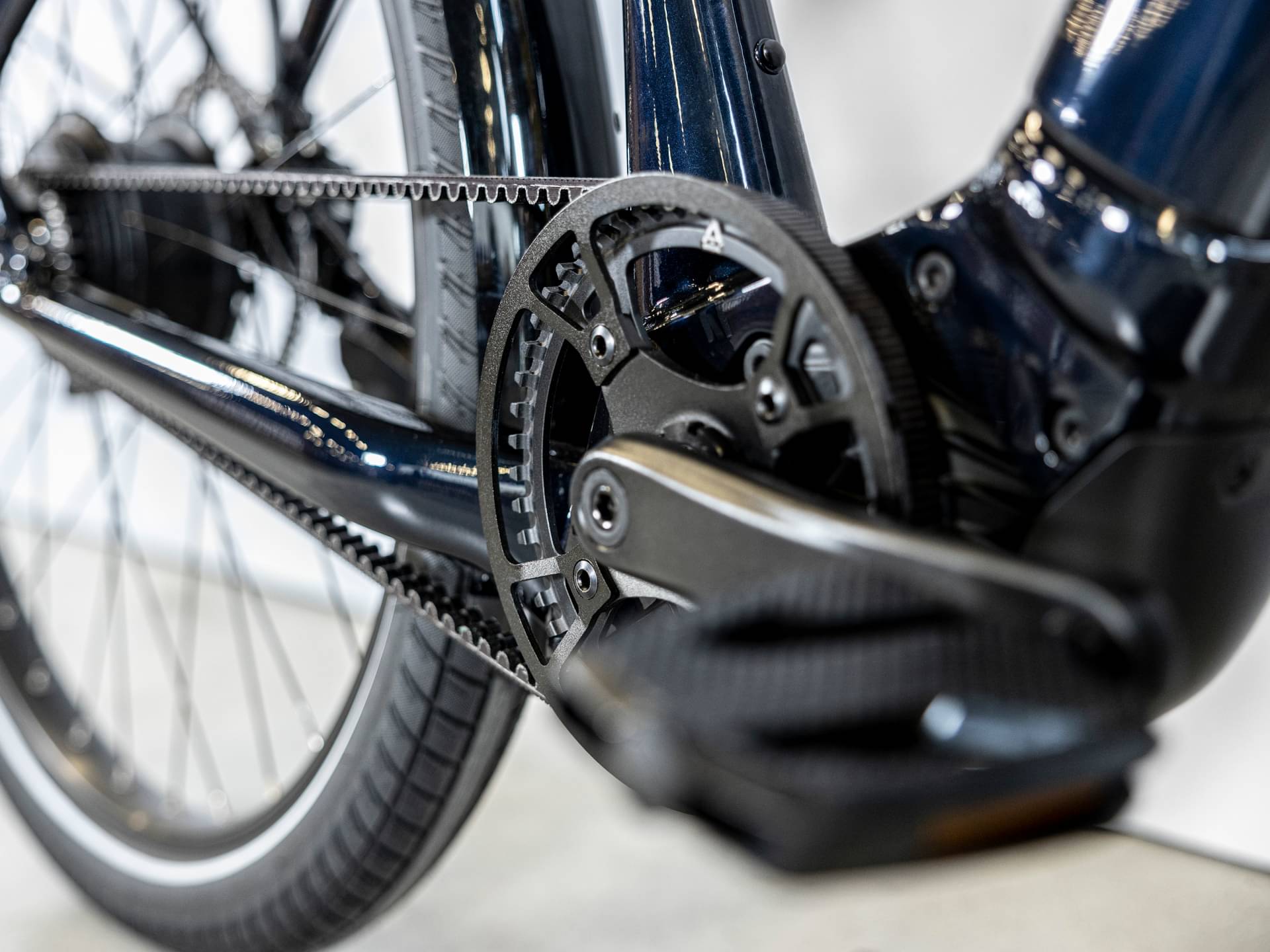

Drivetrain
Shift Levers

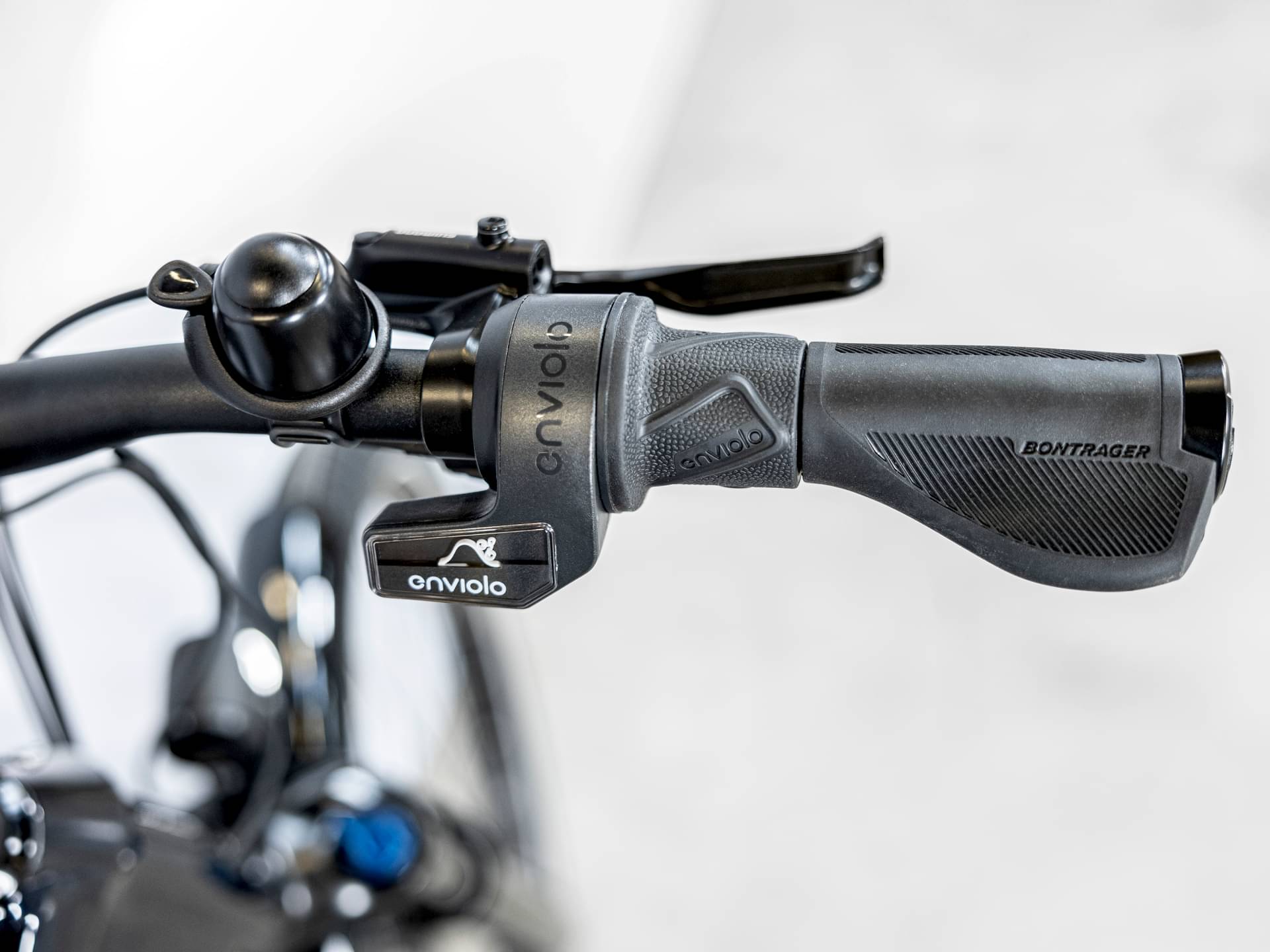

Enviolo Pure Manual Controller twist shift display
Cassette
Gates CDX, 22 T, steel
Crank
Size: M, ProWheel alloy, 170 mm length; Size: L, XL, ProWheel alloy, 175 mm length
Pedals
Bontrager City pedals
Wheels
Front Hub
Bontrager sealed bearing, 32-hole, 15 mm alloy thru-axle
Rear Hub

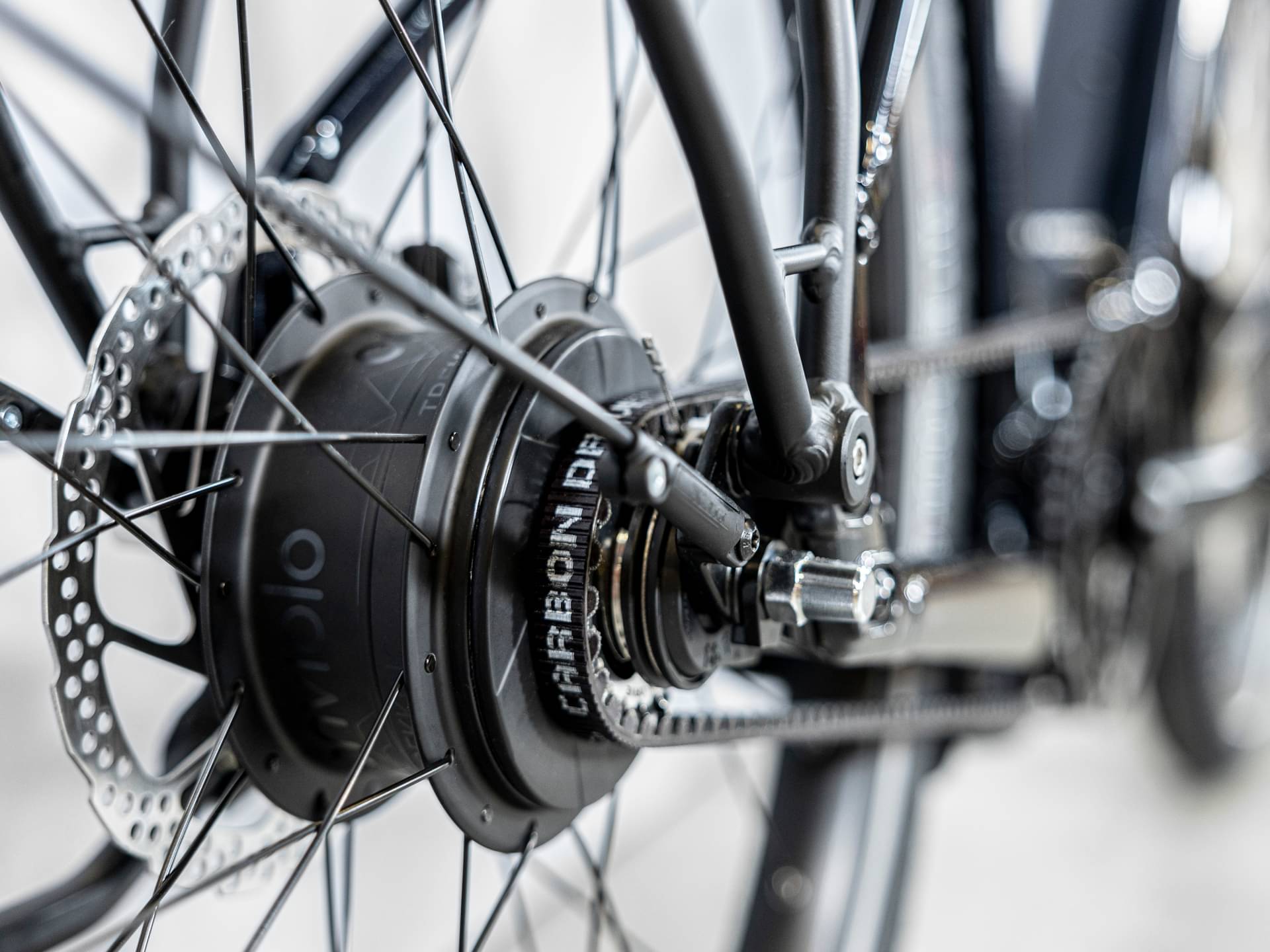

Enviolo Trekking, 32-hole, 6-bolt disc, 44T
Rims
Bontrager Line TLR 30, Tubeless-Ready, 32-hole, Presta valve
Tires
Bontrager E6 Hard-Case Lite, reflective strip, 27.5x2.40"
Brakes
Brakes
Tektro HD-M275 hydraulic disc
Cockpit
Stem
Size: M, Bontrager alloy, 31.8 mm clamp, adjustable rise, Blendr-compatible, 85 mm length; Size: L, XL, Bontrager alloy, 31.8 mm clamp, adjustable rise, Blendr-compatible, 105 mm length
Handlebar
Alloy lowriser, 31.8 mm, 25 mm rise, 11-degree backsweep, 690 mm width
Grips
Bontrager Satellite Elite, alloy lock-on
Seat

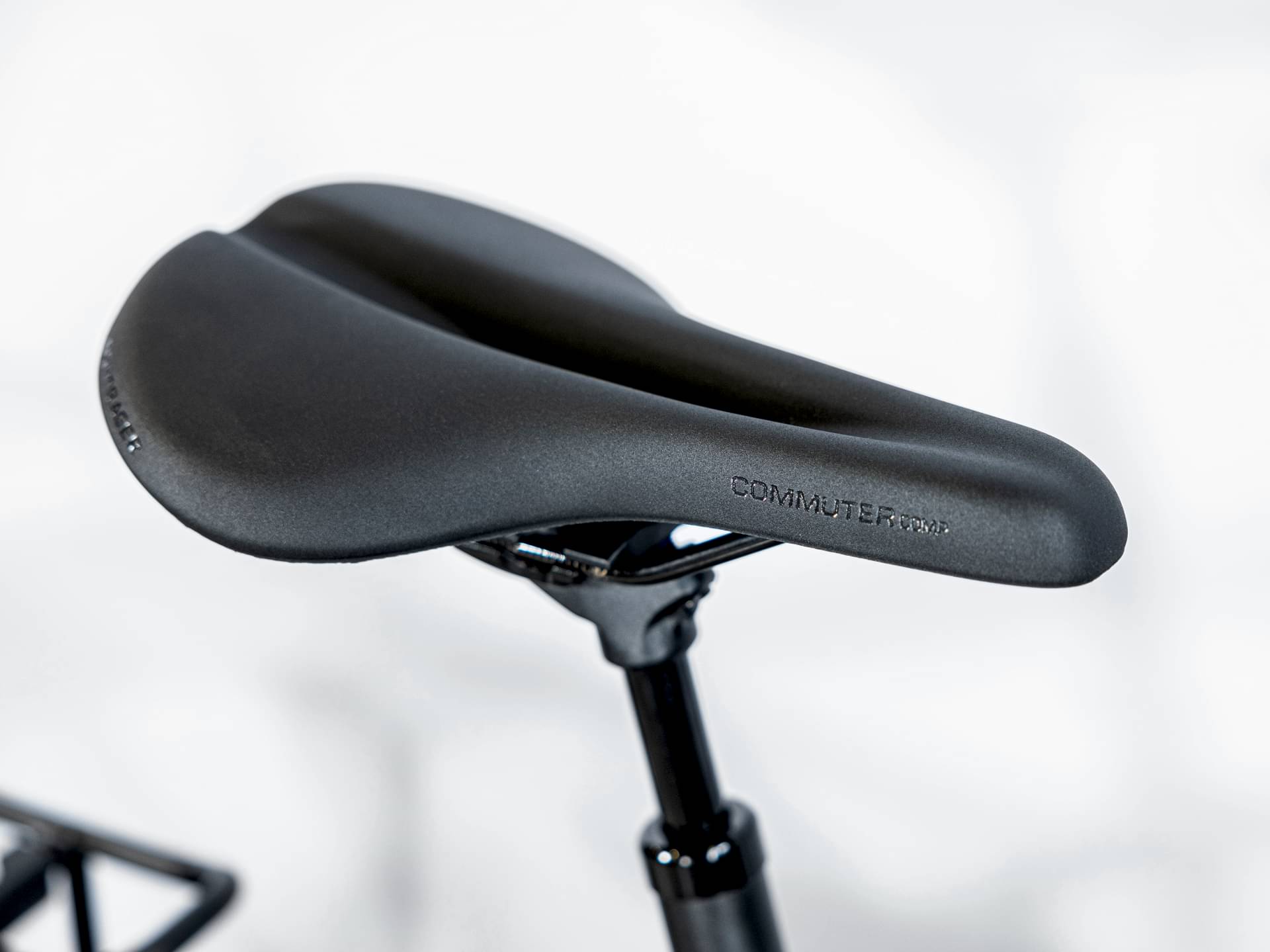

Saddle
Bontrager Commuter Comp
Seatpost
Alloy, suspension, 31.6 mm, 300 mm length
Motor & Battery
Motor

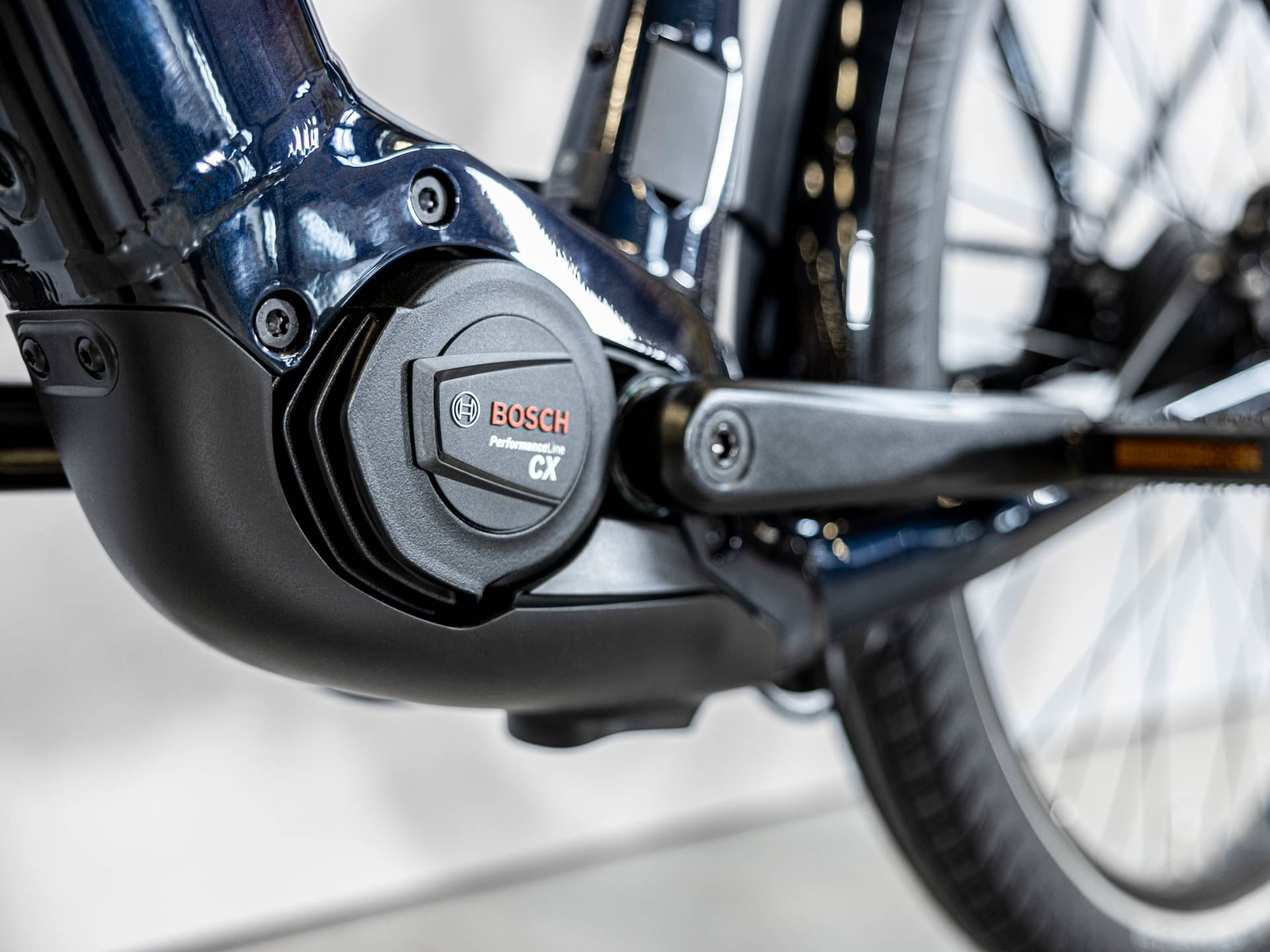

Bosch Performance Line CX, smart system, magnesium motor body, 85 Nm
Battery

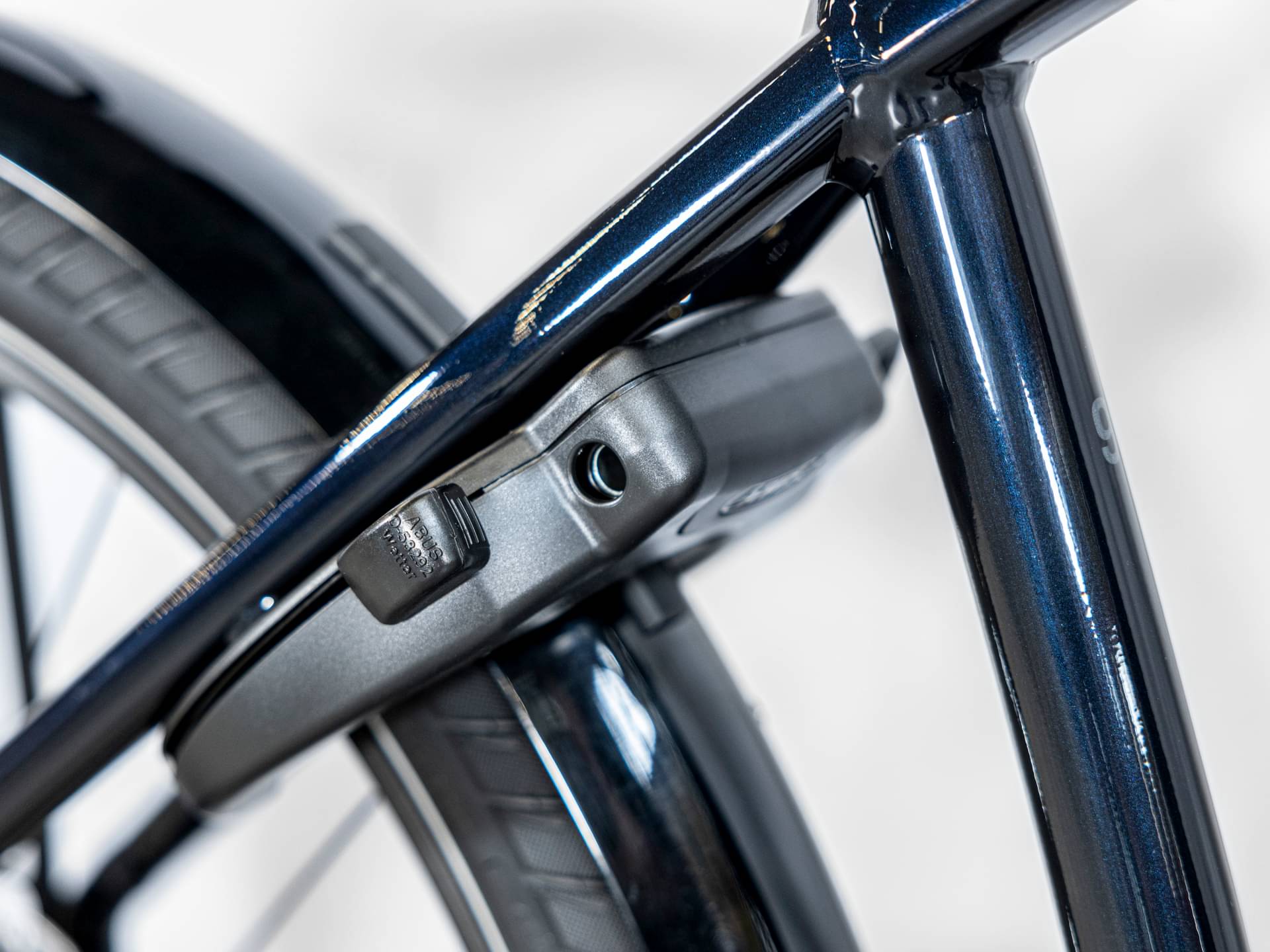

Bosch PowerTube 625Wh, smart system
Charger
Bosch standard 4A, 230V, smart system
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.55 mm | 1.61 mm | 1.68 mm |
| Bottom Bracket Height | 295 mm | 295 mm | 295 mm |
| Front Center | 665 mm | 669 mm | 683 mm |
| Rake | 44 mm | 41 mm | 44 mm |
| Trail | 86 mm | 81 mm | 79 mm |
| Stack | 618 mm | 647 mm | 683 mm |
| Reach | 400 mm | 403 mm | 407 mm |
| Top Tube Length | 590 mm | 602 mm | 617 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 446 mm | 491 mm | 534 mm |
| Head Tube Angle | 69.5 ° | 70 ° | 70.5 ° |
| Head Tube Length | 165 mm | 195 mm | 230 mm |
| Chainstay Length | 482 mm | 482 mm | 482 mm |
| Wheelbase | 1141 mm | 1145 mm | 1159 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Standover Height | 790 mm | 832 mm | 874 mm |
| Wheels | 650 | 650 | 650 |
| Rider Min Height | 165 cm | 174 cm | 185 cm |
| Rider Max Height | 176 cm | 187 cm | 197 cm |
Model Overview
Allant+ 9 is part of the Trek E Allantplus model. 60 e-bikes variations carry this model name so far. Take a sneak peek at all Trek E Allantplus e-bikes models from 2024, by clicking here.
Model range prices
Trek Allant+ 9 2024 is the most affordable e-bike of this model and has a price of 4777$. On the other hand, Trek Allant+ 9 Lowstep 2024, is the most expensive and costs 4777$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Commuter e-bikes average price
According to our math, the average price for a trustworthy Commuter e-bike is 2569$. However, even if your budget is less than the average, you might still be able to get a top-quality Commuter e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 4777$. In conclusion, this e-bike price is 85.95% more expensive than the price of the average Commuter e-bike.
Average weight for Commuter e-bikes
Commuter e-bikes have an average weight of 24.02 kg (52.95 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
a bit heavier than average, Allant+ 9 has a weight of 26.4 kg (58.2 lbs). In short, the average Commuter e-bike weight is 9.91% lower than this one.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Allant+ 9 components
Fork
The Suntour XCR is included from the factory. It has a travel distance of 60mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
As for the wheels, Trek Allant+ 9 2024, has a aluminum model. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Trek Allant+ 9 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 165 cm – 197 cm (5.41 ft – 6.46 ft). In conclusion, it won’t take much to find one that’s right for you.
