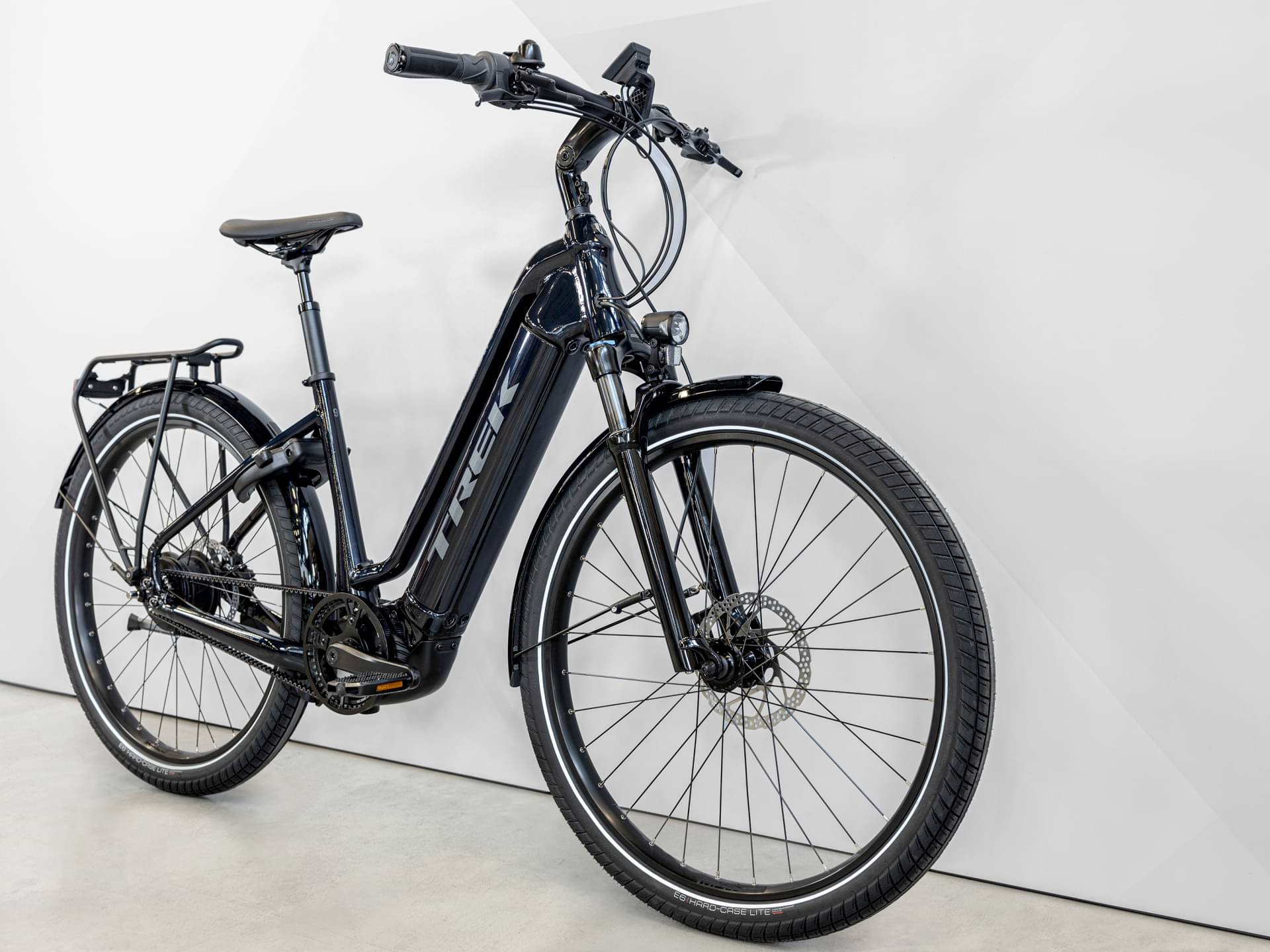

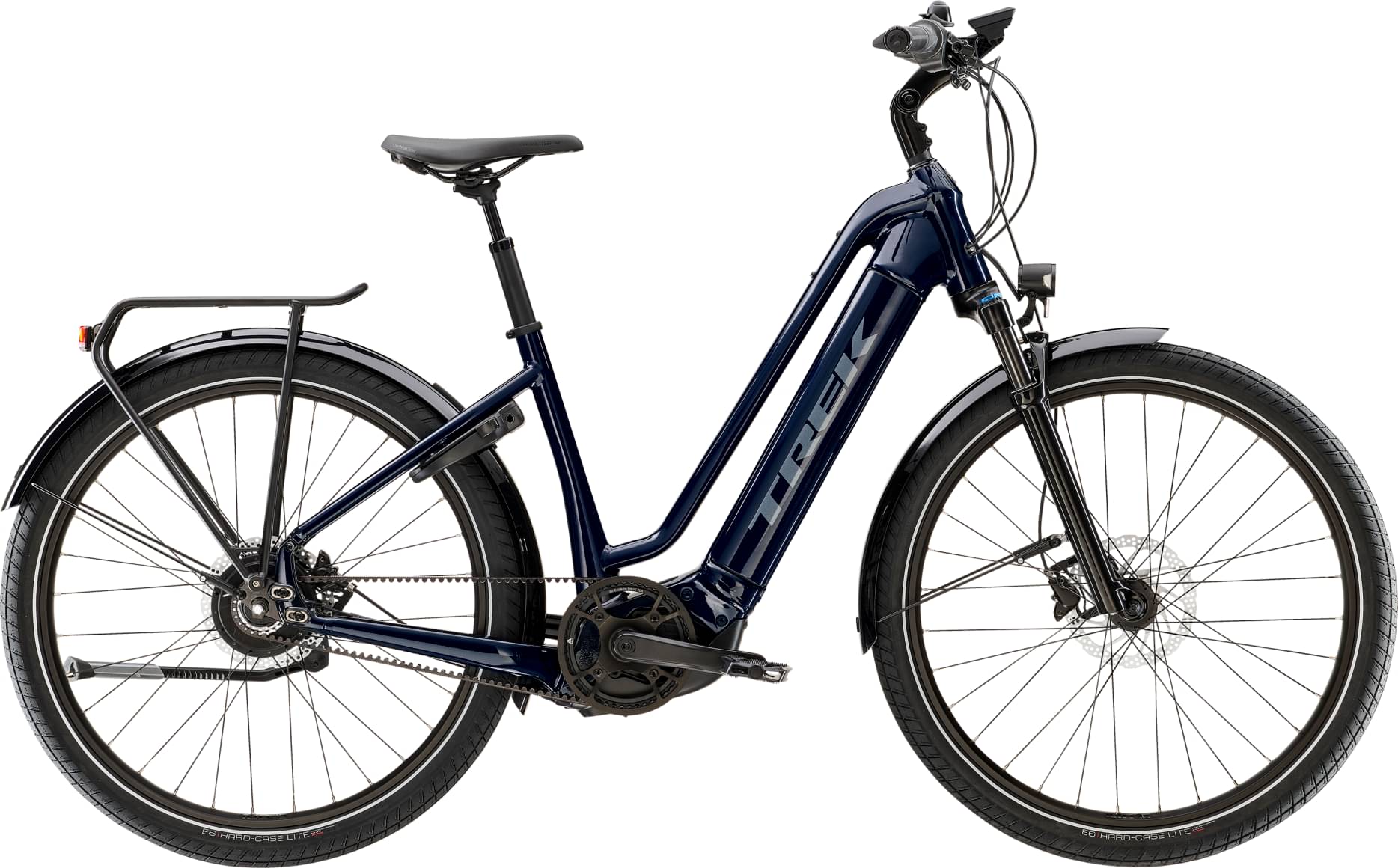

Trek Allant+ 9 Lowstep 2024
2024 E-bike
Estimate price |
5,234$
Weight | 26.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Travel Front 60mm -
Fork Suntour XCR
-
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube 625Wh, smart system -
Drivetrain Belt Drive, Internally Geared Hub -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
155cm - 166cm
MD
164cm - 176cm
LG
174cm - 186cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame

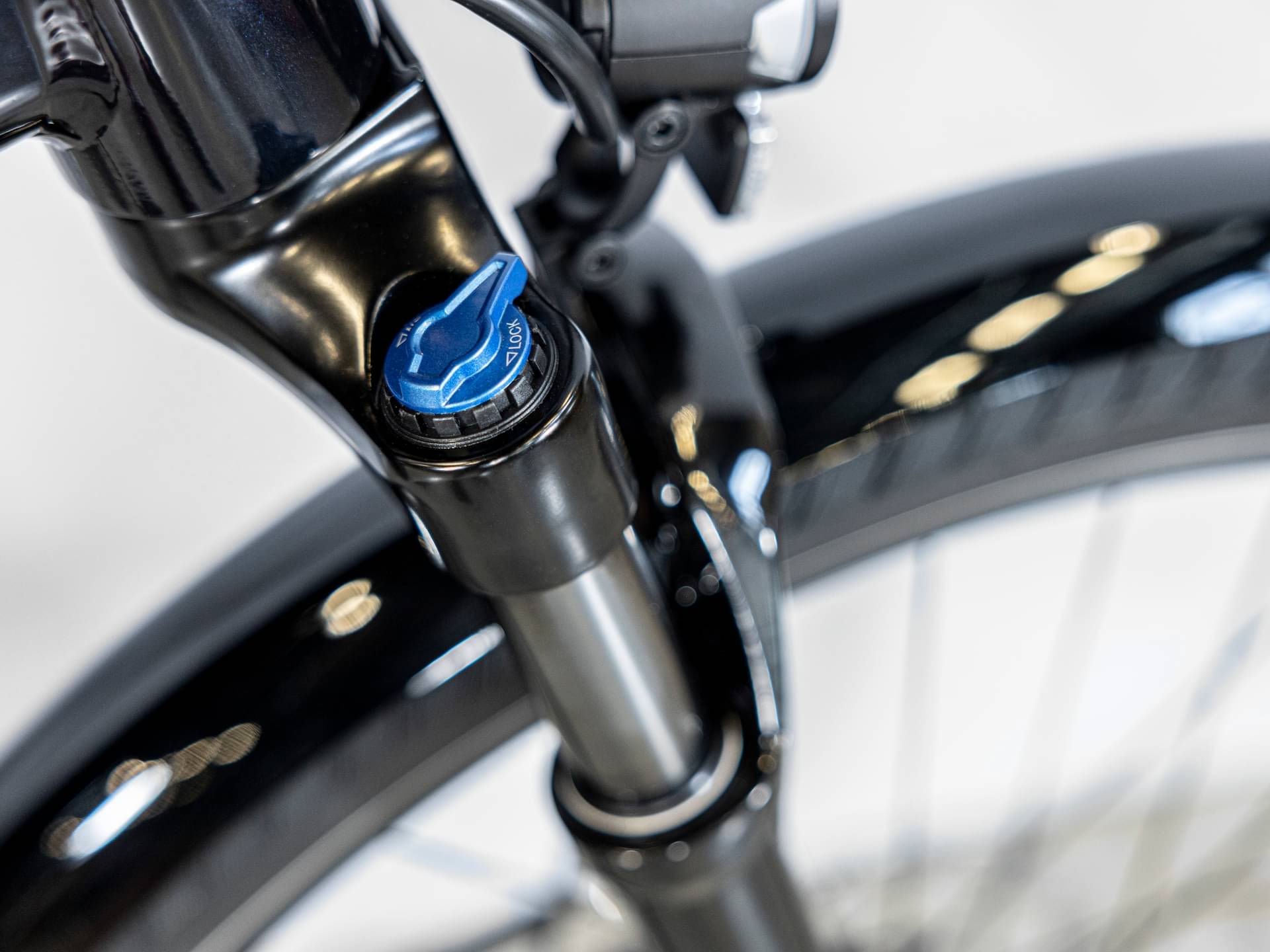

Suspension Fork
SR Suntour XCR32, coil spring, preload adjuster, lockout,100 mm QR, 60mm travel
Drivetrain

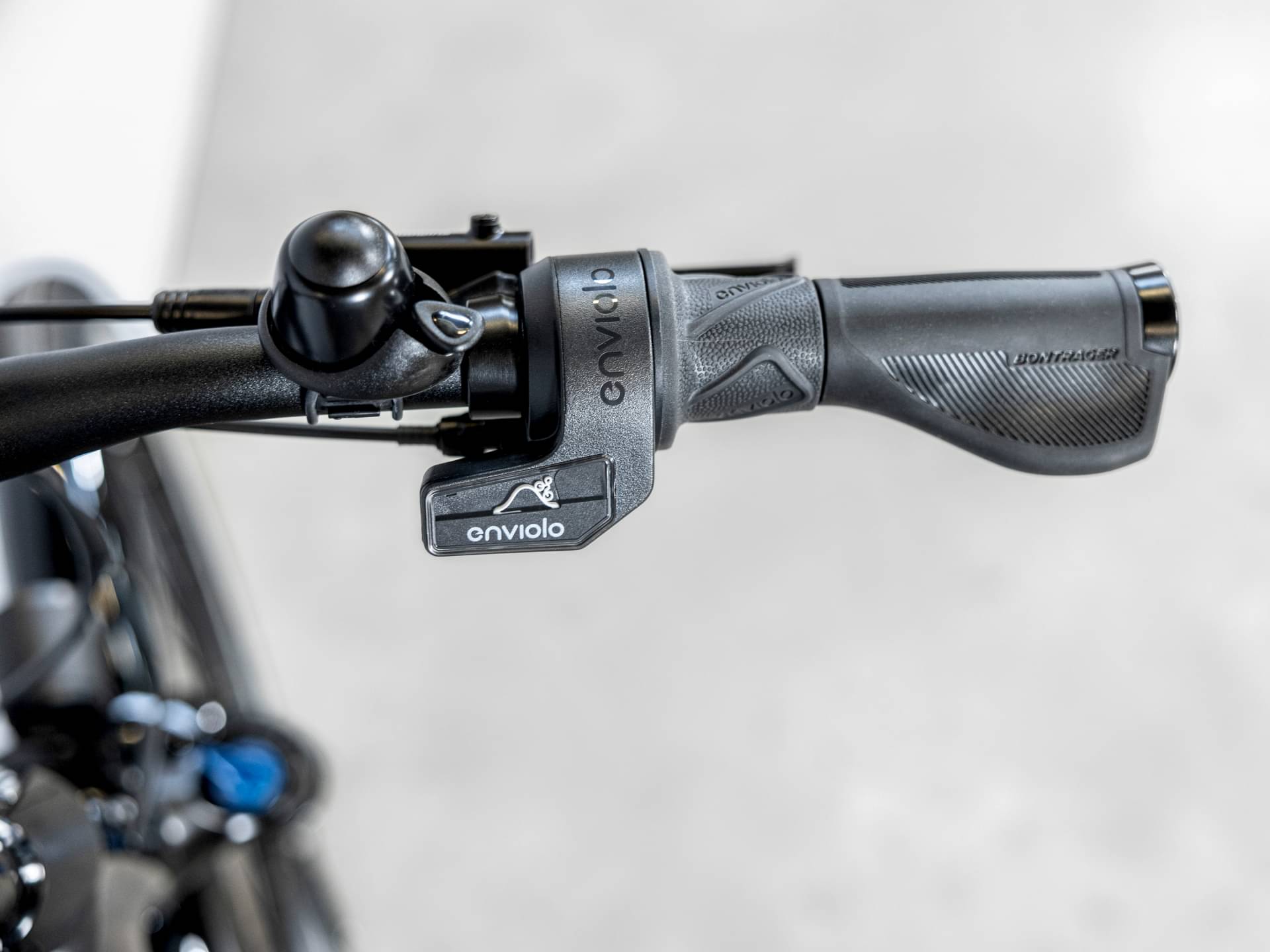

Shift Levers
Enviolo Pure Manual Controller twist shift display

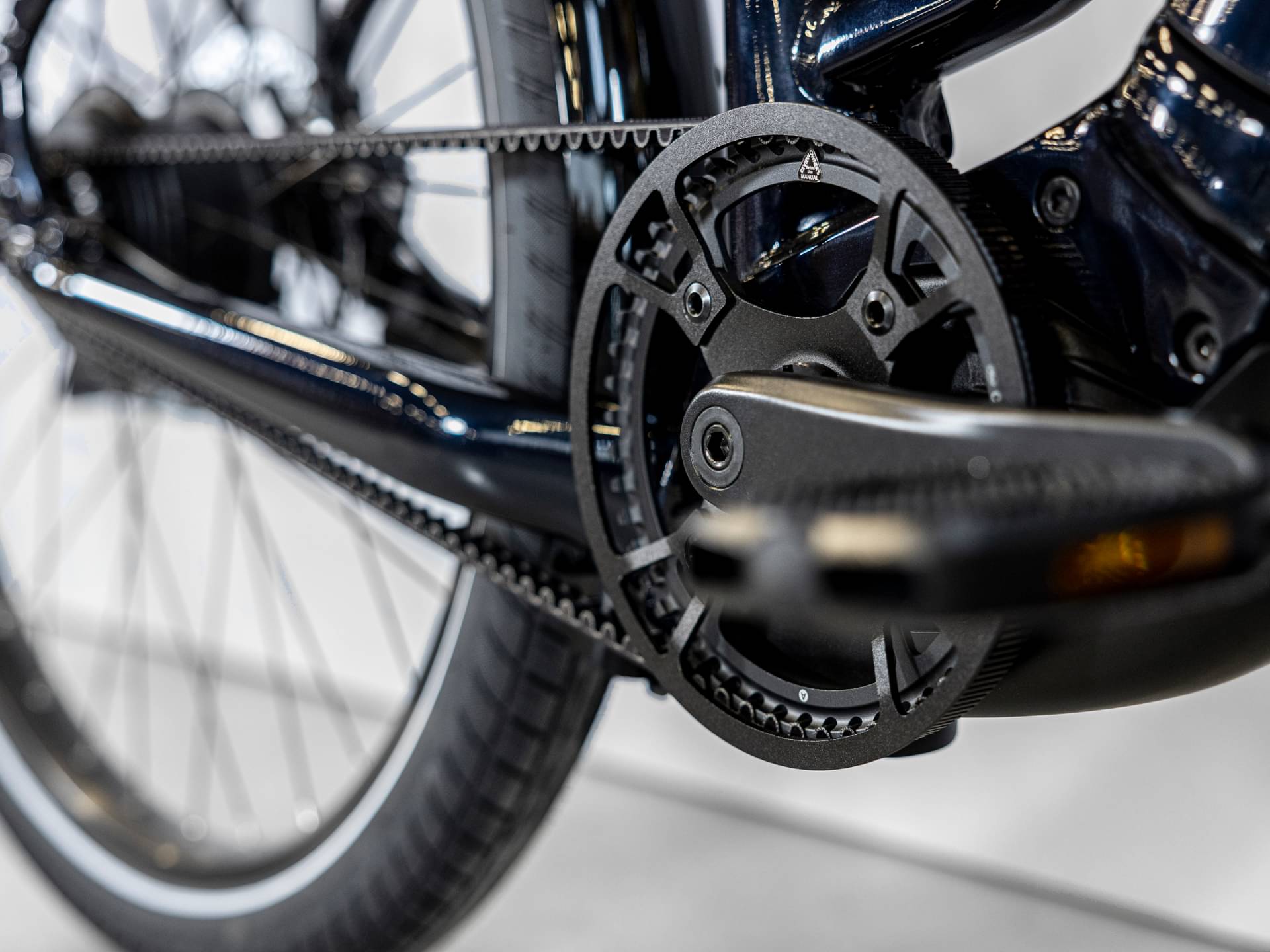

Cassette
Gates CDX, 22 T, steel
Crank
Size: S, M, ProWheel alloy, 170 mm length; Size: L, ProWheel alloy, 175 mm length
Pedals
Bontrager City pedals
Wheels
Front Hub
Bontrager sealed bearing, 32-hole, 15 mm alloy thru-axle

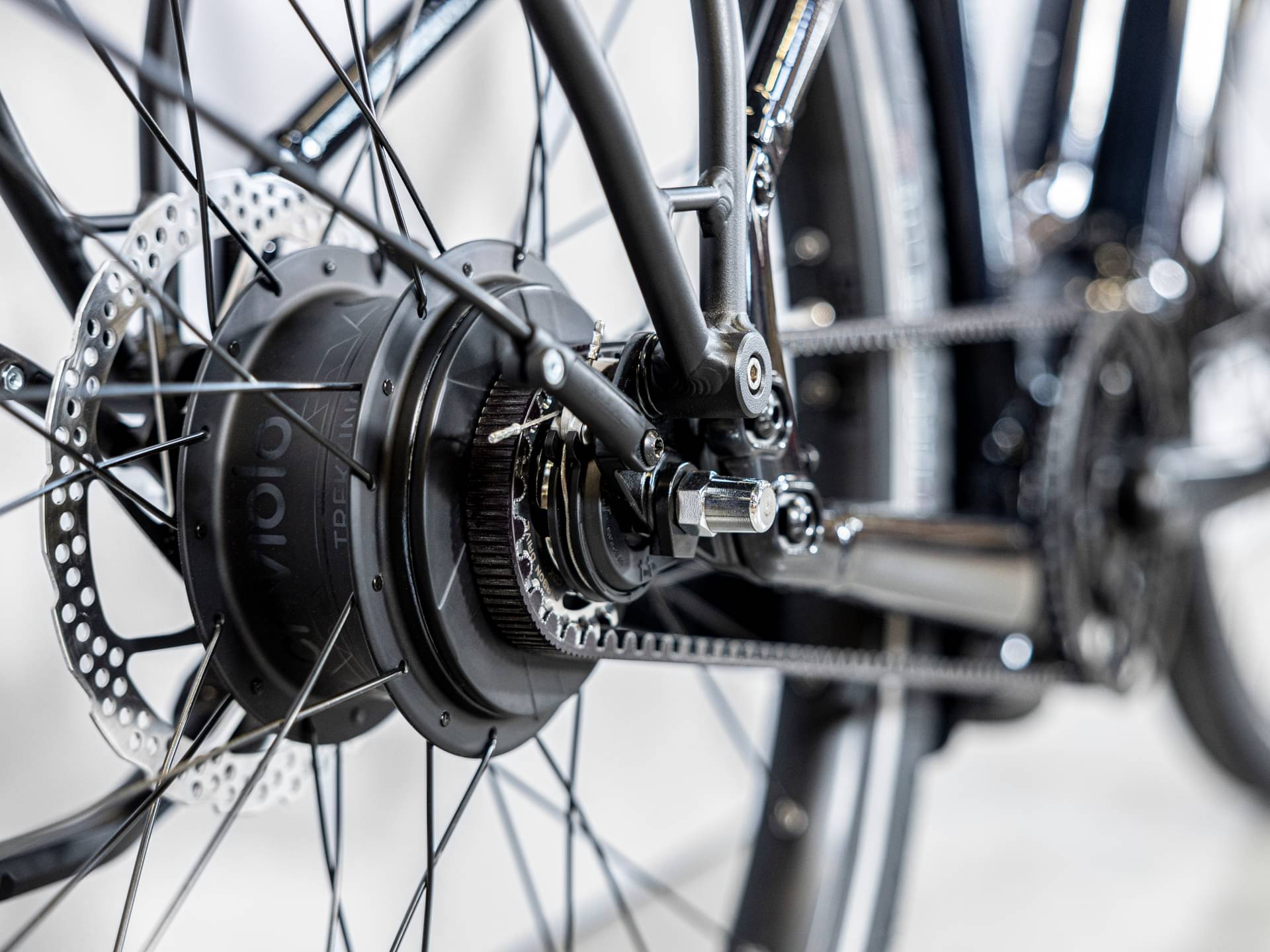

Rear Hub
Enviolo Trekking, 32-hole, 6-bolt disc, 44T
Rims
Bontrager Line TLR 30, Tubeless-Ready, 32-hole, Presta valve
Tires
Bontrager E6 Hard-Case Lite, reflective strip, 27.5x2.40"

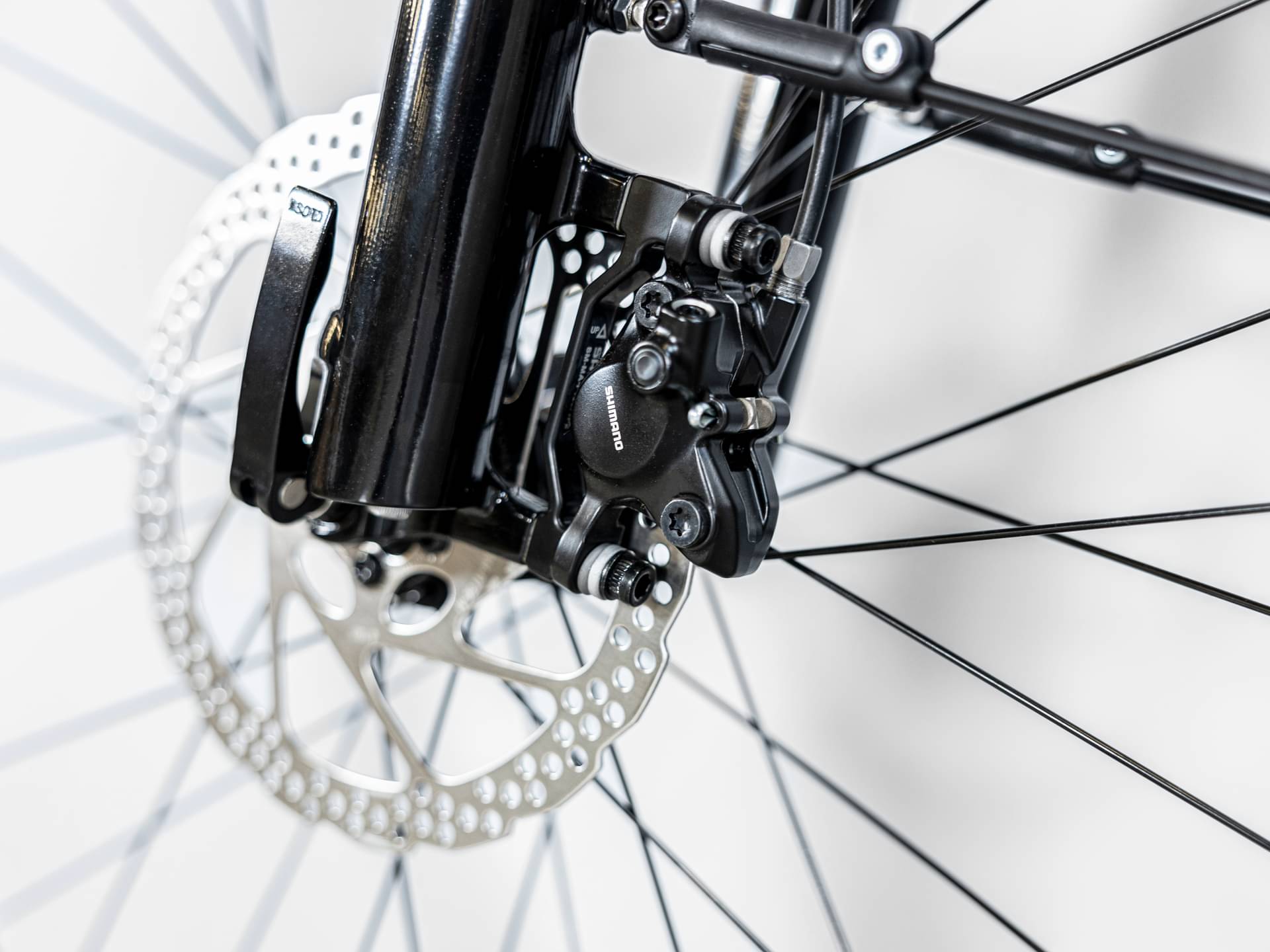

Brakes
Brakes
Tektro HD-M275 hydraulic disc
Cockpit
Stem
Size: S, M, Bontrager alloy, 31.8 mm clamp, adjustable rise, Blendr-compatible, 85 mm length; Size: L, Bontrager alloy, 31.8 mm clamp, adjustable rise, Blendr-compatible, 105 mm length
Handlebar
Alloy lowriser, 31.8 mm, 25 mm rise, 11-degree backsweep, 690 mm width
Grips
Bontrager Satellite Elite, alloy lock-on
Seat

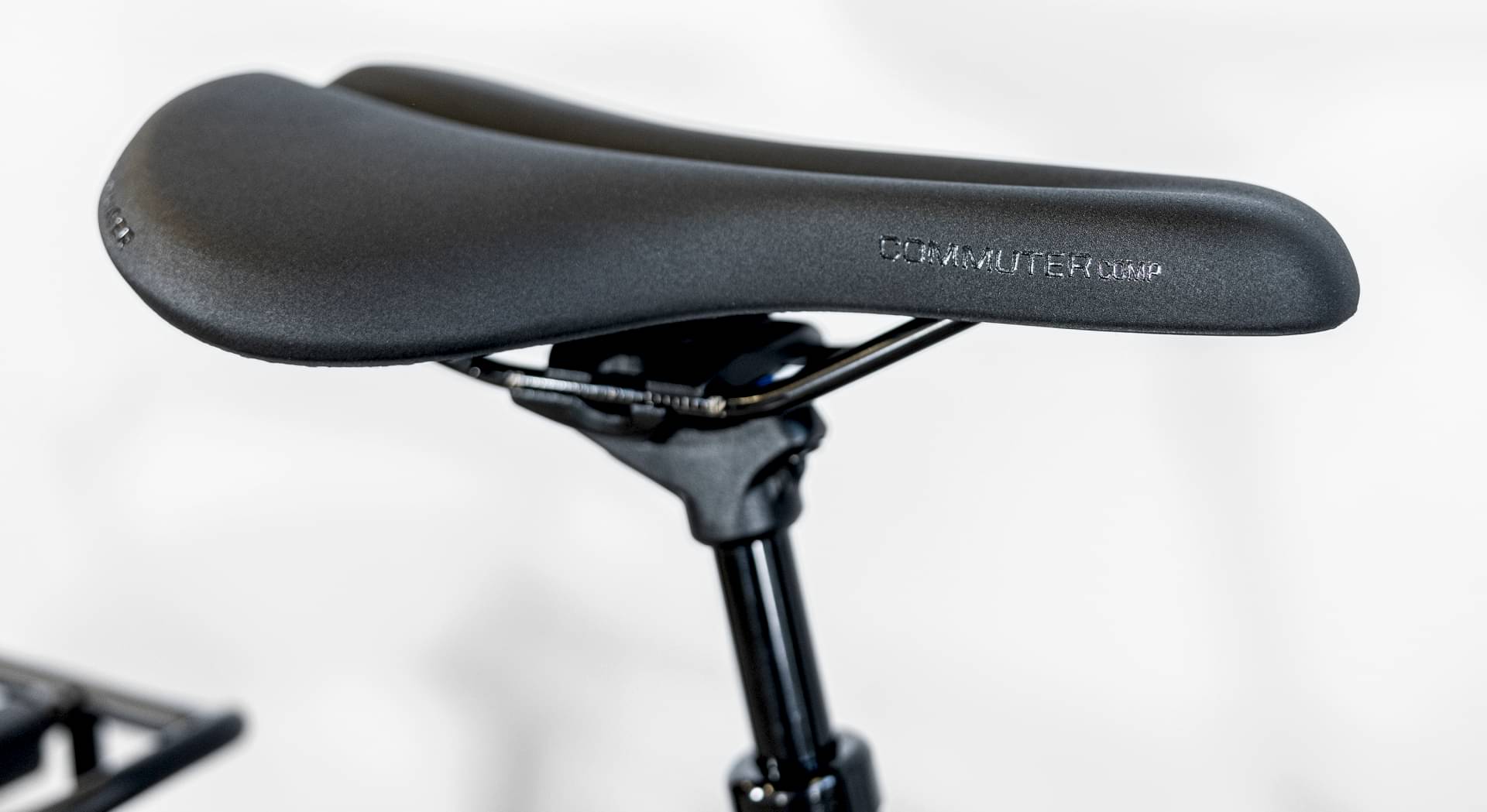

Saddle
Bontrager Commuter Comp
Seatpost
Alloy, suspension, 31.6 mm, 300 mm length
Motor & Battery

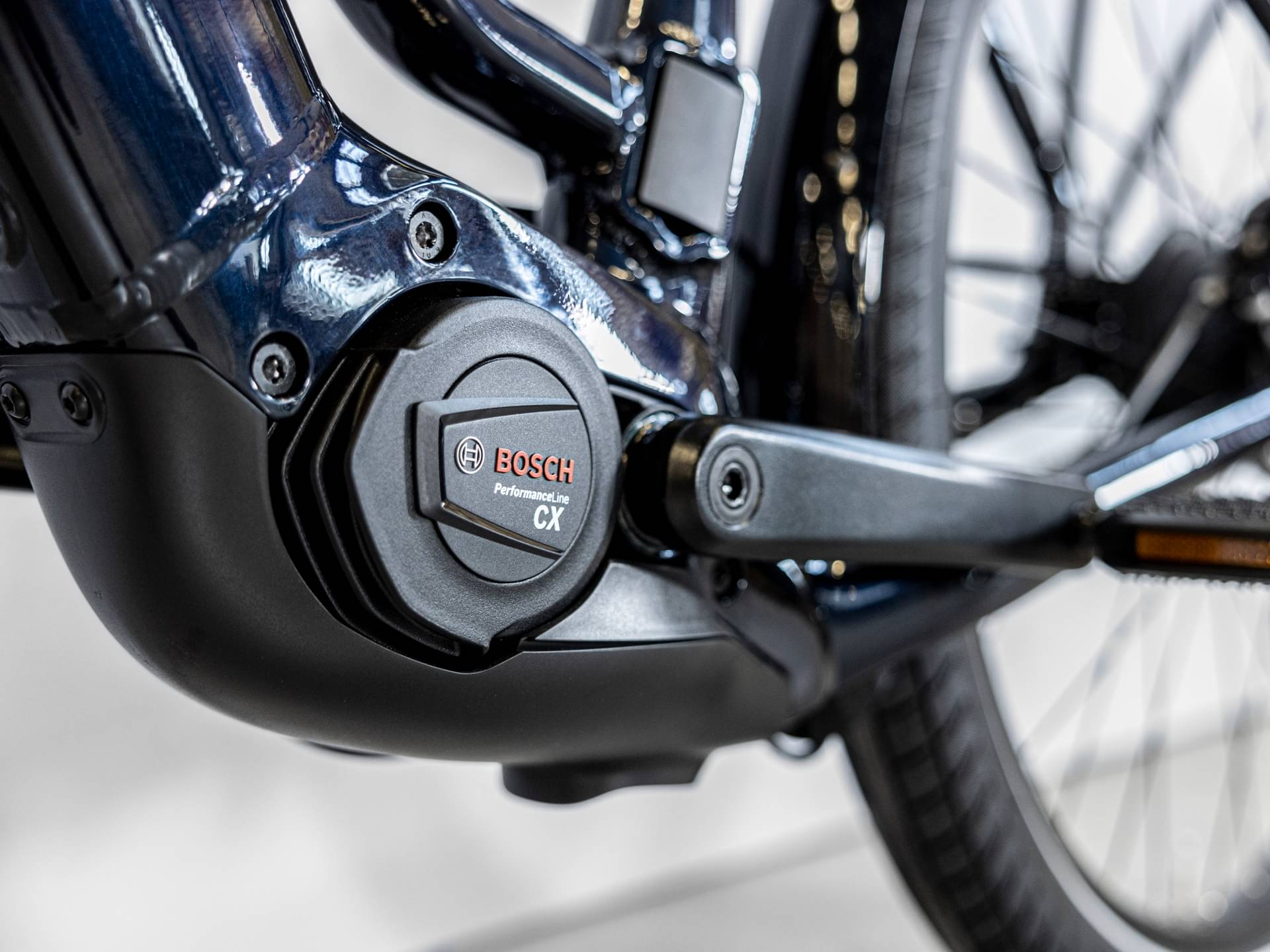

Motor
Bosch Performance Line CX, smart system, magnesium motor body, 85 Nm

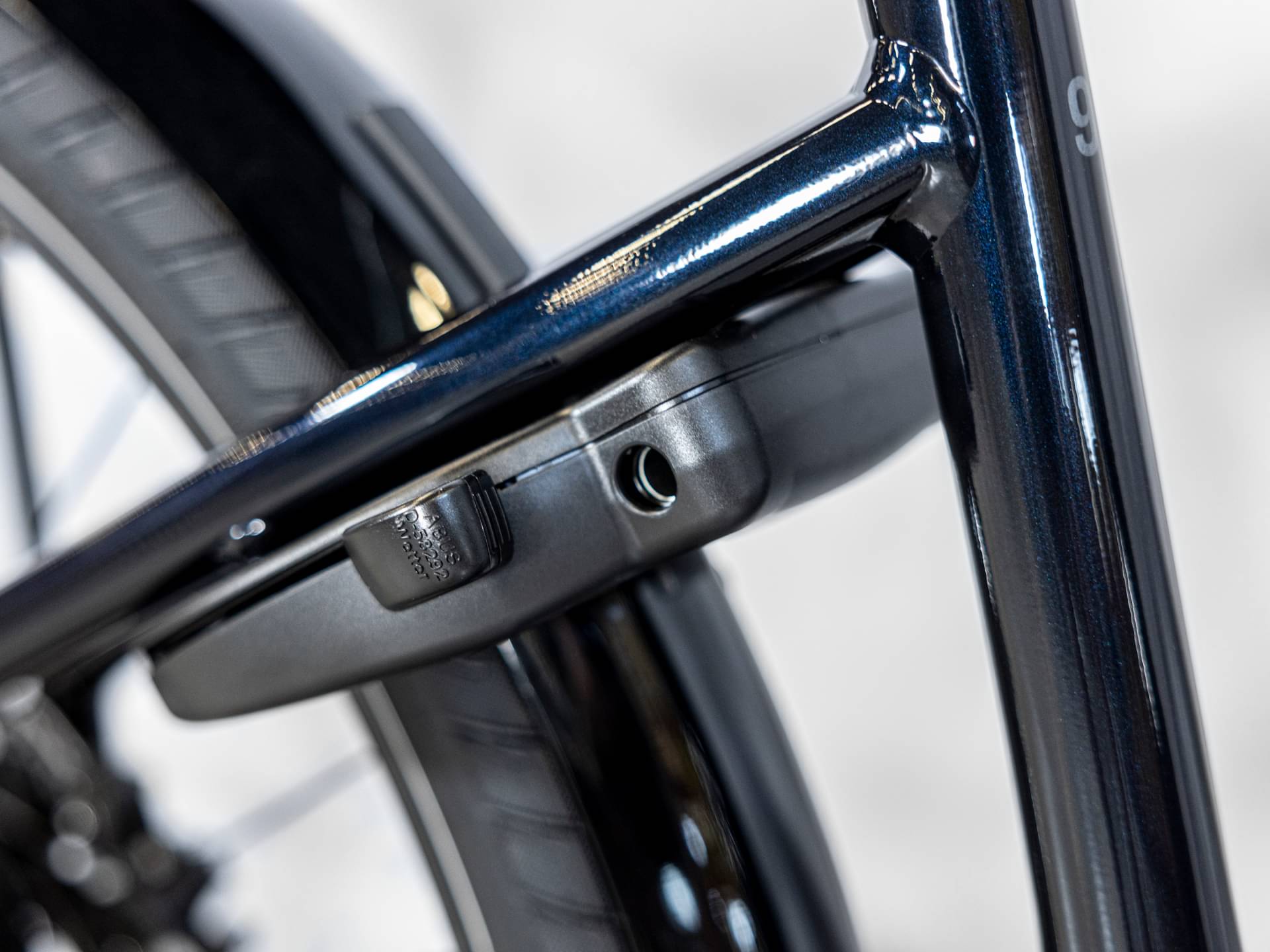

Battery
Bosch PowerTube 625Wh, smart system
Charger
Bosch standard 4A, 230V, smart system
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.58 mm | 1.65 mm |
| Bottom Bracket Height | 299 mm | 299 mm | 295 mm |
| Front Center | 657 mm | 660 mm | 667 mm |
| Rake | 44 mm | 41 mm | 41 mm |
| Trail | 90 mm | 86 mm | 81 mm |
| Stack | 605 mm | 630 mm | 660 mm |
| Reach | 397 mm | 399 mm | 401 mm |
| Top Tube Length | 582 mm | 592 mm | 603 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 450 mm | 450 mm | 491 mm |
| Head Tube Angle | 69 ° | 69.5 ° | 70 ° |
| Head Tube Length | 150 mm | 175 mm | 205 mm |
| Chainstay Length | 486 mm | 486 mm | 486 mm |
| Wheelbase | 1137 mm | 1140 mm | 1147 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Standover Height | 475 mm | 477 mm | 476 mm |
| Wheels | 650 | 650 | 650 |
| Rider Min Height | 155 cm | 164 cm | 174 cm |
| Rider Max Height | 166 cm | 176 cm | 186 cm |
Model Overview
Allant+ 9 Lowstep belongs to the Trek E Allantplus model. Trek launched 60 e-bikes of this model so far. Check out the entire range from 2024 of this model, by clicking this link.
Model range prices
Trek Allant+ 9 2024 is the most economical model, with a starting price of 4777$. Trek Allant+ 9 Lowstep 2024 on the other hand costs 4777$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Commuter e-bikes average price
If you want to purchase a solid Commuter e-bike, it is important to know that the average cost is 2569$. However, this doesn’t mean that if you spend less money on a Commuter e-bike, you couldn’t get a decent one. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
This e-bike was released in 2024 and its price was 4777$. Comparing the average cost of a Commuter e-bike to this one, you will see that Allant+ 9 Lowstep price is 85.95% more expensive.
Commuter e-bikes average weight
If we make a quick analysis of the average weight of a Commuter e-bike, we get 24.02 kg (52.95 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Allant+ 9 Lowstep weighs 26.5 kg (58.42 lbs) and is considerably heavier than the average. To sum up, it’s 10.32% heavier than the average weight of Commuter e-bikes.
Allant+ 9 Lowstep components
Fork
The Suntour XCR is included from the factory. It has a travel distance of 60mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
The Allant+ 9 Lowstep 2024 e-bike is equipped with aluminum wheels when leaving the factory. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
This e-bike is available in 3 sizes. They vary from 155 cm – 186 cm (5.09 ft – 6.1 ft). In conclusion, finding one for you shouldn’t be a problem.
