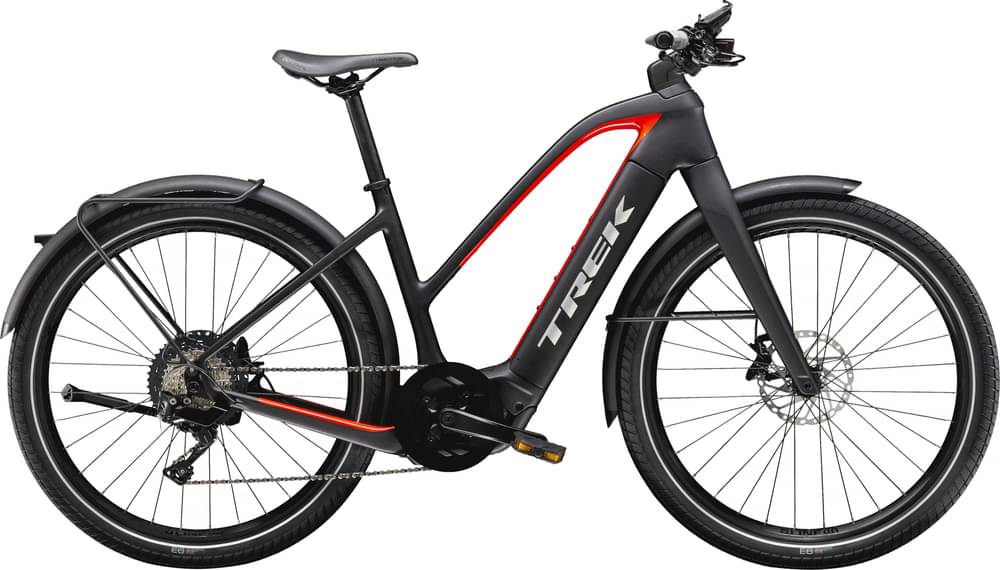

Trek Allant+ 9.9S Stagger 2021
2021 E-bike
Estimate price |
6,299$
Weight | 21.89 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 650b -
Groupset XT -
Suspension Rigid -
Motor Bosch 250W 63Nm mid-drive -
Battery Bosch PowerTube 625 -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
155cm - 166cm
MD
164cm - 176cm
LG
174cm - 186cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
OCLV Carbon, Removable Integrated Battery, Range Boost compatible, Motor Armor, internal cable routing, post-mount disc, 12mm thru axle
Suspension Fork
Allant Carbon fork, post mount disc, 100x15mm thru axle
Drivetrain
Rear Derailleur
Size: S, M, L, Shimano XT M8120, long cage, Shadow Plus design; Size: S, M, L, Shimano XT M8100, long cage, 51T max cog
Shift Levers
Shimano XT M8100, 12 speed
Cassette
Size: S, M, L, Shimano SLX M7100, 10-45T, 12 speed; Size: S, M, L, Shimano XT M8100, 10-51, 12 speed
Crank
Size: S, M, ProWheel alloy, 170mm; Size: L, ProWheel alloy, 175mm
Chain
Shimano SLX M7100, 12 speed
Wheels
Front Hub
Shimano Deore XT M8110, centerlock disc, 15mm thru-axle
Rear Hub
Shimano Deore XT, 32h, centerlock disc, 12mm thru-axle
Rims
Alex MD35, tubeless compatible, 32-hole, 35mm width, presta valve
Spokes
DT Swiss 14g, black
Tires
Bontrager E6 Hard-Case Lite, reflective, wire bead, 60tpi, 27.5x2.40''
Brakes
Brakes
Size: S, M, L, Shimano MT520 4-piston hydraulic disc, post-mount, 180mm rotor; Size: S, M, L, Shimano MT520 4-piston hydraulic disc, 180mm rotor
Disk Rotors
Size: S, M, L, Shimano RT64, 180mm, centerlock; Size: S, M, L, Shimano EM600, 180mm, centerlock
Cockpit
Stem
Size: S, Allant+ forged alloy, integrated cable routing, 45mm length, 31.8mm clamp; Size: M, Allant+ forged alloy, integrated cable routing, 75mm length, 31.8mm clamp; Size: L, Allant+ forged alloy, integrated cable routing, 95mm length, 31.8mm clamp
Handlebar
Size: S, M, Bontrager Satellite Plus IsoZone, alloy, 31.8mm, 15mm rise, 600mm width; Size: S, M, Bontrager Satellite Plus IsoZone, 31.8mm, 15mm rise, 600mm width; Size: L, Bontrager Satellite Plus IsoZone, alloy, 31.8mm, 15mm rise, 660mm width; Size: L, Bontrager Satellite Plus IsoZone, 31.8mm, 15mm rise, 620mm width
Grips
Bontrager Satellite IsoZone Plus, lock-on, ergonomic
Seat
Saddle
Bontrager Commuter Comp
Seatpost
Size: S, M, Bontrager Comp, 6061 alloy, 31.6mm, 8mm offset, 330mm length; Size: L, Bontrager Comp, 6061 alloy, 31.6mm, 8mm offset, 400mm length
Motor & Battery
Motor
Bosch Performance Speed, 75 Nm, 28 mph / 45 kph
Battery
Bosch PowerTube 625
Charger
Bosch standard 4A (100-240V) charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.53 mm | 1.54 mm |
| Bottom Bracket Height | 295 mm | 295 mm | 295 mm |
| Front Center | 658 mm | 661 mm | 671 mm |
| Rake | 45 mm | 41 mm | 44 mm |
| Trail | 89 mm | 84 mm | 83 mm |
| Stack | 585 mm | 620 mm | 632 mm |
| Reach | 404 mm | 404 mm | 411 mm |
| Top Tube Length | 583 mm | 594 mm | 604 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 450 mm | 450 mm | 550 mm |
| Head Tube Angle | 69 ° | 69.5 ° | 70 ° |
| Head Tube Length | 130 mm | 165 mm | 175 mm |
| Chainstay Length | 469 mm | 486 mm | 469 mm |
| Wheelbase | 1120 mm | 1141 mm | 1133 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Standover Height | 697 mm | 709 mm | 705 mm |
| Wheels | 650 | 650 | 650 |
| Rider Min Height | 155 cm | 164 cm | 174 cm |
| Rider Max Height | 166 cm | 176 cm | 186 cm |
Model Overview
Allant+ 9.9S Stagger belongs to the Trek E Allantplus model. Trek released 60 e-bikes variations of this model so far. You can get a glimpse at all models from 2021, by clicking on this link.
Model range prices
Trek Allant+ 7 Lowstep 2021 is the most economical model, with a starting price of 3599$. Trek Allant+ 9.9 Stagger 2021 on the other hand costs 7113$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Commuter e-bikes
Our math shows that the average cost of a dependable Commuter e-bike is 2569$. However, even though the average price of a Commuter e-bike is lower, you might still be able to get a top-quality e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
When Trek released this model in 2021, its price was 6299$. Comparing the average cost of a Commuter e-bike to this one, you will see that Allant+ 9.9S Stagger price is 145.19% more expensive.
Commuter e-bikes average weight
On a deeper look, we notice that the average weight of a Commuter e-bike is 25.2 kg (55.56 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
much lighter than average, Allant+ 9.9S Stagger has a weight of 21.89 kg (48.26 lbs). In short, the average Commuter e-bike weight is 15.12% higher than this one.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork material
When it comes to the fork, this e-bike has a carbon one, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
As for the wheels, Trek Allant+ 9.9S Stagger 2021, has a aluminum model. After 700c wheels, 650b is the second most popular choice for road bikes. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The Allant+ 9.9S Stagger has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 155 cm – 186 cm (5.09 ft – 6.1 ft). In conclusion, it won’t take much to find one that’s right for you.
