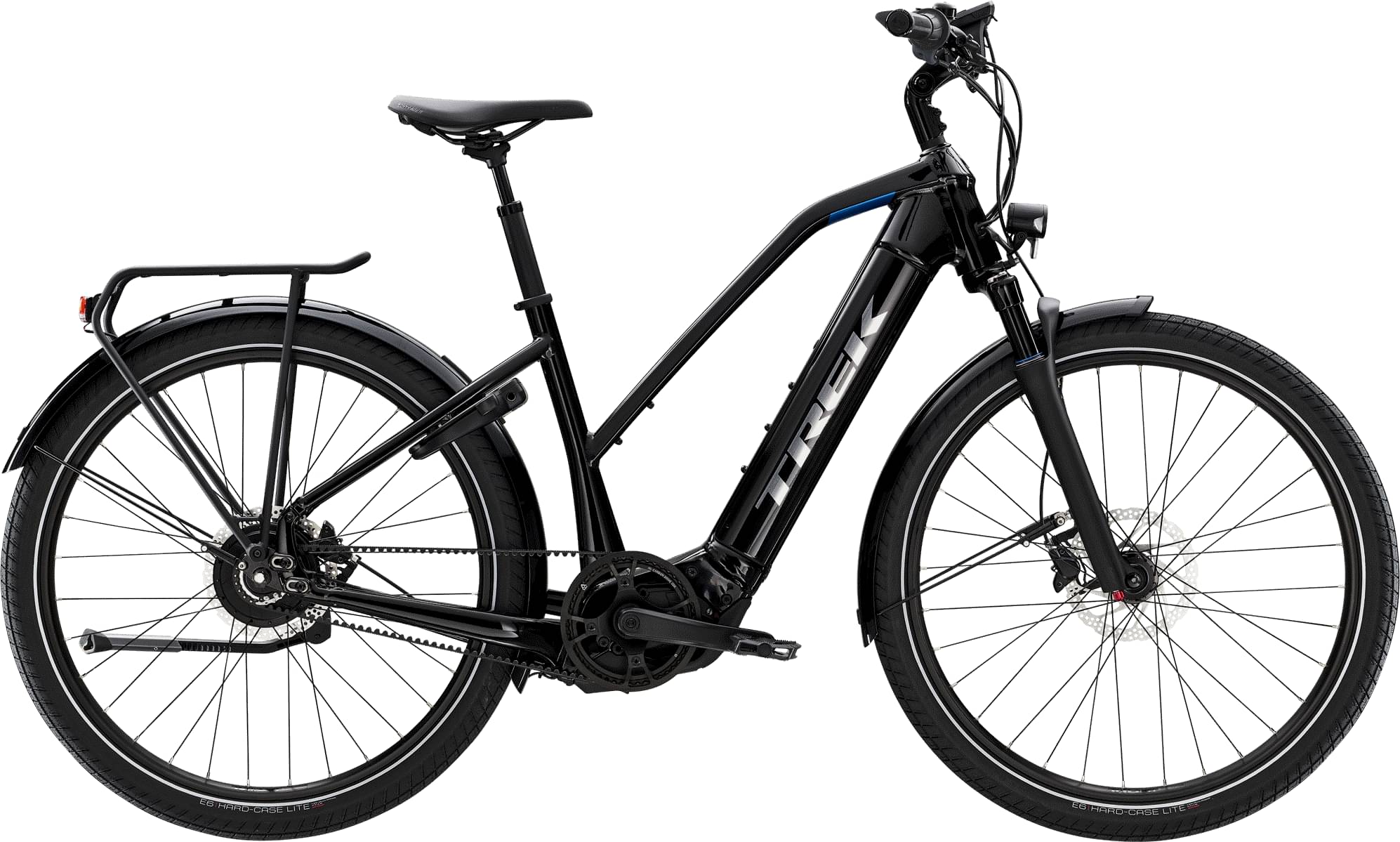

Trek Allant+ 9 Stagger 2022
2022 E-bike
Estimate price |
6,192$
Weight | 23.4 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Travel Front 45mm -
Fork Suntour MOBIE
-
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube 625 -
Drivetrain Belt Drive -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
155cm - 166cm
MD
164cm - 176cm
LG
174cm - 186cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
SR Suntour Mobie25, 45 mm travel, preload, rebound and lockout, tapered alloy steerer, post-mount disc
Drivetrain
Shift Levers
Enviolo Trekking manual twist shifter
Cassette
Gates CDX, 22 T, steel
Crank
Size: S, M, ProWheel alloy, 170 mm; Size: L, ProWheel alloy, 175mm
Wheels
Front Hub
Bontrager sealed bearing, 32-hole 15 mm alloy thru-axle
Rear Hub
Enviolo Trekking, 32-hole, 6-bolt disc, 44T
Rims
Alex MD35, tubeless compatible, 32-hole, 35 mm width, Presta valve
Tires
Bontrager E6 Hard-Case Lite, reflective, wire bead, 60 tpi, 27.5x2.40"
Brakes
Brakes
Shimano MT200 hydraulic disc
Disk Rotors
Shimano RT56, 6-bolt, 180 mm
Cockpit
Stem
Size: S, M, Bontrager alloy, 31.8 mm clamp, adjustable rise, Blendr-compatible, 85 mm length; Size: L, Bontrager alloy, 31.8 mm clamp, adjustable rise, Blendr-compatible, 105 mm length
Handlebar
Alloy lowriser, 31.8 mm, 25 mm rise, 11-degree backsweep, 690 mm width
Grips
Bontrager Satellite Elite, alloy lock-on
Seat
Saddle
Bontrager Commuter Comp
Seatpost
Alloy, adjustable suspension, 31.6 mm, 300 mm length
Motor & Battery
Motor
Bosch Performance CX, magnesium motor body, 250 watt, 85 Nm, 25 km/h (15.5 mph) max assist, 32 km/h for New Zealand
Battery
Bosch PowerTube 625
Charger
Bosch standard 4A, 220–240V
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.53 mm | 1.6 mm |
| Bottom Bracket Height | 295 mm | 295 mm | 295 mm |
| Front Center | 658 mm | 661 mm | 673 mm |
| Rake | 44 mm | 41 mm | 44 mm |
| Trail | 89 mm | 84 mm | 82 mm |
| Stack | 596 mm | 620 mm | 652 mm |
| Reach | 401 mm | 404 mm | 407 mm |
| Top Tube Length | 583 mm | 594 mm | 607 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 450 mm | 450 mm | 491 mm |
| Head Tube Angle | 69 ° | 69.5 ° | 70 ° |
| Head Tube Length | 140 mm | 165 mm | 195 mm |
| Chainstay Length | 486 mm | 486 mm | 486 mm |
| Wheelbase | 1138 mm | 1141 mm | 1153 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Standover Height | 705 mm | 709 mm | 755 mm |
| Wheels | 650 | 650 | 650 |
| Rider Min Height | 155 cm | 164 cm | 174 cm |
| Rider Max Height | 166 cm | 176 cm | 186 cm |
About this model
Allant+ 9 Stagger is part of the Trek E Allantplus model. Trek launched 60 e-bikes of this model so far. Take a sneak peek at all Trek E Allantplus e-bikes models from 2022, by clicking here.
Model range prices
Trek Allant+ 5 Lowstep 2022 is the most economical model, with a starting price of 3662$. Trek Allant+ 9.9S Stagger 2022 on the other hand costs 7431$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Commuter e-bikes
If you want an acceptable Commuter e-bike you should know that the average price is 2569$. However, even if your budget is less than the average, you might still be able to get a top-quality Commuter e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
This e-bike was released in 2022 and its price was 5733$. Comparing the average cost of a Commuter e-bike to this one, you will see that Allant+ 9 Stagger price is 123.16% higher.
Average weight for Commuter e-bikes
If we make a quick analysis of the average weight of a Commuter e-bike, we get 25.2 kg (55.56 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
With a weight of 23.4 kg (51.59 lbs), Trek e-bike is a bit lighter than average. In short, the average Commuter e-bike weight is 7.69% higher than this one.
Allant+ 9 Stagger components
Fork
The Suntour MOBIE is included from the factory. It has a travel distance of 45mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Fork material
Allant+ 9 Stagger has an aluminum fork, so there won’t be much extra weight added to the e-bike. However, they are not so stiff as carbon forks are.
Wheels
When leaving the production line, the Allant+ 9 Stagger model has aluminum wheels. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Allant+ 9 Stagger comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
Trek Allant+ 9 Stagger e-bike has 3 sizes, in the range of 155 cm – 186 cm (5.09 ft – 6.1 ft). In short, it won’t be difficult to find the right one for you.
