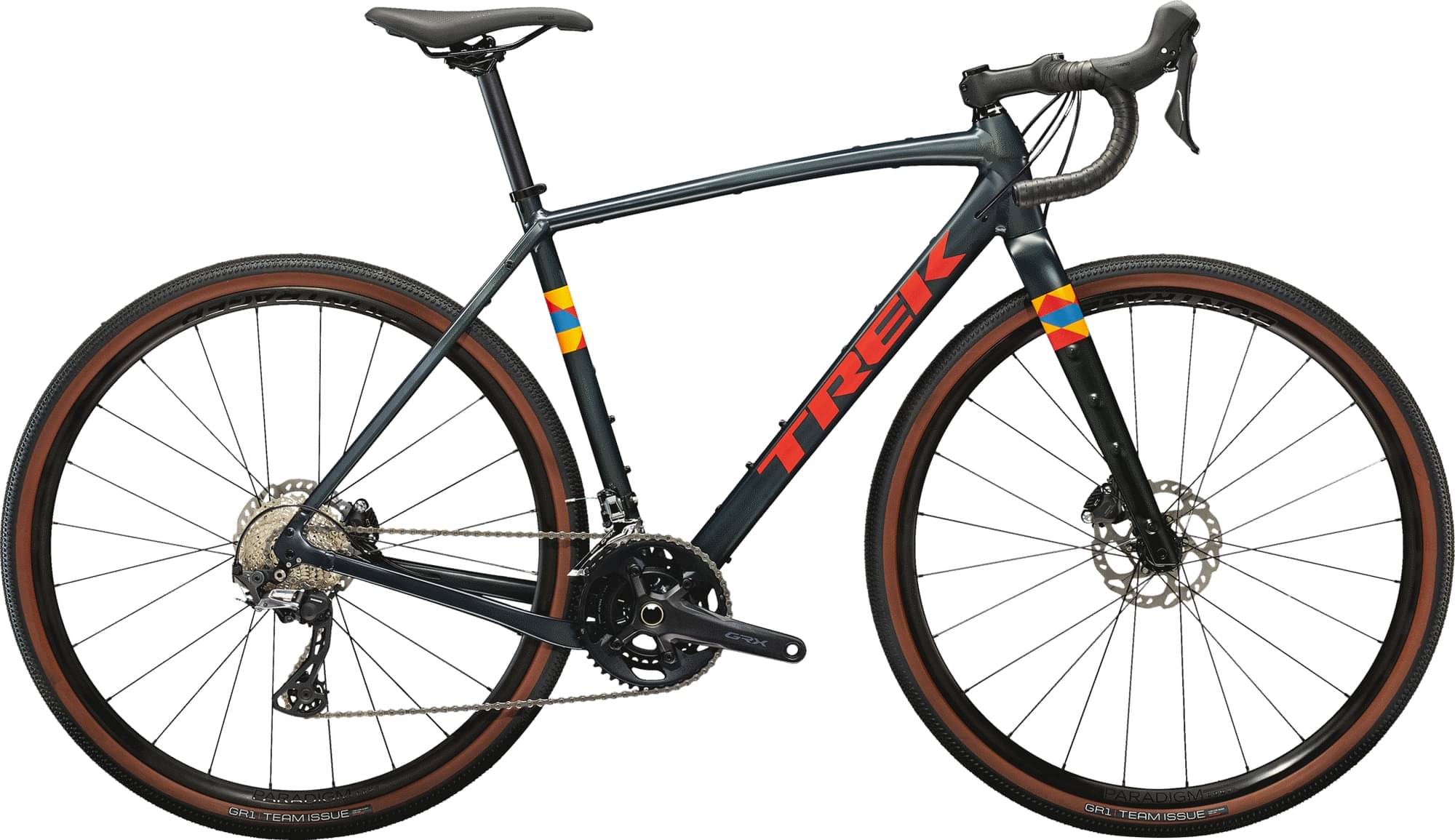

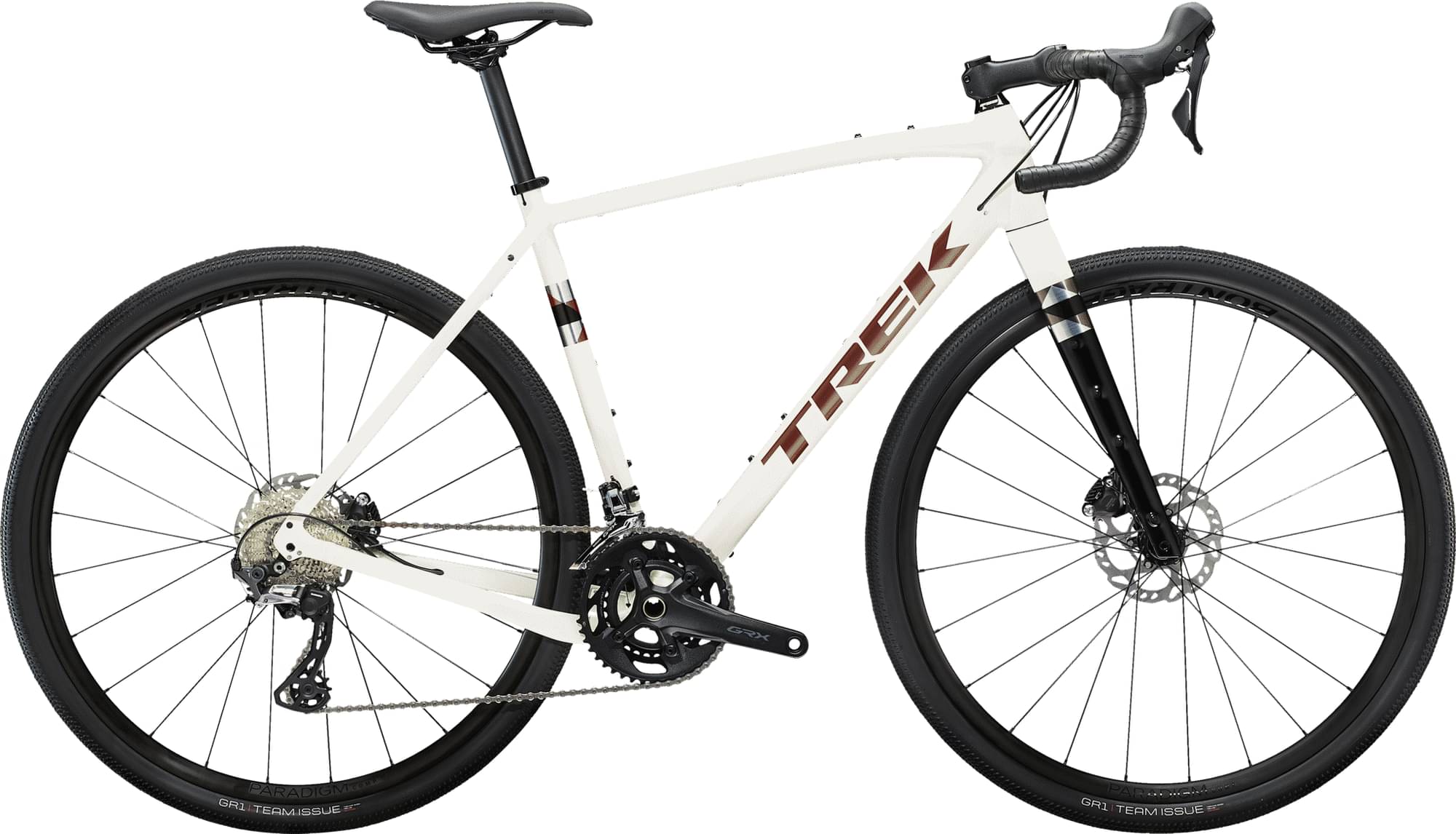

Trek Checkpoint ALR 5 2023
2023 Road
Estimate price |
2,399$
Weight | 9.75 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset GRX 800, GRX 600 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
49cm
156cm - 164cm
52cm
162cm - 169cm
54cm
167cm - 175cm
56cm
173cm - 181cm
58cm
179cm - 186cm
61cm
184cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
300 Series Alpha Aluminum, tapered head tube, Internal cable routing, 3S chain keeper, T47 BB, rack and fender mounts, integrated frame bag mounts, flat mount disc, 142x12mm thru axle
Suspension Fork
Checkpoint, full carbon, tapered carbon steerer, rack mounts, fender mounts, flat mount disc, 12x100mm thru axle
Drivetrain
Rear Derailleur
Shimano GRX RX810, long cage, 34T max cog
Front Derailleur
Shimano GRX RX810, braze-on
Shift Levers
Shimano GRX RX600, 11 speed
Cassette
Shimano 105 HG700-11, 11-34, 11 speed
Crank
Size: 49, Shimano GRX RX600, 46/30, 165mm length; Size: 52, Shimano GRX RX600, 46/30, 170mm length; Size: 54, 56, Shimano GRX RX600, 46/30, 172.5mm length; Size: 58, 61, Shimano GRX RX600, 46/30, 175mm length
Bottom Bracket
Praxis, T47 threaded, internal bearing
Chain
Shimano HG601, 11 speed
Wheels
Front Hub
Bontrager alloy, sealed bearing, centerlock disc, 100x12mm thru axle
Rear Hub
Bontrager alloy, sealed bearing, centerlock disc, Shimano 11-speed freehub, 142x12mm thru axle
Rims
Size: 49, 52, 54, 56, 58, 61, Bontrager Paradigm, Tubeless Ready, 24-hole, 21mm width, Presta valve; Size: 49, 52, 54, 56, 58, 61, Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21mm width, Presta valve
Spokes
14g stainless steel
Tires
Bontrager GR1 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 120 tpi, 700x40mm
Brakes
Brakes
Shimano RX400 hydraulic disc, flat mount
Cockpit
Stem
Size: 49, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 70mm length; Size: 52, 54, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length; Size: 56, 58, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length; Size: 61, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 100mm length
Handlebar
Size: 49, Bontrager Elite Gravel, 38cm width; Size: 52, Bontrager Elite Gravel, 40cm width; Size: 54, 56, Bontrager Elite Gravel, 42cm width; Size: 58, 61, Bontrager Elite Gravel, 44cm width
Seat
Saddle
Size: 49, 52, Bontrager Verse Comp, steel rails, 155mm width; Size: 54, 56, 58, 61, Bontrager Verse Comp, steel rails, 145mm width
Seatpost
Bontrager alloy, 27.2mm, 12mm offset, 330mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 49cm | 52cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.36 mm | 1.38 mm | 1.41 mm | 1.45 mm | 1.48 mm | 1.53 mm |
| Bottom Bracket Height | 271 mm | 271 mm | 273 mm | 273 mm | 275 mm | 275 mm |
| Front Center | 602 mm | 610 mm | 617 mm | 624 mm | 634 mm | 646 mm |
| Rake | 45 mm | 46 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 74 mm | 71 mm | 70 mm | 67 mm | 66 mm | 65 mm |
| Stack | 543 mm | 558 mm | 576 mm | 597 mm | 614 mm | 644 mm |
| Reach | 398 mm | 404 mm | 408 mm | 412 mm | 416 mm | 422 mm |
| Top Tube Length | 546 mm | 560 mm | 575 mm | 589 mm | 602 mm | 622 mm |
| Seat Tube Angle | 74.1 ° | 73.7 ° | 73.2 ° | 72.8 ° | 72.5 ° | 72.1 ° |
| Seat Tube Length | 490 mm | 520 mm | 540 mm | 560 mm | 580 mm | 610 mm |
| Head Tube Angle | 71.2 ° | 71.6 ° | 71.8 ° | 72.2 ° | 72.3 ° | 72.6 ° |
| Head Tube Length | 90 mm | 105 mm | 125 mm | 145 mm | 165 mm | 195 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1030 mm | 1038 mm | 1046 mm | 1053 mm | 1063 mm | 1075 mm |
| Bottom Bracket Drop | 78 mm | 78 mm | 76 mm | 76 mm | 74 mm | 74 mm |
| Standover Height | 740 mm | 770 mm | 794 mm | 814 mm | 834 mm | 864 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 162 cm | 167 cm | 173 cm | 179 cm | 184 cm |
| Rider Max Height | 164 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm |
Model Overview
Checkpoint ALR 5 is part of the Trek Checkpoint model. Trek launched 70 bikes of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Trek Checkpoint ALR 5 2023 is the most affordable bike of this model and has a price of 2399$. On the other hand, Trek Checkpoint SLR 9 eTap 2023, is the most expensive and costs 12249$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Gravel bikes
If you want an acceptable Gravel bike you should know that the average price is 2462$. However, even if your budget is less than the average, you might still be able to get a top-quality Gravel bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
When Trek released this model in 2023, its price was 2399$. Comparing this to the average Gravel bike price, we see that the price is 2.63% smaller.
Average weight for Gravel bikes
Gravel bikes weigh an average of 8.13 kg (17.92 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Weighing 9.75 kg (21.5 lbs), the Checkpoint ALR 5 model is much heavier than average. To sum up, it’s 19.93% heavier than the average weight of Gravel bikes.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Checkpoint ALR 5 components
Fork material
Checkpoint ALR 5 has a carbon fork, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
When leaving the production line, the Checkpoint ALR 5 model has 700c aluminum wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
Trek Checkpoint ALR 5 bike has 6 sizes, in the range of 156 cm – 191 cm (5.12 ft – 6.27 ft). In conclusion, finding one for you shouldn’t be a problem.
