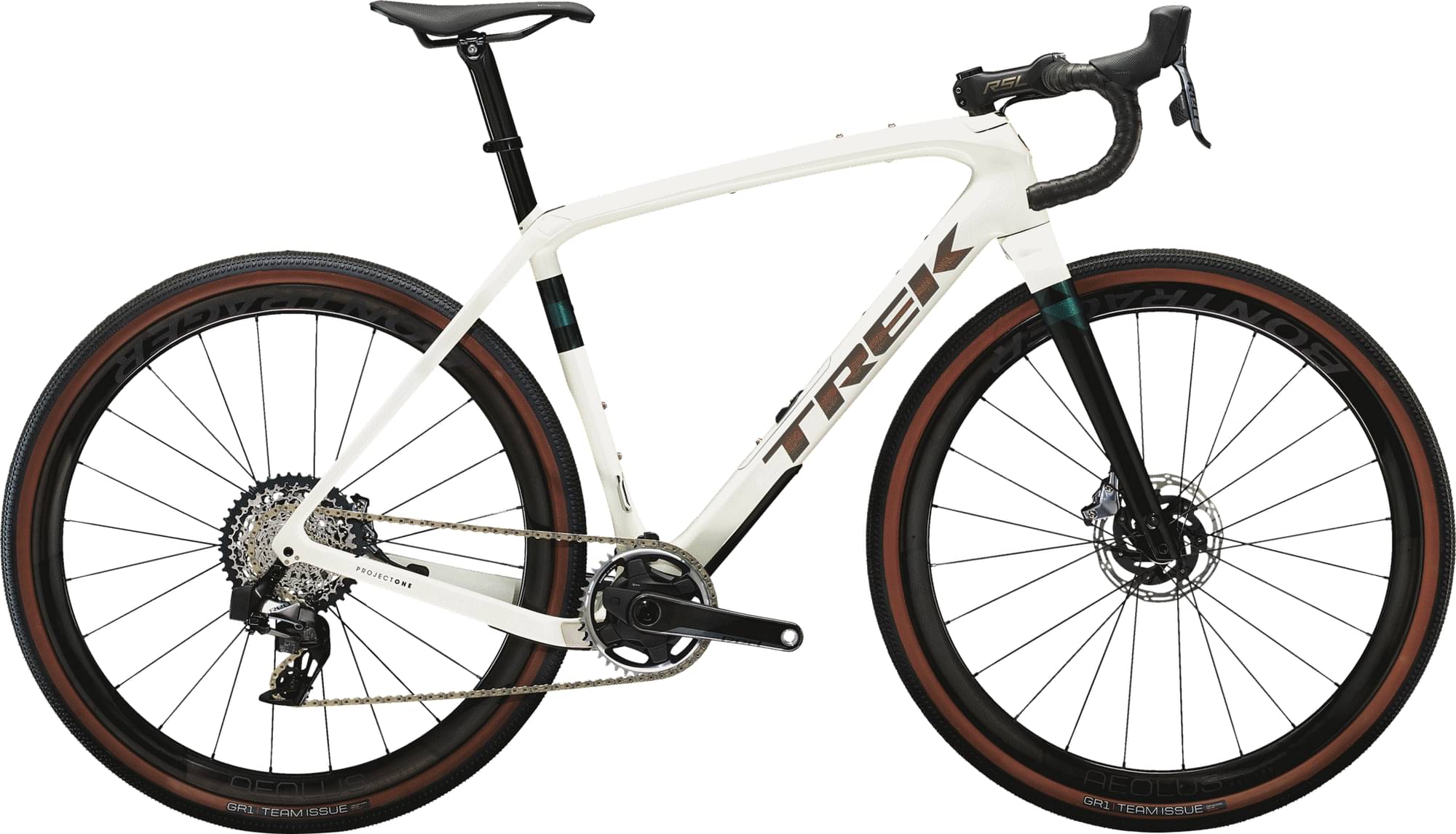

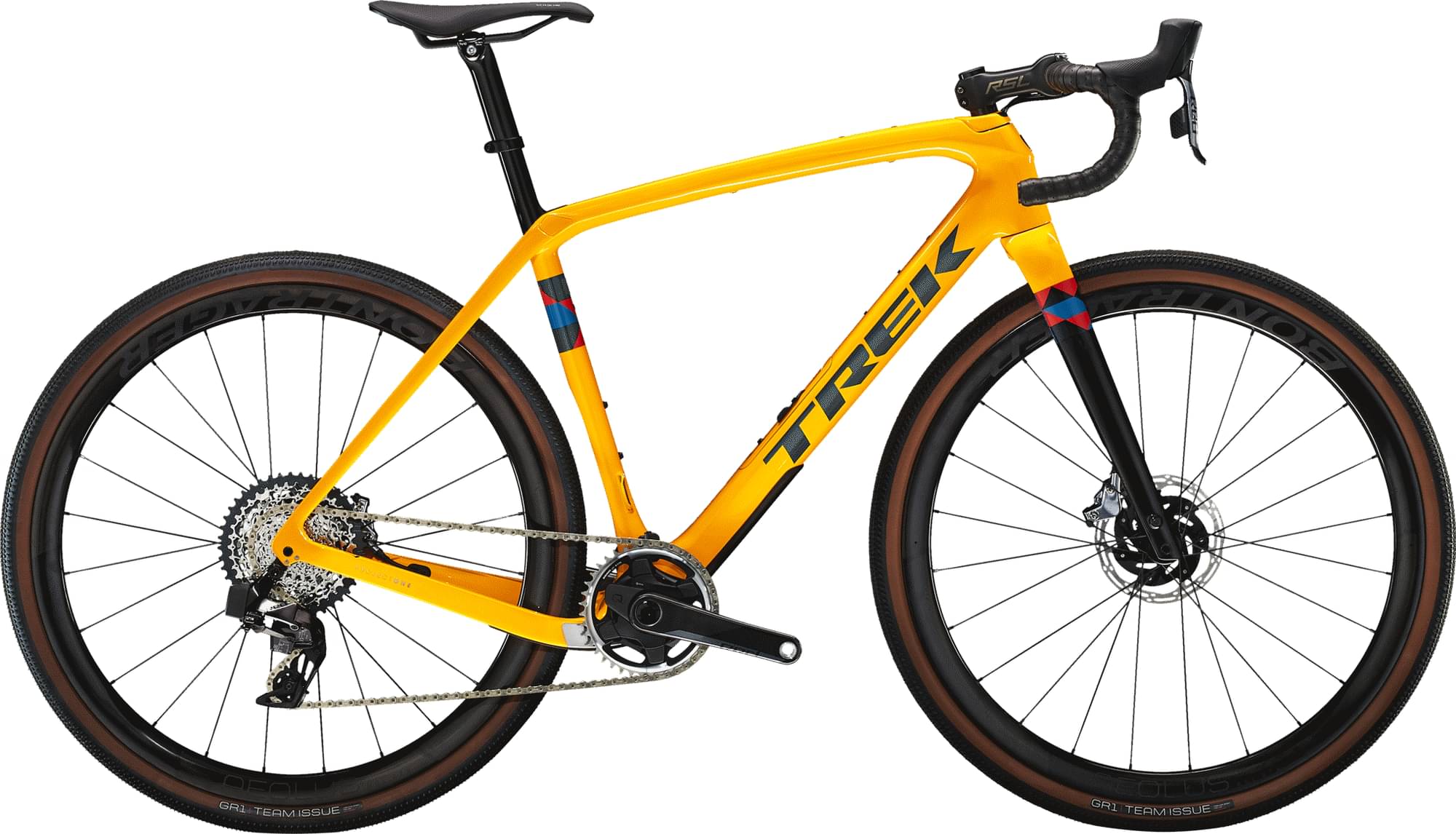

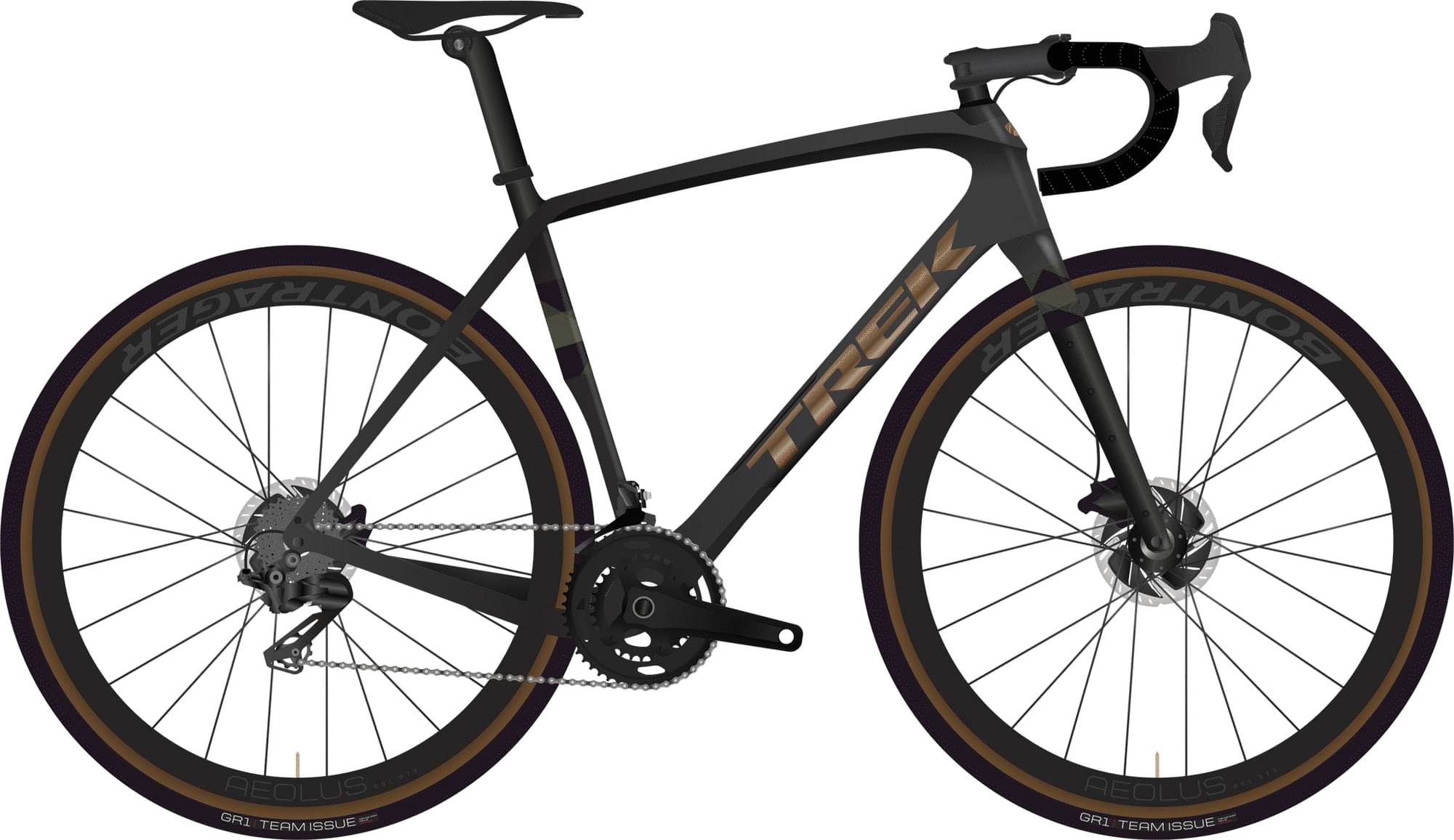

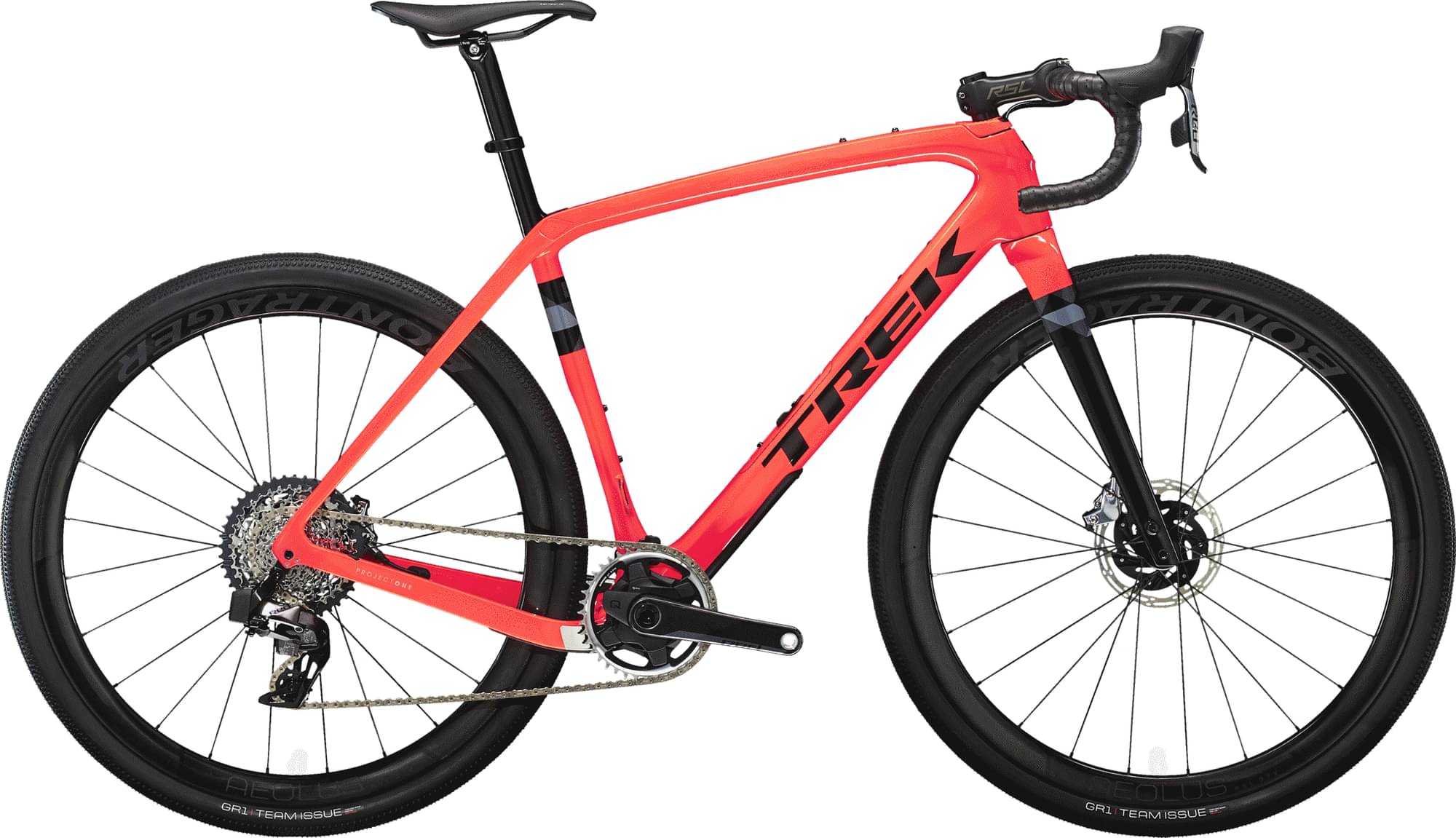

Trek Checkpoint SLR 9 eTap 2023
2023 Road
Estimate price |
12,249$
Weight | 8.1 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset RED XPLR eTap, RED AXS -
Suspension Rigid -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
49cm
156cm - 164cm
52cm
162cm - 169cm
54cm
167cm - 175cm
56cm
173cm - 181cm
58cm
179cm - 186cm
61cm
184cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
700 Series OCLV Carbon, IsoSpeed, downtube storage door, internal routing, Ride Tuned seat mast, chain keeper, T47 BB, fender mounts, integrated frame bag mounts, flat mount disc, 142x12mm thru axle
Suspension Fork
Checkpoint carbon, tapered carbon steerer, fender mounts, flat mount disc, 12x100mm thru axle
Drivetrain
Rear Derailleur
SRAM RED XPLR eTap AXS, 44T max cog
Shift Levers
SRAM RED eTap AXS, 12 speed
Cassette
SRAM XG-1271, 10-44, 12 speed
Crank
Size: 49, SRAM RED AXS w/ power meter, 40T, DUB, 165mm length; Size: 52, SRAM RED AXS w/ power meter, 40T, DUB, 170mm length; Size: 54, 56, SRAM RED AXS w/ power meter, 40T, DUB, 172.5mm length; Size: 58, 61, SRAM RED AXS w/ power meter, 40T, DUB, 175mm length
Bottom Bracket
SRAM DUB, T47 threaded, internal bearing
Chain
SRAM RED D1, 12 speed
Wheels
Rims
Front: Bontrager Aeolus RSL 37V, OCLV Carbon, Tubeless Ready, 37mm rim depth, 100x12mm thru axle, Rear: Bontrager Aeolus RSL 37V, OCLV Carbon, Tubeless Ready, 37mm rim depth, 142x12mm thru axle
Tires
Bontrager GR1 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 120 tpi, 700x40c
Brakes
Brakes
Hydraulic Disc
Cockpit
Stem
Size: 49, Bontrager RSL Carbon, 31.8mm clamp, 7 degree, 70mm length; Size: 52, 54, Bontrager RSL Carbon, 31.8mm clamp, 7 degree, 80mm length; Size: 56, 58, Bontrager RSL Carbon, 31.8mm clamp, 7 degree, 90mm length; Size: 61, Bontrager RSL Carbon, 31.8mm clamp, 7 degree, 100mm length
Handlebar
Size: 49, Bontrager Pro IsoCore VR-SF, 38cm; Size: 52, Bontrager Pro IsoCore VR-SF, 40cm; Size: 54, 56, Bontrager Pro IsoCore VR-SF, 42cm; Size: 58, 61, Bontrager Pro IsoCore VR-SF, 44cm
Seat
Saddle
Size: 49, 52, Bontrager Verse Short Pro, carbon rails 155mm width; Size: 54, 56, 58, 61, Bontrager Verse Short Pro, carbon rails, 145mm width
Seatpost
Size: 49, 52, 54, 56, Bontrager carbon seatmast cap, 5mm offset, short length; Size: 58, 61, Bontrager carbon seatmast cap, 5mm offset, tall length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 49cm | 52cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.36 mm | 1.38 mm | 1.41 mm | 1.45 mm | 1.48 mm | 1.53 mm |
| Bottom Bracket Height | 271 mm | 271 mm | 273 mm | 273 mm | 275 mm | 275 mm |
| Front Center | 602 mm | 610 mm | 617 mm | 624 mm | 634 mm | 646 mm |
| Rake | 45 mm | 46 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 74 mm | 71 mm | 70 mm | 67 mm | 66 mm | 65 mm |
| Stack | 543 mm | 558 mm | 576 mm | 597 mm | 614 mm | 644 mm |
| Reach | 398 mm | 404 mm | 408 mm | 412 mm | 416 mm | 422 mm |
| Top Tube Length | 546 mm | 560 mm | 575 mm | 589 mm | 602 mm | 622 mm |
| Seat Tube Angle | 74.1 ° | 73.7 ° | 73.2 ° | 72.8 ° | 72.5 ° | 72.1 ° |
| Seat Tube Length | 490 mm | 520 mm | 540 mm | 560 mm | 580 mm | 610 mm |
| Head Tube Angle | 71.2 ° | 71.6 ° | 71.8 ° | 72.2 ° | 72.3 ° | 72.6 ° |
| Head Tube Length | 90 mm | 105 mm | 125 mm | 145 mm | 165 mm | 195 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1030 mm | 1038 mm | 1046 mm | 1053 mm | 1063 mm | 1075 mm |
| Bottom Bracket Drop | 78 mm | 78 mm | 76 mm | 76 mm | 74 mm | 74 mm |
| Standover Height | 740 mm | 770 mm | 794 mm | 814 mm | 834 mm | 864 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 162 cm | 167 cm | 173 cm | 179 cm | 184 cm |
| Rider Max Height | 164 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm |
About this model
Checkpoint SLR 9 eTap belongs to the Trek Checkpoint model. There are 70 bikes that carry this model name. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Trek Checkpoint ALR 5 2023 is the cheapest bike model and costs 2399$. Trek Checkpoint SLR 9 eTap 2023 is the most expensive one and costs 12249$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Gravel bikes average price
Our math shows that the average cost of a dependable Gravel bike is 2462$. However, this doesn’t mean that if you spend less money on a Gravel bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2023 for 12249$. In conclusion, this bike price is 397.52% more expensive than the price of the average Gravel bike.
Gravel bikes average weight
If we make a quick analysis of the average weight of a Gravel bike, we get 8.13 kg (17.92 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Trek Checkpoint SLR 9 eTap it’s weighing 8.1 kg (17.86 lbs). At this weight, is slightly lighter than average. In conclusion, the average Gravel bike weighs 0.37% more than Checkpoint SLR 9 eTap.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
As for the wheels, Trek Checkpoint SLR 9 eTap 2023, has a 700c carbon model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Trek Checkpoint SLR 9 eTap is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
Trek Checkpoint SLR 9 eTap bike has 6 sizes, in the range of 156 cm – 191 cm (5.12 ft – 6.27 ft). In short, it won’t be difficult to find the right one for you.
