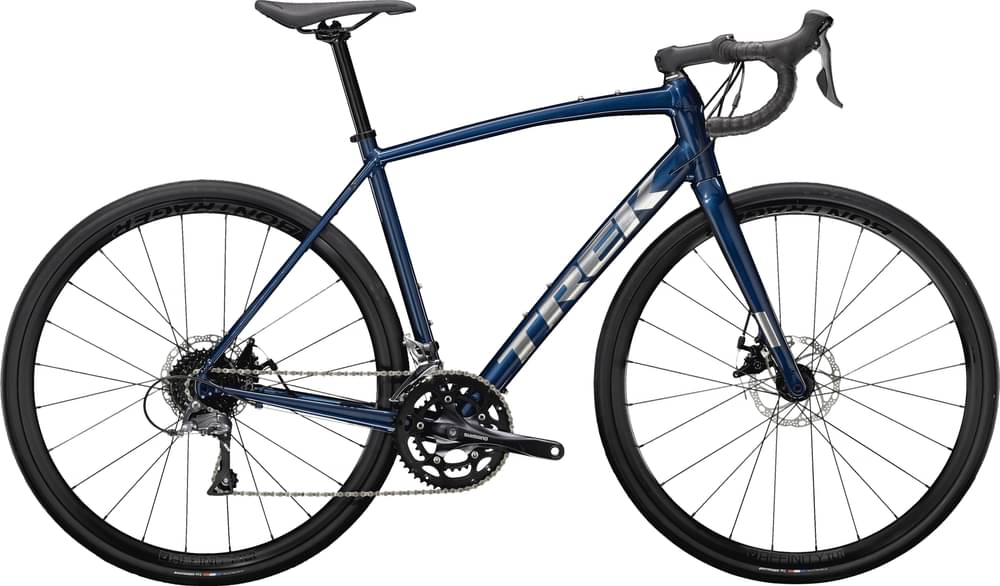

Trek Domane AL 2 Disc 2022
2022 Road
Estimate price |
1,179$
Weight | 10.55 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Claris, Shimano -
Suspension Rigid -
Drivetrain 2 × 8 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
44cm
150cm - 153cm
49cm
156cm - 164cm
52cm
161cm - 169cm
54cm
167cm - 175cm
56cm
173cm - 181cm
58cm
179cm - 186cm
61cm
184cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
100 Series Alpha Aluminum, tapered head tube, internal routing, fender mounts, DuoTrap S compatible, flat mount disc, 142x12mm thru axle
Suspension Fork
Domane AL carbon, tapered alloy steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle
Drivetrain
Rear Derailleur
Shimano Claris R2000, long cage, 34T max cog
Front Derailleur
Shimano Claris R2000, 31.8mm clamp
Shift Levers
Shimano Claris R2000, 8 speed
Cassette
Shimano HG31, 11-32, 8 speed
Crank
Size: 44, Shimano RS200, 50/34 (compact), 165mm length; Size: 49, 52, 54, Shimano RS200, 50/34 (compact), 170mm length; Size: 56, 58, 61, Shimano RS200, 50/34 (compact), 175mm length
Bottom Bracket
Shimano UN30, 68mm, threaded cartridge, 110mm spindle
Chain
Shimano Sora HG71, 8 speed
Wheels
Front Hub
Formula RX-512 alloy, 6-bolt, 100x12mm thru axle
Rear Hub
Formula RX-142 alloy, 6-bolt, Shimano 11-speed freehub, 142x12mm thru axle
Rims
Size: 44, 49, 52, 54, 56, 58, 61, Bontrager Affinity Disc, Tubeless Ready, 24-hole, 21mm width, presta valve; Size: 49, 52, 54, 56, 58, 61, Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21mm width, presta valve
Spokes
14g stainless steel
Tires
Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32c
Brakes
Brakes
Tektro C550 mechanical disc brake, dual piston, flat mount, 160mm rotor
Cockpit
Stem
Size: 44, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 70mm length; Size: 49, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length; Size: 52, 54, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length; Size: 56, 58, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 100mm length; Size: 61, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 110mm length
Handlebar
Size: 44, 49, Bontrager Comp VR-S, alloy, 31.8mm, 81mm reach, 118mm drop, 38cm width; Size: 52, Bontrager Comp VR-S, alloy, 31.8mm, 81mm reach, 118mm drop, 40cm width; Size: 54, 56, Bontrager Comp VR-C, alloy, 31.8mm, 100mm reach, 124mm drop, 42cm width; Size: 58, 61, Bontrager Comp VR-C, alloy, 31.8mm, 100mm reach, 124mm drop, 44cm width
Headset
FSA Integrated, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom
Seat
Saddle
Size: 44, 49, 52, Bontrager P3 Verse Comp, steel rails, 155mm width; Size: 54, 56, 58, 61, Bontrager P3 Verse Comp, steel rails, 145mm width
Seatpost
Size: 44, 49, Bontrager Comp, 6061 alloy, 27.2mm, 8mm offset, 250mm length; Size: 52, 54, 56, 58, 61, Bontrager Comp, 6061 alloy, 27.2mm, 8mm offset, 330mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 44cm | 49cm | 52cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.46 mm | 1.5 mm | 1.53 mm | 1.56 mm | 1.6 mm | 1.67 mm |
| Bottom Bracket Height | 256 mm | 256 mm | 256 mm | 256 mm | 258 mm | 258 mm | 261 mm |
| Front Center | 576 mm | 589 mm | 596 mm | 603 mm | 600 mm | 609 mm | 624 mm |
| Rake | 53 mm | 52 mm | 54 mm | 53 mm | 48 mm | 49 mm | 48 mm |
| Trail | 66 mm | 66 mm | 59 mm | 59 mm | 61 mm | 60 mm | 63 mm |
| Stack | 517 mm | 547 mm | 568 mm | 582 mm | 598 mm | 618 mm | 653 mm |
| Reach | 367 mm | 375 mm | 378 mm | 381 mm | 384 mm | 387 mm | 392 mm |
| Top Tube Length | 514 mm | 523 mm | 537 mm | 549 mm | 561 mm | 574 mm | 593 mm |
| Seat Tube Angle | 74.6 ° | 74.6 ° | 74.2 ° | 73.7 ° | 73.3 ° | 73 ° | 72.7 ° |
| Seat Tube Length | 390 mm | 440 mm | 475 mm | 500 mm | 525 mm | 548 mm | 576 mm |
| Head Tube Angle | 70.3 ° | 70.8 ° | 71.3 ° | 71.3 ° | 71.9 ° | 72 ° | 72.1 ° |
| Head Tube Length | 95 mm | 123 mm | 145 mm | 160 mm | 175 mm | 195 mm | 235 mm |
| Chainstay Length | 427 mm | 432 mm | 427 mm | 427 mm | 427 mm | 432 mm | 432 mm |
| Wheelbase | 990 mm | 1008 mm | 1010 mm | 1017 mm | 1015 mm | 1029 mm | 1045 mm |
| Bottom Bracket Drop | 80 mm | 80 mm | 80 mm | 80 mm | 78 mm | 78 mm | 75 mm |
| Standover Height | 664 mm | 724 mm | 742 mm | 761 mm | 783 mm | 803 mm | 849 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 150 cm | 156 cm | 161 cm | 167 cm | 173 cm | 179 cm | 184 cm |
| Rider Max Height | 153 cm | 164 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm |
Model Overview
Domane AL 2 Disc belongs to the Trek Domane model. 316 bikes variations carry this model name so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
The most economical model, the Trek Domane AL 2 2022 has a starting price of 999$. Trek Domane SLR 9 2022 on the other hand is the most expensive at 12847$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Endurance bikes average price
If you want an acceptable Endurance bike you should know that the average price is 2346$. However, even though the average price of an Endurance bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
When Trek released this model in 2022, its price was 1179$. Comparing the average cost of an Endurance bike to this one, you will see that Domane AL 2 Disc price is 98.98% smaller.
Endurance bikes average weight
If we make a quick analysis of the average weight of an Endurance bike, we get 8.2 kg (18.08 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
much heavier than average, Domane AL 2 Disc has a weight of 10.55 kg (23.26 lbs). To sum up, it’s 28.66% heavier than the average weight of Endurance bikes.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
As for the wheels, Trek Domane AL 2 Disc 2022, has a 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Mechanical Disc brakes. They deliver good performance and cost less than hydraulic disk brakes. However, performance-wise there is room for improvement.
Sizes
Trek Domane AL 2 Disc bike has 7 sizes, in the range of 150 cm – 191 cm (4.92 ft – 6.27 ft). In short, you can easily find one that suits you.
