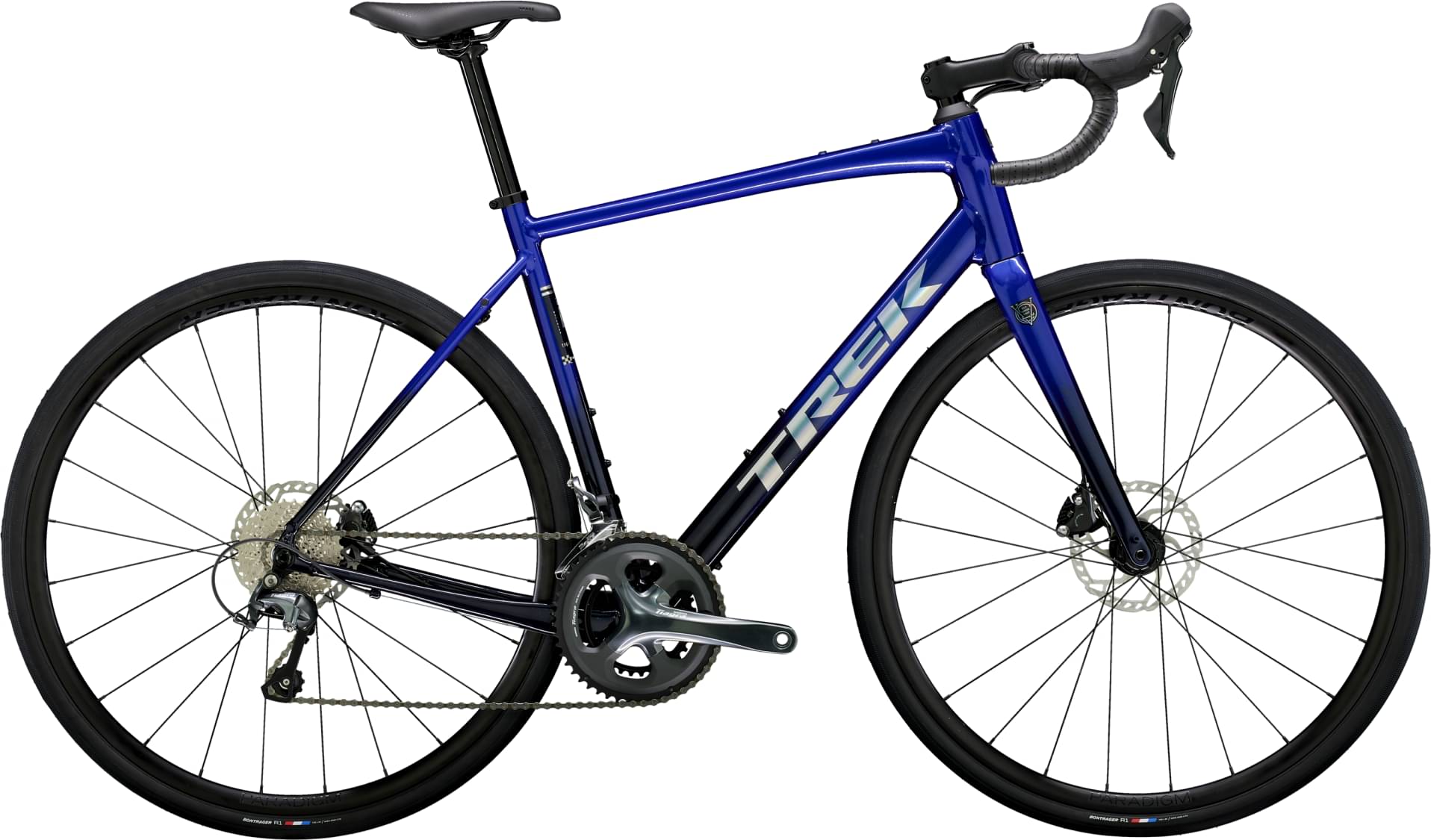

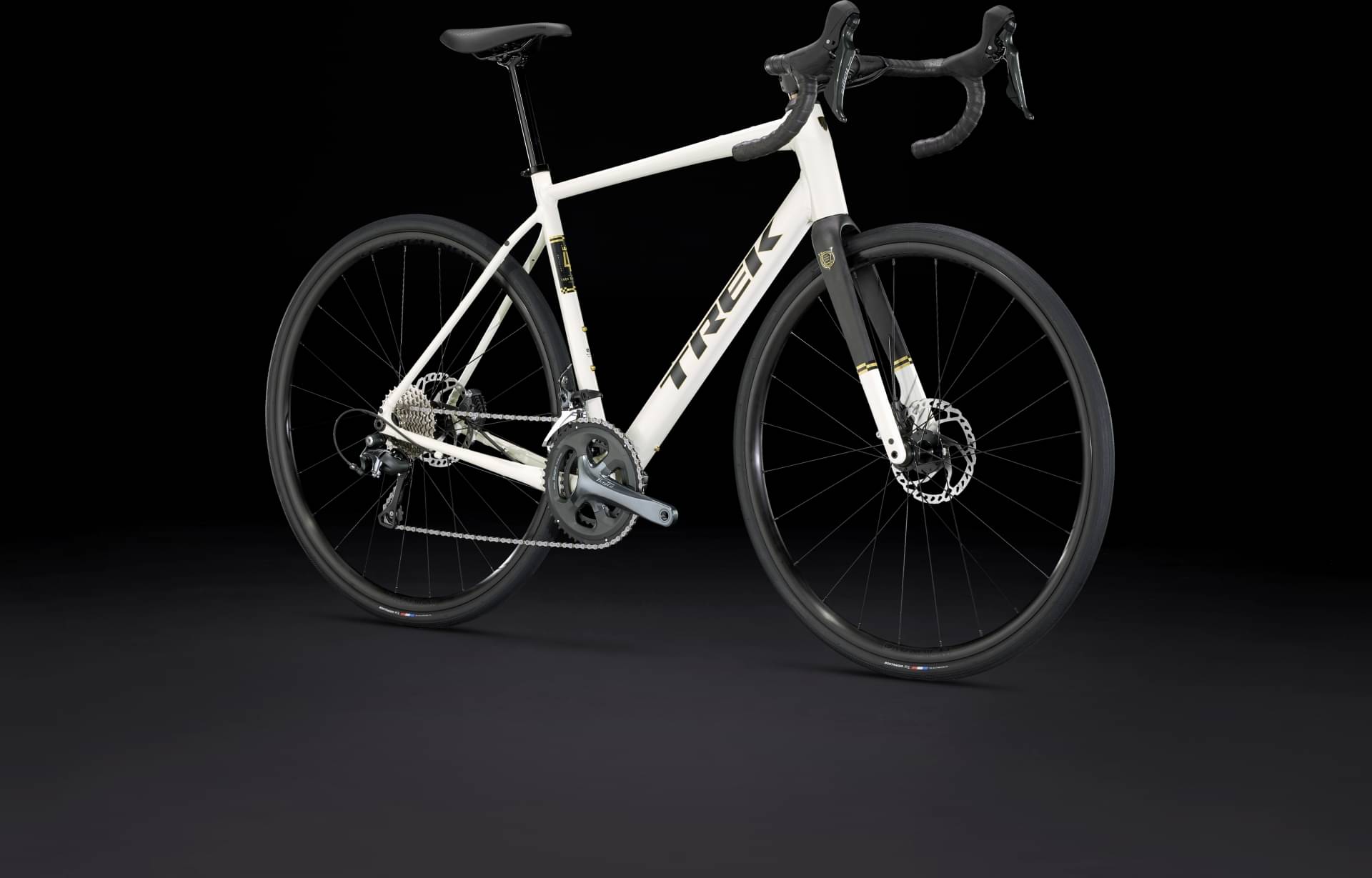

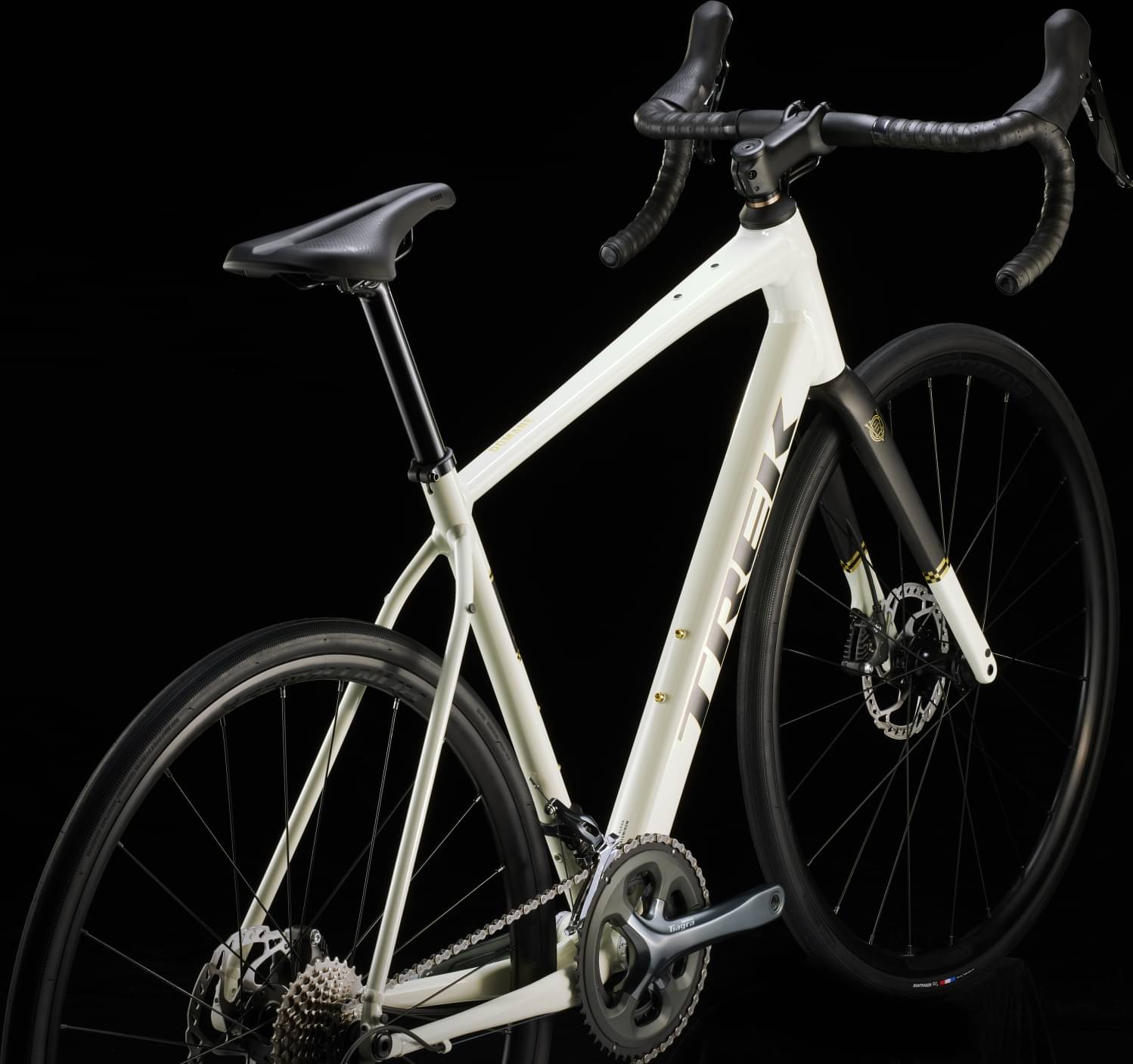

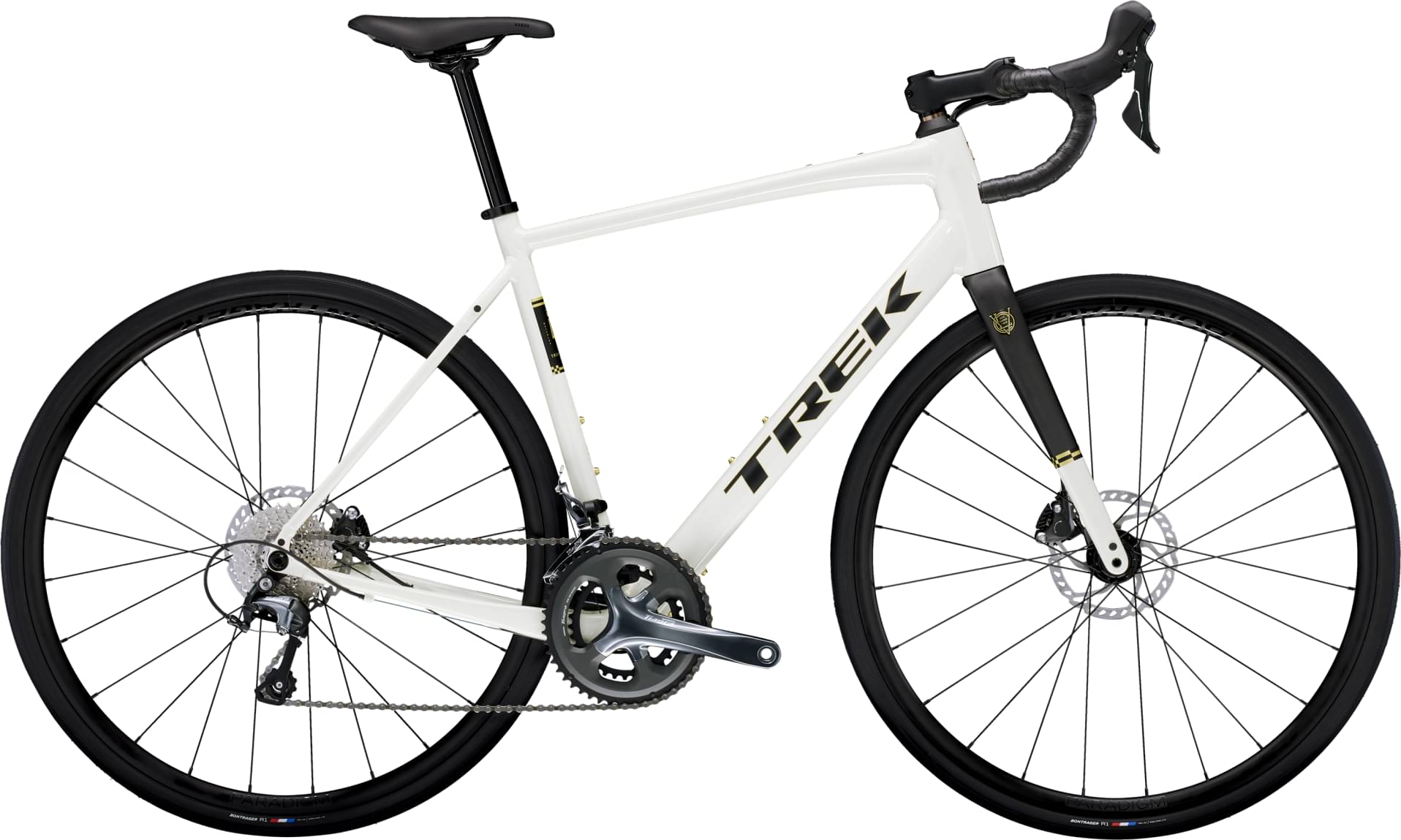

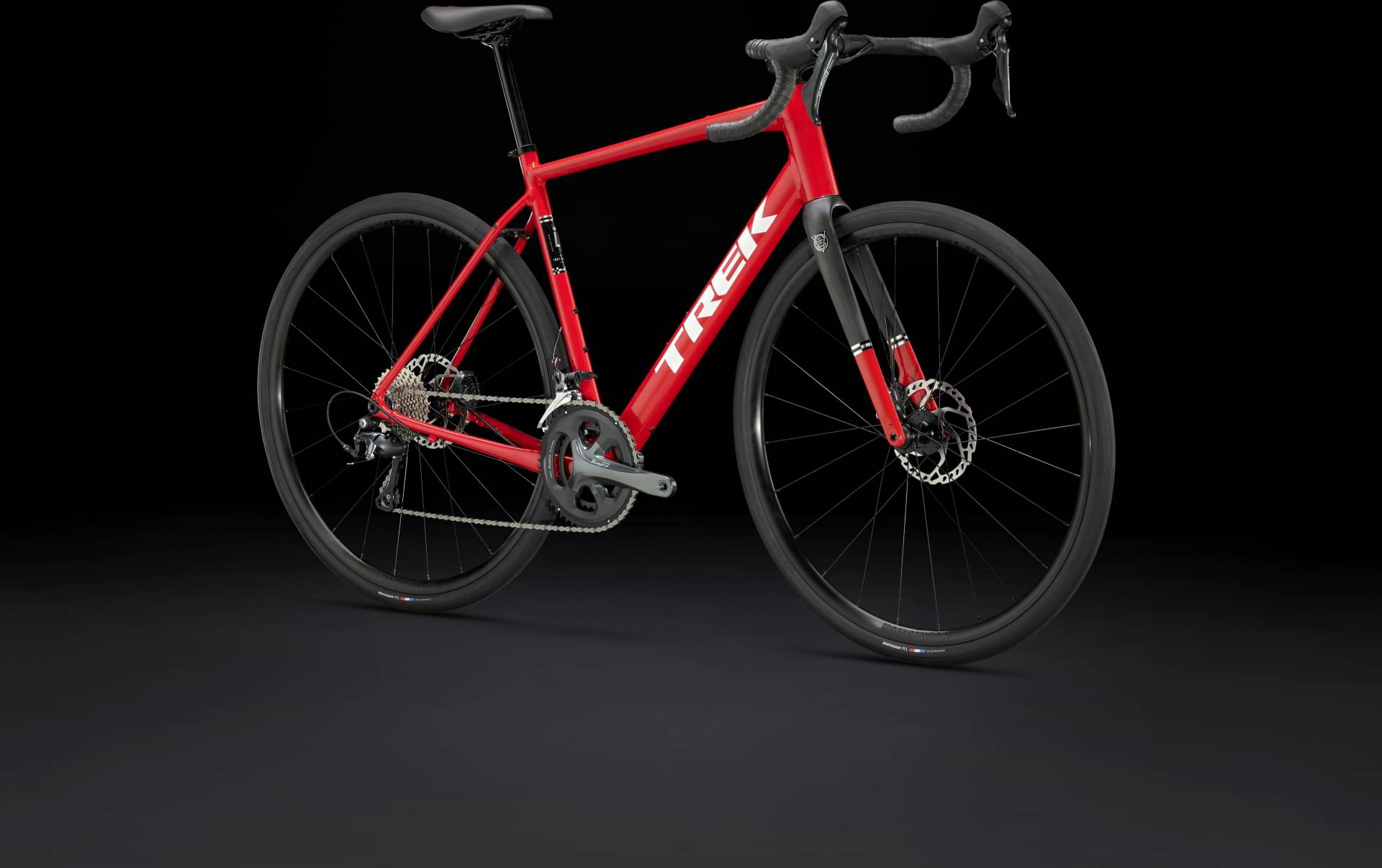

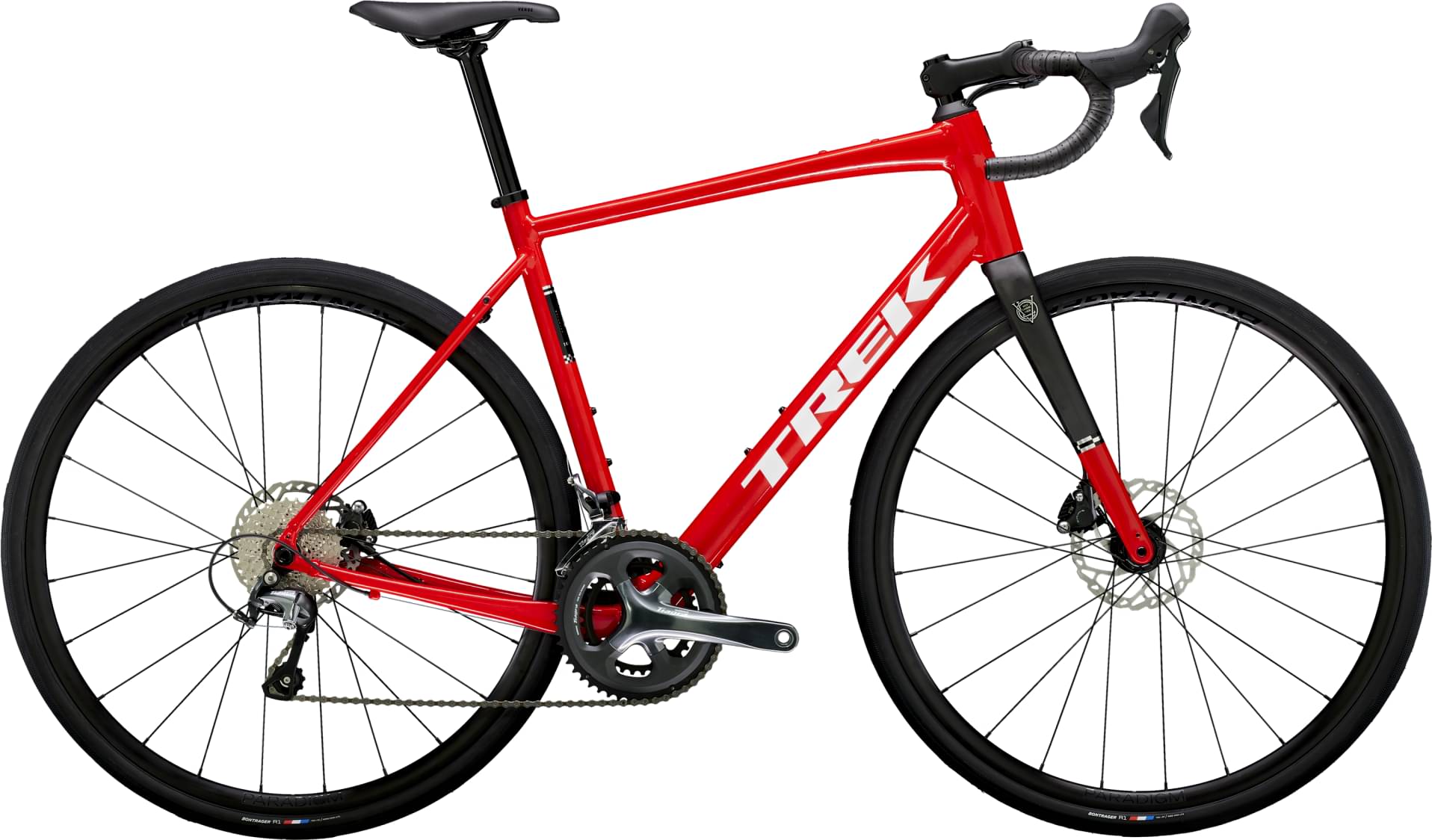

Trek Domane AL 4 Gen 4 2024
2024 Road
Estimate price |
1,699$
Weight | 10.35 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Tiagra -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
44cm
150cm - 153cm
49cm
156cm - 164cm
52cm
162cm - 169cm
54cm
167cm - 175cm
56cm
173cm - 181cm
58cm
179cm - 186cm
61cm
184cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

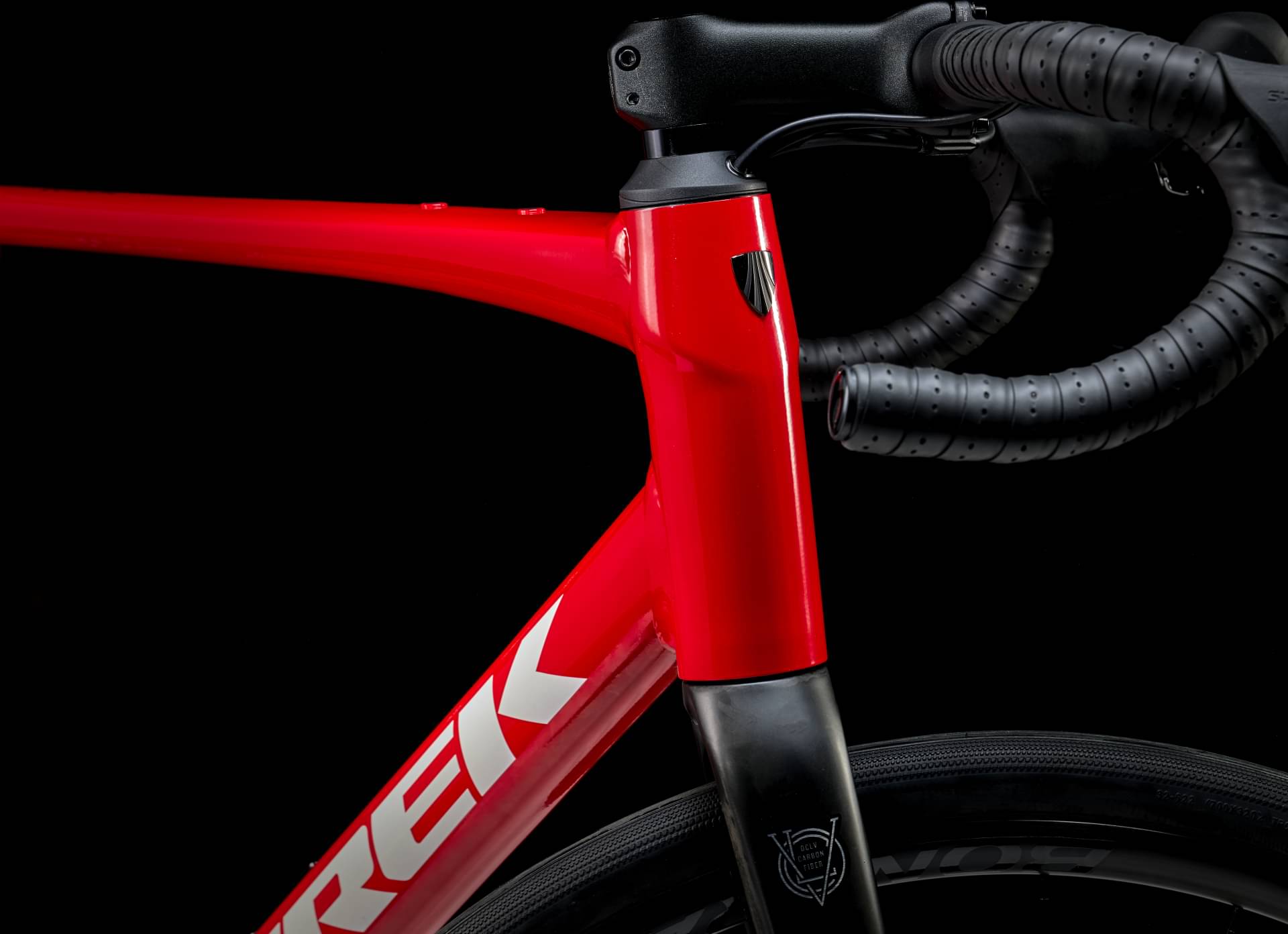

100 Series Alpha Aluminum, tapered head tube, internal routing, fender mounts, flat mount disc, UDH, 142x12mm thru axle

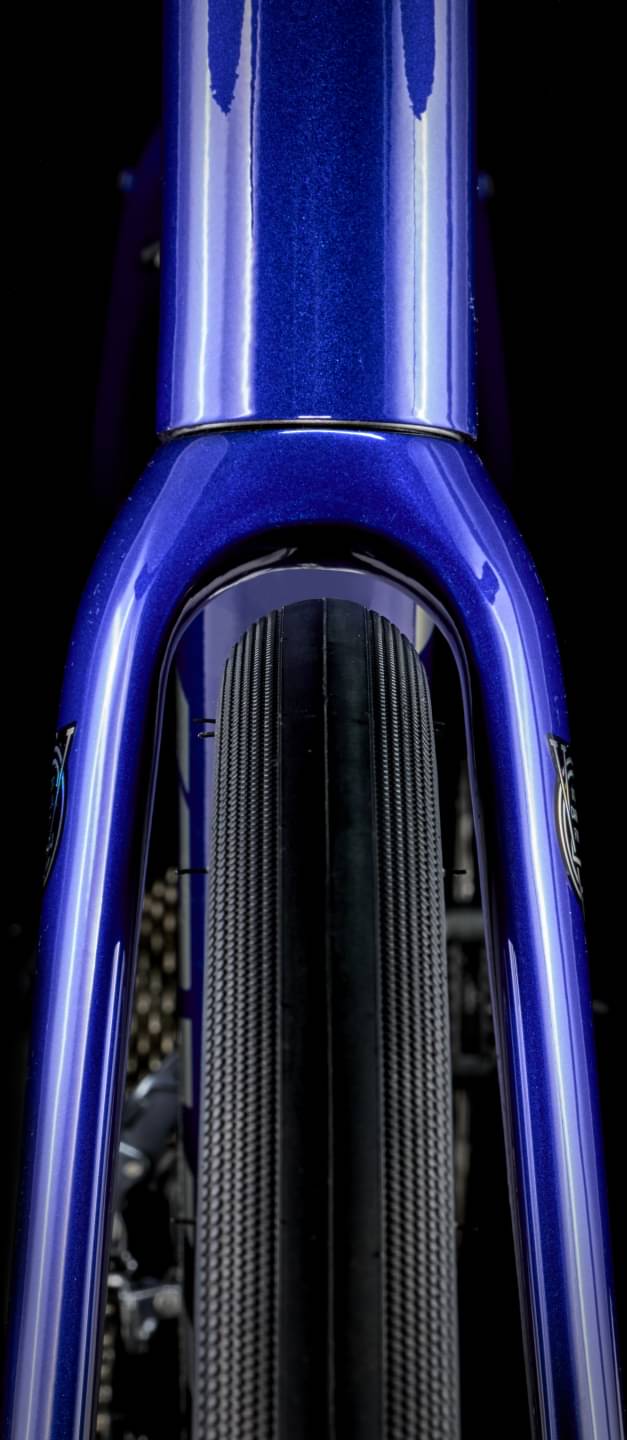

Suspension Fork
Domane AL carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle

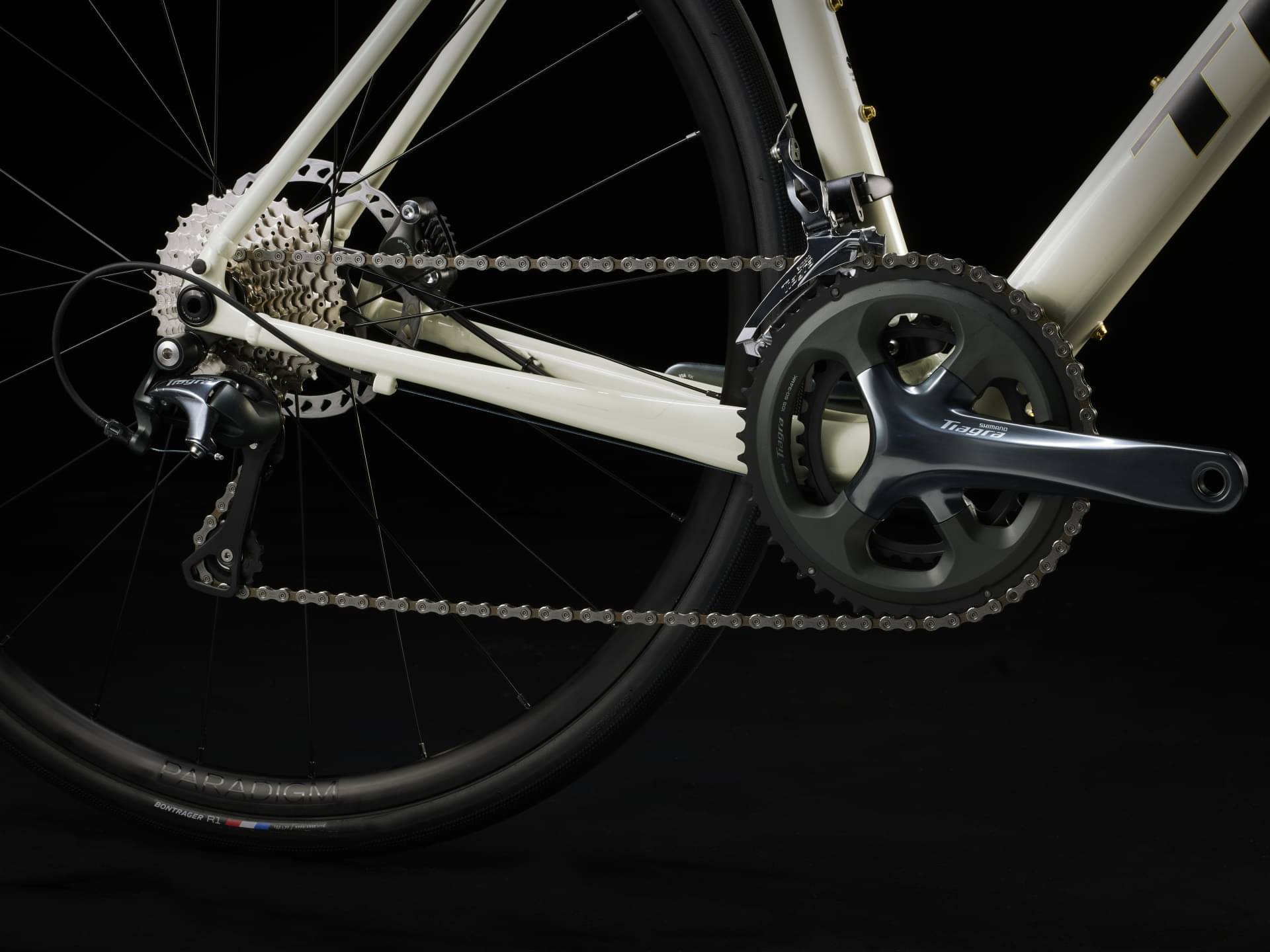

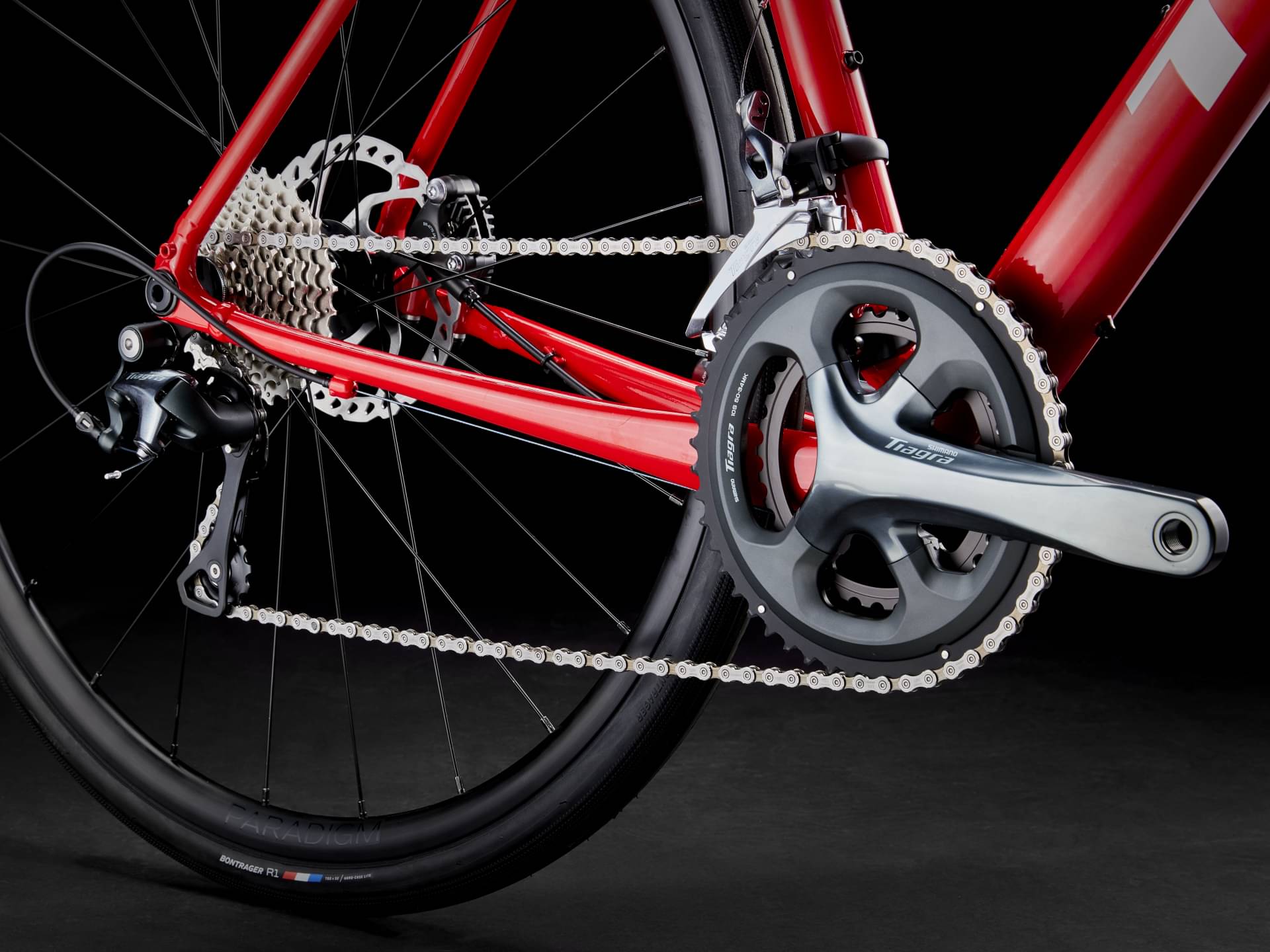

Drivetrain
Rear Derailleur
Shimano Tiagra 4700, long cage, 34T max cog
Front Derailleur
Shimano Tiagra 4700, 31.8mm clamp
Shift Levers
Size: 44, 49, 52, 54, 56, 58, 61, Shimano Tiagra R4725, short reach lever, 10 speed; Size: 44, 49, 52, 54, 56, 58, 61, Shimano Tiagra R4720, 10 speed
Cassette
Shimano HG500, 11-32, 10 speed
Crank
Size: 44, Shimano Tiagra 4700, 50/34, 165mm length; Size: 49, 52, Shimano Tiagra 4700, 50/34, 170mm length; Size: 54, 56, Shimano Tiagra 4700, 50/34, 172.5mm length; Size: 58, 61, Shimano Tiagra 4700, 50/34, 175mm length
Bottom Bracket
Shimano RS501 BSA
Chain
Shimano Tiagra HG54, 10 speed
Wheels
Front Hub
Formula RX-512 alloy, 6-bolt, 100x12mm thru axle
Rear Hub
Formula RX-142 alloy, 6-bolt, Shimano 11-speed freehub, 142x12mm thru axle
Rims
Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21mm width, Presta valve
Spokes
14g stainless steel, black
Tires
Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32mm

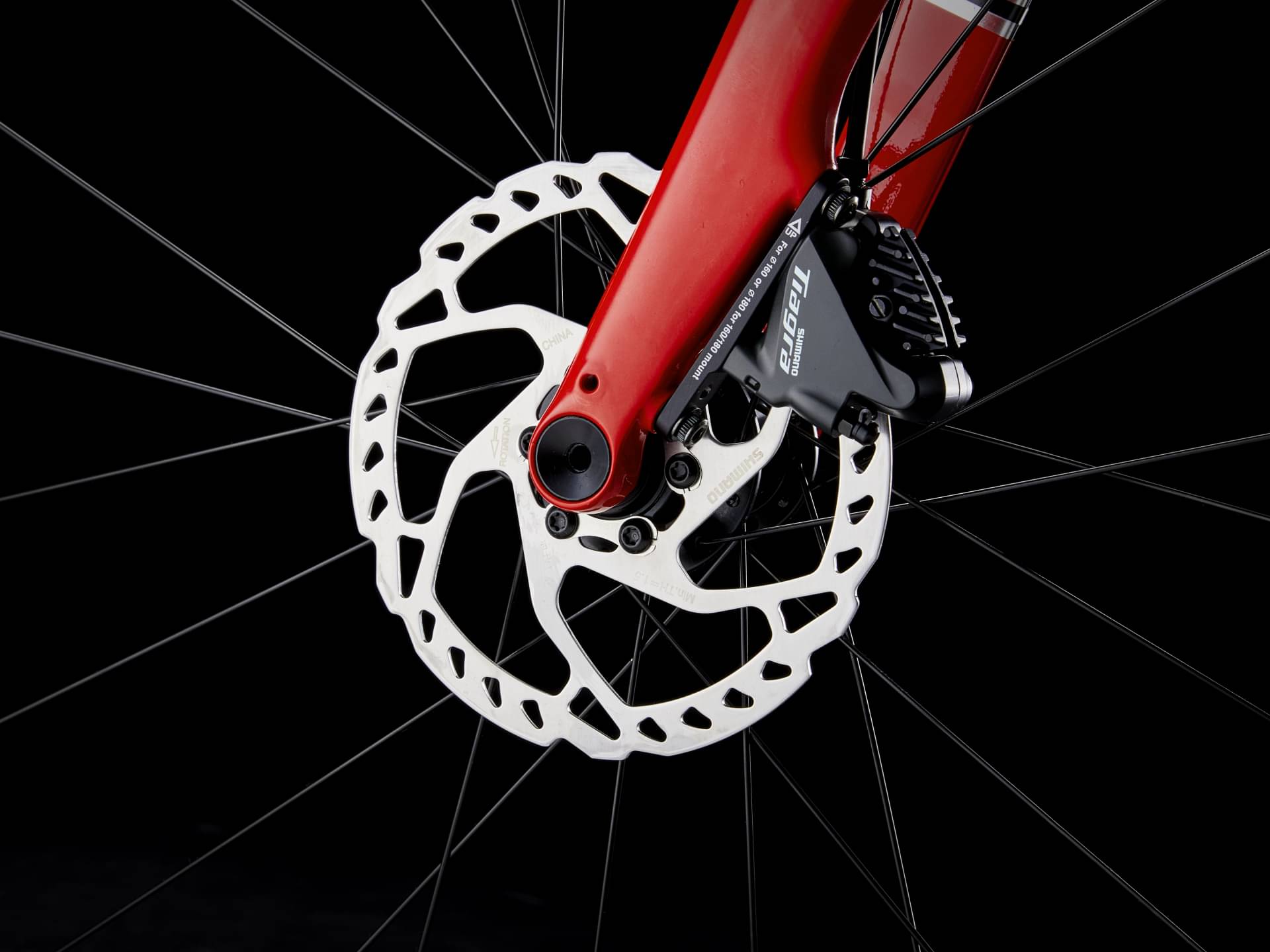

Brakes
Brakes
Shimano Tiagra hydraulic disc, flat mount

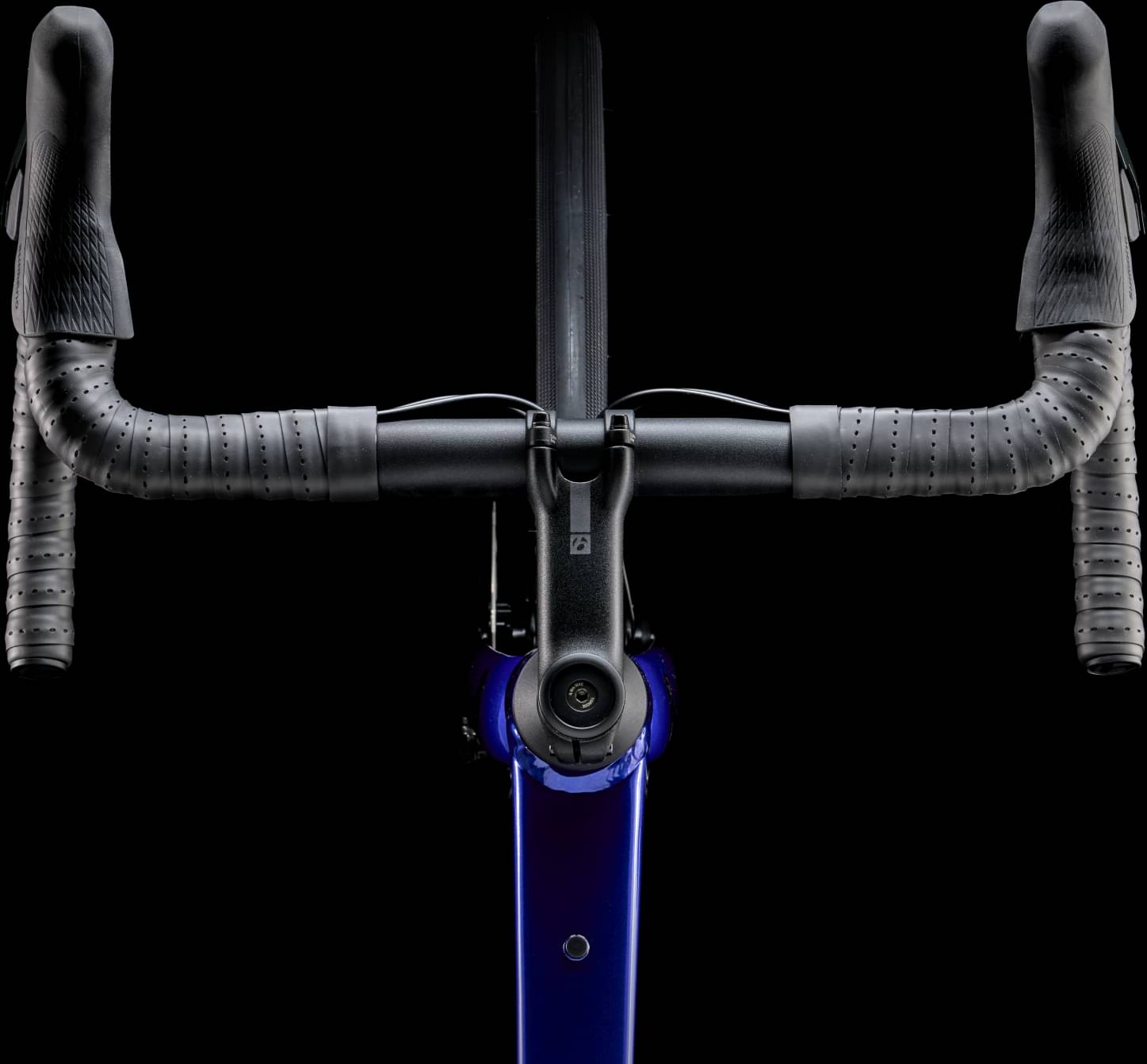

Cockpit
Stem
Size: 44, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 70mm length; Size: 49, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length; Size: 52, 54, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length; Size: 56, 58, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 100mm length; Size: 61, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 110mm length

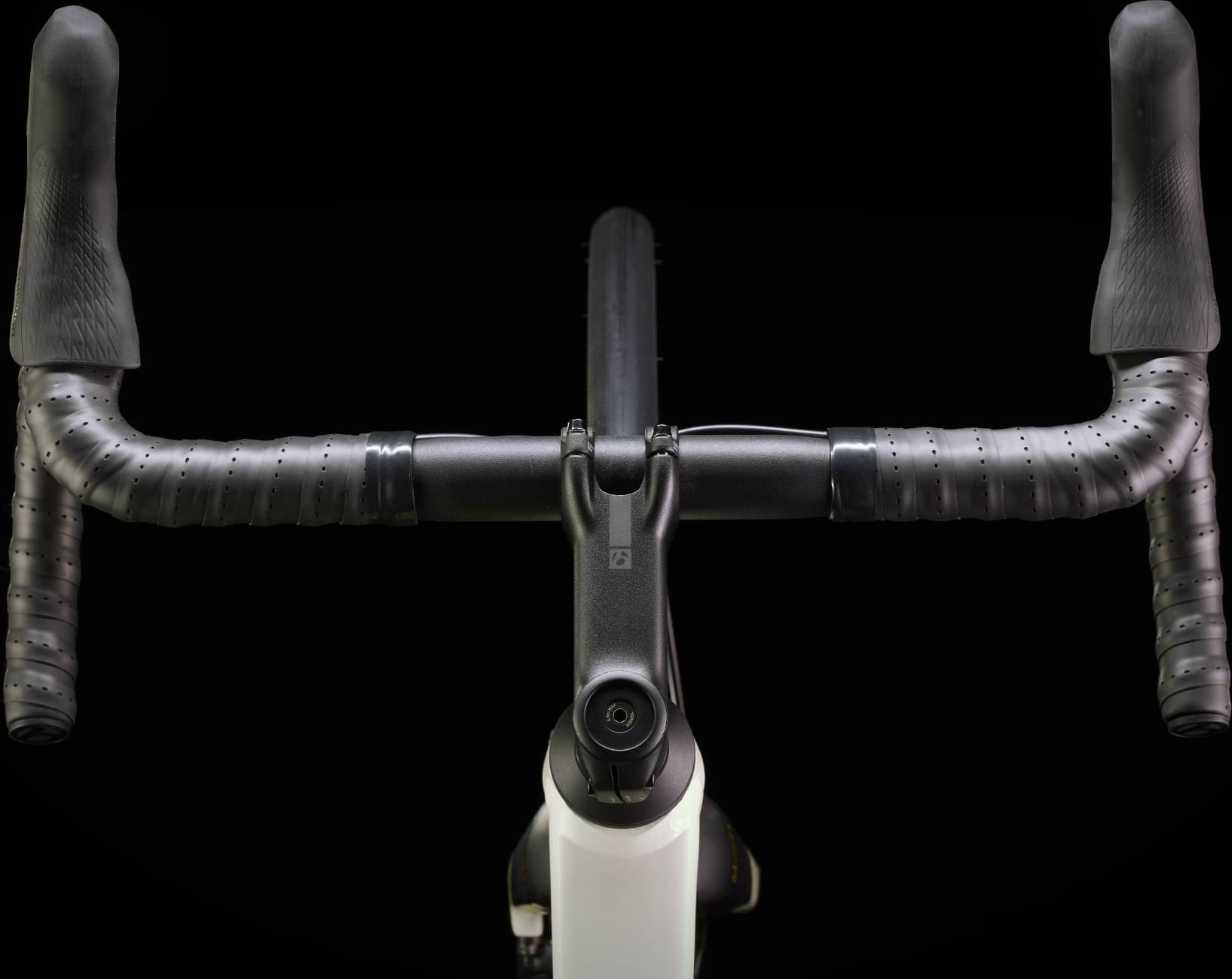

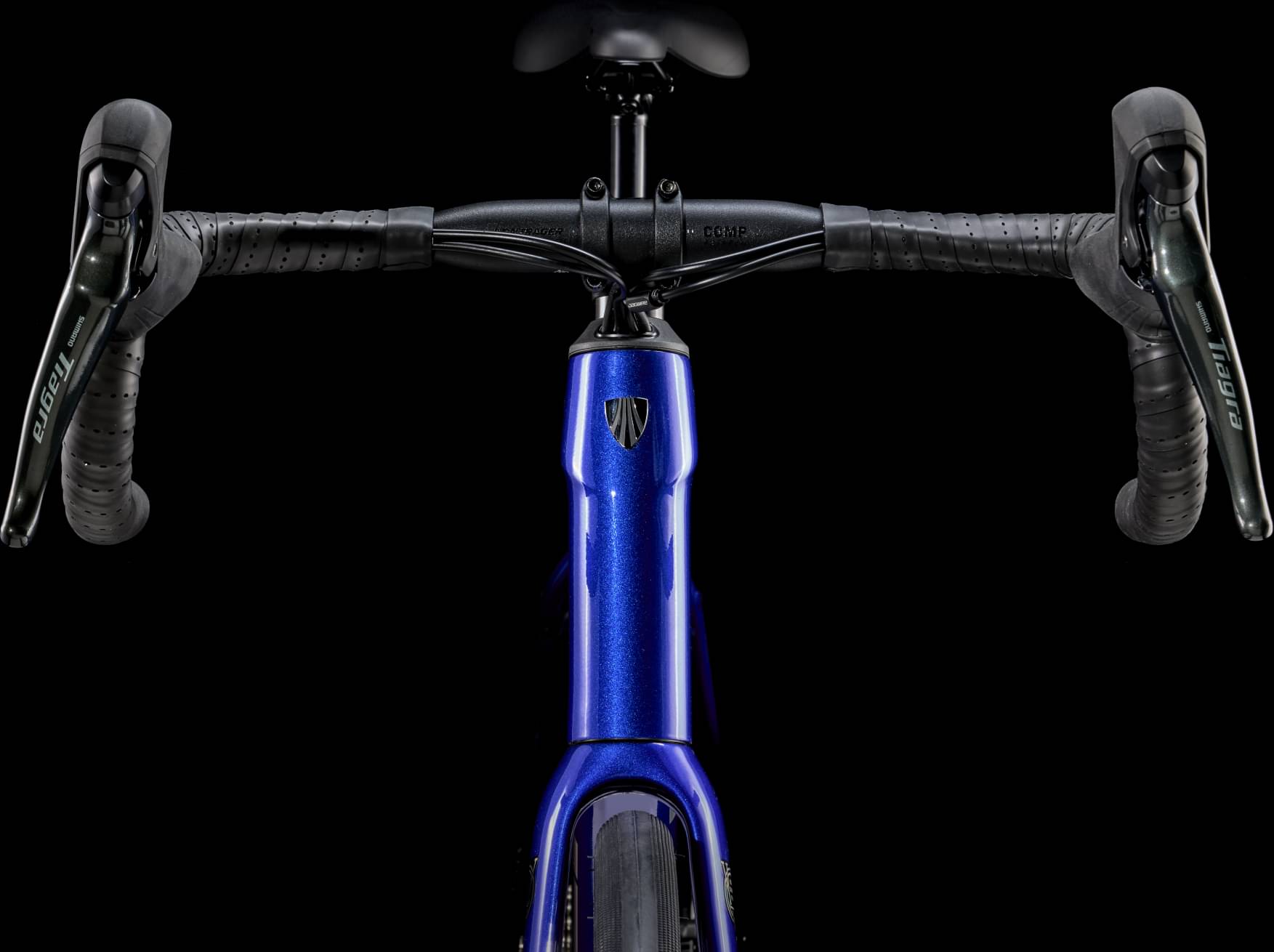

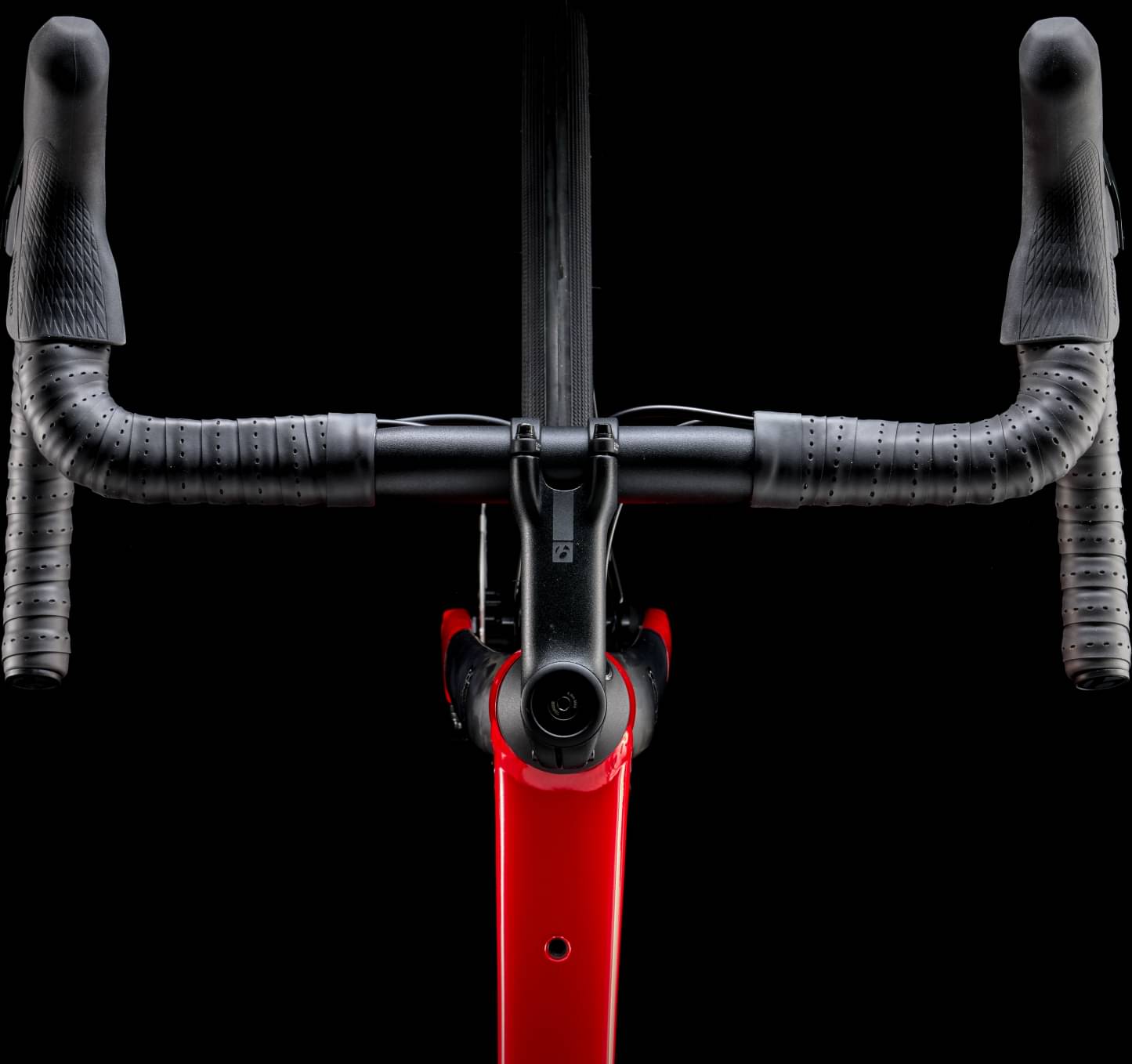

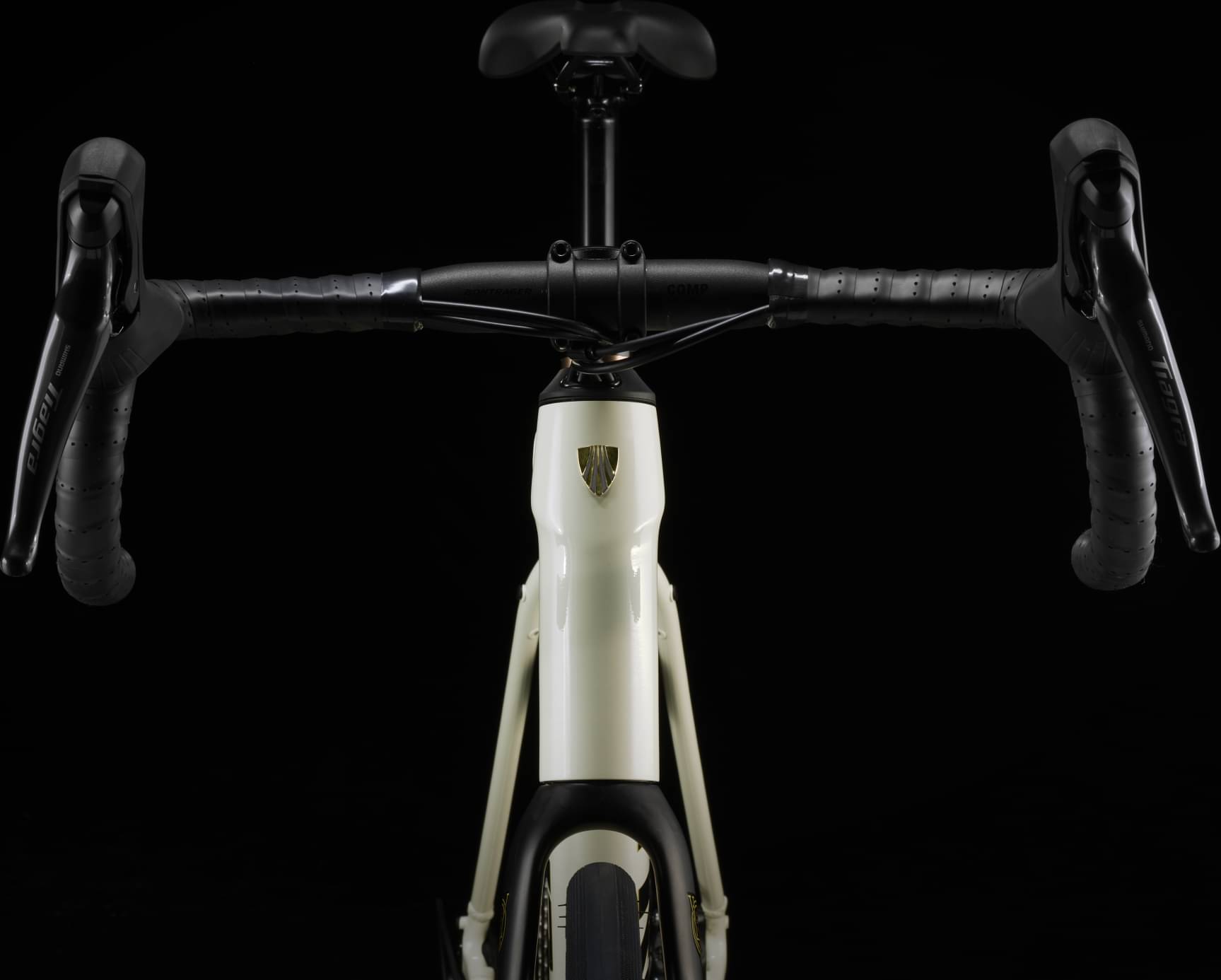

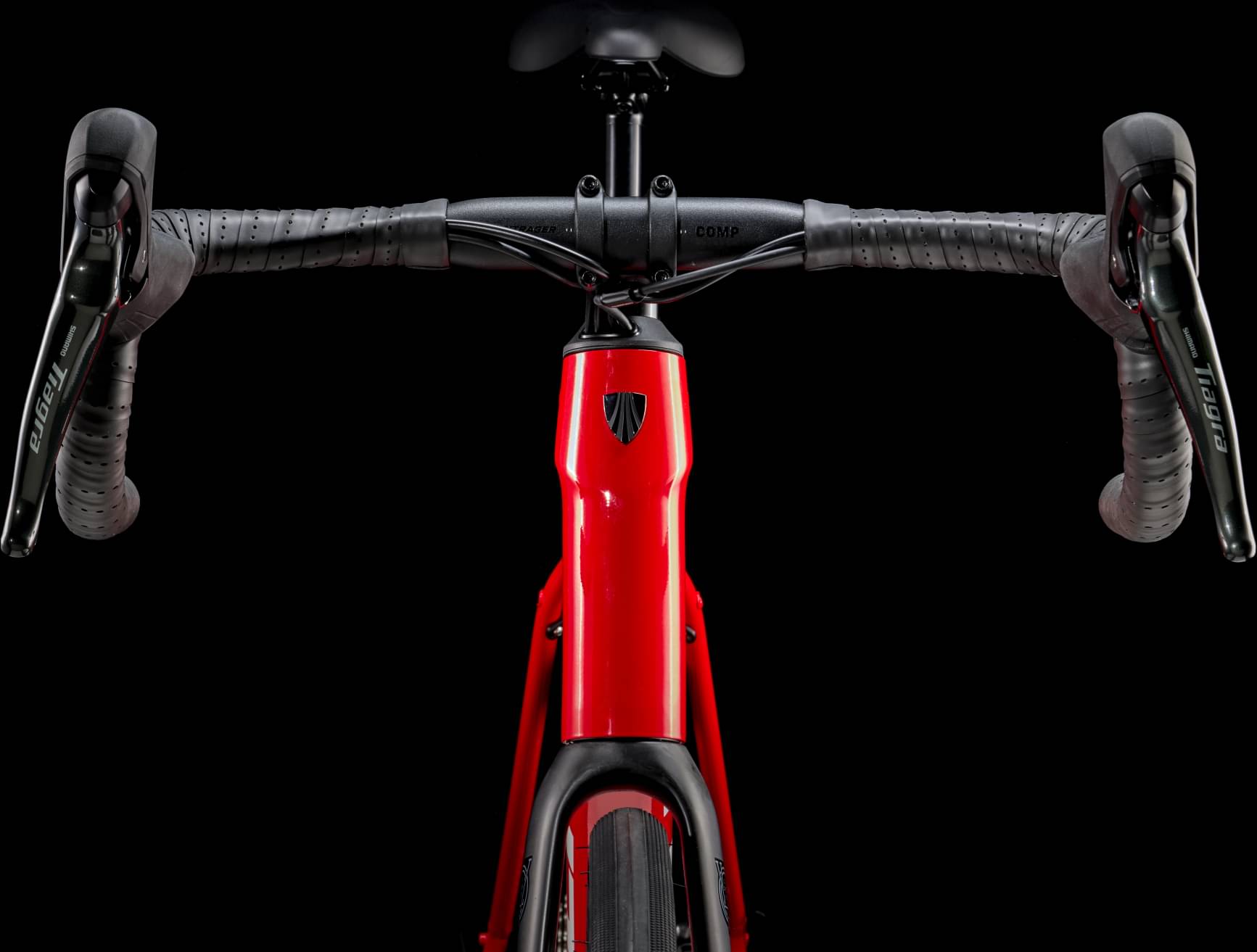

Handlebar
Size: 44, Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 36cm control width, 40cm drops width; Size: 44, 49, Bontrager Comp VR-S, alloy, 31.8mm, 81mm reach, 118mm drop, 38cm width; Size: 49, Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 38cm control width, 42cm drops width; Size: 52, Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 40cm control width, 44cm drops width; Size: 52, Bontrager Comp VR-S, alloy, 31.8mm, 81mm reach, 118mm drop, 40cm width; Size: 54, 56, Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 42cm control width, 46cm drops width; Size: 54, 56, Bontrager Comp VR-C, alloy, 31.8mm, 100mm reach, 124mm drop, 42cm width; Size: 58, 61, Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 44cm control width, 48cm drops width; Size: 58, 61, Bontrager Comp VR-C, alloy, 31.8mm, 100mm reach, 124mm drop, 44cm width
Seat
Saddle
Verse Short, steel rails, 145mm width
Seatpost
Size: 44, 49, Bontrager Comp, 6061 alloy, 27.2mm, 8mm offset, 250mm length; Size: 52, 54, 56, 58, 61, Bontrager Comp, 6061 alloy, 27.2mm, 8mm offset, 330mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 44cm | 49cm | 52cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.46 mm | 1.5 mm | 1.53 mm | 1.56 mm | 1.6 mm | 1.67 mm |
| Bottom Bracket Height | 256 mm | 256 mm | 256 mm | 256 mm | 258 mm | 258 mm | 261 mm |
| Front Center | 576 mm | 589 mm | 596 mm | 603 mm | 610 mm | 609 mm | 624 mm |
| Rake | 53 mm | 52 mm | 54 mm | 53 mm | 58 mm | 49 mm | 48 mm |
| Trail | 66 mm | 66 mm | 59 mm | 59 mm | 61 mm | 60 mm | 63 mm |
| Stack | 517 mm | 547 mm | 568 mm | 582 mm | 598 mm | 618 mm | 653 mm |
| Reach | 367 mm | 375 mm | 378 mm | 381 mm | 384 mm | 387 mm | 392 mm |
| Top Tube Length | 514 mm | 523 mm | 537 mm | 549 mm | 561 mm | 574 mm | 593 mm |
| Seat Tube Angle | 74.6 ° | 74.6 ° | 74.2 ° | 73.7 ° | 73.3 ° | 73 ° | 72.7 ° |
| Seat Tube Length | 390 mm | 440 mm | 475 mm | 500 mm | 525 mm | 548 mm | 576 mm |
| Head Tube Angle | 70.3 ° | 70.8 ° | 71.3 ° | 71.3 ° | 71.9 ° | 72 ° | 72.1 ° |
| Head Tube Length | 95 mm | 123 mm | 145 mm | 160 mm | 175 mm | 195 mm | 235 mm |
| Chainstay Length | 427 mm | 432 mm | 427 mm | 427 mm | 427 mm | 432 mm | 432 mm |
| Wheelbase | 990 mm | 1008 mm | 1010 mm | 1017 mm | 1025 mm | 1029 mm | 1045 mm |
| Bottom Bracket Drop | 80 mm | 80 mm | 80 mm | 80 mm | 78 mm | 78 mm | 75 mm |
| Standover Height | 664 mm | 724 mm | 742 mm | 761 mm | 783 mm | 803 mm | 849 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 150 cm | 156 cm | 162 cm | 167 cm | 173 cm | 179 cm | 184 cm |
| Rider Max Height | 153 cm | 164 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm |
About this model
Domane AL 4 Gen 4 is part of the Trek Domane model. There are 316 bikes that carry this model name. You can get a glimpse at all models from 2024, by clicking on this link.
Model range prices
Trek Domane AL 2 Rim 2024 is the most economical model, with a starting price of 999$. Trek Domane SLR 9 AXS Gen 4 2024 on the other hand costs 13199$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Endurance bikes
According to our calculations, the average cost of an Endurance bike that is reliable is 2346$. However, you could also get a good Endurance bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
At the moment of the release date, Trek Domane AL 4 Gen 4 price was 1699$. Doing a quick comparison, we notice that Domane AL 4 Gen 4 price is 38.08% smaller than the average cost of an Endurance bike.
Average weight for Endurance bikes
Endurance bikes have an average weight of 8.56 kg (18.87 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
much heavier than average, Domane AL 4 Gen 4 has a weight of 10.35 kg (22.82 lbs). In other words, this model is 20.91% heavier than the average Endurance bike.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components

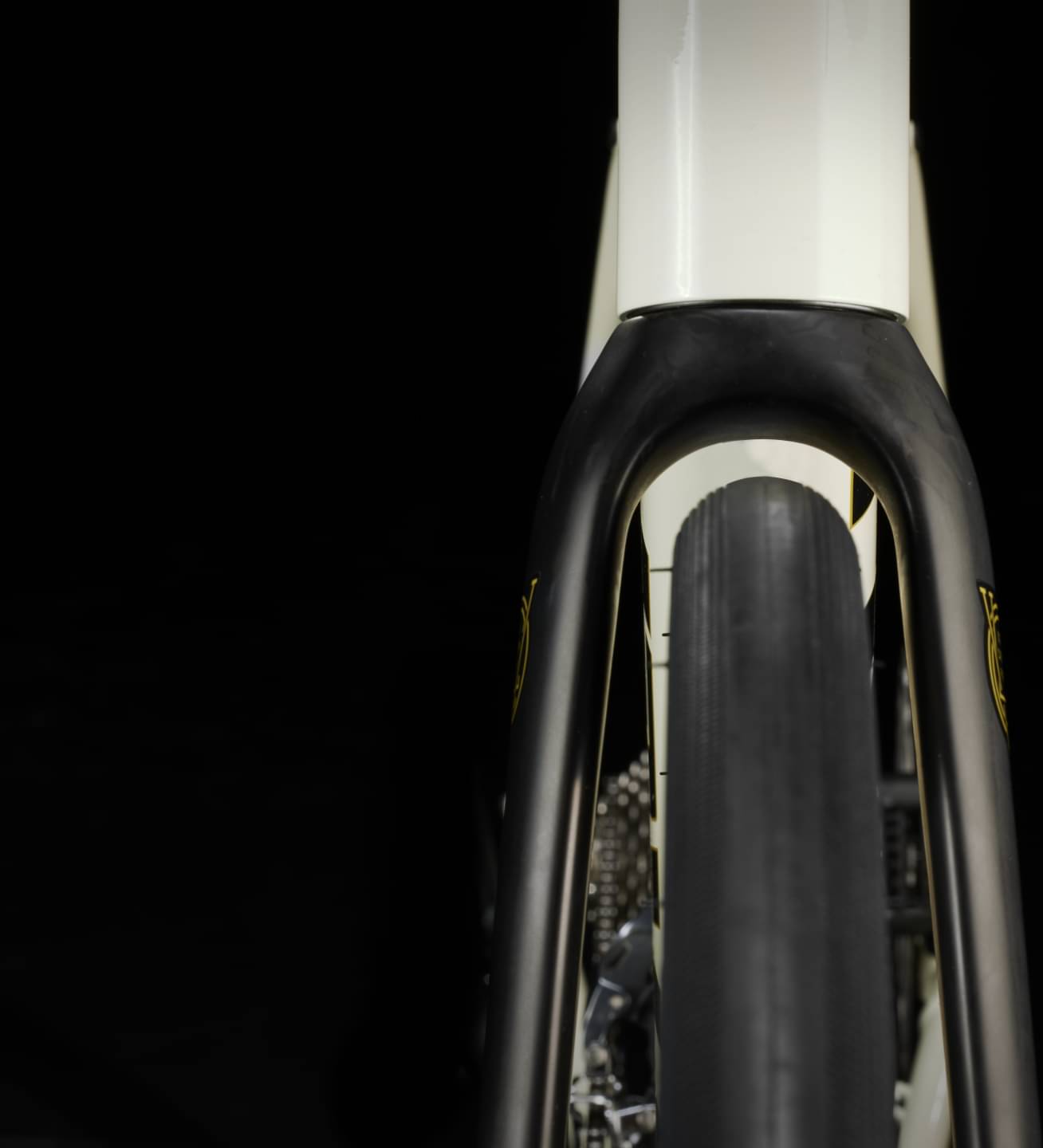

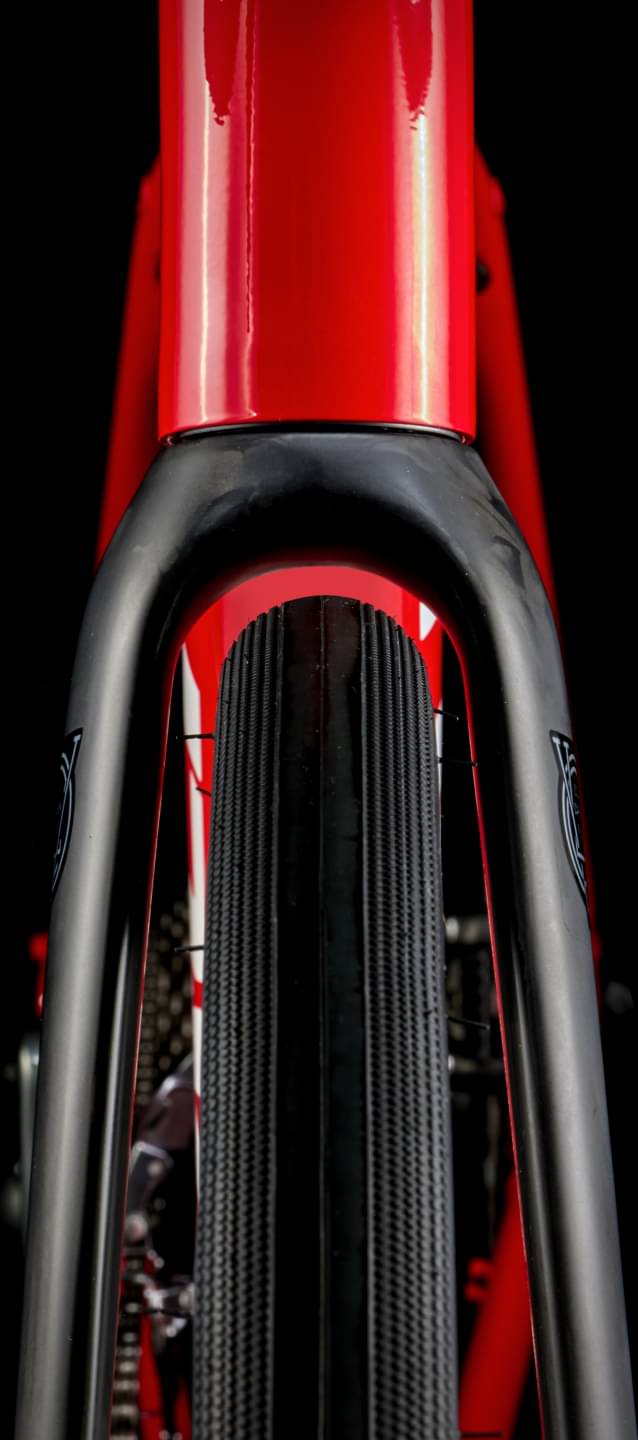

Fork material

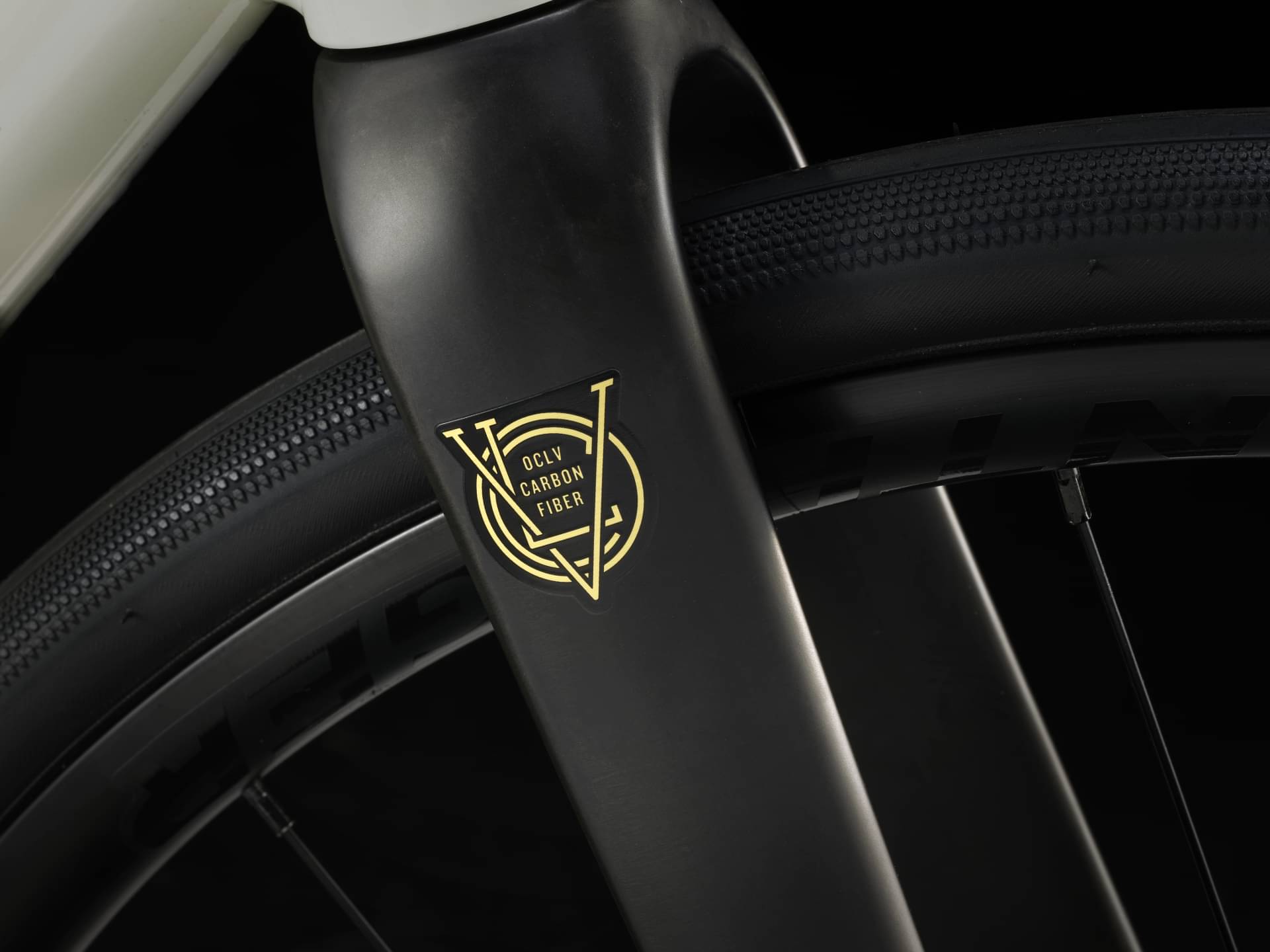

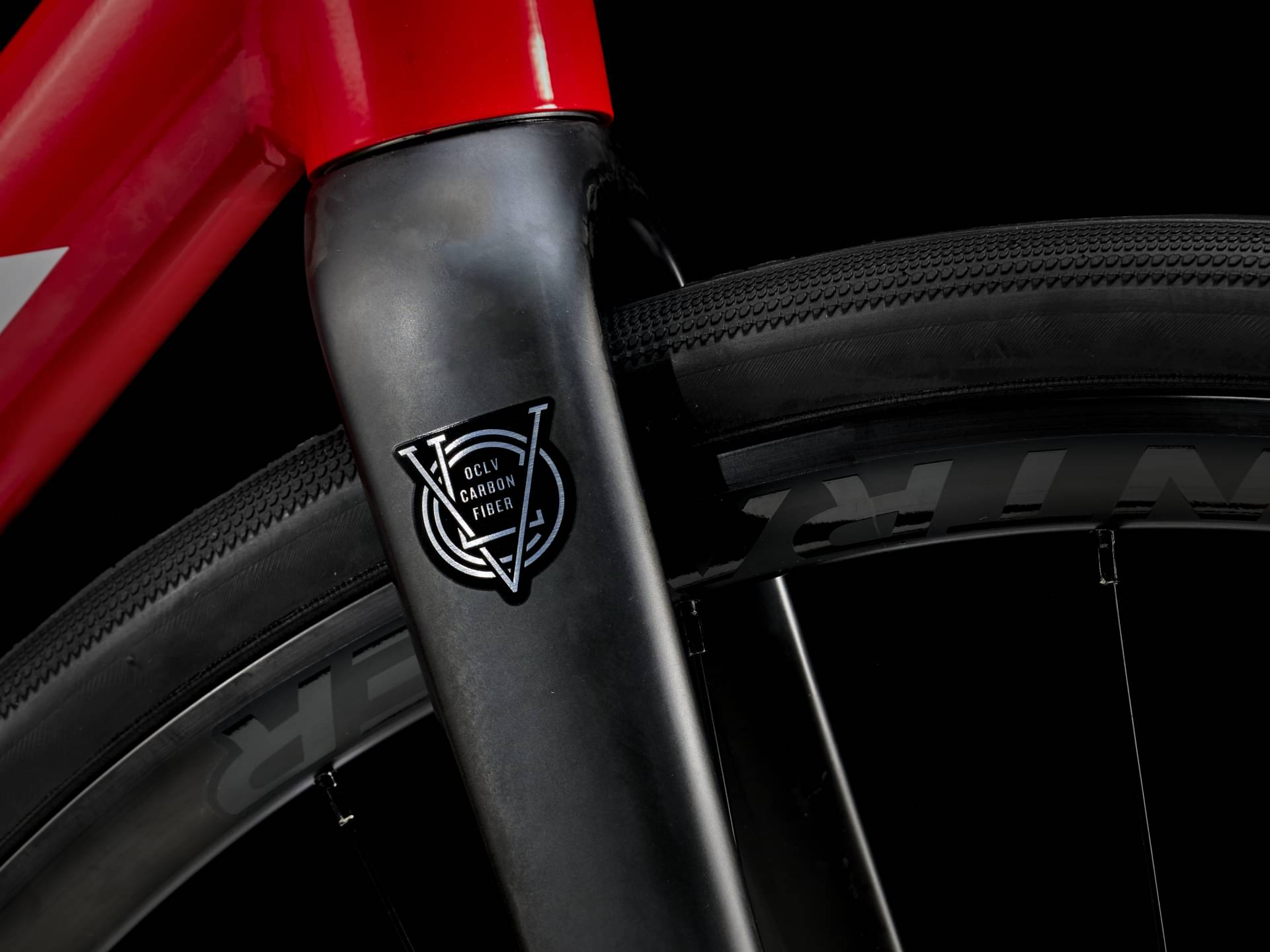

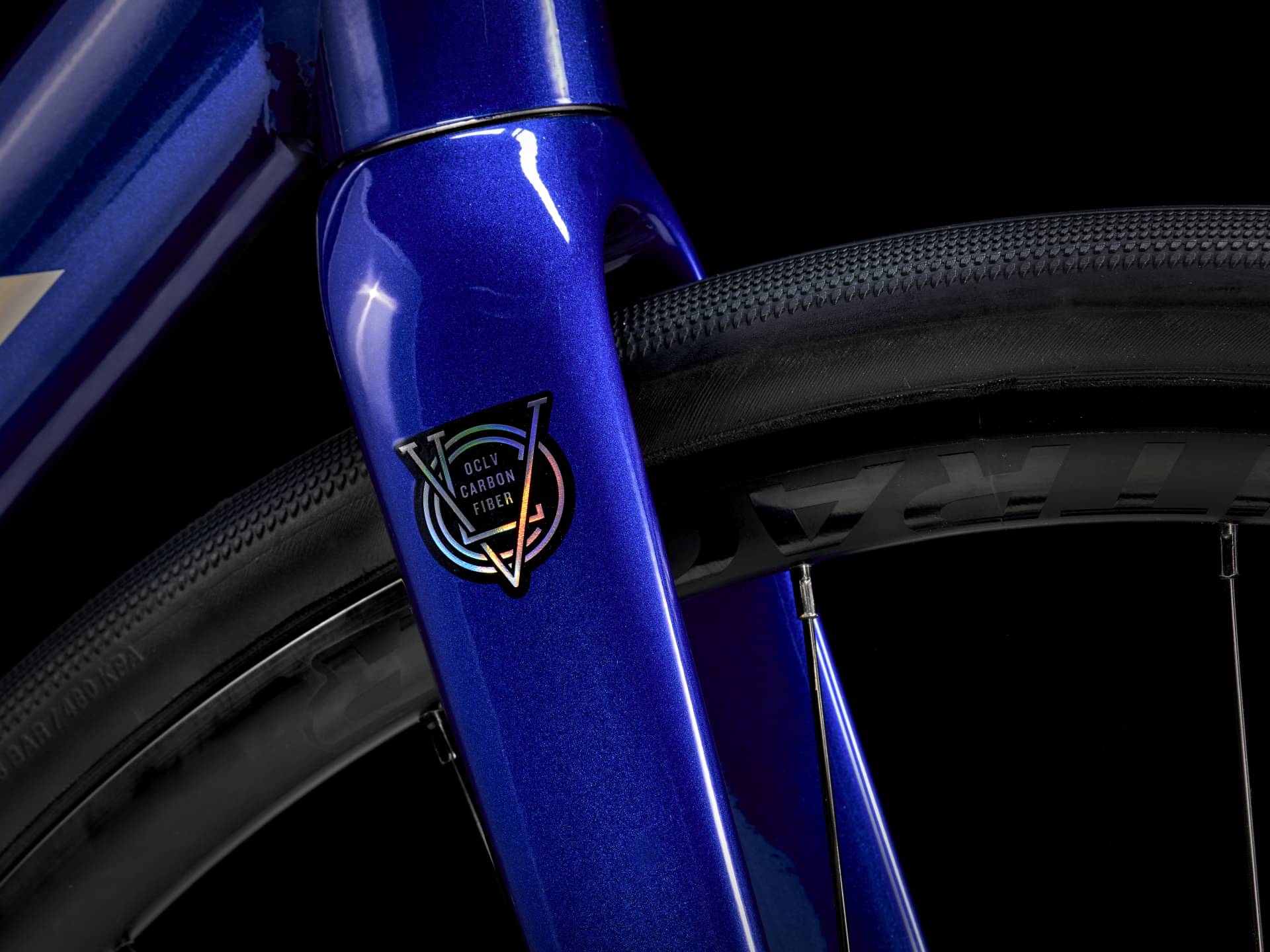

Domane AL 4 Gen 4 has a carbon fork, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
As for the wheels, Trek Domane AL 4 Gen 4 2024, has a 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes

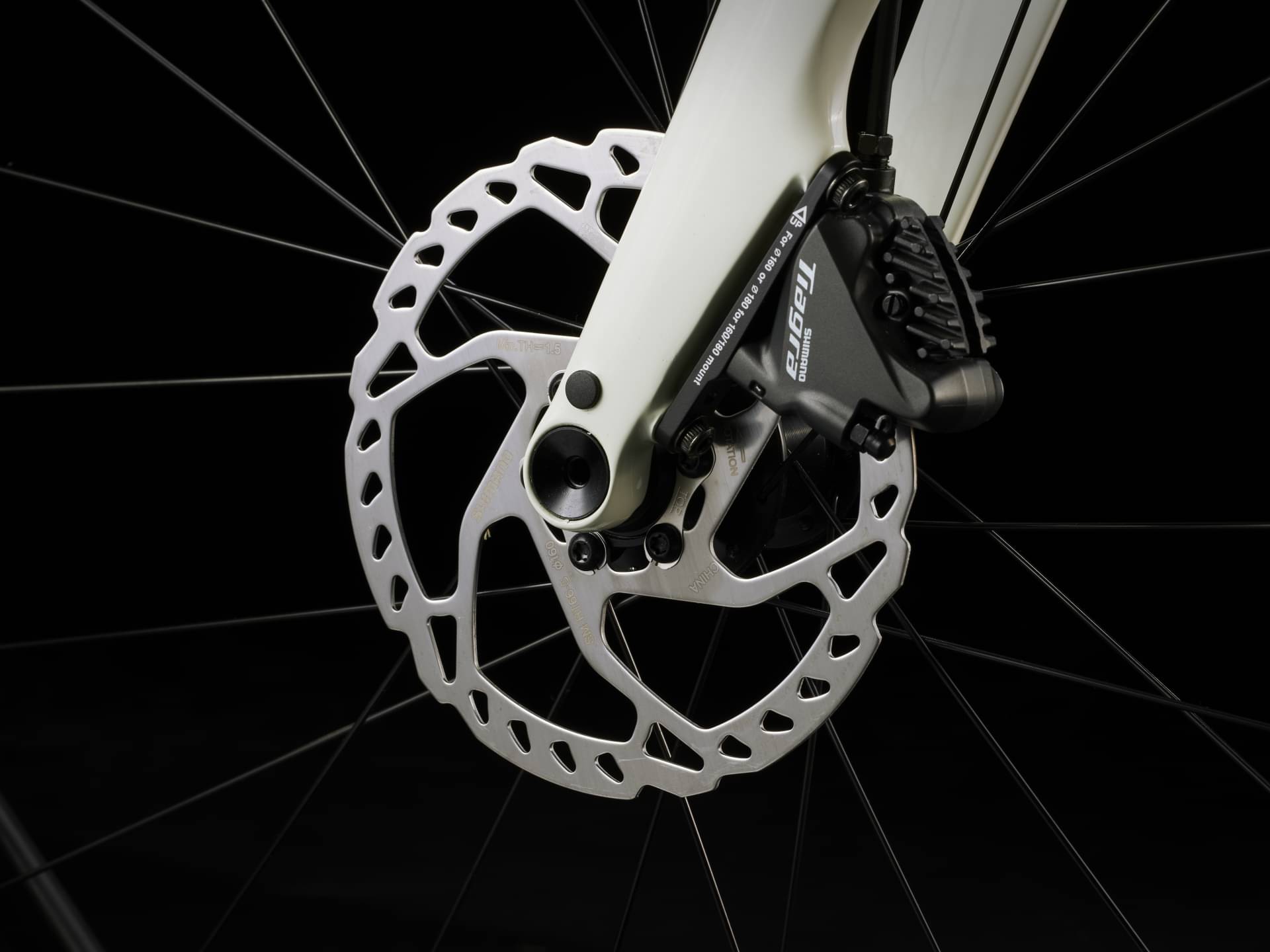

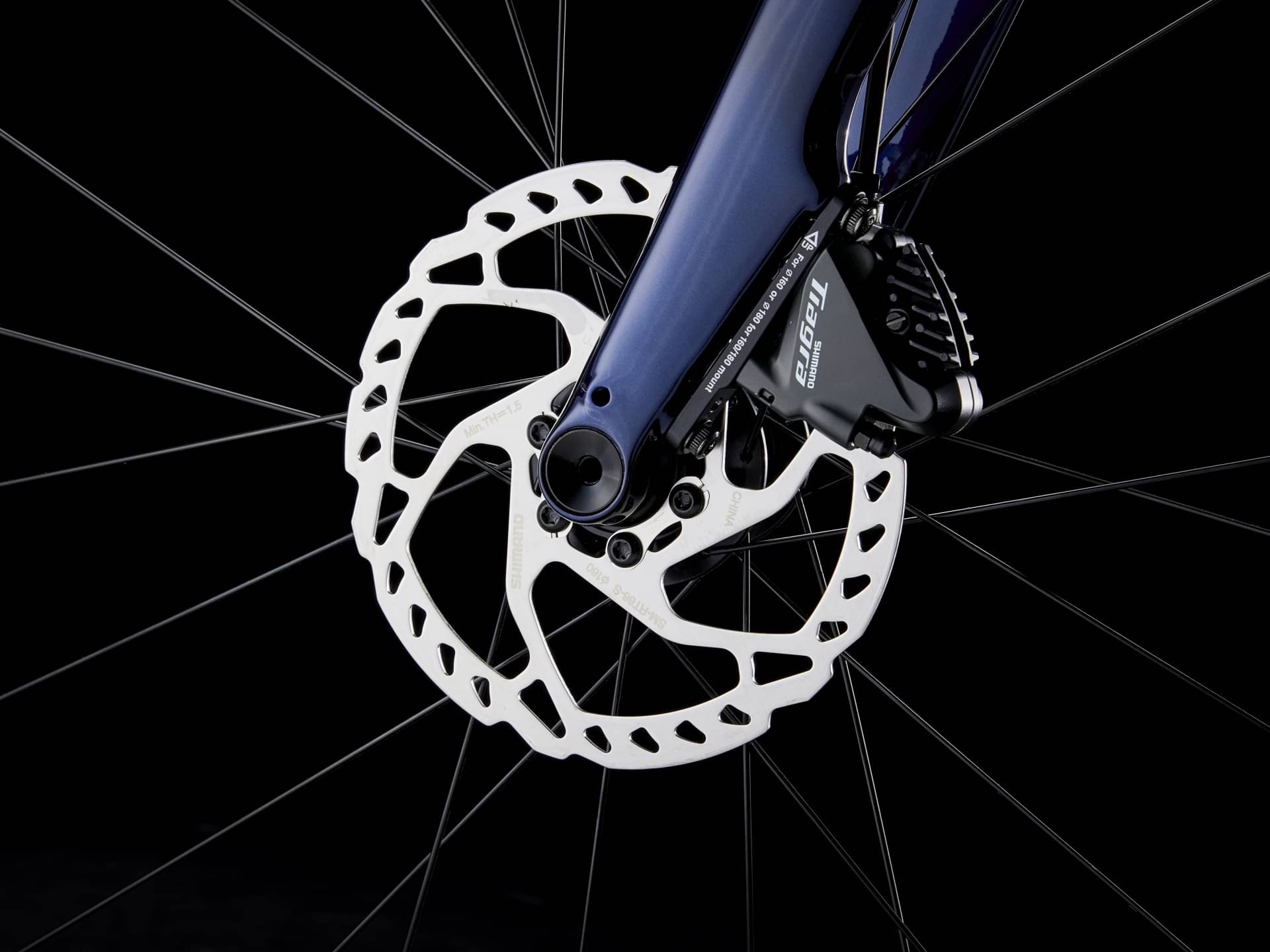

For your safety, it is important to have quality breaks on your bike. Trek Domane AL 4 Gen 4 has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
There are 7 sizes available for this model. Rider height can be anywhere between 150 cm – 191 cm (4.92 ft – 6.27 ft). In conclusion, you won’t have a problem finding one that suits you.
