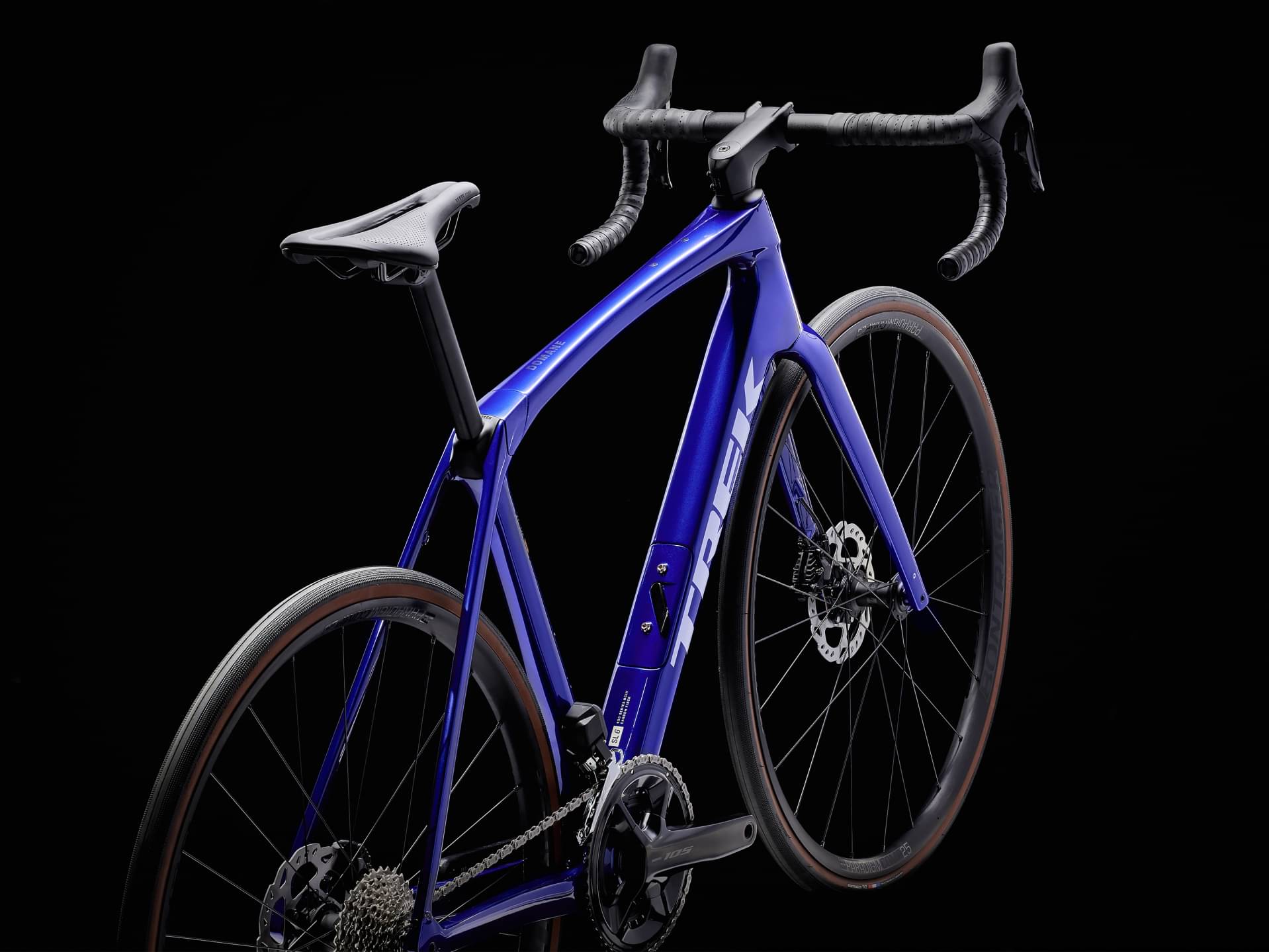

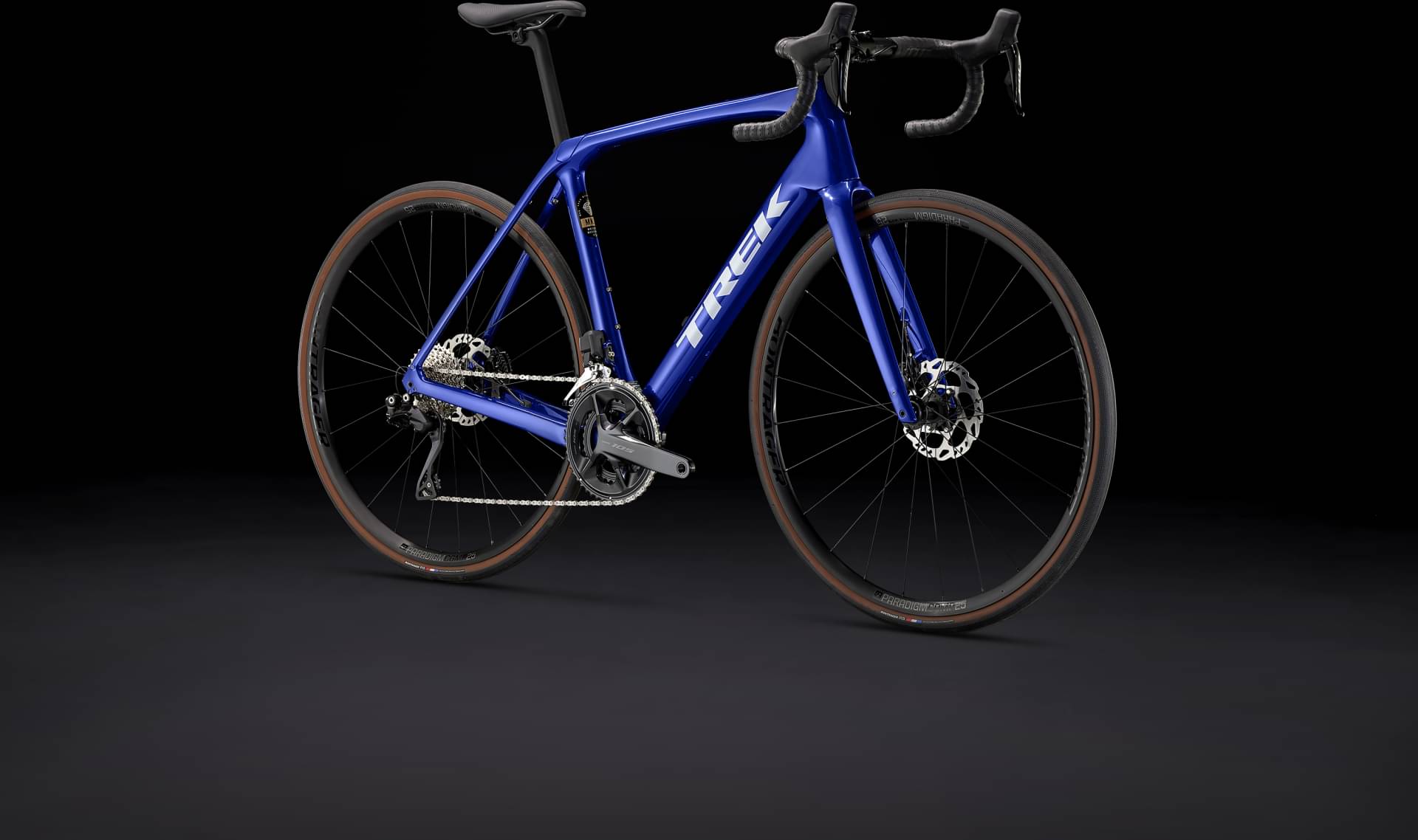

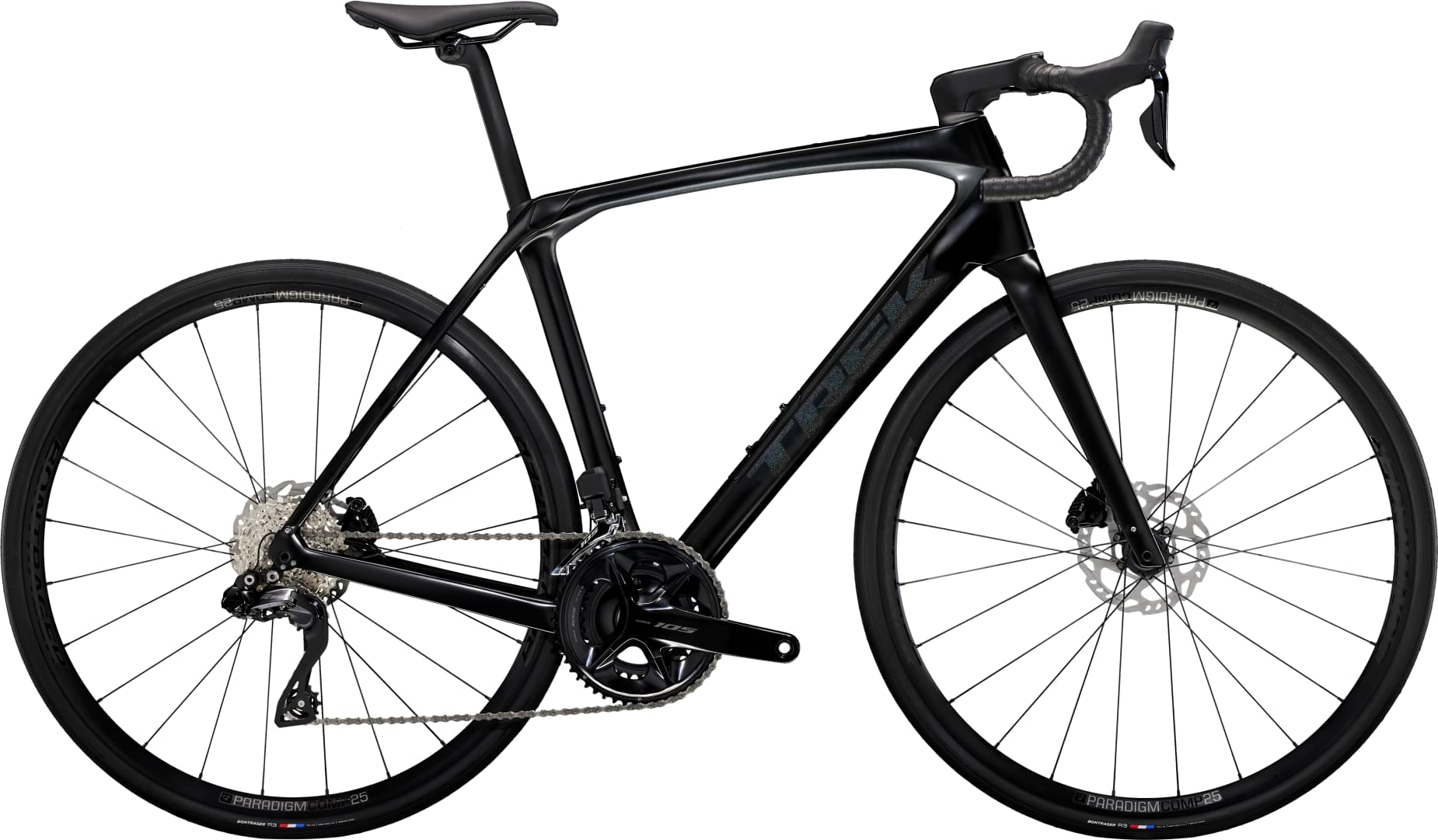

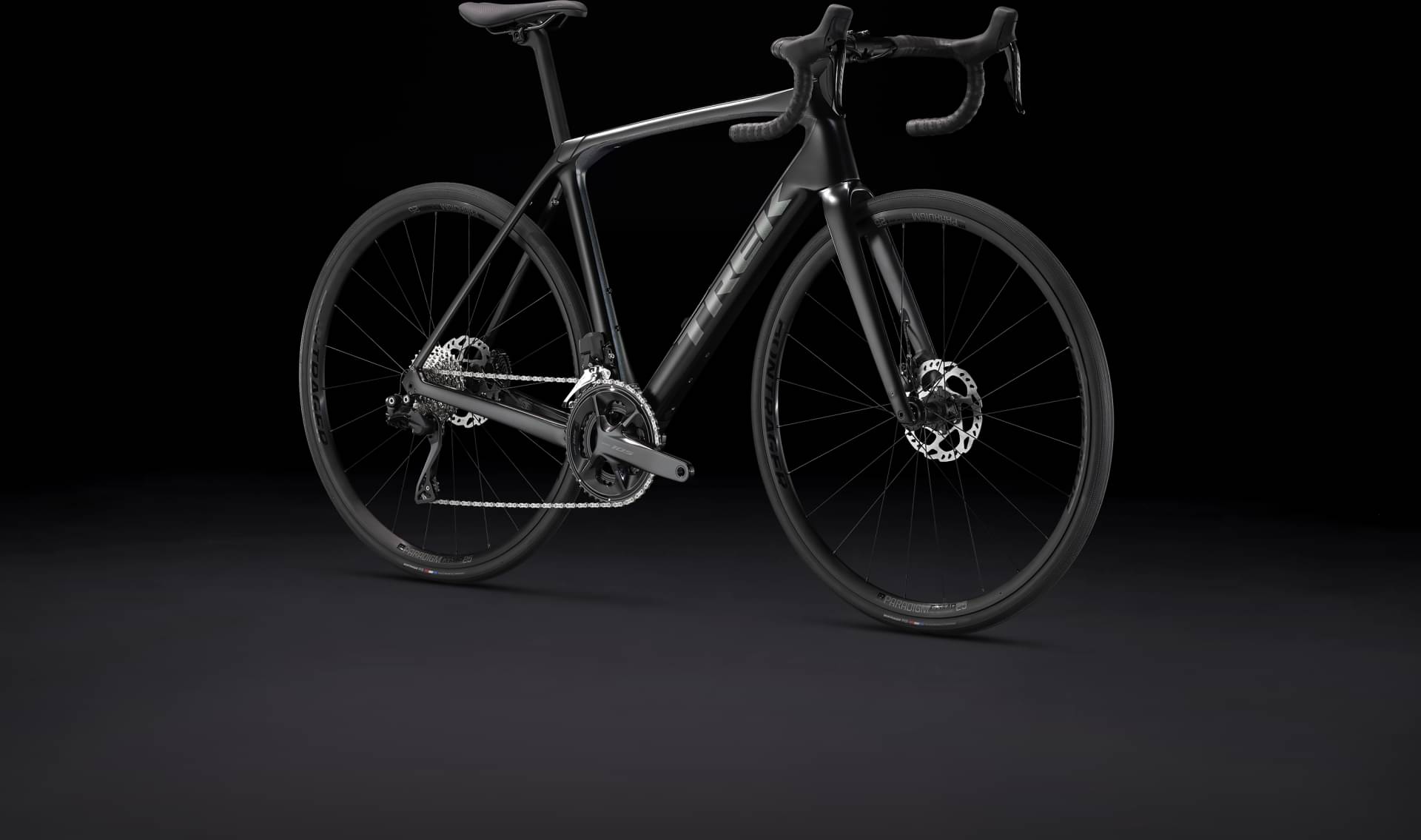

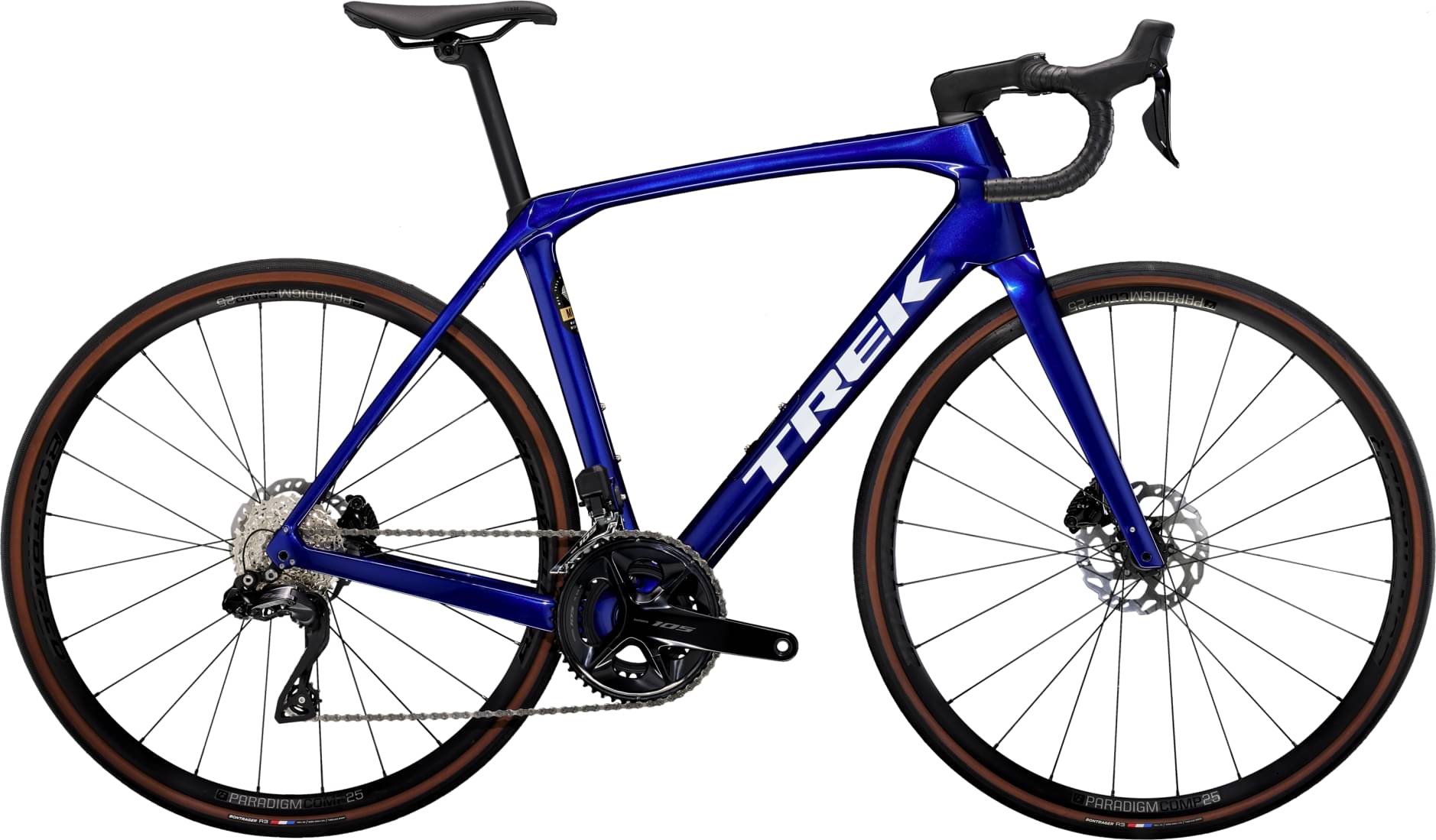

Trek Domane SL 6 Gen 4 2024
2024 Road
Estimate price |
4,699$
Weight | 8.9 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset 105 Di2 -
Suspension Rigid -
Battery Shimano BT-DN300 -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
47cm
152cm - 159cm
50cm
157cm - 164cm
52cm
162cm - 169cm
54cm
167cm - 175cm
56cm
173cm - 181cm
58cm
179cm - 186cm
60cm
184cm - 191cm
62cm
189cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

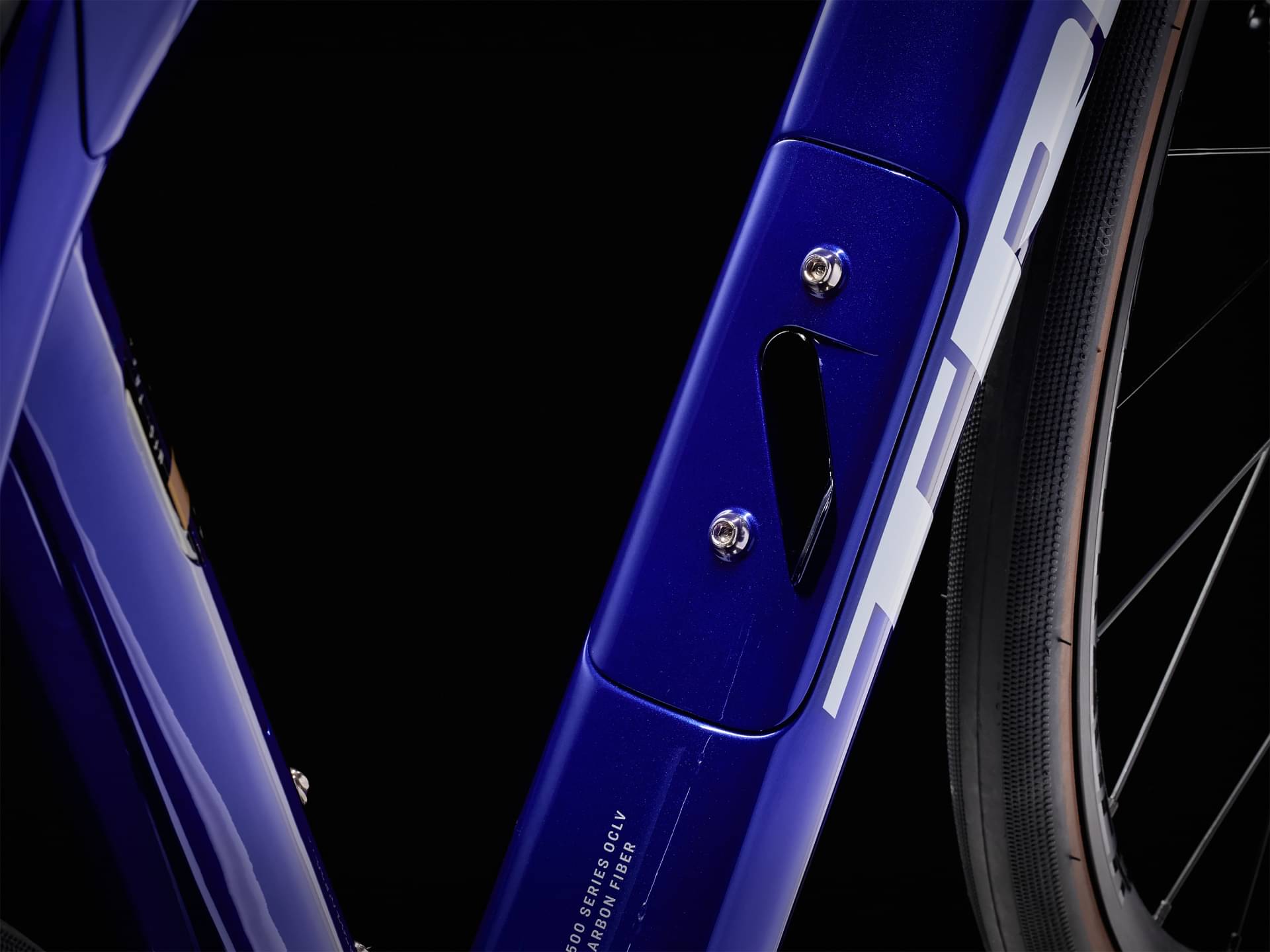

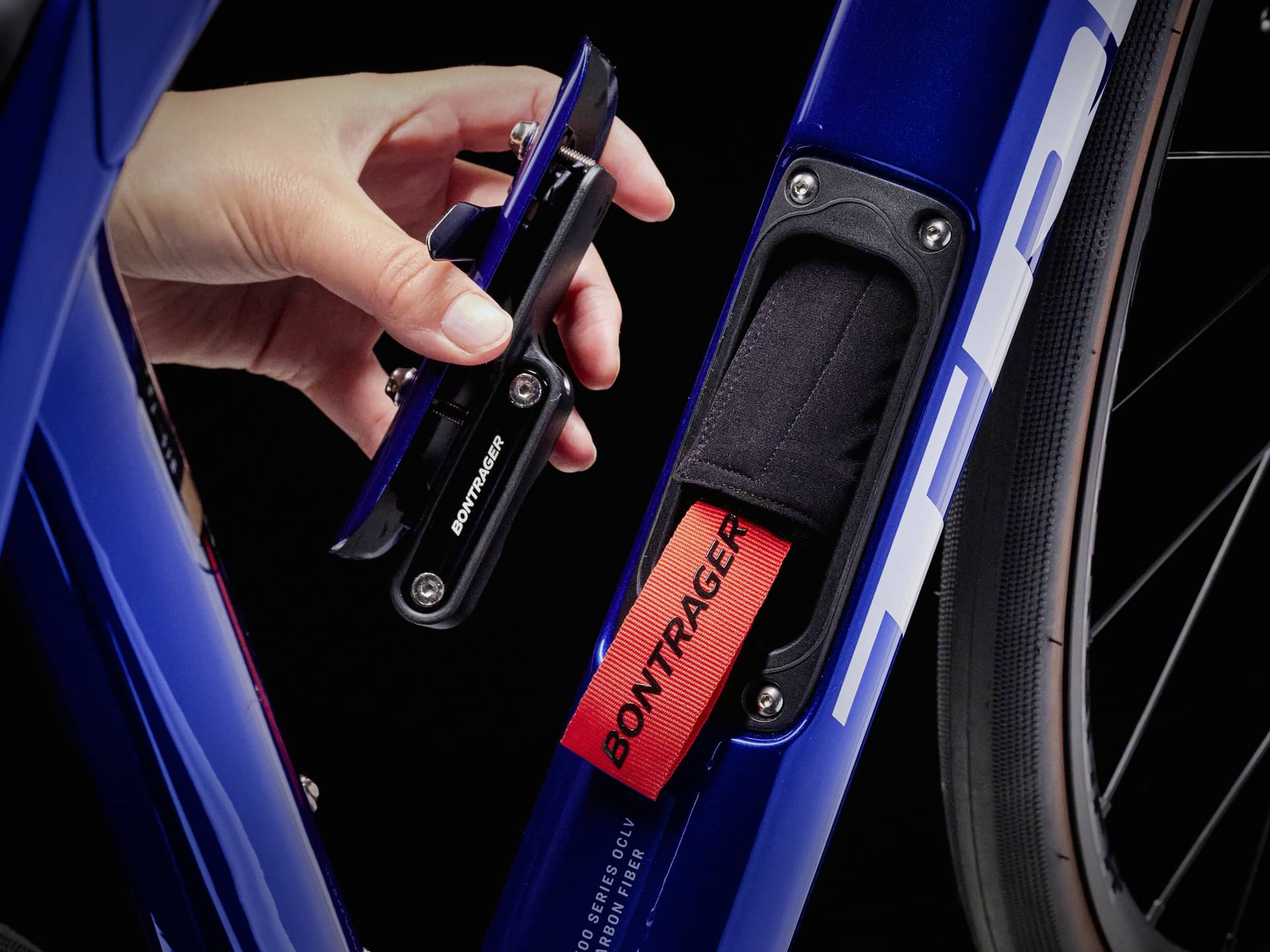

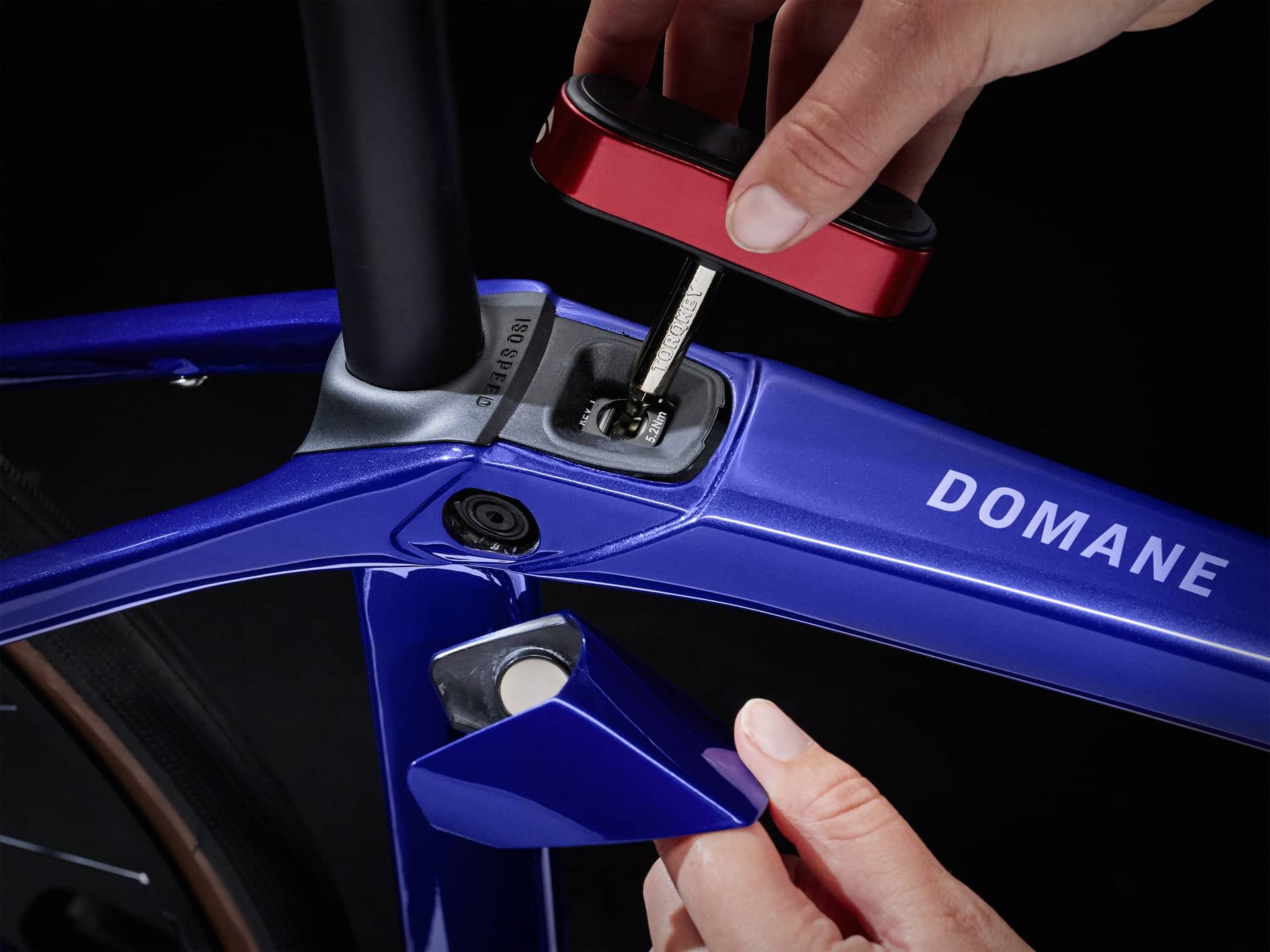

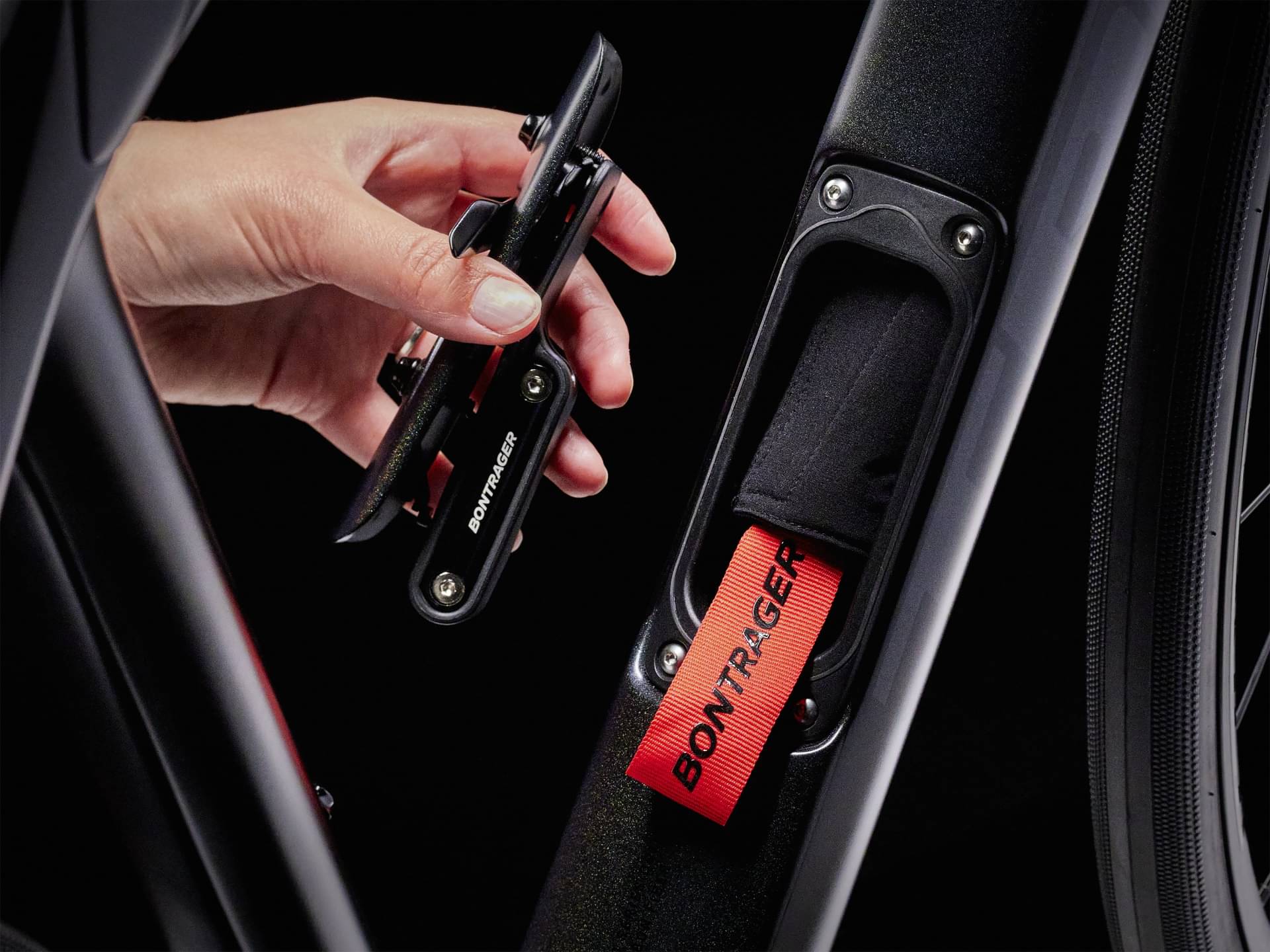

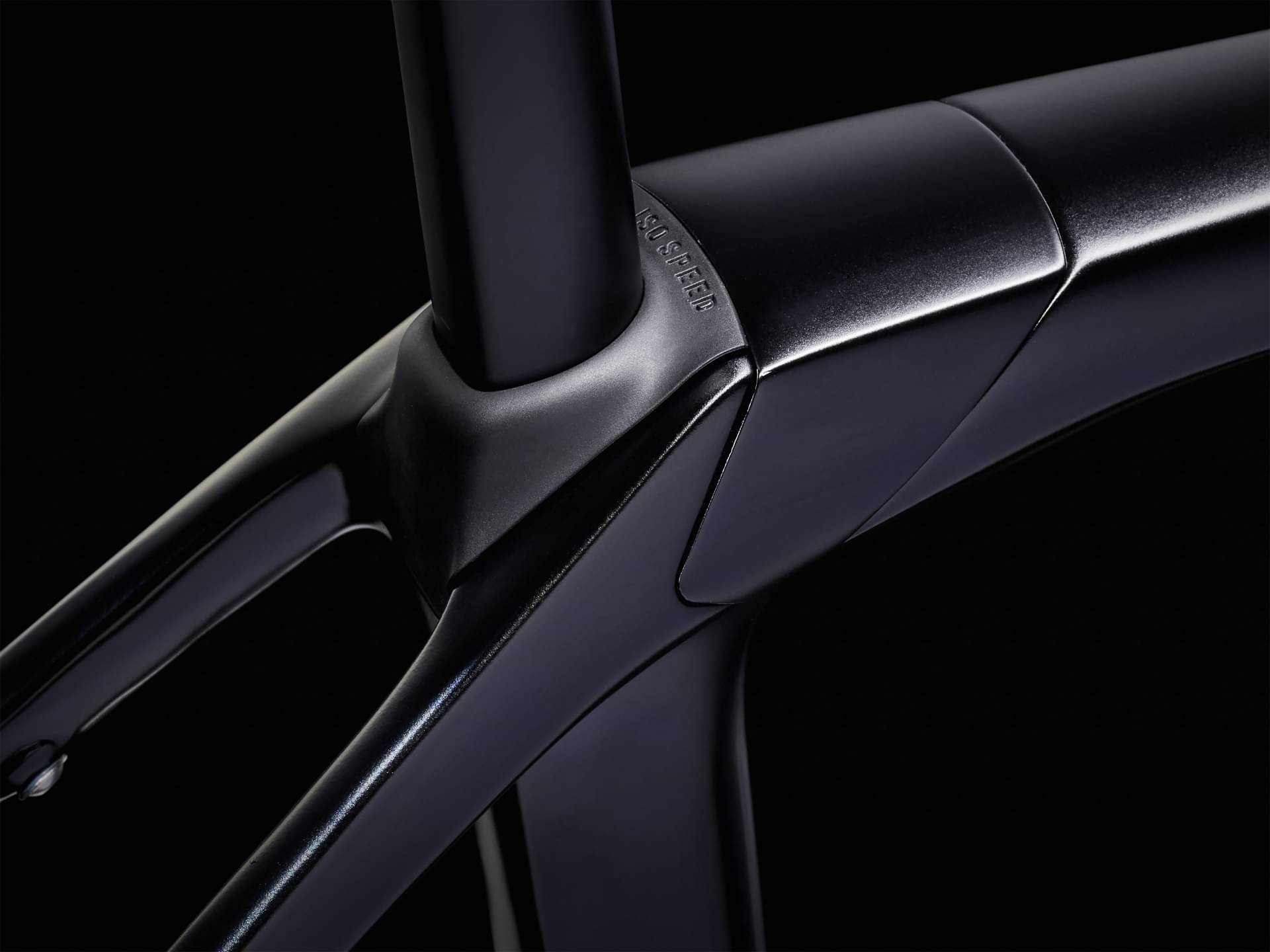

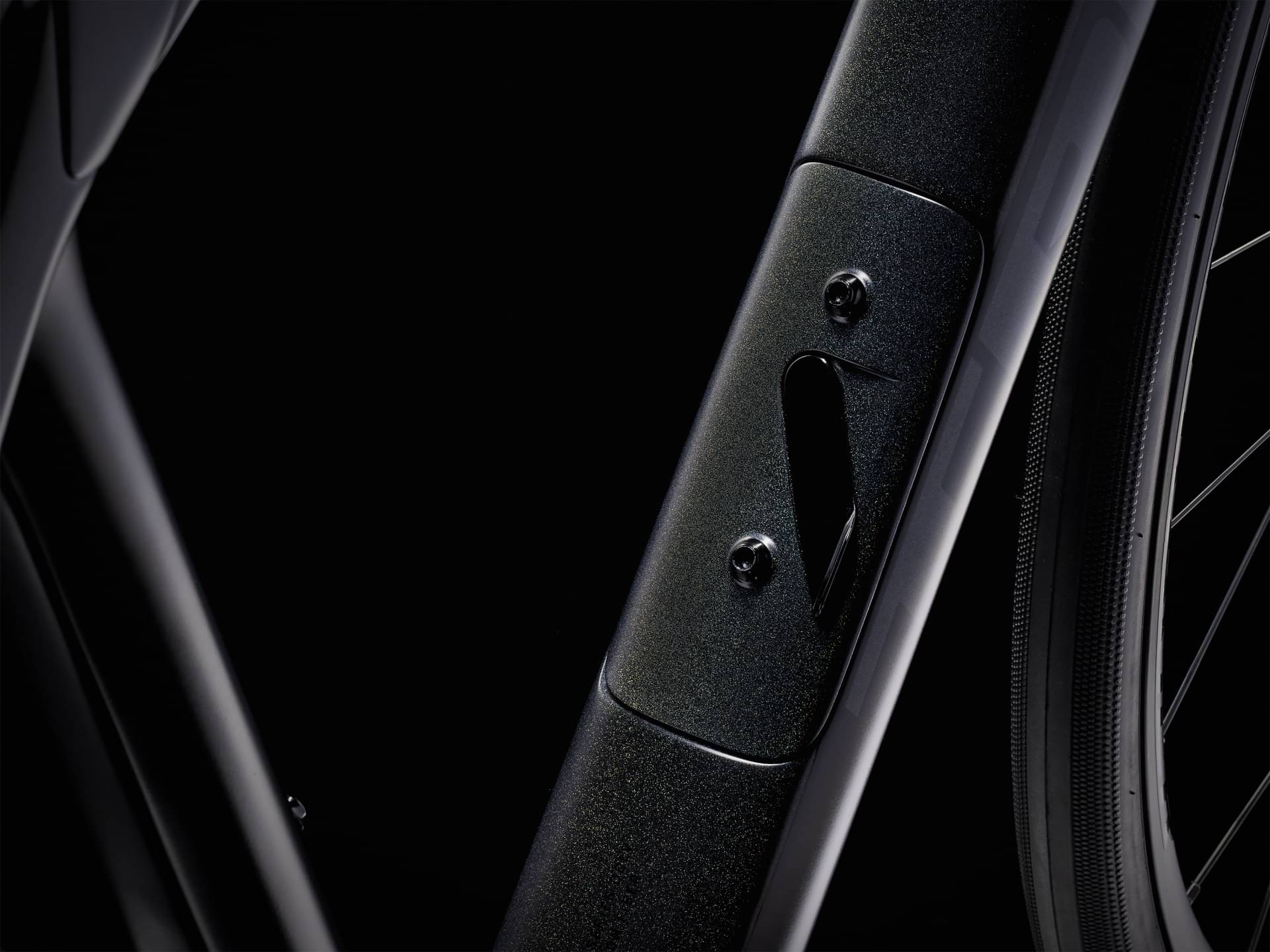

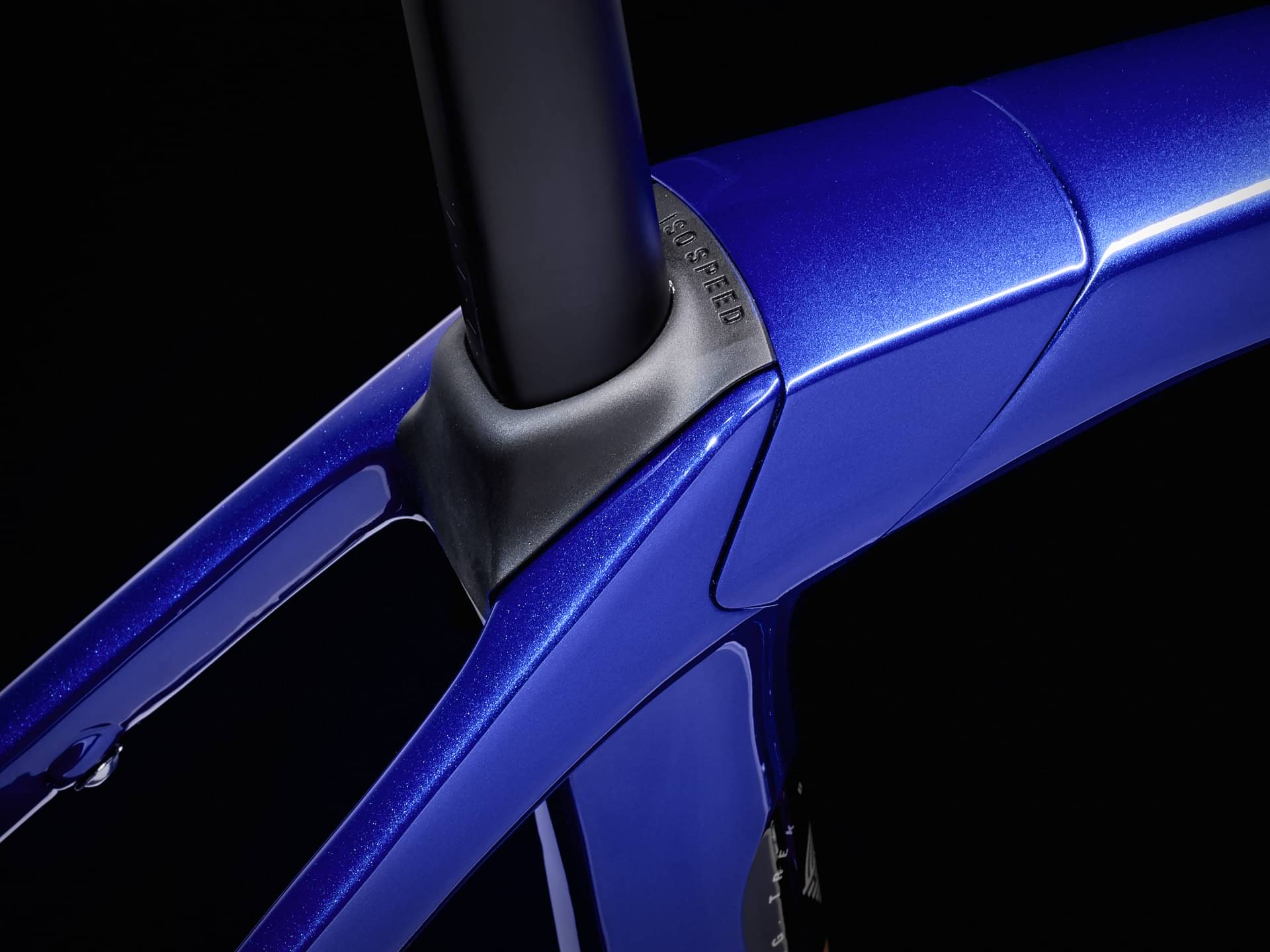

500 Series OCLV Carbon, IsoSpeed, internal storage, tapered head tube, internal cable routing, 3S chain keeper, fender mounts, flat mount disc, 142x12mm thru axle
Suspension Fork
Domane SL carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle

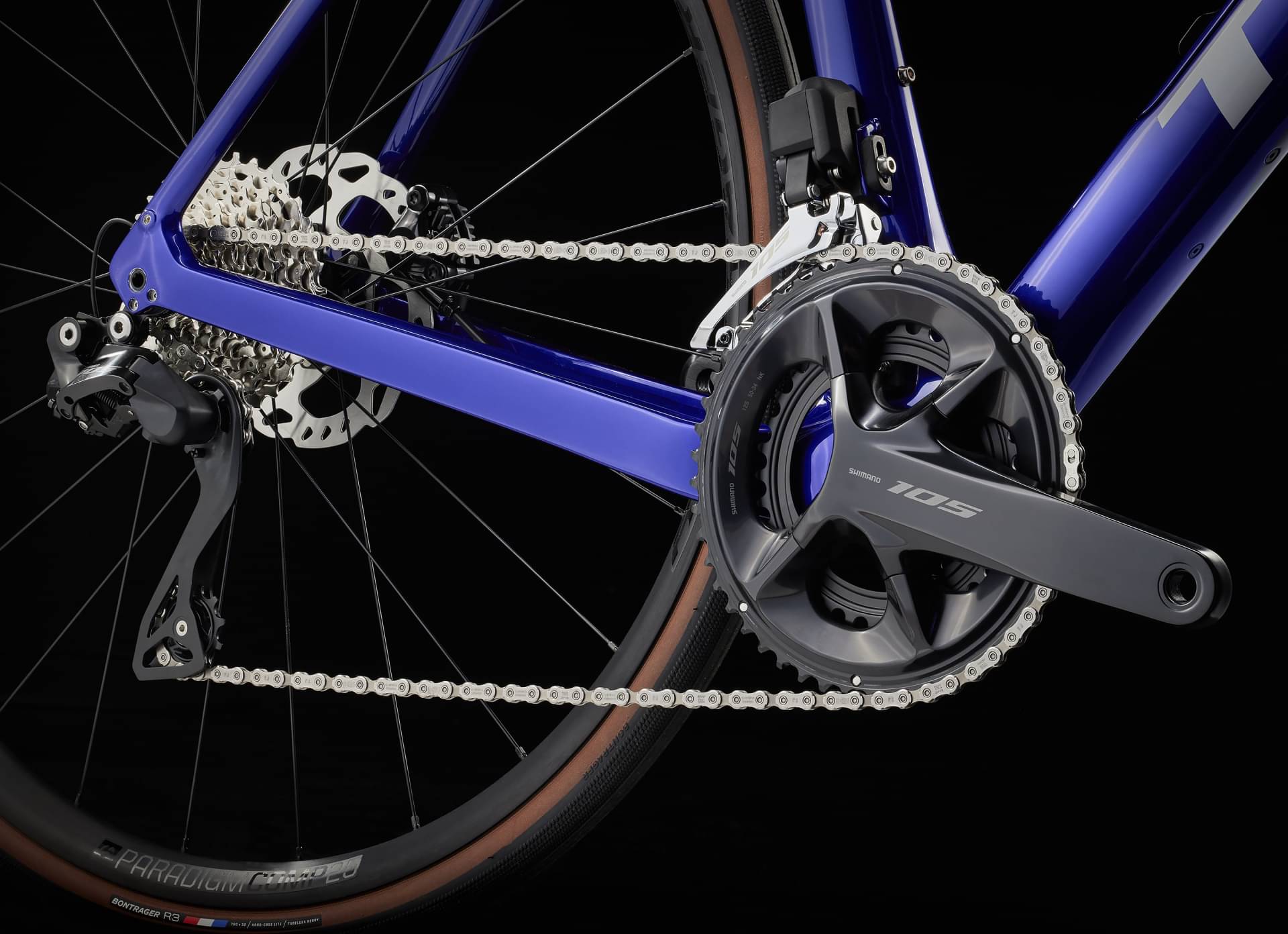

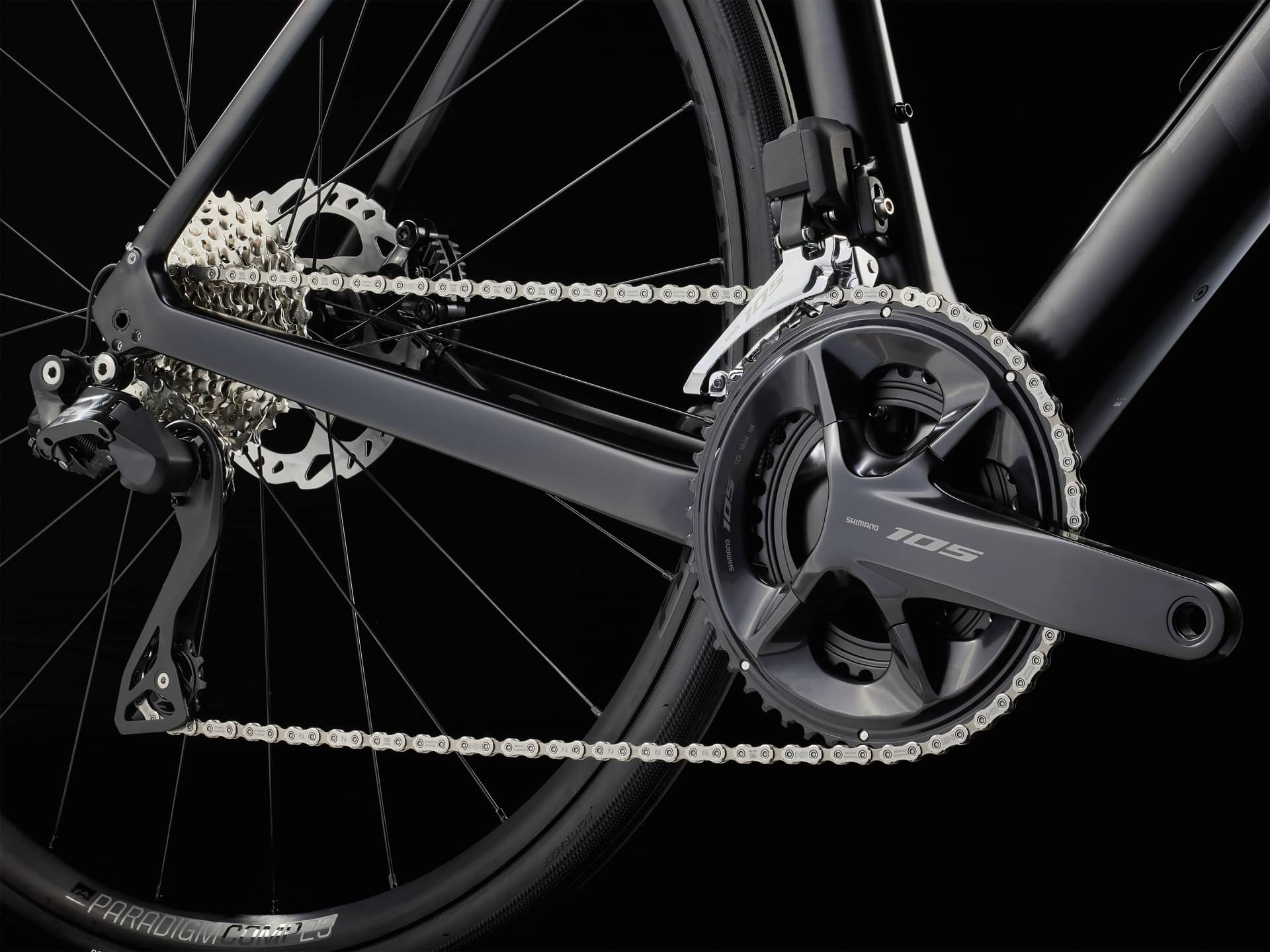

Drivetrain
Rear Derailleur
Shimano R7150 Di2, 36T max cog
Front Derailleur
Shimano 105 R7150 Di2, braze-on, down swing
Shift Levers
Shimano 105 R7170 Di2, 12 speed
Cassette
Shimano 105 7100, 11-34, 12 speed
Crank
Size: 47, Shimano 105 R7100, 50/34, 165mm length; Size: 50, 52, Shimano 105 R7100, 50/34, 170mm length; Size: 54, 56, Shimano 105 R7100, 50/34, 172.5mm length; Size: 58, 60, 62, Shimano 105 R7100, 50/34, 175mm length
Bottom Bracket
Praxis, T47 threaded, internal bearing
Chain
Shimano SLX M7100, 12 speed
Wheels
Front Hub
Bontrager Paradigm Comp 25, Tubeless Ready, 25 mm rim width, 100x12 mm thru axle
Rear Hub
Bontrager Paradigm Comp 25, Tubeless Ready, 25 mm rim width, Shimano 11/12-speed freehub, 142x12 thru axle
Rims
Front: Bontrager Paradigm Comp 25, Tubeless Ready, 25mm rim width, 100x12mm thru axle, Rear: Bontrager Paradigm Comp 25, Tubeless Ready, 25mm rim width, Shimano 11/12-speed freehub, 142x12 thru axle
Tires
Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 120 tpi, 700x32mm
Brakes
Brakes
Shimano 105 hydraulic disc, flat mount

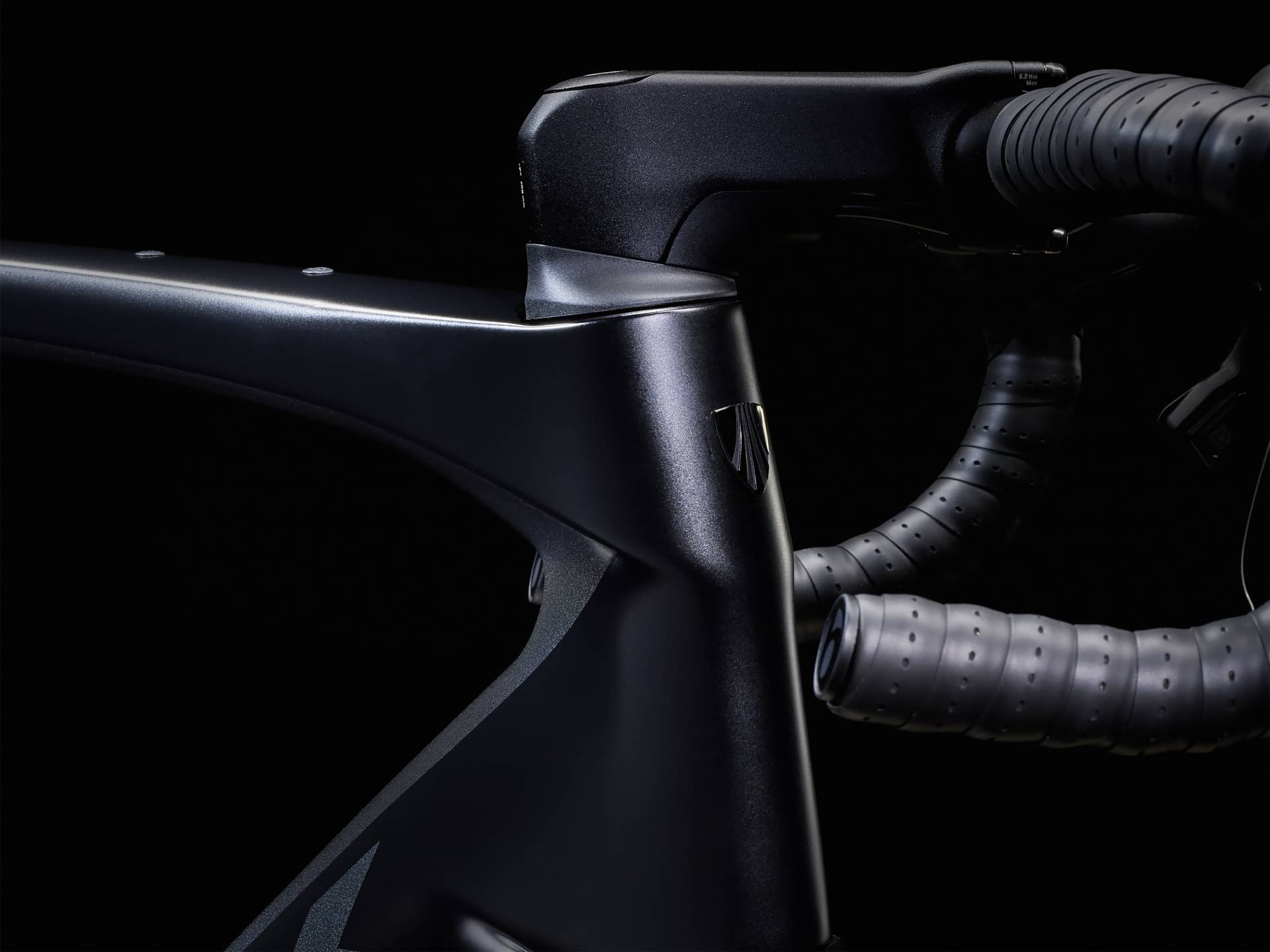

Cockpit
Stem
Size: 47, Trek RCS Pro, -7 degree, 70mm length; Size: 50, Trek RCS Pro, -7 degree, 80mm length; Size: 52, 54, Trek RCS Pro, -7 degree, 90mm length; Size: 56, 58, Trek RCS Pro, -7 degree, 100mm length; Size: 60, 62, Trek RCS Pro, -7 degree, 110mm length

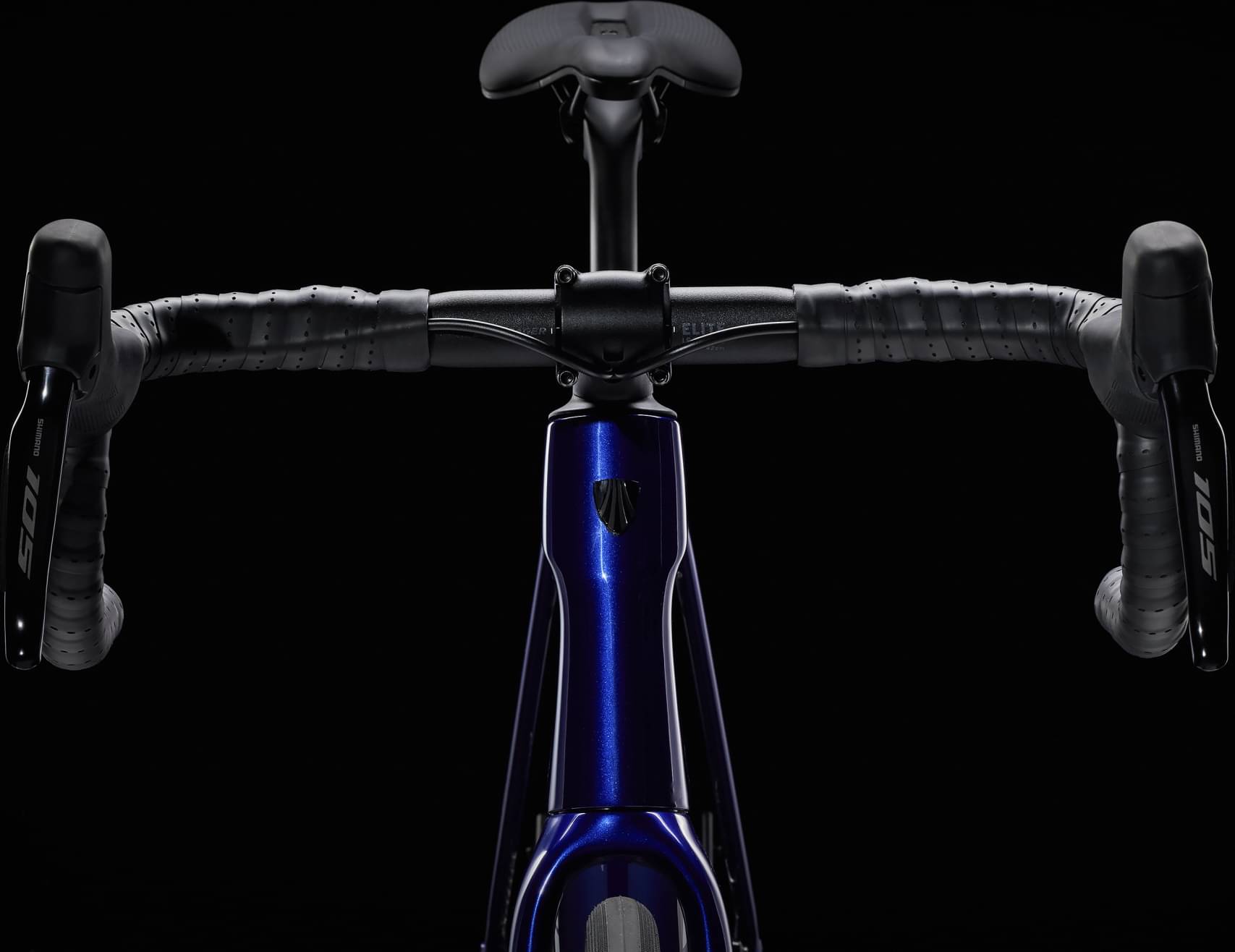

Handlebar

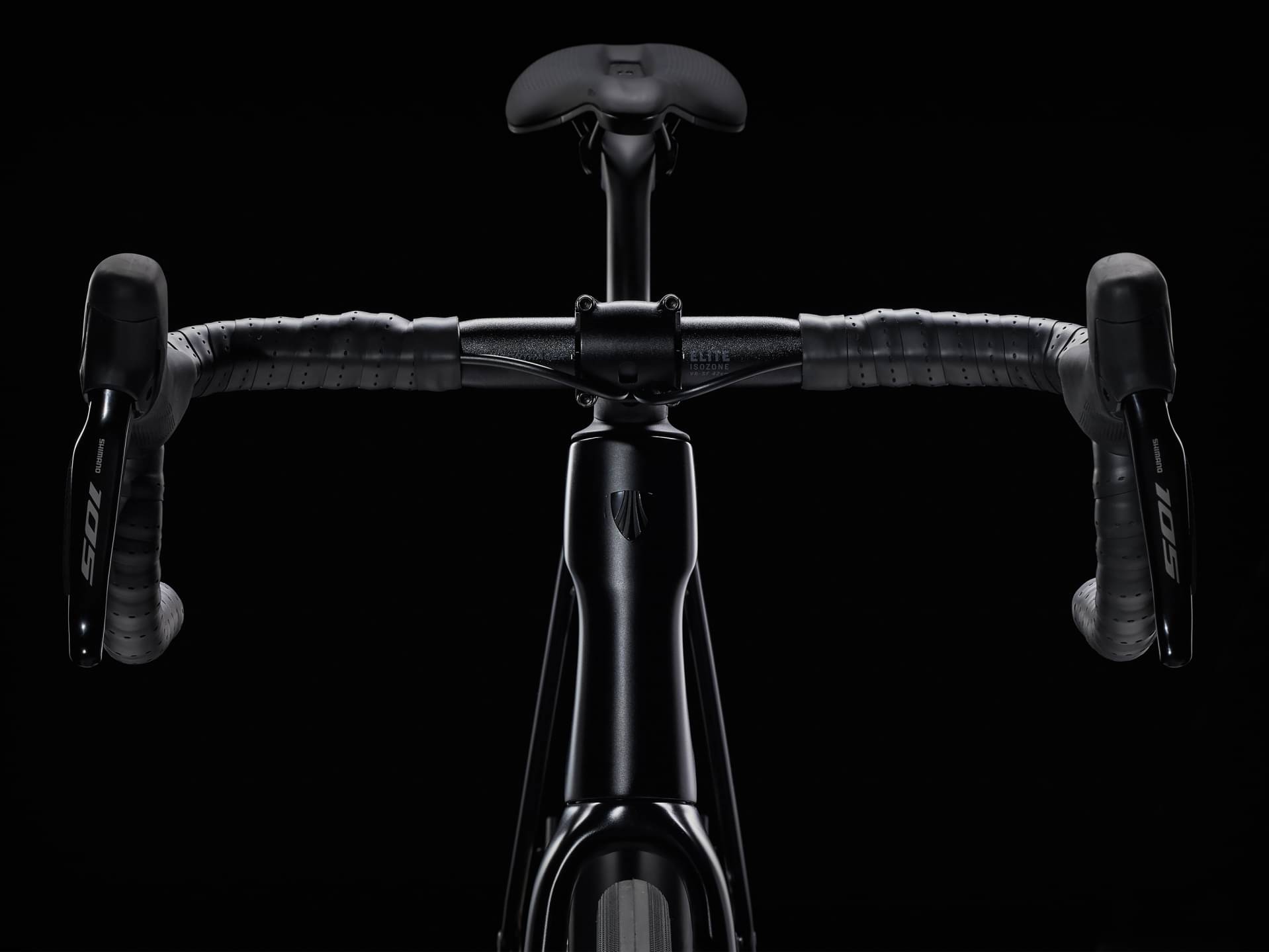

Size: 47, Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 36cm width; Size: 50, Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 38cm width; Size: 52, Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 40cm width; Size: 54, 56, Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 42cm width; Size: 58, 60, 62, Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 44cm width
Seat
Saddle
Size: 47, 50, 52, Bontrager Verse Short Comp, steel rails, 155mm width; Size: 54, 56, 58, 60, 62, Bontrager Verse Short Comp, steel rails, 145mm width
Seatpost
Size: 47, 50, 52, 54, 56, Domane carbon seatpost, KVF shaping, 20mm offset, 280mm length; Size: 58, 60, 62, Domane carbon seatpost, KVF shaping, 20mm offset, 320mm length
Motor & Battery
Battery
Shimano BT-DN300
Charger
Charging cable included
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm | 62cm |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.48 mm | 1.51 mm | 1.53 mm | 1.56 mm | 1.6 mm | 1.65 mm | 1.69 mm |
| Bottom Bracket Height | 256 mm | 256 mm | 256 mm | 256 mm | 258 mm | 258 mm | 261 mm | 261 mm |
| Front Center | 579 mm | 589 mm | 596 mm | 603 mm | 600 mm | 609 mm | 618 mm | 628 mm |
| Rake | 53 mm | 53 mm | 54 mm | 53 mm | 48 mm | 49 mm | 48 mm | 48 mm |
| Trail | 61 mm | 60 mm | 59 mm | 59 mm | 61 mm | 60 mm | 59 mm | 59 mm |
| Stack | 530 mm | 549 mm | 564 mm | 578 mm | 594 mm | 614 mm | 635 mm | 659 mm |
| Reach | 367 mm | 371 mm | 374 mm | 377 mm | 380 mm | 383 mm | 386 mm | 389 mm |
| Top Tube Length | 512 mm | 522 mm | 533 mm | 545 mm | 557 mm | 570 mm | 582 mm | 596 mm |
| Seat Tube Angle | 74.6 ° | 74.6 ° | 74.2 ° | 73.7 ° | 73.3 ° | 73 ° | 72.8 ° | 72.5 ° |
| Seat Tube Length | 420 mm | 450 mm | 475 mm | 500 mm | 525 mm | 548 mm | 567 mm | 586 mm |
| Head Tube Angle | 71 ° | 71.1 ° | 71.3 ° | 71.3 ° | 71.9 ° | 72 ° | 72.1 ° | 72.1 ° |
| Head Tube Length | 110 mm | 130 mm | 145 mm | 160 mm | 175 mm | 195 mm | 220 mm | 245 mm |
| Chainstay Length | 423 mm | 423 mm | 423 mm | 423 mm | 423 mm | 428 mm | 428 mm | 428 mm |
| Wheelbase | 989 mm | 999 mm | 1006 mm | 1013 mm | 1011 mm | 1025 mm | 1035 mm | 1045 mm |
| Bottom Bracket Drop | 80 mm | 80 mm | 80 mm | 80 mm | 78 mm | 78 mm | 75 mm | 75 mm |
| Standover Height | 689 mm | 719 mm | 738 mm | 757 mm | 779 mm | 799 mm | 820 mm | 838 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 152 cm | 157 cm | 162 cm | 167 cm | 173 cm | 179 cm | 184 cm | 189 cm |
| Rider Max Height | 159 cm | 164 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm | 195 cm |
Model Overview
Domane SL 6 Gen 4 is a Trek Domane model. There are 316 bikes that carry this model name. You can easily view all of the Trek Domane bikes models from 2024, here.
Model range prices
The most economical model, the Trek Domane AL 2 Rim 2024 has a starting price of 999$. Trek Domane SLR 9 AXS Gen 4 2024 on the other hand is the most expensive at 13199$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Endurance bikes average price
Our math shows that the average cost of a dependable Endurance bike is 2346$. However, even if your budget is less than the average, you might still be able to get a top-quality Endurance bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
When Trek released this model in 2024, its price was 4699$. Doing a quick comparison, we notice that Domane SL 6 Gen 4 price is 100.3% more expensive than the average cost of an Endurance bike.
Endurance bikes average weight
The average weight for Endurance bikes is 8.56 kg (18.87 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Trek Domane SL 6 Gen 4 it’s weighing 8.9 kg (19.62 lbs). At this weight, is slightly heavier than average. To sum up, it’s 3.97% heavier than the average weight of Endurance bikes.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
When it comes to wheels, the Domane SL 6 Gen 4 bike is equipped with the 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.

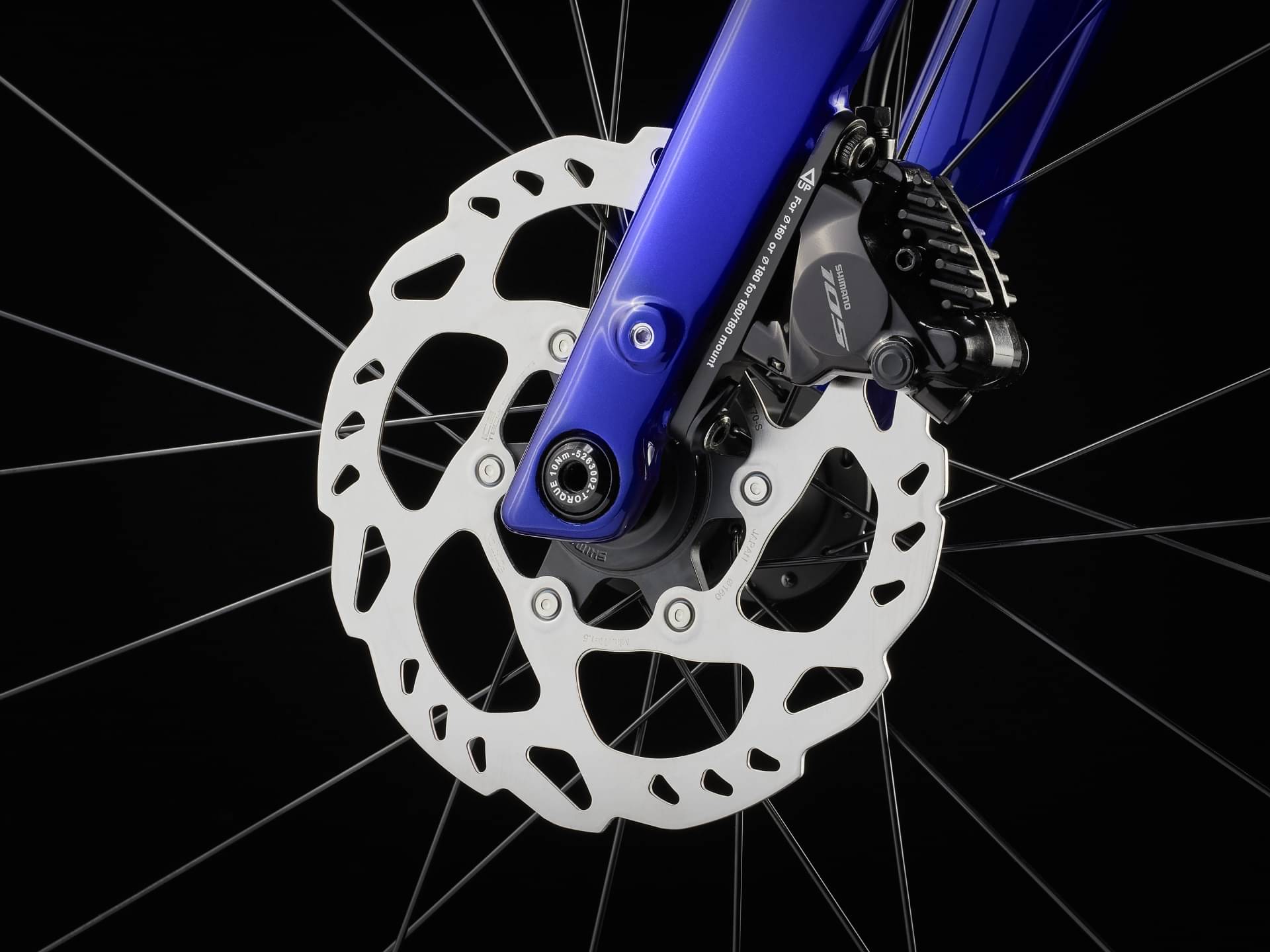

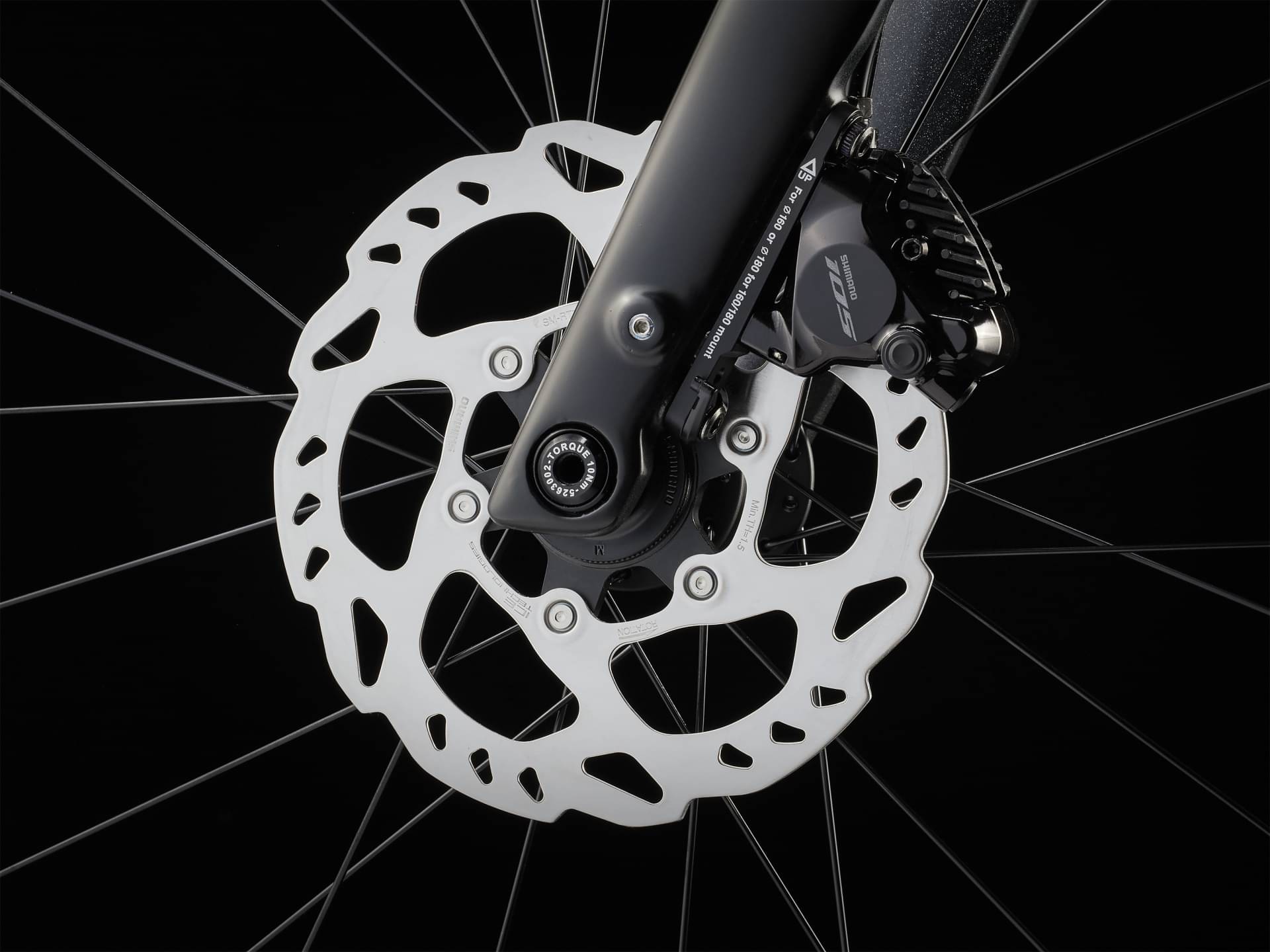

Brakes
For your safety, it is important to have quality breaks on your bike. Trek Domane SL 6 Gen 4 has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
Trek Domane SL 6 Gen 4 bike has 8 sizes, in the range of 152 cm – 195 cm (4.99 ft – 6.4 ft). In short, it won’t be difficult to find the right one for you.
