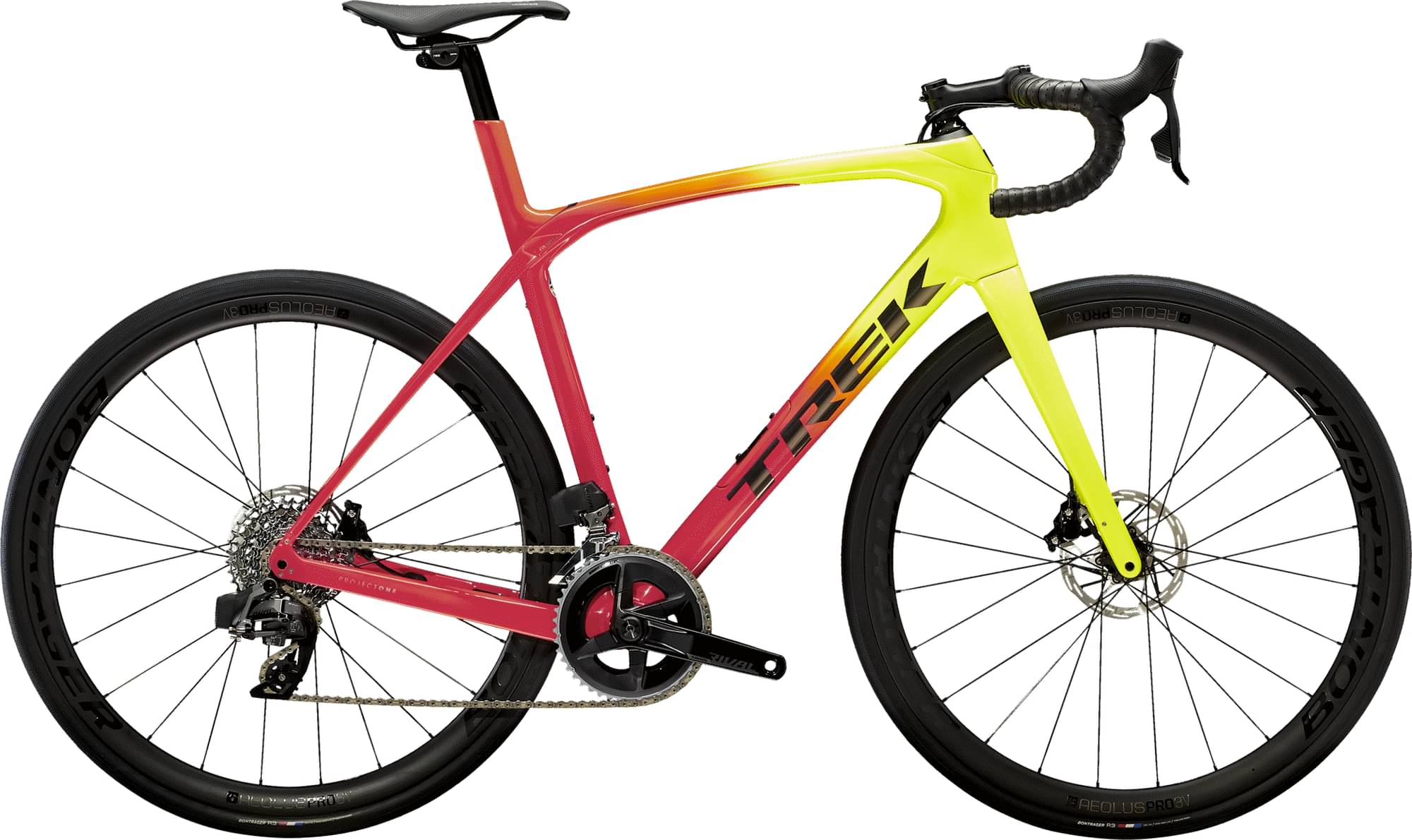

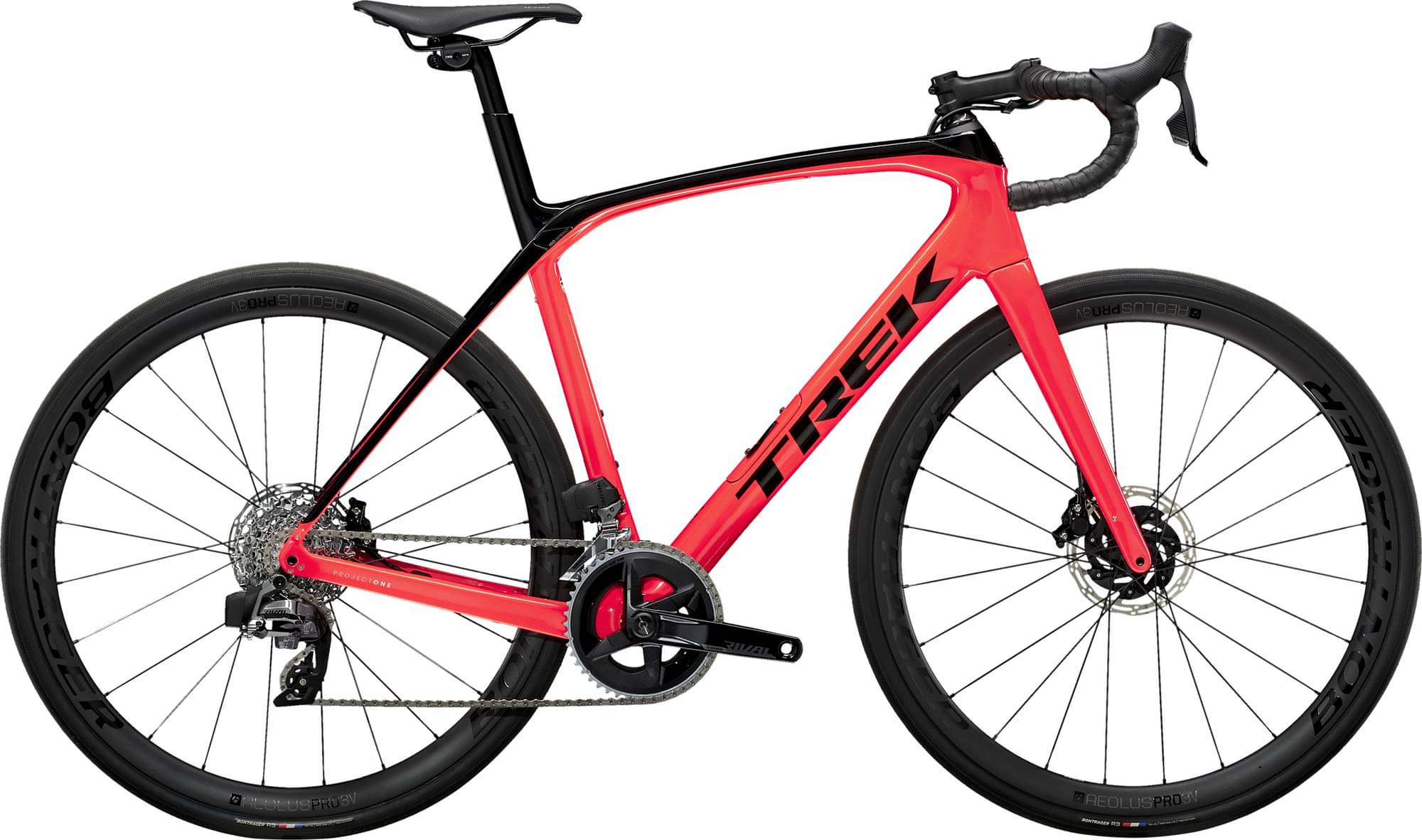

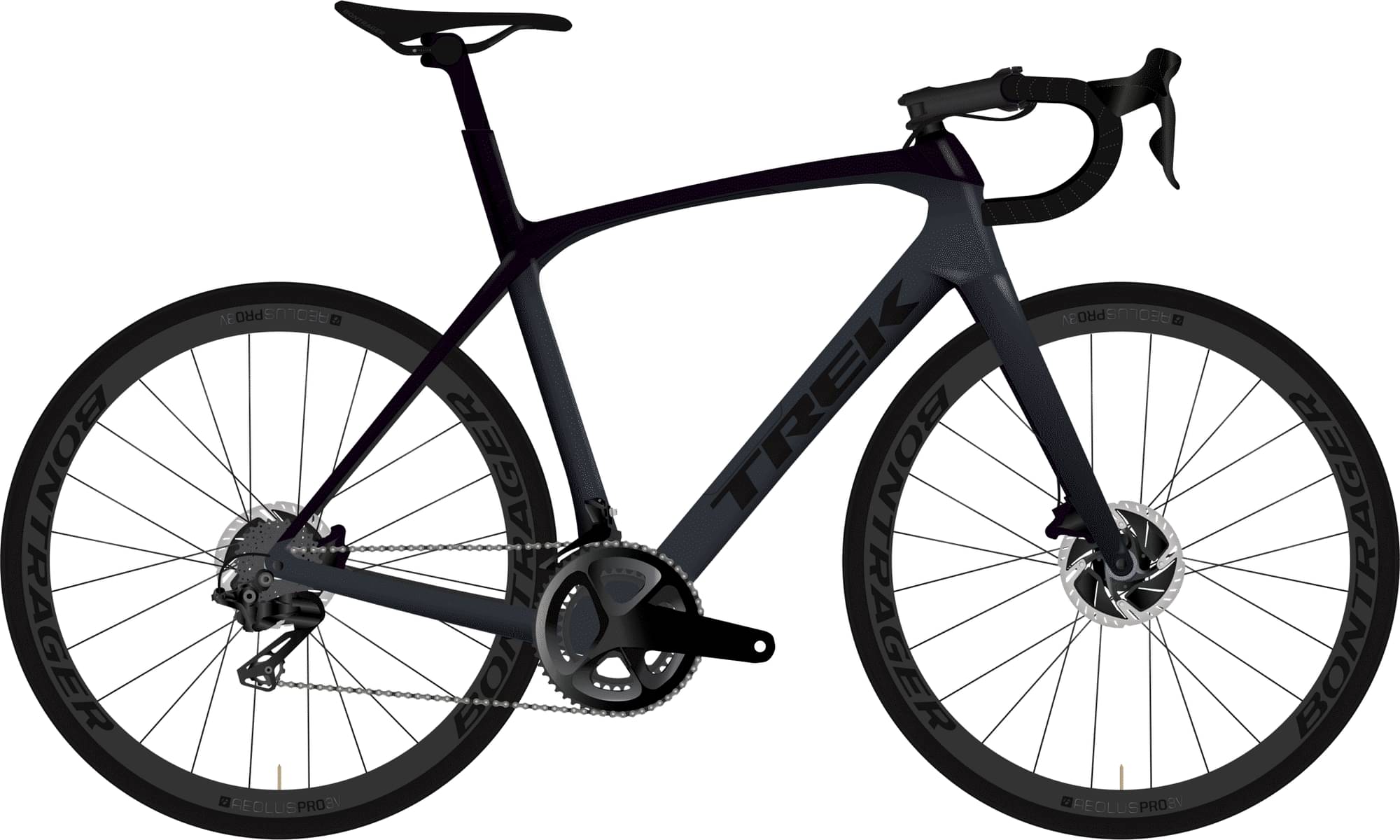

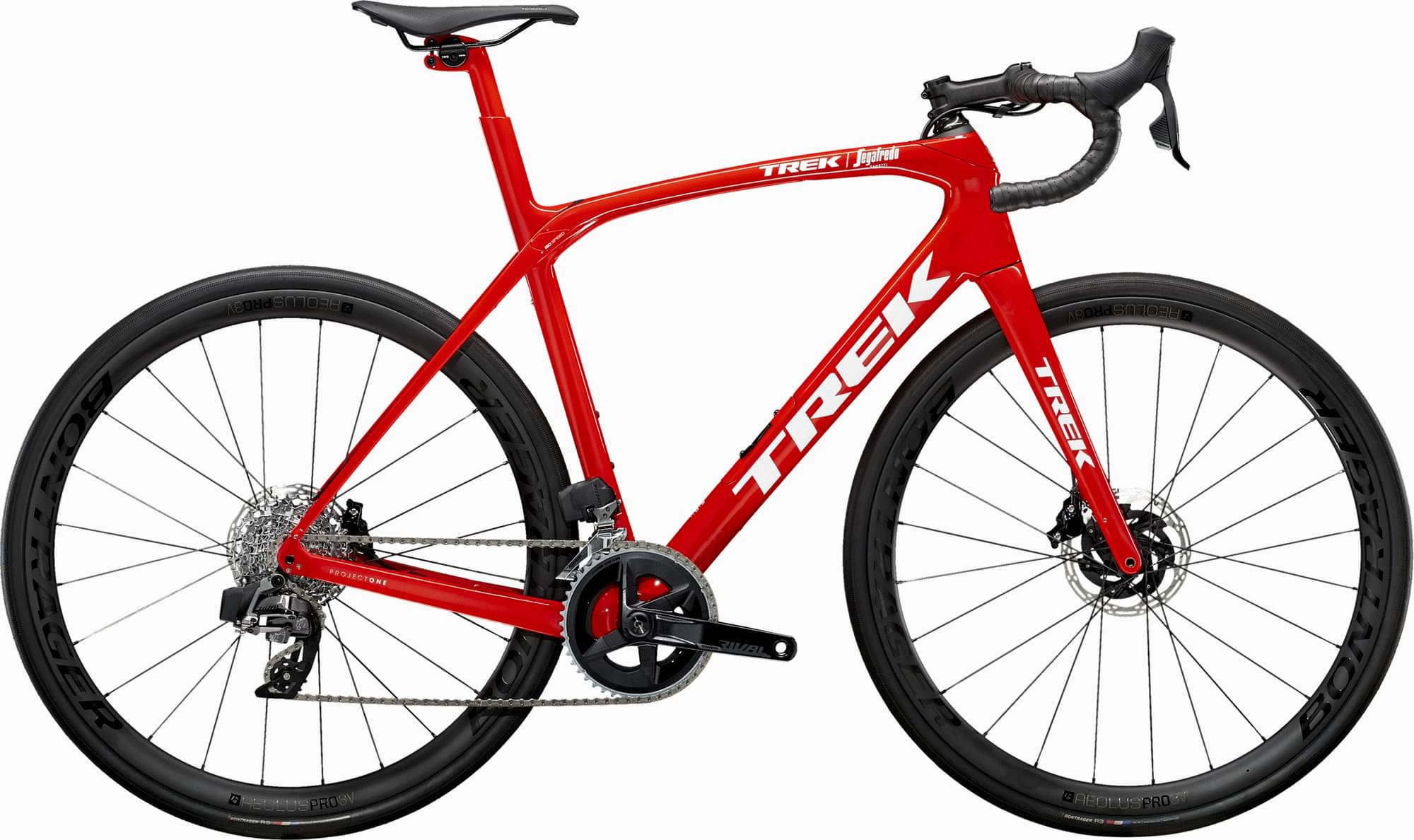

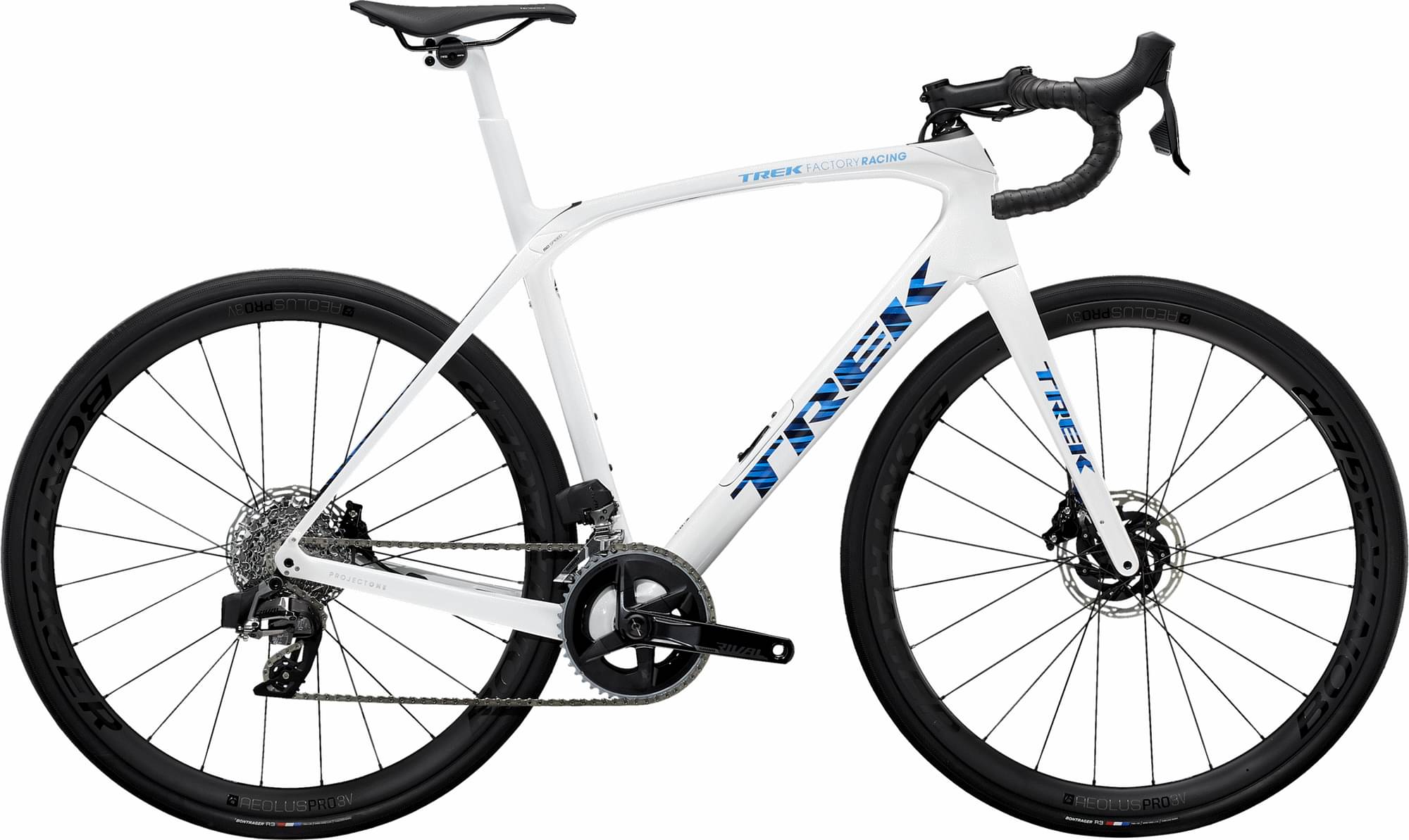

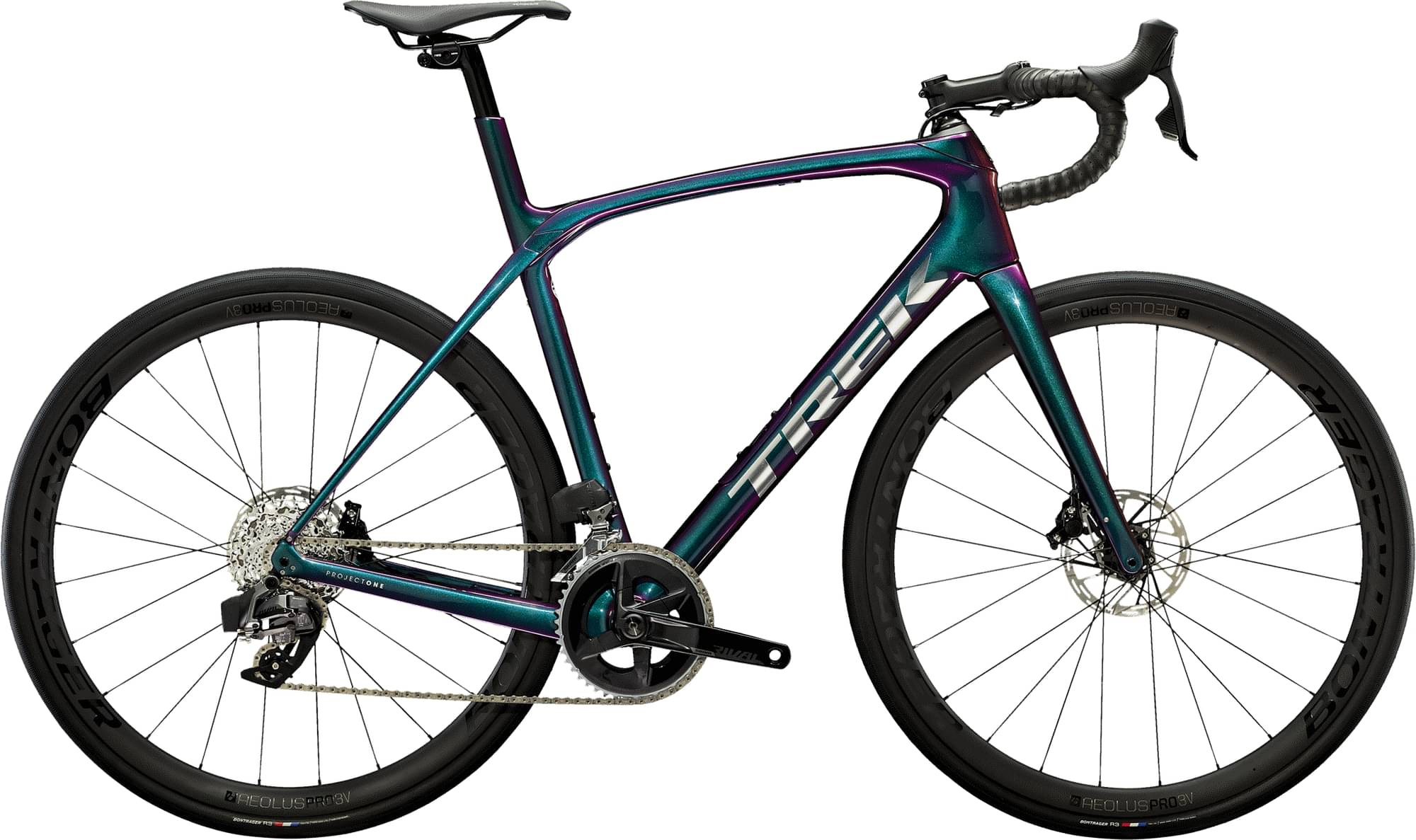

Trek Domane SLR 6 AXS Gen 3 2022
2022 Road
Estimate price |
8,372$
Weight | 8.85 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Rival AXS -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
47cm
152cm - 159cm
50cm
157cm - 164cm
52cm
162cm - 169cm
54cm
167cm - 175cm
56cm
173cm - 181cm
58cm
179cm - 186cm
60cm
184cm - 191cm
62cm
189cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
700 Series OCLV Carbon, front IsoSpeed, adjustable rear IsoSpeed, internal storage, tapered head tube, internal cable routing, 3S chain keeper, DuoTrap S-compatible, mudguard mounts, flat-mount disc, 142x12 mm thru axle
Suspension Fork
Size: 47, 50, 52, 54, 56, 58, 60, 62, Domane SLR carbon, tapered carbon steerer, internal brake routing, mudguard mounts, flat-mount disc, carbon dropouts, 12x100 mm thru axle; Size: 47, 50, 52, 54, 56, 58, 60, 62, Domane SLR carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, carbon dropouts, 12x100mm thru axle
Drivetrain
Rear Derailleur
SRAM Rival eTap AXS
Front Derailleur
SRAM Rival eTap AXS, braze-on
Shift Levers
SRAM Rival eTap AXS, 12-speed
Cassette
SRAM XG-1250, 10-36, 12 speed
Crank
Size: 47, SRAM Rival AXS w/ power meter, 46/33, DUB, 165 mm length; Size: 50, 52, SRAM Rival AXS w/ power meter, 46/33, DUB, 170 mm length; Size: 54, 56, SRAM Rival AXS w/ power meter, 46/33, DUB, 172.5 mm length; Size: 58, 60, 62, SRAM Rival AXS w/ power meter, 46/33, DUB, 175 mm length
Bottom Bracket
SRAM DUB, T47 threaded, internal bearing
Chain
SRAM Rival, 12-speed
Wheels
Rims
Front: Bontrager Aeolus Pro 3V, OCLV Carbon, Tubeless Ready, 25 mm rim width, 100 x 12 mm thru axle, Rear: Bontrager Aeolus Pro 3V, OCLV Carbon, Tubeless Ready, 25 mm rim width, 142x12 mm thru axle
Tires
Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 120 tpi, 700 x 32 c
Brakes
Brakes
SRAM Rival hydraulic disc
Cockpit
Stem
Size: 47, Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length; Size: 50, Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length; Size: 52, 54, Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length; Size: 56, 58, Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length; Size: 60, 62, Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 110 mm length
Handlebar
Size: 47, Bontrager Pro IsoCore VR-SF, 38cm; Size: 50, 52, Bontrager Pro IsoCore VR-SF, 40cm; Size: 54, 56, Bontrager Pro IsoCore VR-SF, 42cm; Size: 58, 60, 62, Bontrager Pro IsoCore VR-SF, 44cm
Seat
Saddle
Size: 47, 50, 52, Bontrager Verse Elite, austenite rails, 155 mm width; Size: 54, 56, 58, 60, 62, Bontrager Verse Elite, austenite rails, 145 mm width
Seatpost
Size: 47, 50, 52, 54, 56, Bontrager carbon internal seat mast cap, integrated light mount, 20 mm offset, short length; Size: 58, 60, 62, Bontrager carbon internal seat mast cap, integrated light mount, 20 mm offset, tall length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm | 62cm |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.48 mm | 1.51 mm | 1.53 mm | 1.56 mm | 1.6 mm | 1.65 mm | 1.69 mm |
| Bottom Bracket Height | 256 mm | 256 mm | 256 mm | 256 mm | 258 mm | 258 mm | 261 mm | 261 mm |
| Front Center | 579 mm | 589 mm | 596 mm | 603 mm | 600 mm | 609 mm | 618 mm | 628 mm |
| Rake | 53 mm | 53 mm | 54 mm | 53 mm | 48 mm | 49 mm | 48 mm | 48 mm |
| Trail | 61 mm | 60 mm | 59 mm | 59 mm | 61 mm | 60 mm | 59 mm | 59 mm |
| Stack | 530 mm | 549 mm | 564 mm | 578 mm | 594 mm | 614 mm | 635 mm | 659 mm |
| Reach | 367 mm | 371 mm | 374 mm | 377 mm | 380 mm | 383 mm | 386 mm | 389 mm |
| Top Tube Length | 512 mm | 522 mm | 533 mm | 545 mm | 557 mm | 570 mm | 582 mm | 596 mm |
| Seat Tube Angle | 74.6 ° | 74.6 ° | 74.2 ° | 73.7 ° | 73.3 ° | 73 ° | 72.8 ° | 72.5 ° |
| Seat Tube Length | 420 mm | 450 mm | 475 mm | 500 mm | 525 mm | 548 mm | 567 mm | 586 mm |
| Head Tube Angle | 71 ° | 71.1 ° | 71.3 ° | 71.3 ° | 71.9 ° | 72 ° | 72.1 ° | 72.1 ° |
| Head Tube Length | 110 mm | 130 mm | 145 mm | 160 mm | 175 mm | 195 mm | 220 mm | 245 mm |
| Chainstay Length | 423 mm | 423 mm | 423 mm | 423 mm | 423 mm | 428 mm | 428 mm | 428 mm |
| Wheelbase | 989 mm | 999 mm | 1006 mm | 1013 mm | 1011 mm | 1025 mm | 1035 mm | 1045 mm |
| Bottom Bracket Drop | 80 mm | 80 mm | 80 mm | 80 mm | 78 mm | 78 mm | 75 mm | 75 mm |
| Standover Height | 689 mm | 719 mm | 738 mm | 757 mm | 779 mm | 799 mm | 820 mm | 838 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 152 cm | 157 cm | 162 cm | 167 cm | 173 cm | 179 cm | 184 cm | 189 cm |
| Rider Max Height | 159 cm | 164 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm | 195 cm |
About this model
Domane SLR 6 AXS Gen 3 is part of the Trek Domane model. Trek released 316 bikes variations of this model so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
Trek Domane AL 2 2022 is the cheapest bike model and costs 999$. Trek Domane SLR 9 2022 is the most expensive one and costs 12847$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Endurance bikes average price
If you want an acceptable Endurance bike you should know that the average price is 2346$. However, even if your budget is less than the average, you might still be able to get a top-quality Endurance bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
This bike was released in 2022 and its price was 7750$. In conclusion, this bike price is 230.35% more expensive than the price of the average Endurance bike.
Endurance bikes average weight
Endurance bikes have an average weight of 8.2 kg (18.08 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Domane SLR 6 AXS Gen 3 weighs 8.85 kg (19.51 lbs) and is a bit heavier than the average. In short, the average Endurance bike weight is 7.93% lower than this one.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Domane SLR 6 AXS Gen 3 components
Fork material
When it comes to the fork, this bike has a carbon one, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
The Domane SLR 6 AXS Gen 3 2022 bike is equipped with 700c carbon wheels when leaving the factory. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Trek Domane SLR 6 AXS Gen 3 is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
Domane SLR 6 AXS Gen 3 comes in 8 sizes, that range from 152 cm – 195 cm (4.99 ft – 6.4 ft). In conclusion, you won’t have a problem finding one that suits you.
