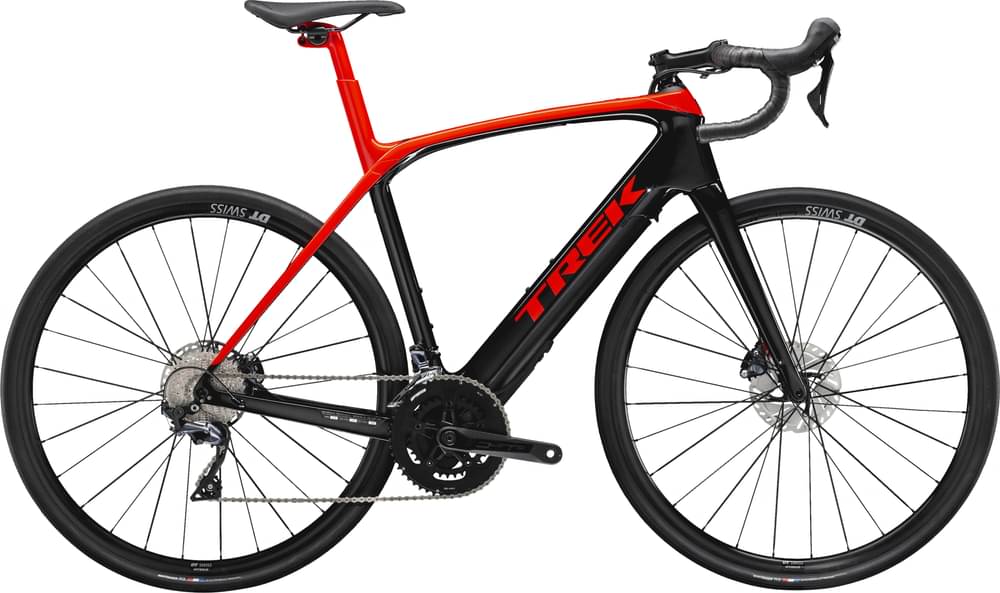

Trek Domane+ LT 2021
2021 E-bike
Estimate price |
5,999$
Weight | 14.7 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra, FSA -
Suspension Rigid -
Motor Fazua 250W 60Nm mid-drive -
Battery Size: 50, 52, 54, 56, 58, 60, 62, Fazua Evation Drive Pack, 20mph max assist; Size: 50, 52, 54, 56, 58, 60, 62, Fazua Evation, 250Wh; Size: 50, 52, 54, 56, 58, 60, 62, Fazua Evation charger, 90-120V; Size: 50, 52, 54, 56, 58, 60, 62, Fazua Evation touch remote -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
50cm
158cm - 164cm
52cm
162cm - 169cm
54cm
167cm - 175cm
56cm
173cm - 181cm
58cm
179cm - 186cm
60cm
184cm - 191cm
62cm
189cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
500 Series OCLV Carbon, Fazua Evation integrated drive system, tapered head tube, rear IsoSpeed, internal routing, flat mount disc, fender mounts, 148x12mm thru axle
Suspension Fork
Domane SL carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle
Drivetrain
Rear Derailleur
Shimano Ultegra R8000, long cage, 34T max cog
Front Derailleur
Shimano Ultegra R8000, braze-on
Shift Levers
Shimano Ultegra R8020, 11-speed
Cassette
Shimano Ultegra HG800-11, 11-34, 11 speed
Crank
Size: 50, 52, FSA Alloy for Fazua, 50/34 chainrings, 170mm length; Size: 54, 56, FSA Alloy for Fazua, 50/34 chainrings, 172.5mm length; Size: 58, 60, 62, FSA Alloy for Fazua, 50/34 chainrings, 175mm length
Chain
Shimano Ultegra HG701, 11-speed
Wheels
Rims
DT Swiss G1800, tubeless compatible, 100x12mm thru axle
Tires
Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 120 tpi, 700x32c
Brakes
Brakes
Shimano Ultegra hydraulic disc, flat mount
Disk Rotors
Size: 50, 52, 54, 56, 58, 60, 62, Shimano MT800, centerlock, 160mm; Size: 50, 52, 54, 56, 58, 60, 62, Shimano EM810, centerlock 160mm
Cockpit
Stem
Size: 50, Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 80mm length; Size: 52, 54, Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 90mm length; Size: 56, 58, Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 100mm length; Size: 60, 62, Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 110mm length
Handlebar
Size: 50, 52, Bontrager Elite IsoZone VR-CF, alloy, 31.8mm, internal Di2 routing, 93mm reach, 123mm drop, 40cm width; Size: 54, 56, Bontrager Elite IsoZone VR-CF, alloy, 31.8mm, internal Di2 routing, 93mm reach, 123mm drop, 42cm width; Size: 58, 60, 62, Bontrager Elite IsoZone VR-CF, alloy, 31.8mm, internal Di2 routing, 93mm reach, 123mm drop, 44cm width
Seat
Saddle
Size: 50, 52, 54, 56, 58, 60, 62, Bontrager Arvada Comp, steel rails, 138mm width; Size: 50, 52, 54, 56, 58, 60, 62, Bontrager Arvada Elite, stainless steel rails, 138mm width
Seatpost
Size: 50, 52, 54, 56, Bontrager carbon internal seatmast cap, integrated light mount, 20mm offset, short length; Size: 58, 60, 62, Bontrager carbon internal seatmast cap, integrated light mount, 20mm offset, tall length
Motor & Battery
Motor
Size: 50, 52, 54, 56, 58, 60, 62, Fazua Evation Drive Pack, 20mph max assist; Size: 50, 52, 54, 56, 58, 60, 62, Fazua Evation, 250Wh; Size: 50, 52, 54, 56, 58, 60, 62, Fazua Evation charger, 90-120V; Size: 50, 52, 54, 56, 58, 60, 62, Fazua Evation touch remote
Battery
Size: 50, 52, 54, 56, 58, 60, 62, Fazua Evation Drive Pack, 20mph max assist; Size: 50, 52, 54, 56, 58, 60, 62, Fazua Evation, 250Wh; Size: 50, 52, 54, 56, 58, 60, 62, Fazua Evation charger, 90-120V; Size: 50, 52, 54, 56, 58, 60, 62, Fazua Evation touch remote
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm | 62cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.51 mm | 1.54 mm | 1.57 mm | 1.61 mm | 1.65 mm | 1.7 mm |
| Bottom Bracket Height | 256 mm | 256 mm | 256 mm | 258 mm | 258 mm | 261 mm | 261 mm |
| Front Center | 589 mm | 596 mm | 603 mm | 600 mm | 609 mm | 618 mm | 628 mm |
| Rake | 53 mm | 54 mm | 53 mm | 48 mm | 49 mm | 48 mm | 48 mm |
| Trail | 60 mm | 59 mm | 59 mm | 61 mm | 60 mm | 59 mm | 59 mm |
| Stack | 545 mm | 560 mm | 574 mm | 590 mm | 610 mm | 631 mm | 655 mm |
| Reach | 367 mm | 370 mm | 373 mm | 376 mm | 379 mm | 382 mm | 385 mm |
| Top Tube Length | 518 mm | 529 mm | 541 mm | 553 mm | 566 mm | 578 mm | 592 mm |
| Seat Tube Angle | 74.6 ° | 74.2 ° | 73.7 ° | 73.3 ° | 73 ° | 72.8 ° | 72.5 ° |
| Seat Tube Length | 450 mm | 475 mm | 500 mm | 525 mm | 548 mm | 567 mm | 586 mm |
| Head Tube Angle | 71.1 ° | 71.3 ° | 71.3 ° | 71.9 ° | 72 ° | 72.1 ° | 72.1 ° |
| Head Tube Length | 130 mm | 145 mm | 160 mm | 175 mm | 195 mm | 220 mm | 245 mm |
| Chainstay Length | 419 mm | 419 mm | 419 mm | 419 mm | 424 mm | 424 mm | 424 mm |
| Wheelbase | 995 mm | 1002 mm | 1009 mm | 1007 mm | 1021 mm | 1031 mm | 1041 mm |
| Bottom Bracket Drop | 80 mm | 80 mm | 80 mm | 78 mm | 78 mm | 75 mm | 75 mm |
| Standover Height | 715 mm | 734 mm | 753 mm | 775 mm | 795 mm | 816 mm | 834 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 162 cm | 167 cm | 173 cm | 179 cm | 184 cm | 189 cm |
| Rider Max Height | 164 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm | 195 cm |
About this model
Domane+ LT belongs to the Trek E Domane model. 42 e-bikes variations carry this model name so far. You can easily view all of the Trek E Domane e-bikes models from 2021, here.
Model range prices
The most economical model, the Trek Domane+ ALR 2021 has a starting price of 4599$. Trek Domane+ LT 9 2021 on the other hand is the most expensive at 12499$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Endurance e-bikes average price
Our math shows that the average cost of a dependable Endurance e-bike is 3800$. However, you could also get a good Endurance e-bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2021 for 5999$. Comparing this to the average Endurance e-bike price, we see that the price is 57.87% higher.
Average weight for Endurance e-bikes
The average weight for Endurance e-bikes is 13.52 kg (29.81 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Weighing 14.7 kg (32.41 lbs), the Domane+ LT model is a bit heavier than average. In conclusion, the average Endurance e-bike weighs 8.73% less than Domane+ LT.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Domane+ LT components
Fork material
Domane+ LT has a carbon fork, so, it’s a great addition to the e-bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
When it comes to wheels, the Domane+ LT e-bike is equipped with the 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The Domane+ LT has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
This e-bike is available in 7 sizes. They vary from 158 cm – 195 cm (5.18 ft – 6.4 ft). In conclusion, you won’t have a problem finding one that suits you.
