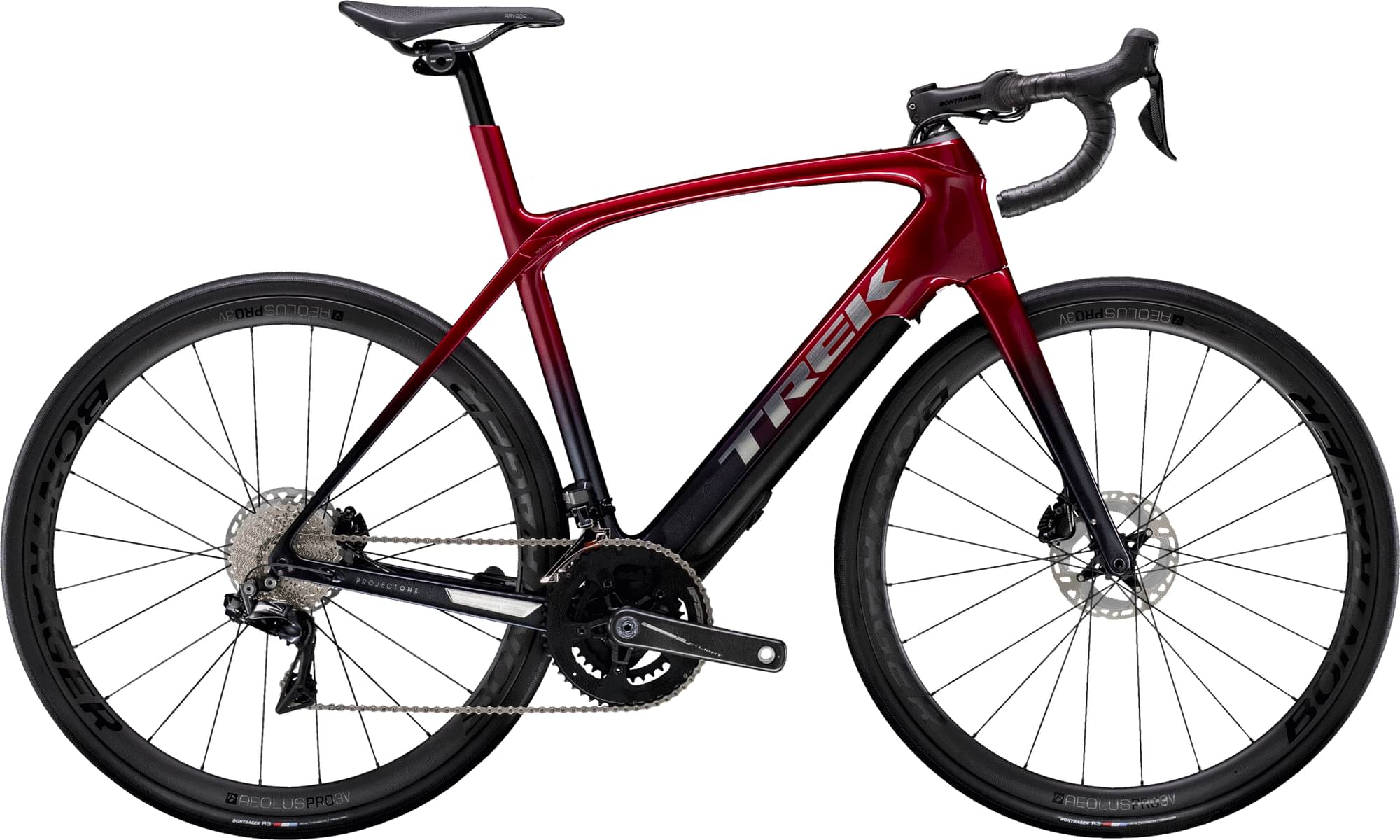

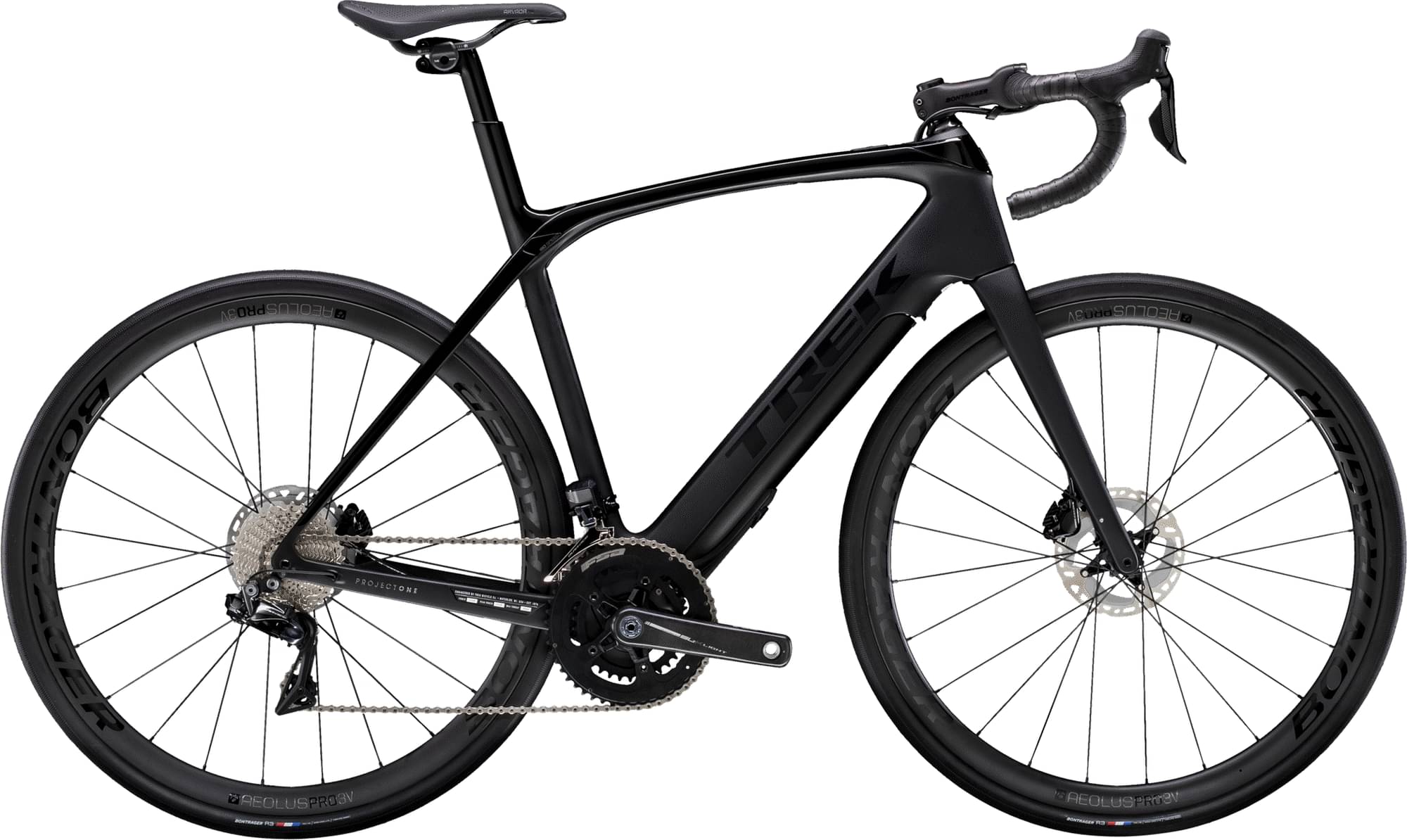

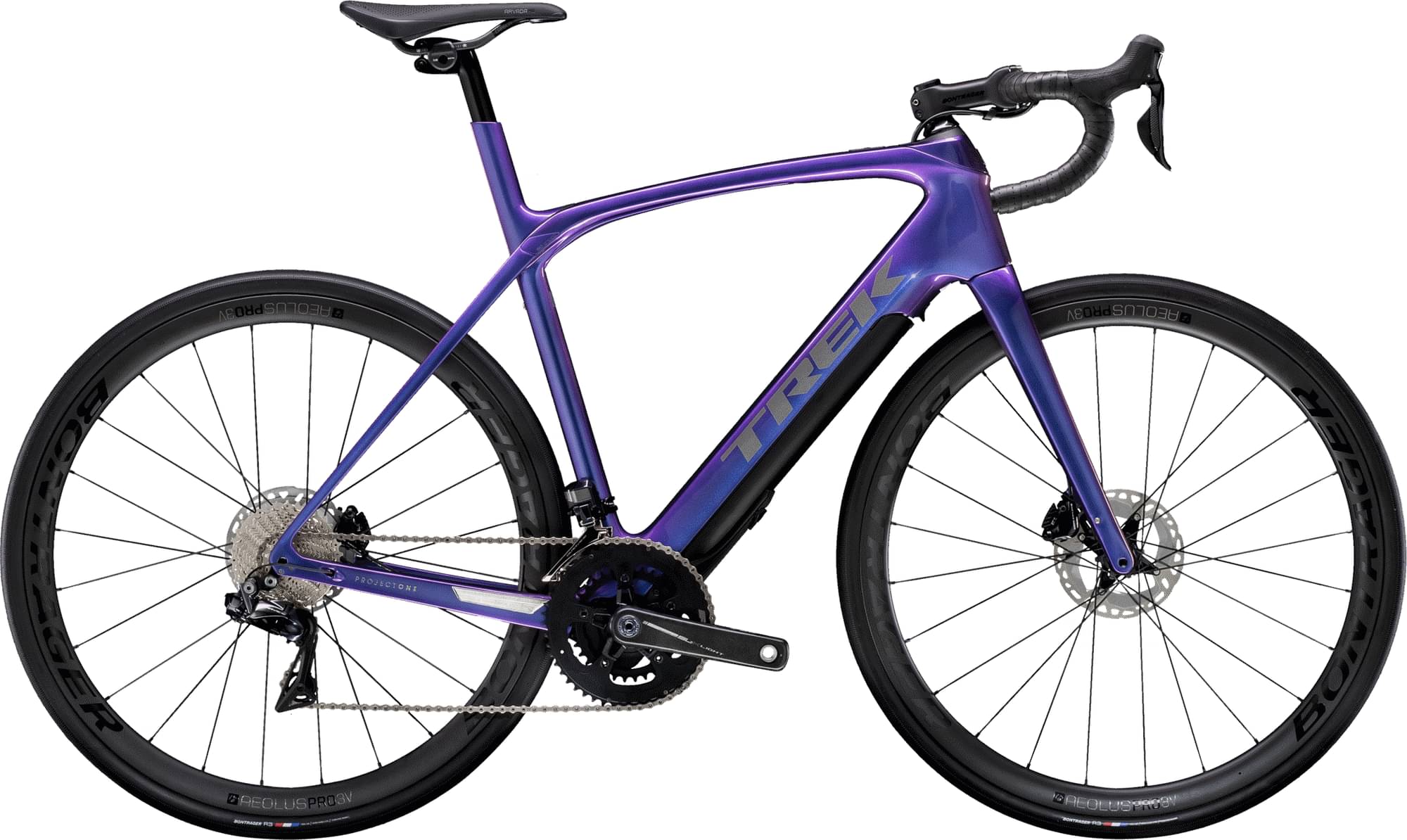

Trek Domane+ LT 9 Gen 1 2021
2021 E-bike
Estimate price |
12,615$
Weight | 13.6 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Dura-Ace Di2, FSA -
Suspension Rigid -
Motor Fazua 250W 60Nm mid-drive -
Battery Fazua Evation battery, 250 Wh -
Drivetrain 2 × 11 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
50cm
158cm - 164cm
52cm
162cm - 169cm
54cm
167cm - 175cm
56cm
173cm - 181cm
58cm
179cm - 186cm
60cm
184cm - 191cm
62cm
189cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
500 Series OCLV Carbon, Fazua Evation integrated drive system, tapered head tube, rear IsoSpeed, internal routing, flat-mount disc, mudguard mounts, 148x12 mm thru axle
Suspension Fork
Domane SL carbon, tapered carbon steerer, internal brake routing, mudguard mounts, flat-mount disc, 12x100 mm thru axle
Drivetrain
Rear Derailleur
Shimano Dura-Ace Di2 R9150, short cage, 30T max cog
Front Derailleur
Shimano Dura-Ace Di2 R9150, braze-on
Shift Levers
Shimano Dura-Ace Di2 R9170, 11 speed
Cassette
Shimano Dura-Ace R9100, 11-30, 11 speed
Crank
Size: 50, 52, FSA Carbon for Fazua, 50/34, 170 mm length; Size: 54, 56, FSA Carbon for Fazua, 50/34, 172.5 mm length; Size: 58, 60, 62, FSA Carbon for Fazua, 50/34, 175 mm length
Chain
Shimano Dura-Ace HG900, 11 speed
Wheels
Rims
Bontrager Aeolus Pro 3V, OCLV Carbon, Tubeless-Ready, 25 mm rim width
Tires
Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 120 tpi, 700 x 32 c
Brakes
Brakes
Shimano Dura-Ace hydraulic disc
Cockpit
Stem
Size: 50, Bontrager XXX, 31.8 mm, Blendr compatible, 7-degree, 80 mm length; Size: 52, 54, Bontrager XXX, 31.8 mm, Blendr compatible, 7-degree, 90 mm length; Size: 56, 58, Bontrager XXX, 31.8 mm, Blendr compatible, 7-degree, 100 mm length; Size: 60, 62, Bontrager XXX, 31.8 mm, Blendr compatible, 7-degree, 110 mm length
Handlebar
Size: 50, 52, Bontrager Pro IsoCore VR-CF, OCLV Carbon, 31.8 mm, internal Di2 routing, 93 mm reach, 123 mm drop, 40 cm width; Size: 54, 56, Bontrager Pro IsoCore VR-CF, OCLV Carbon, 31.8 mm, internal Di2 routing, 93 mm reach, 123 mm drop, 42 cm width; Size: 58, 60, 62, Bontrager Pro IsoCore VR-CF, OCLV Carbon, 31.8 mm, internal Di2 routing, 93 mm reach, 123 mm drop, 44 cm width
Seat
Saddle
Bontrager Arvada Pro, carbon rails, 138 mm width
Seatpost
Size: 50, 52, 54, 56, Bontrager carbon internal seat mast cap, integrated light mount, 20 mm offset, short length; Size: 58, 60, 62, Bontrager carbon internal seat mast cap, integrated light mount, 20 mm offset, tall length
Motor & Battery
Motor
Fazua Evation battery, 250 Wh
Battery
Fazua Evation battery, 250 Wh
Charger
Size: 50, 52, 54, 56, 58, 60, 62, Battery charger included; Size: 50, 52, 54, 56, 58, 60, 62, Fazua Evation charger, 220-240V
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm | 62cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.51 mm | 1.54 mm | 1.57 mm | 1.61 mm | 1.65 mm | 1.7 mm |
| Bottom Bracket Height | 256 mm | 256 mm | 256 mm | 258 mm | 258 mm | 261 mm | 261 mm |
| Front Center | 589 mm | 596 mm | 603 mm | 600 mm | 609 mm | 618 mm | 628 mm |
| Rake | 53 mm | 54 mm | 53 mm | 48 mm | 49 mm | 48 mm | 48 mm |
| Trail | 60 mm | 59 mm | 59 mm | 61 mm | 60 mm | 59 mm | 59 mm |
| Stack | 545 mm | 560 mm | 574 mm | 590 mm | 610 mm | 631 mm | 655 mm |
| Reach | 367 mm | 370 mm | 373 mm | 376 mm | 379 mm | 382 mm | 385 mm |
| Top Tube Length | 518 mm | 529 mm | 541 mm | 553 mm | 566 mm | 578 mm | 592 mm |
| Seat Tube Angle | 74.6 ° | 74.2 ° | 73.7 ° | 73.3 ° | 73 ° | 72.8 ° | 72.5 ° |
| Seat Tube Length | 450 mm | 475 mm | 500 mm | 525 mm | 548 mm | 567 mm | 586 mm |
| Head Tube Angle | 71.1 ° | 71.3 ° | 71.3 ° | 71.9 ° | 72 ° | 72.1 ° | 72.1 ° |
| Head Tube Length | 130 mm | 145 mm | 160 mm | 175 mm | 195 mm | 220 mm | 245 mm |
| Chainstay Length | 419 mm | 419 mm | 419 mm | 419 mm | 424 mm | 424 mm | 424 mm |
| Wheelbase | 995 mm | 1002 mm | 1009 mm | 1007 mm | 1021 mm | 1031 mm | 1041 mm |
| Bottom Bracket Drop | 80 mm | 80 mm | 80 mm | 78 mm | 78 mm | 75 mm | 75 mm |
| Standover Height | 715 mm | 734 mm | 753 mm | 775 mm | 795 mm | 816 mm | 834 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 162 cm | 167 cm | 173 cm | 179 cm | 184 cm | 189 cm |
| Rider Max Height | 164 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm | 195 cm |
About this model
Domane+ LT 9 Gen 1 is part of the Trek E Domane model. Trek released 42 e-bikes variations of this model so far. You can easily view all of the Trek E Domane e-bikes models from 2021, here.
Model range prices
Trek Domane+ ALR 2021 is the most affordable e-bike of this model and has a price of 4599$. On the other hand, Trek Domane+ LT 9 2021, is the most expensive and costs 12499$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Endurance e-bikes average price
According to our calculations, the average cost of an Endurance e-bike that is reliable is 3800$. However, you could also get a good Endurance e-bike even if you pay a lower amount than the average price. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 11679$. Comparing this to the average Endurance e-bike price, we see that the price is 207.34% more expensive.
Average weight for Endurance e-bikes
Endurance e-bikes have an average weight of 13.52 kg (29.81 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Trek Domane+ LT 9 Gen 1 it’s weighing 13.6 kg (29.98 lbs). At this weight, is slightly heavier than average. In other words, this model is 0.59% heavier than the average Endurance e-bike.
Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork material
When it comes to the fork, this e-bike has a carbon one, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
The wheels on Domane+ LT 9 Gen 1 are the 700c carbon type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
Trek Domane+ LT 9 Gen 1 e-bike has 7 sizes, in the range of 158 cm – 195 cm (5.18 ft – 6.4 ft). In short, you can easily find one that suits you.
