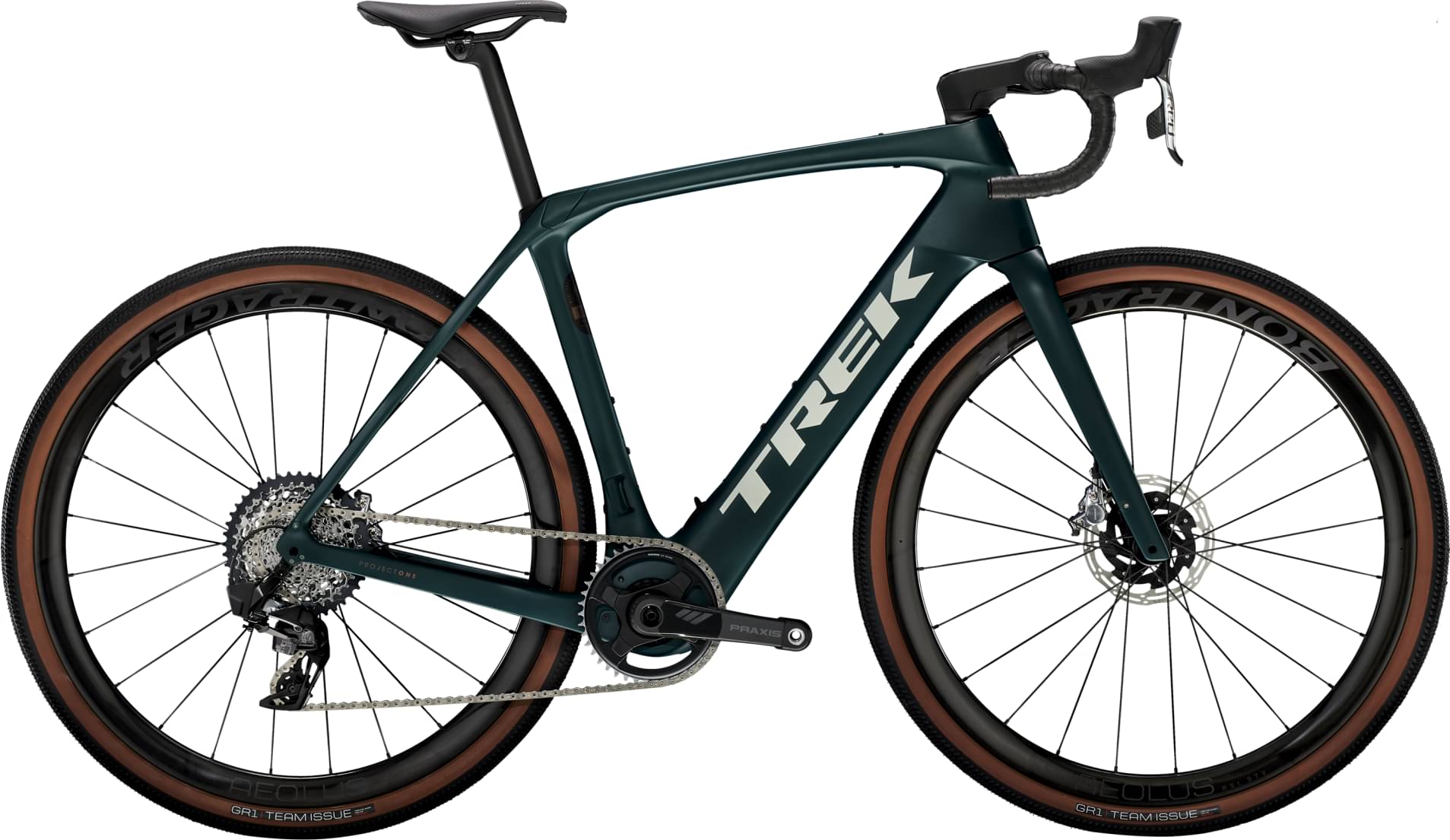

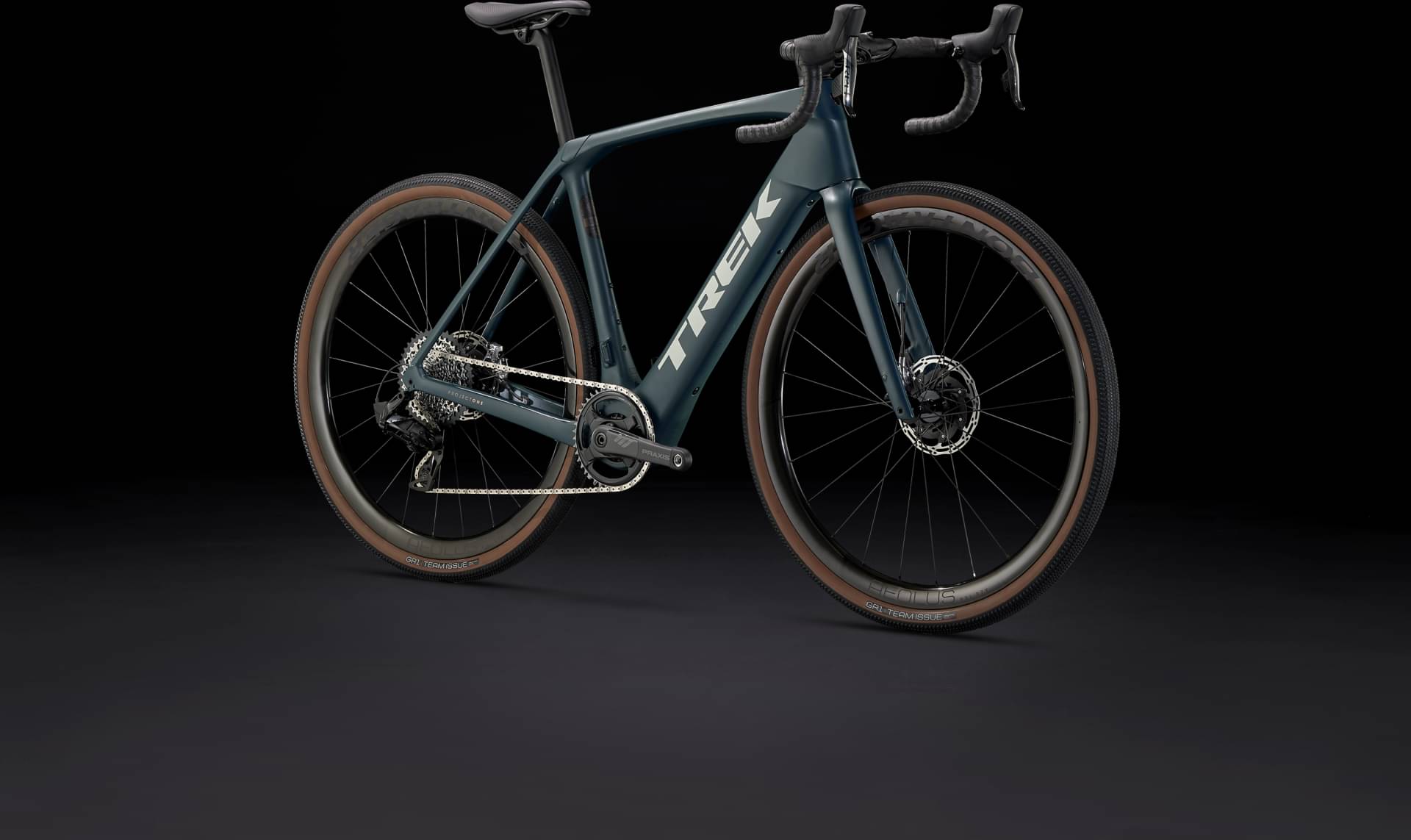

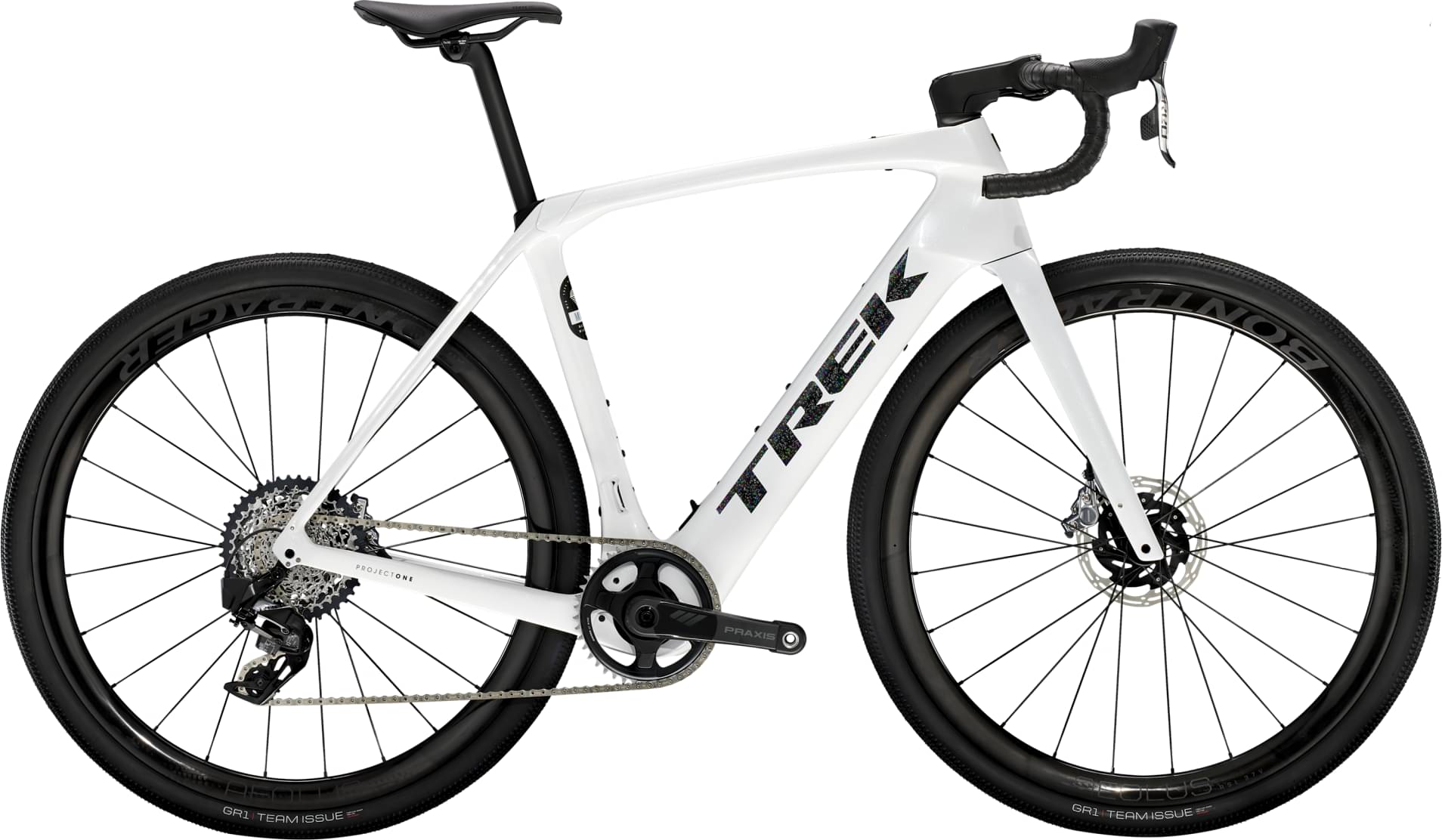

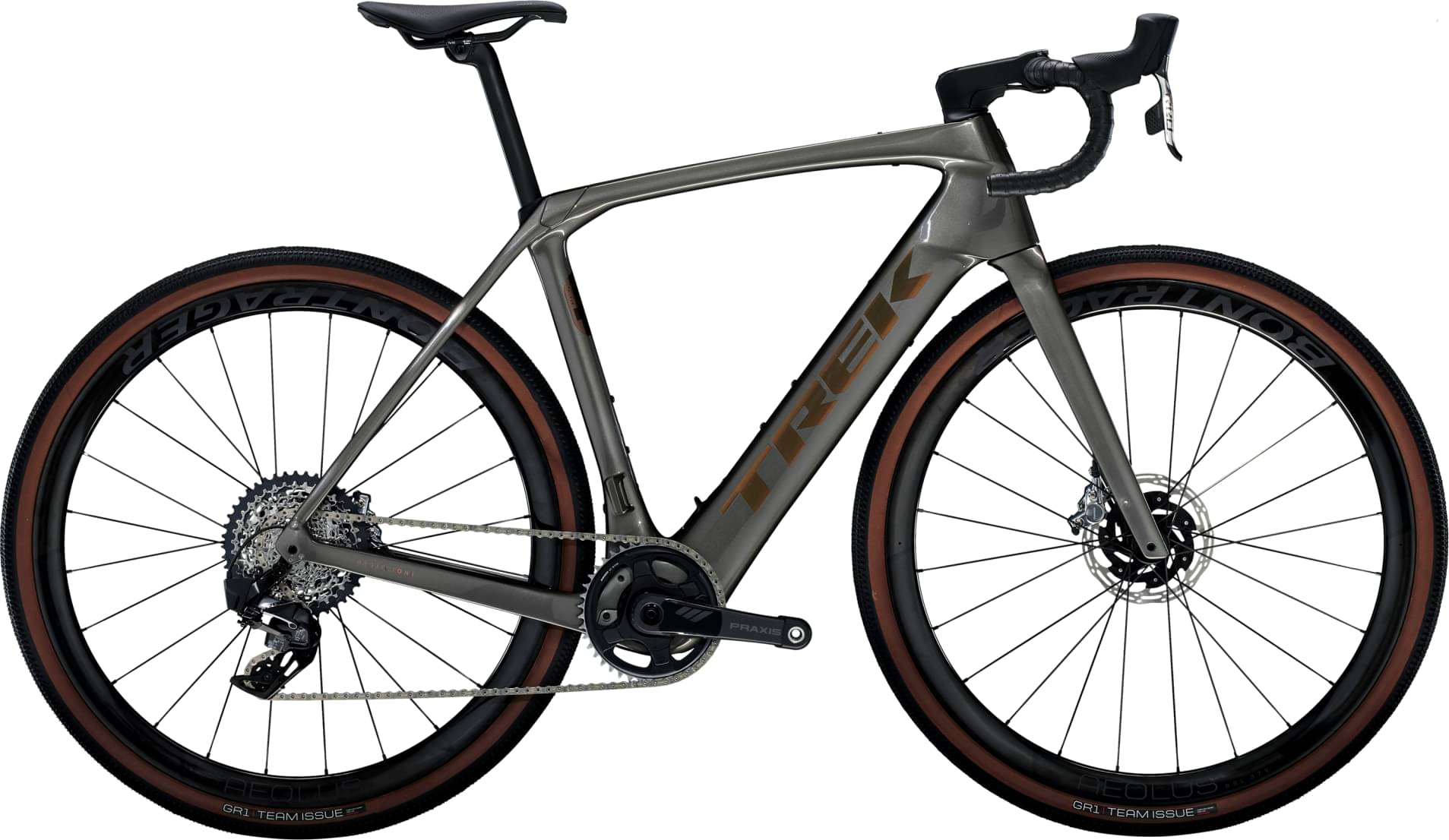

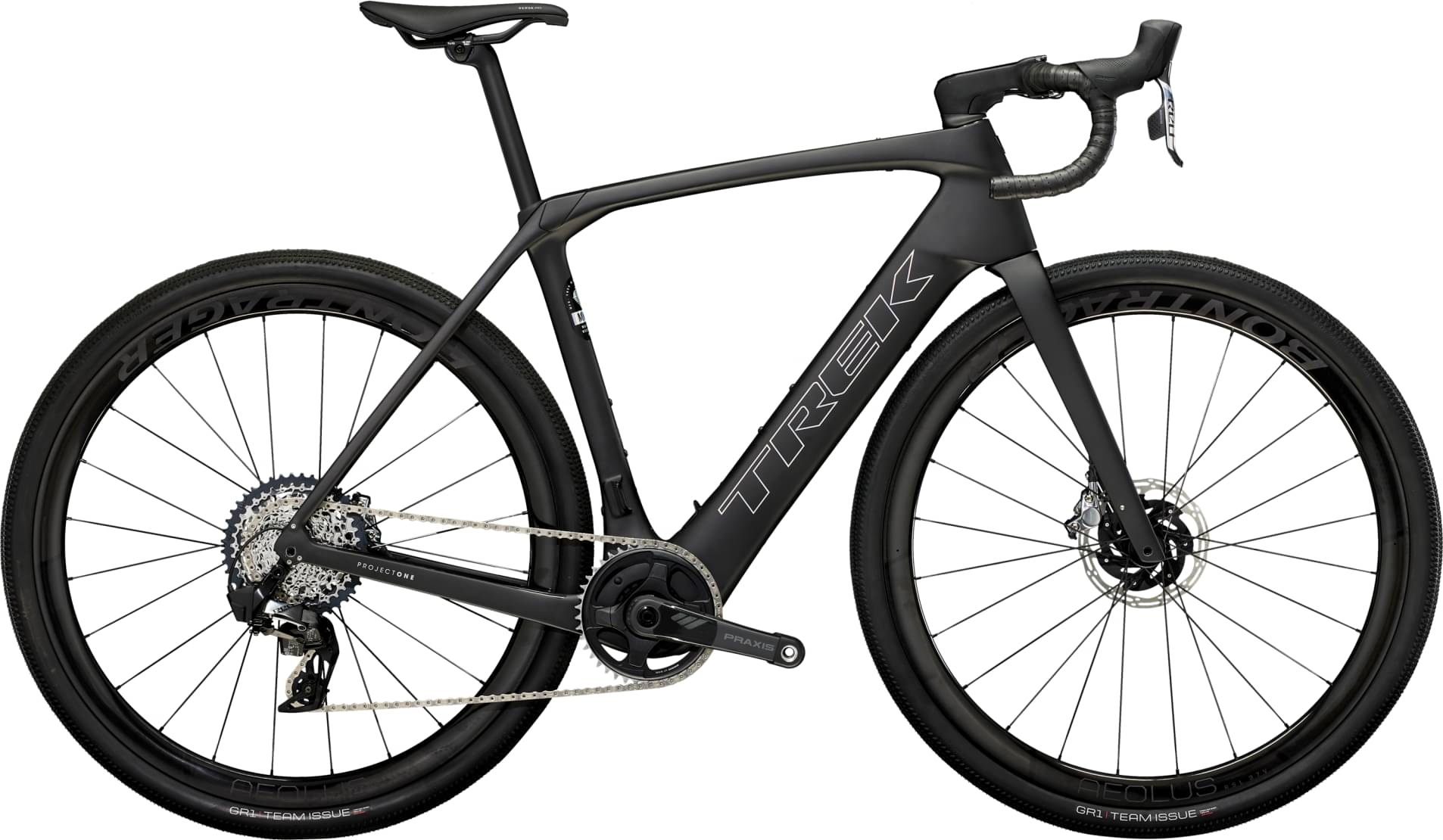

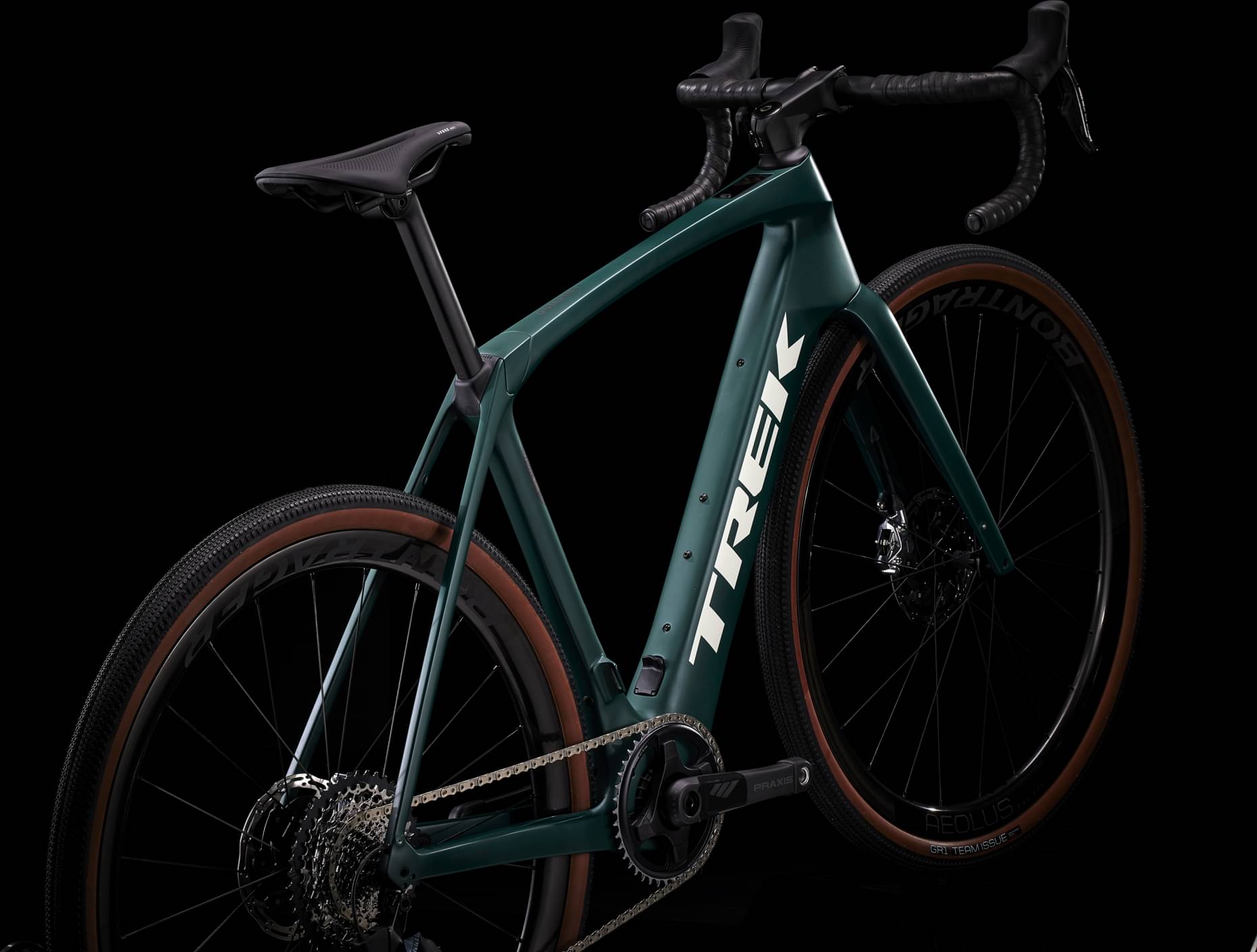

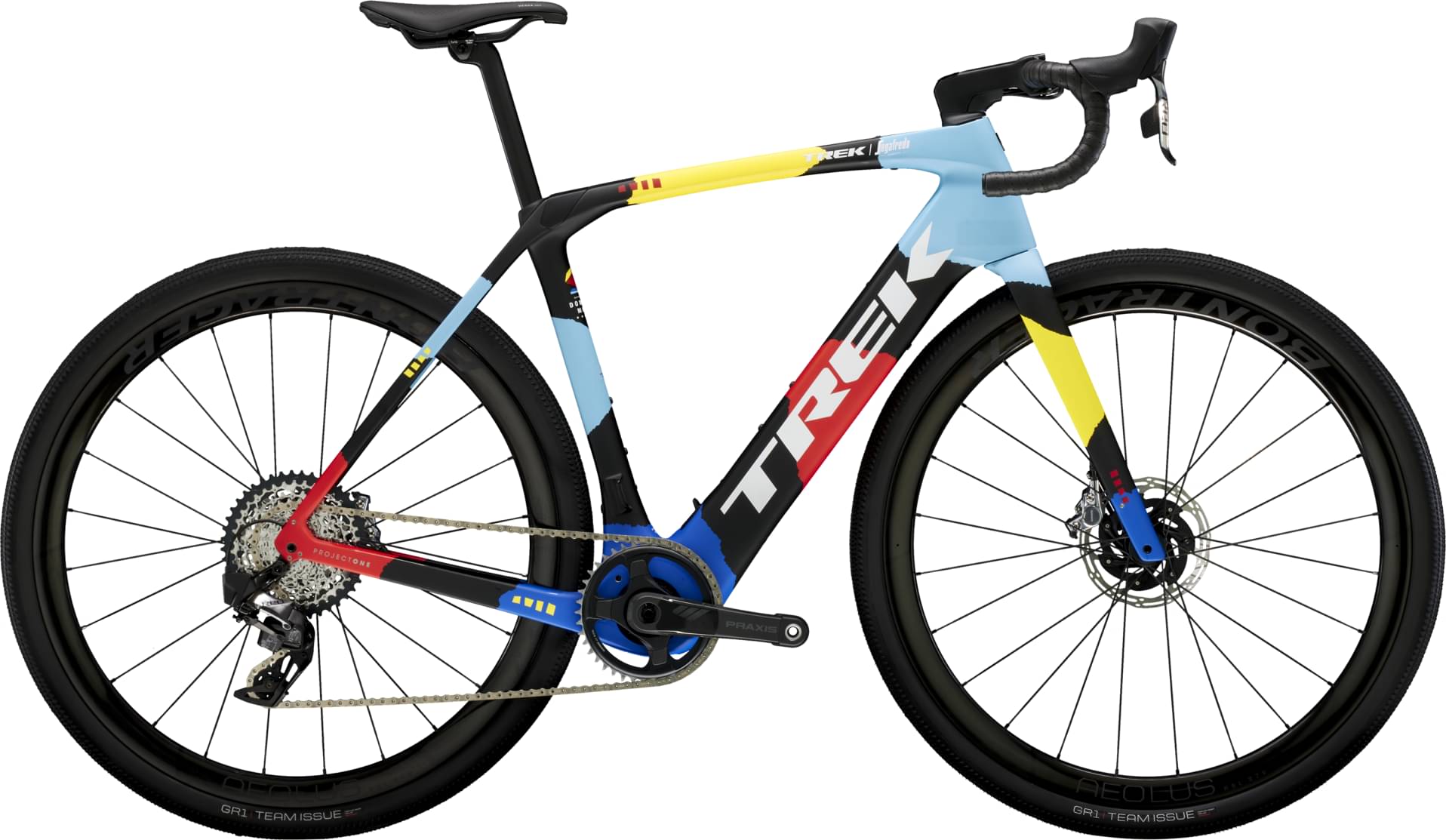

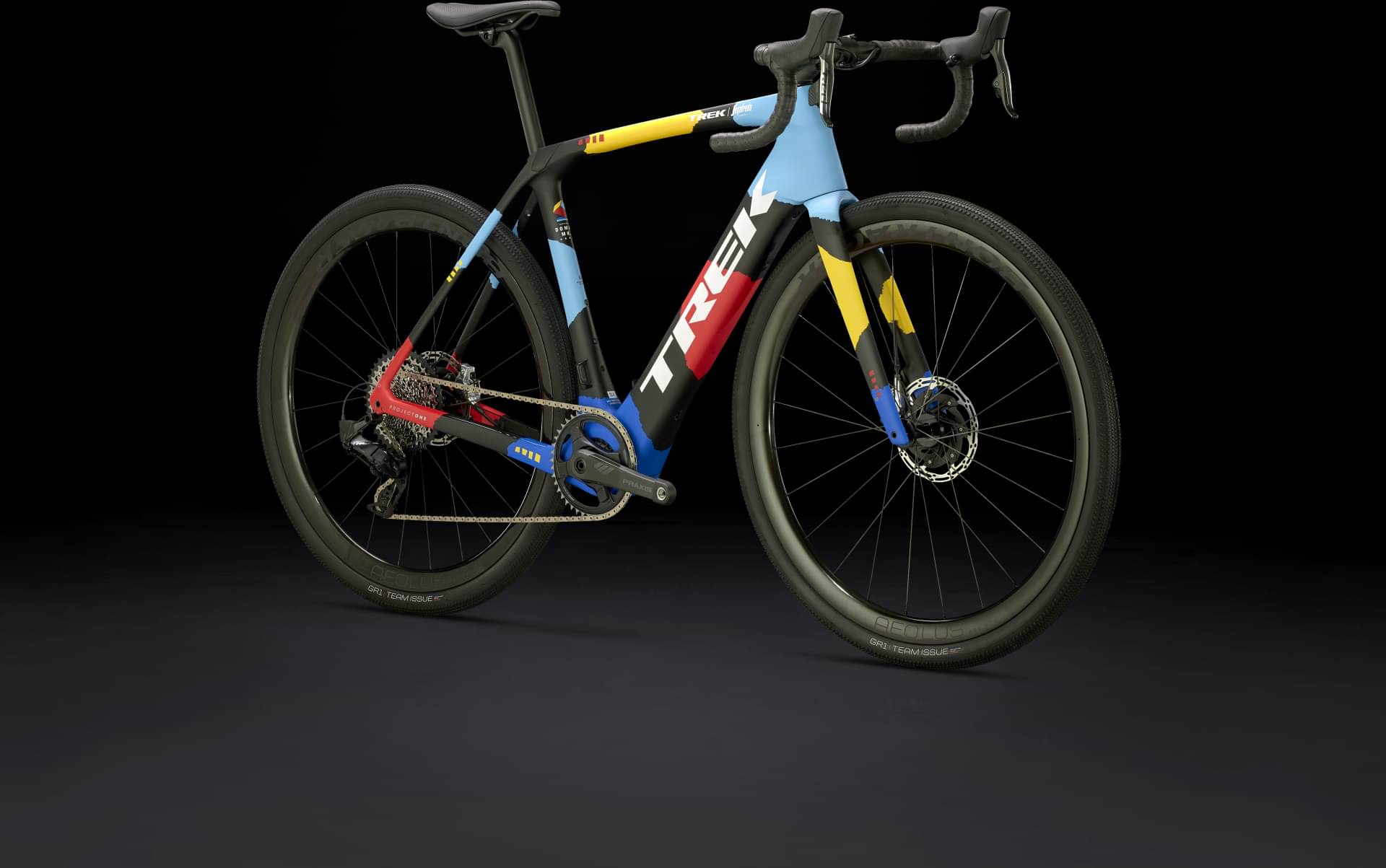

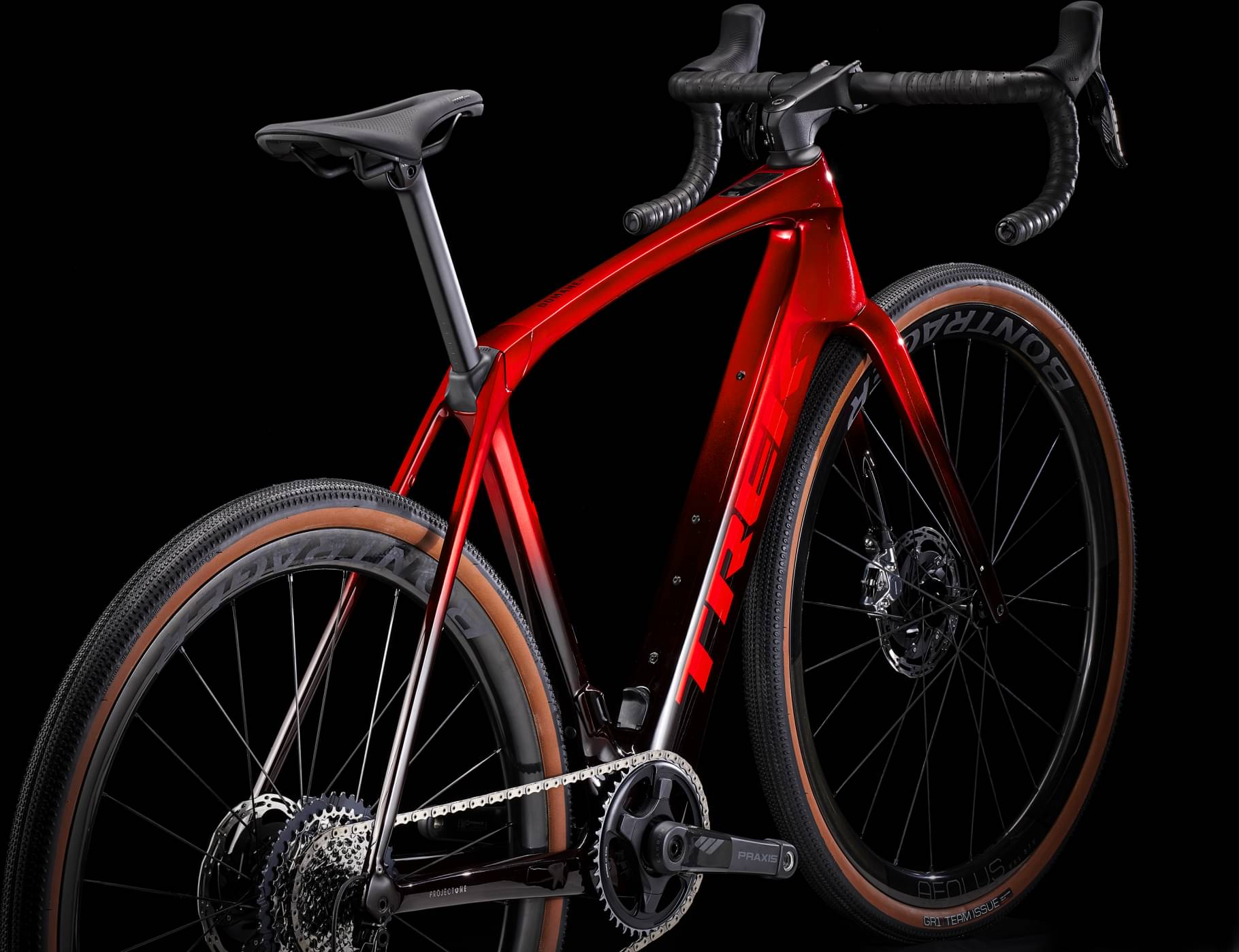

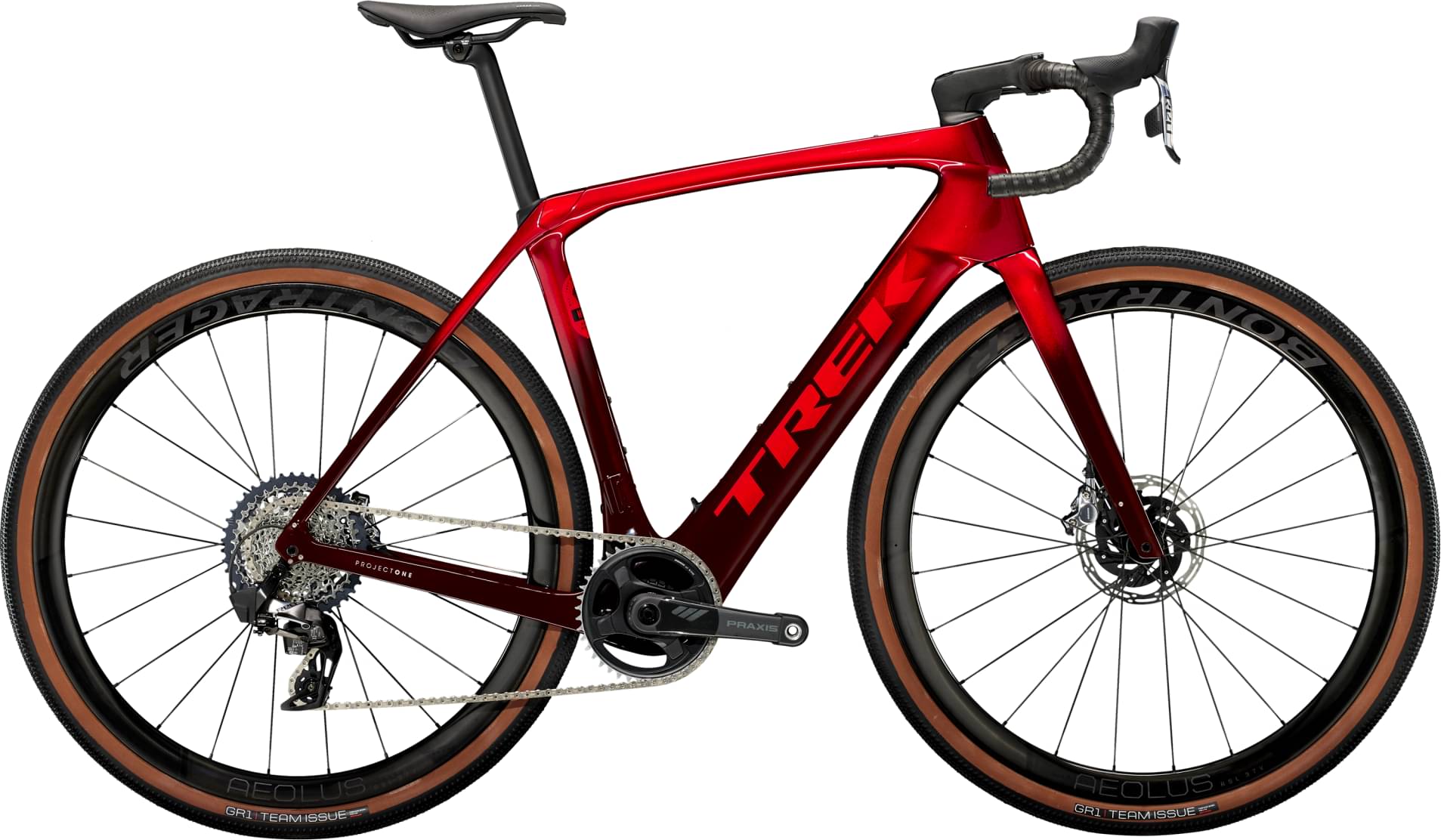

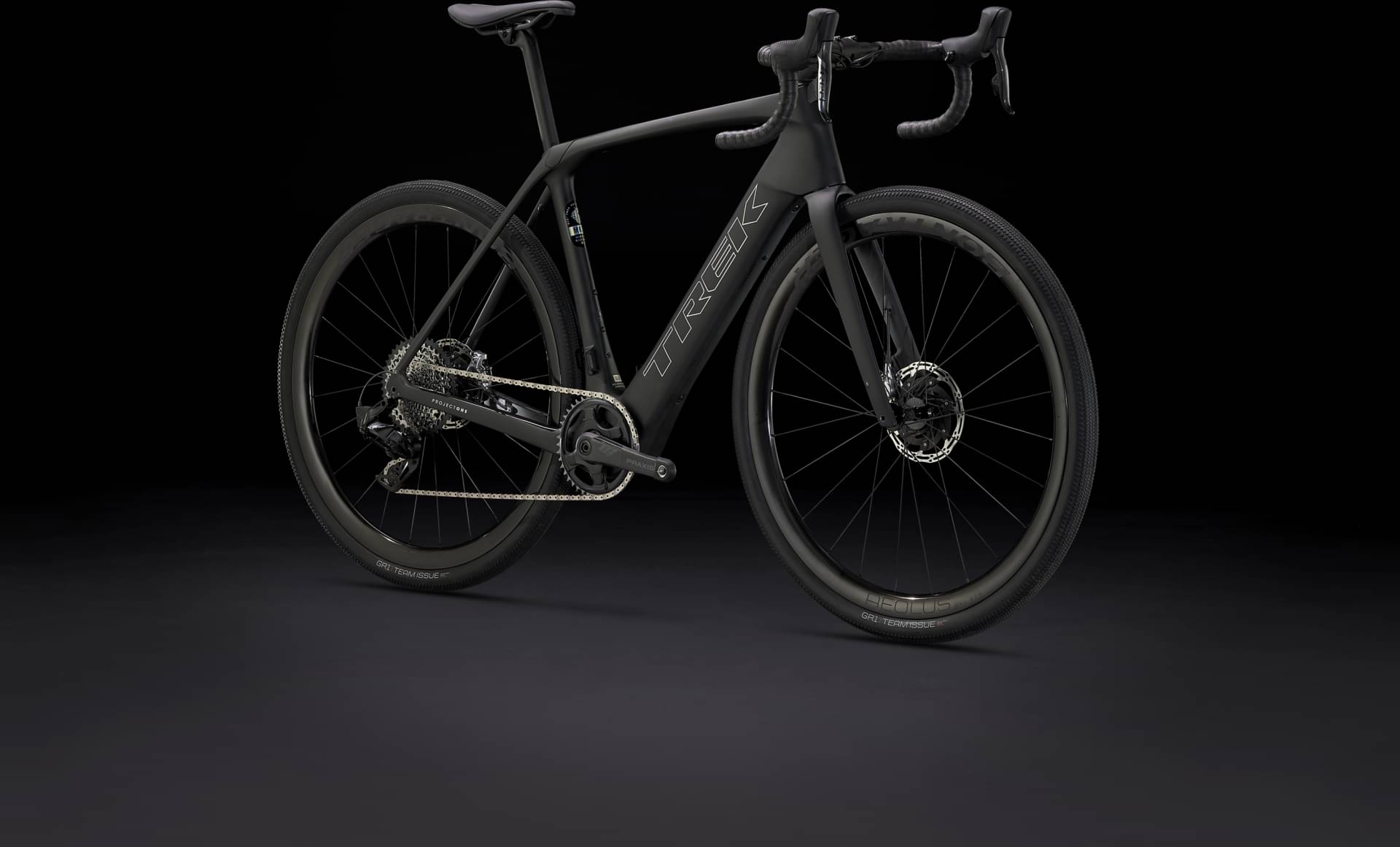

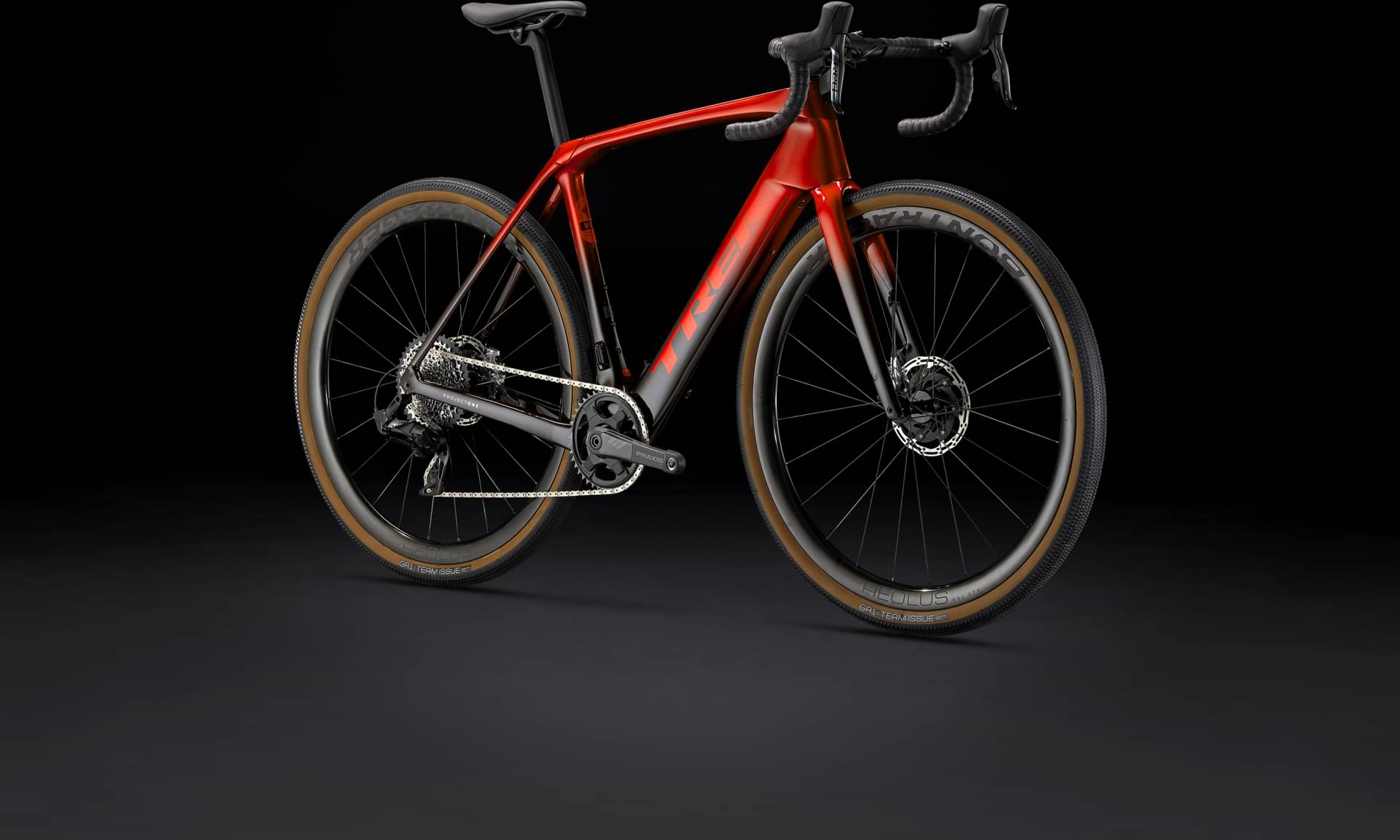

Trek Domane+ SLR 9 AXS 2024
2024 E-bike
Estimate price |
12,999$
Weight | 12.15 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset RED XPLR eTap, RED AXS -
Suspension Rigid -
Motor TQ 250W 50Nm mid-drive -
Battery TQ 360Wh -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
50cm
158cm - 164cm
52cm
162cm - 169cm
54cm
167cm - 175cm
56cm
173cm - 181cm
58cm
179cm - 186cm
60cm
184cm - 191cm
62cm
189cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components

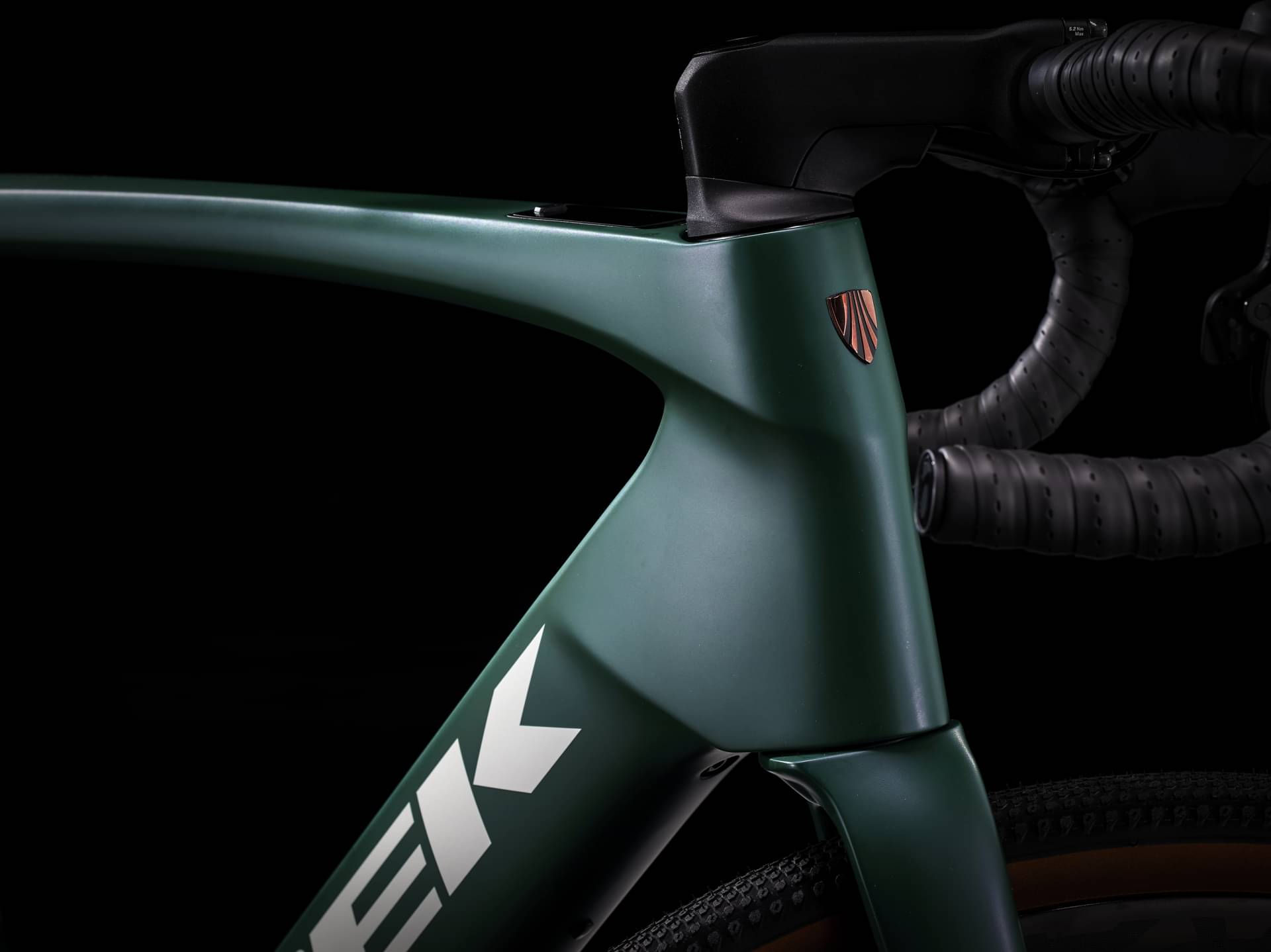

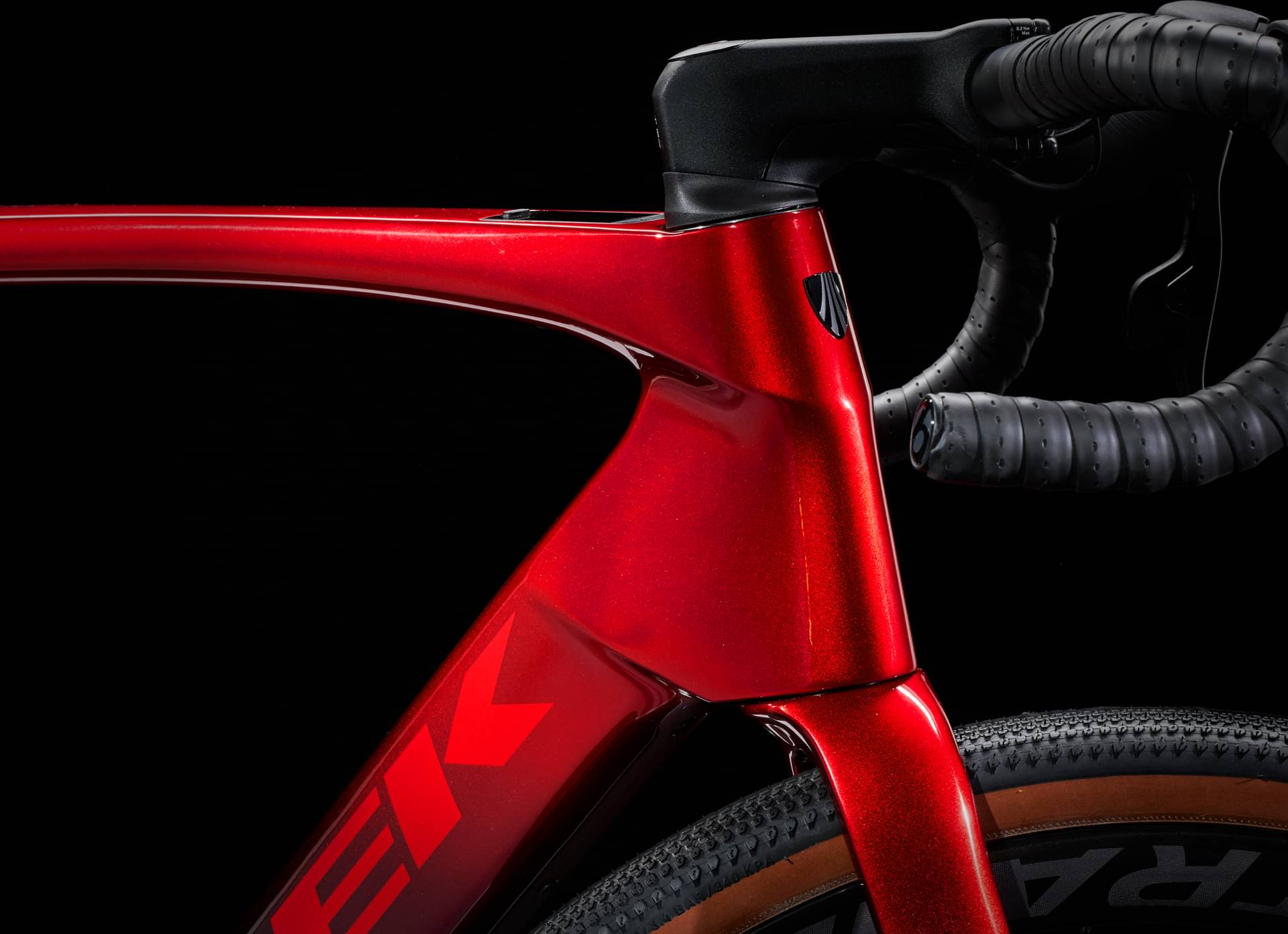

Frame
Frame

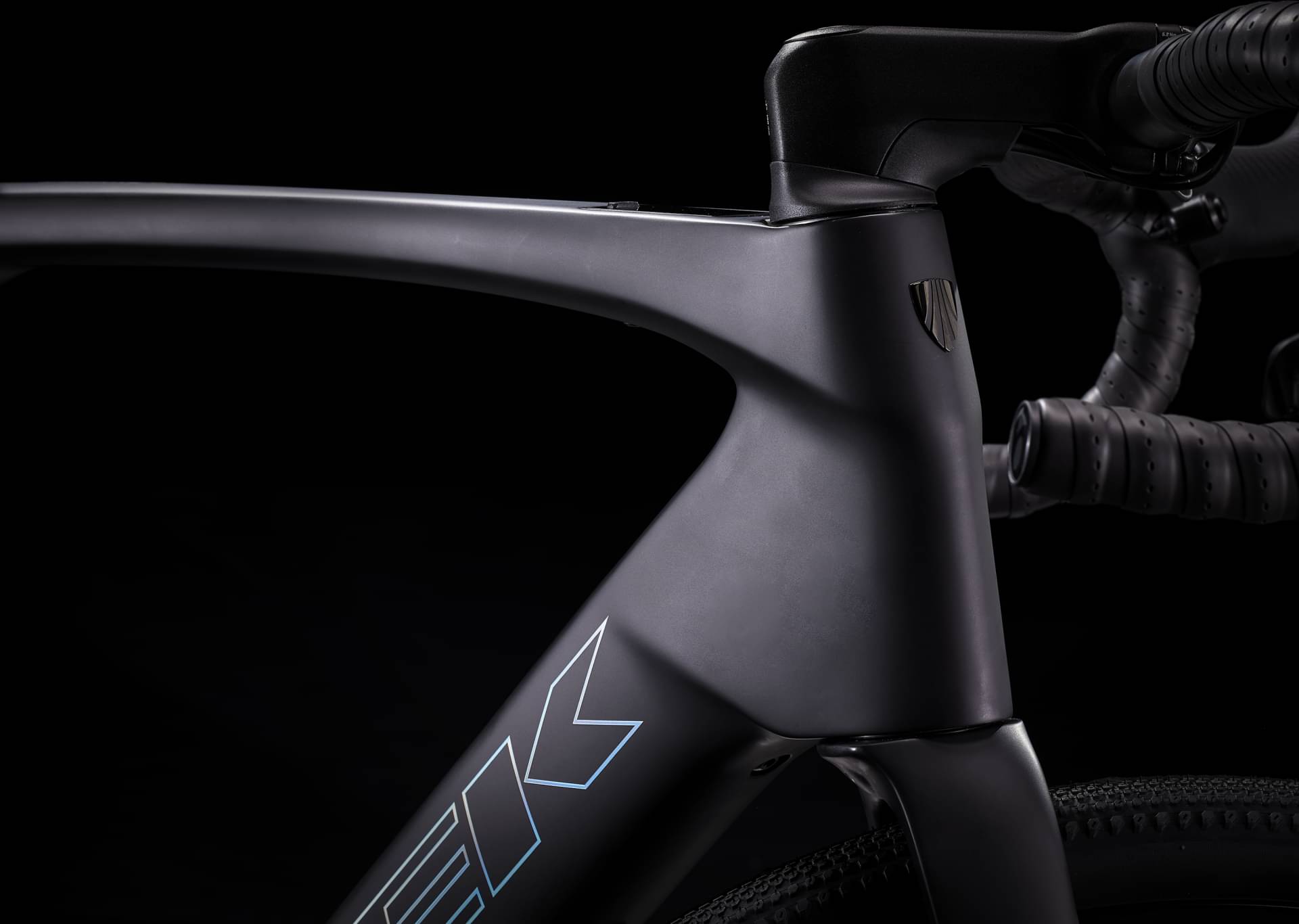

800 Series OCLV Carbon, TQ drive system, tapered head tube, rear IsoSpeed, internal routing, flat mount disc, fender mounts, 142x12mm thru axle
Suspension Fork
Domane+ carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle

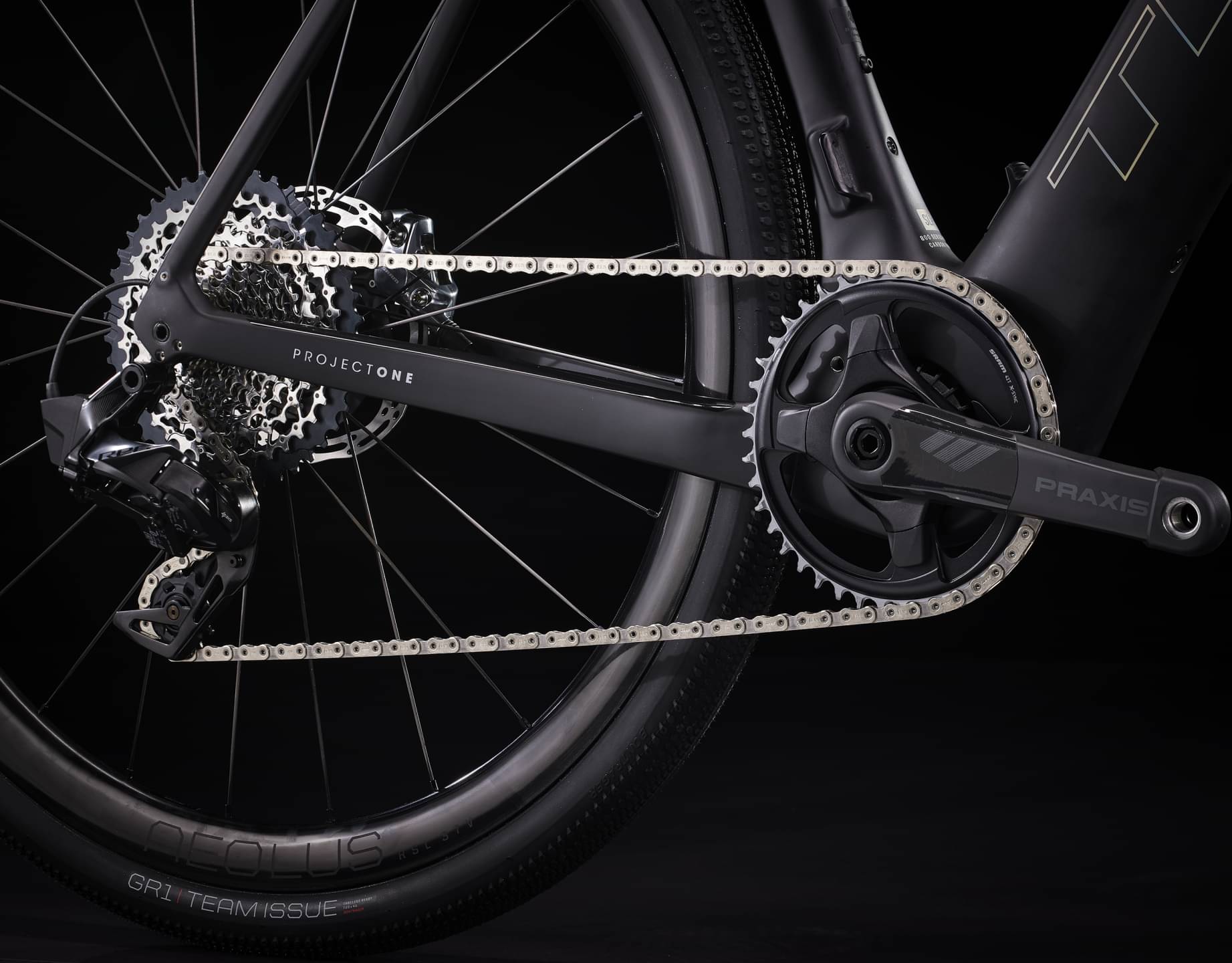

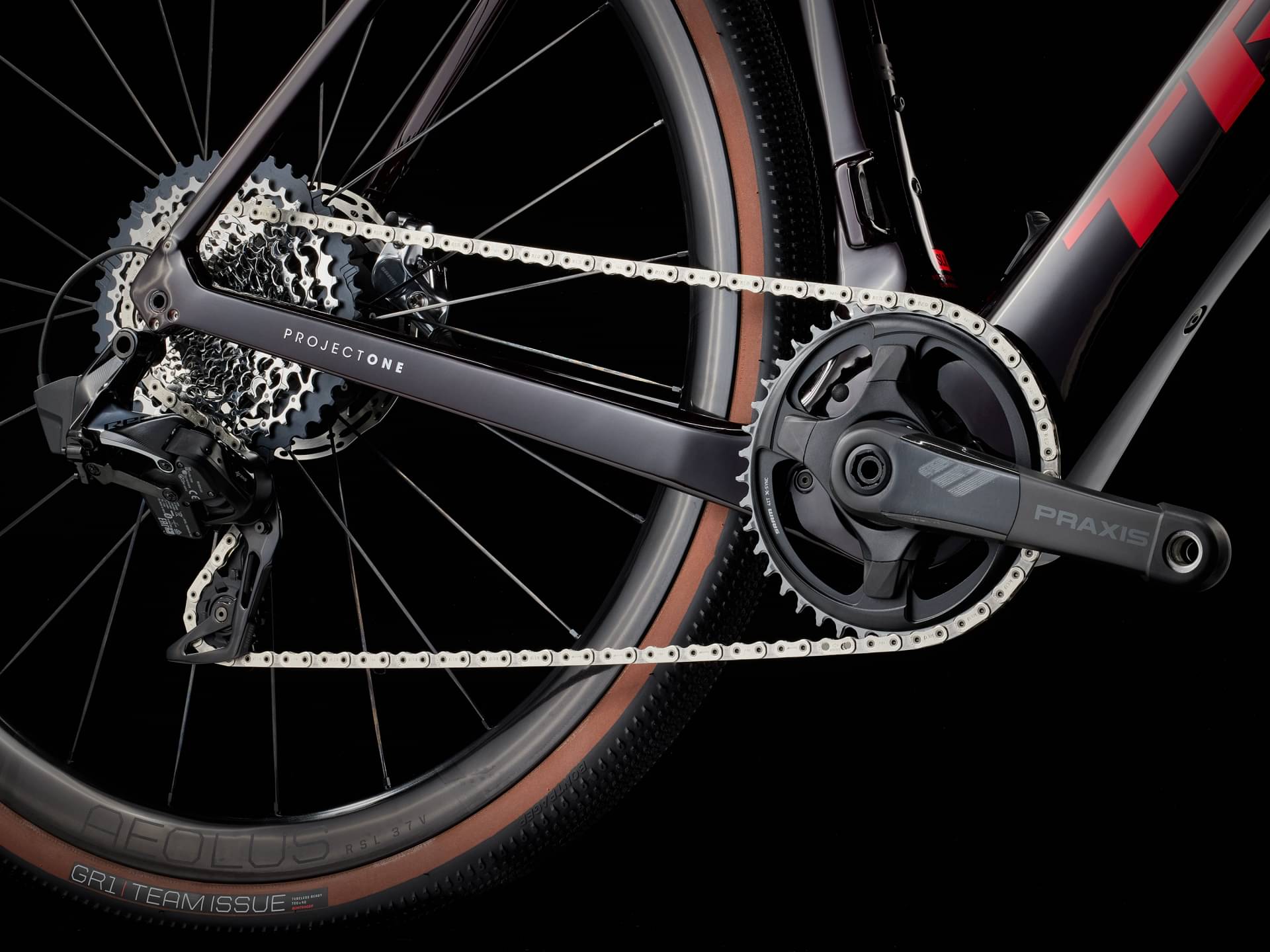

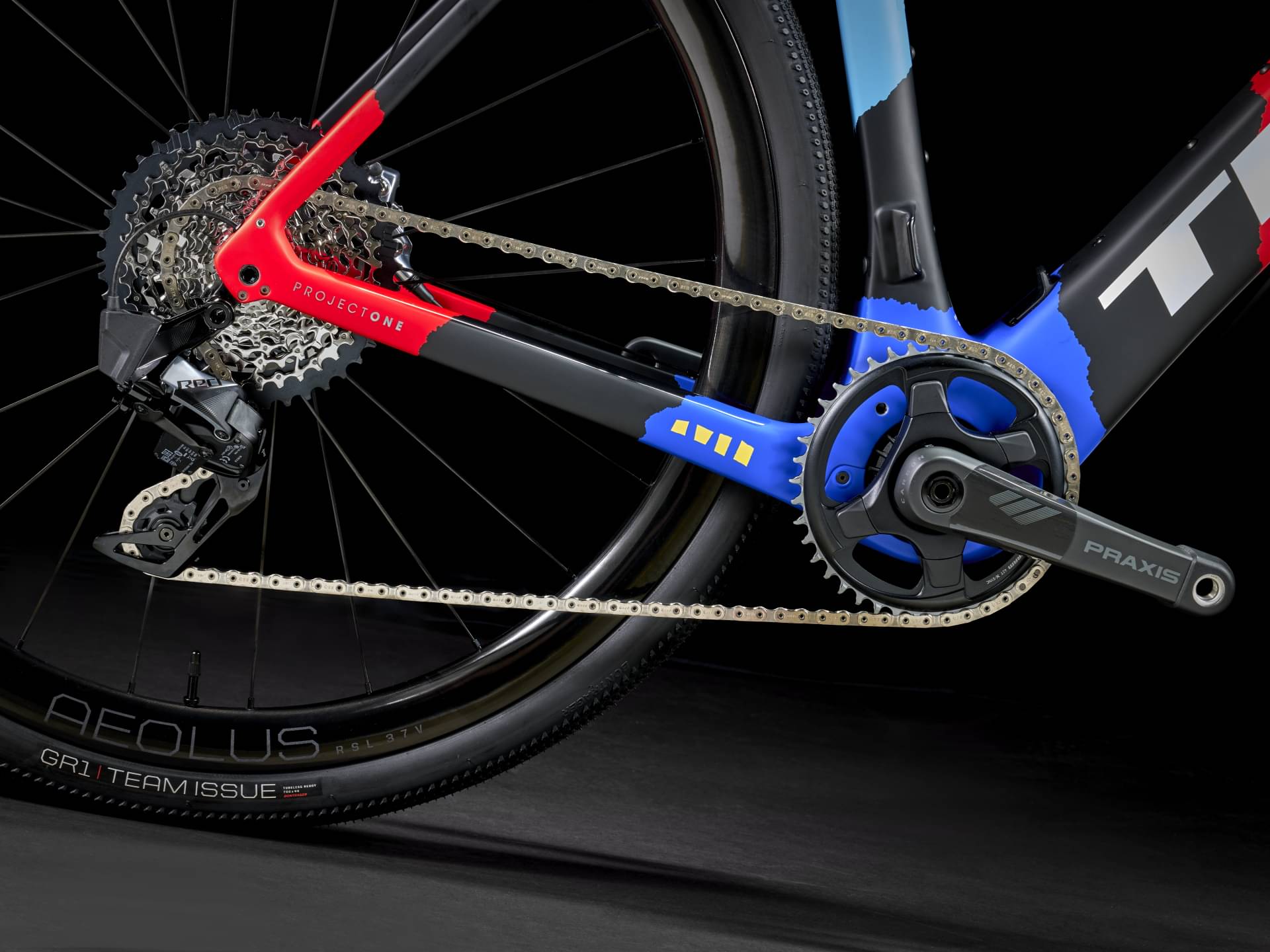

Drivetrain

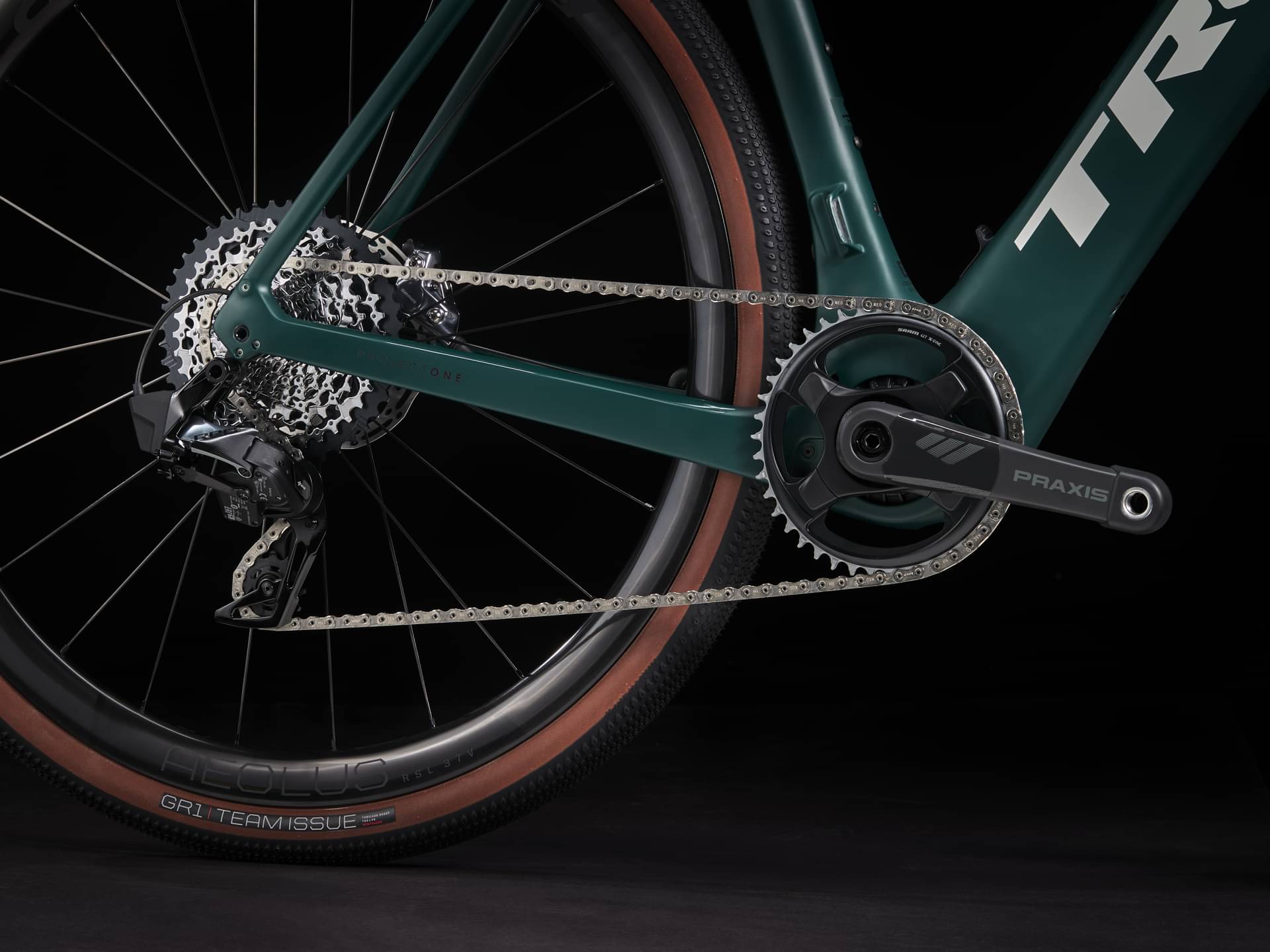

Rear Derailleur
SRAM RED XPLR eTap AXS, 44T max cog
Shift Levers
SRAM RED eTap AXS, 12 speed
Cassette
SRAM XG-1271, 10-44, 12 speed

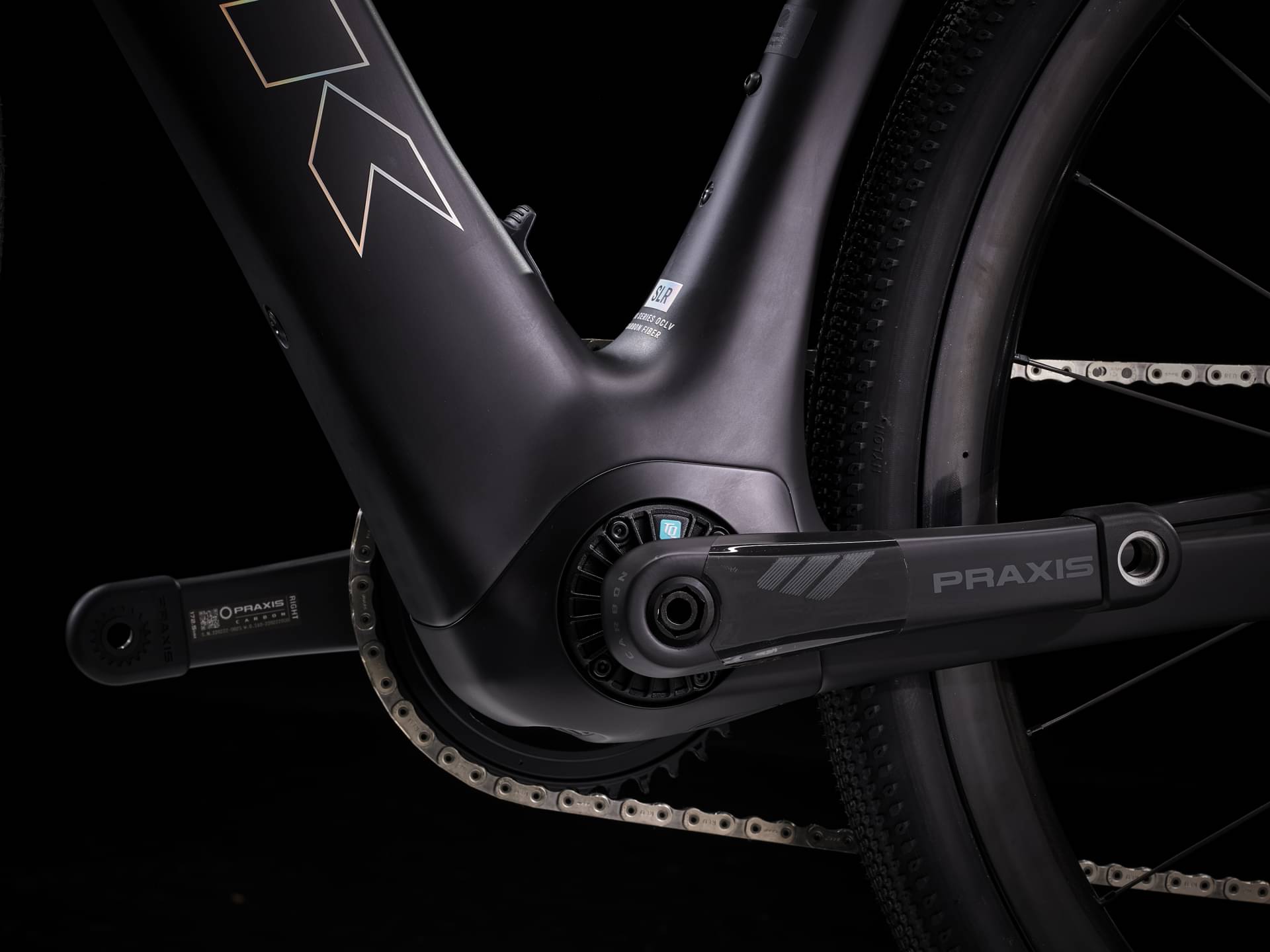

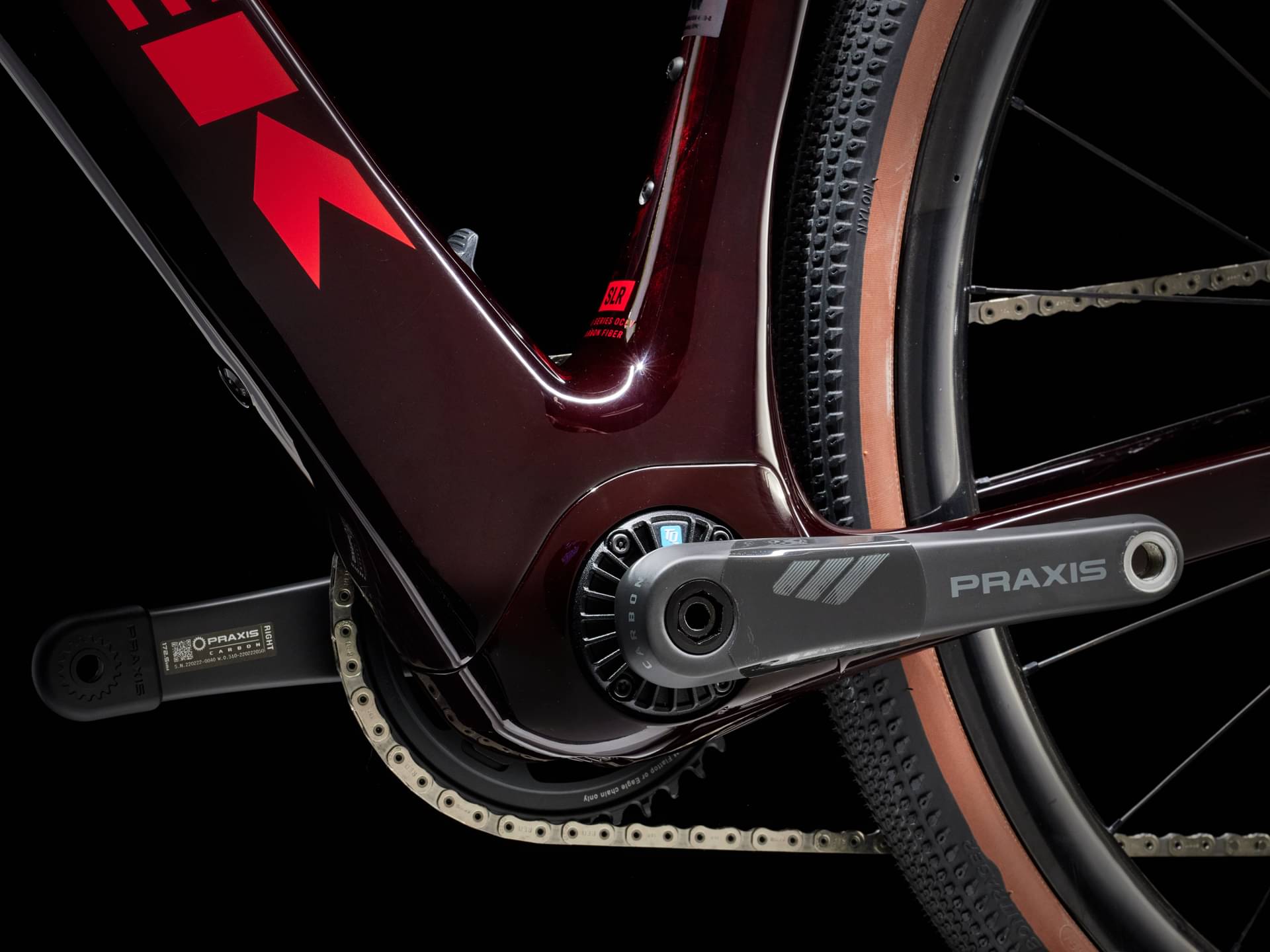

Crank
Size: 50, 52, Praxis Carbon, 170mm length; Size: 54, 56, Praxis Carbon, 172.5mm length; Size: 58, 60, 62, Praxis Carbon, 175mm length
Chain
SRAM RED D1, 12 speed
Wheels
Rims
Front: Bontrager Aeolus RSL 37V, OCLV Carbon, Tubeless Ready, 37mm rim depth, 100x12mm thru axle, Rear: Bontrager Aeolus RSL 37V, OCLV Carbon, Tubeless Ready, 37mm rim depth, 142x12mm thru axle
Tires
Bontrager GR1 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 120 tpi, 700x40mm

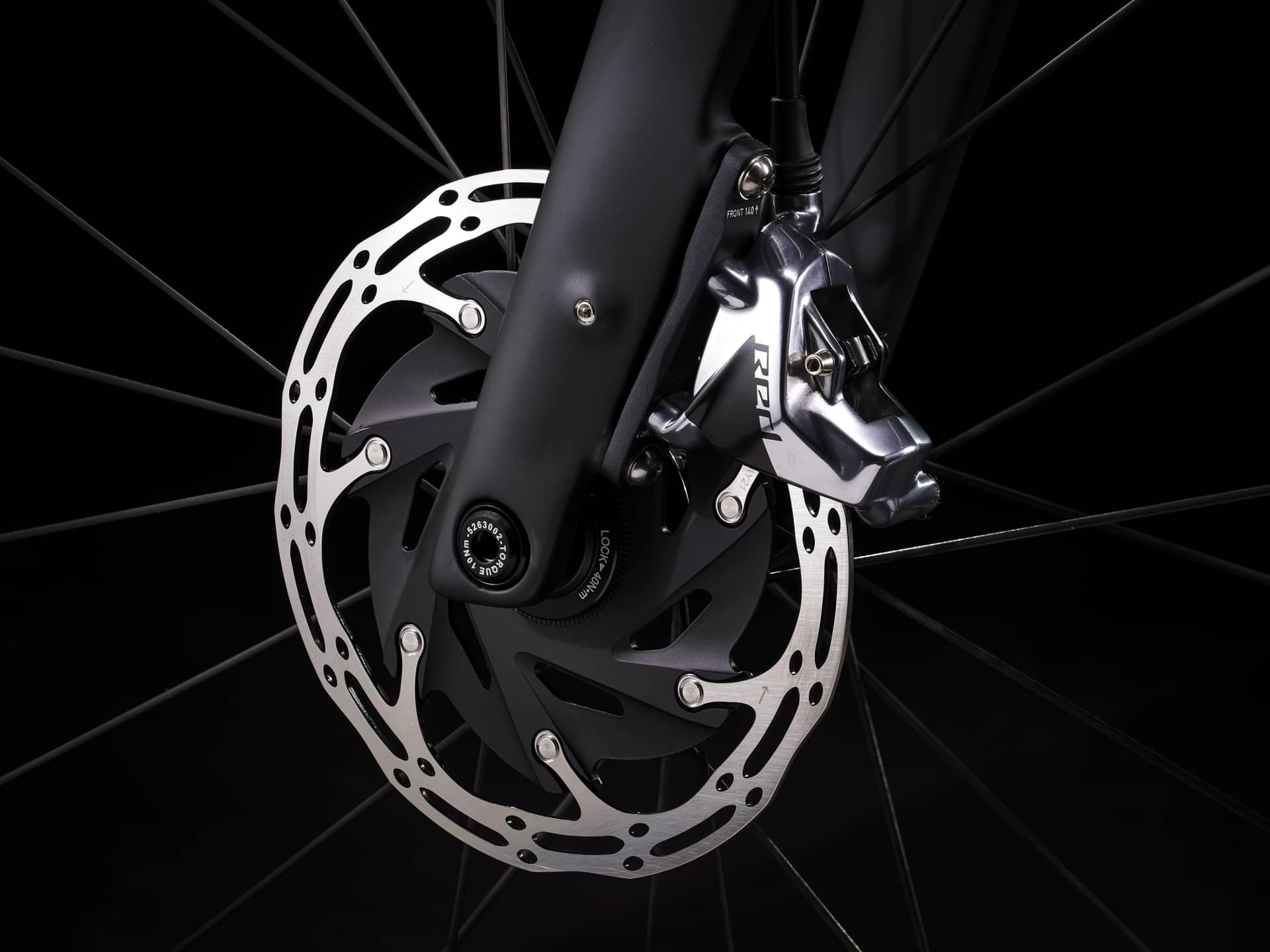

Brakes
Brakes

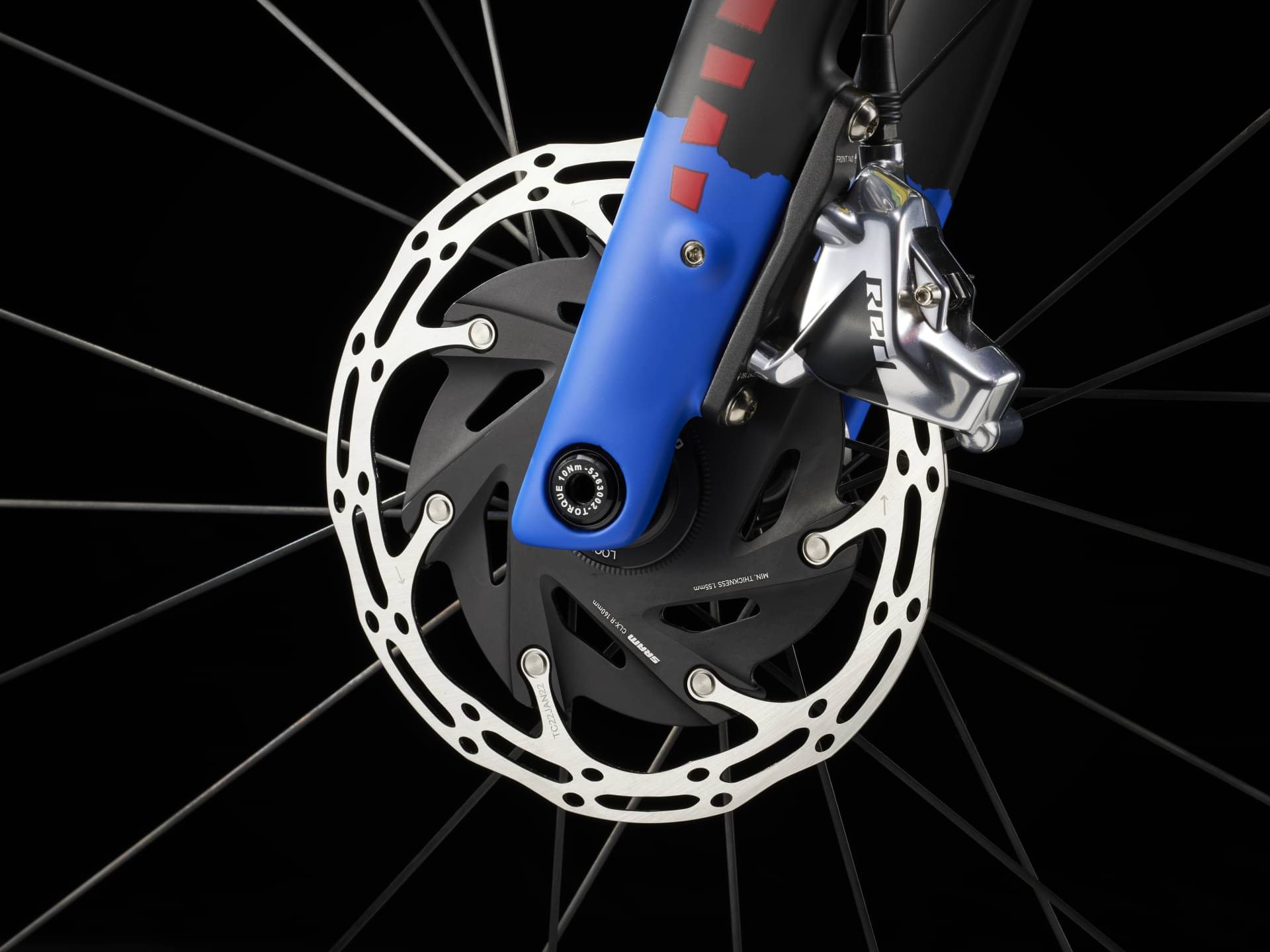

SRAM Red AXS hydraulic disc, flat mount

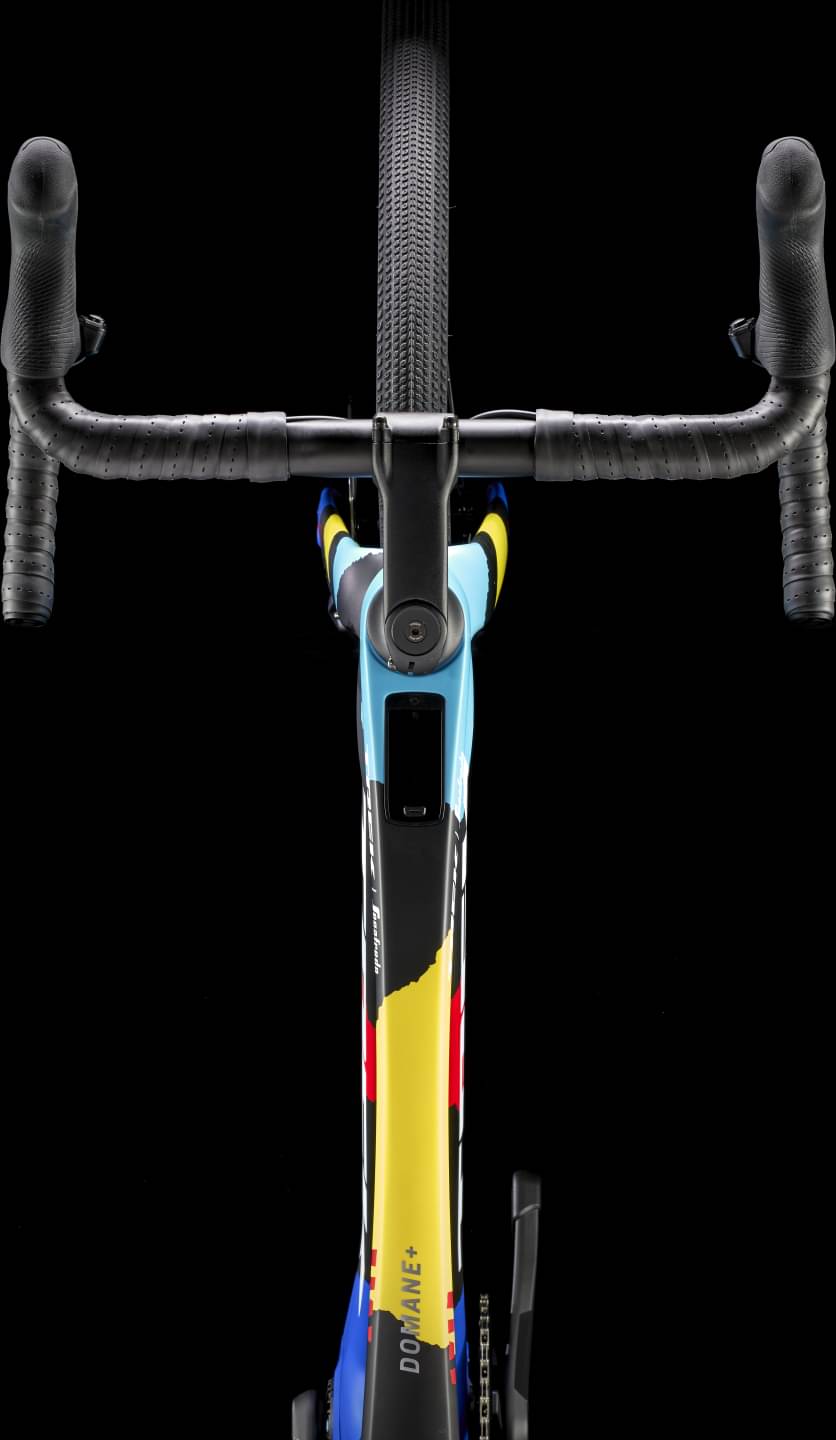

Cockpit
Stem
Size: 50, Trek RCS Pro, -7 degree, 80mm length; Size: 52, 54, Trek RCS Pro, -7 degree, 90mm length; Size: 56, 58, Trek RCS Pro, -7 degree, 100mm length; Size: 60, 62, Trek RCS Pro, -7 degree, 110mm length

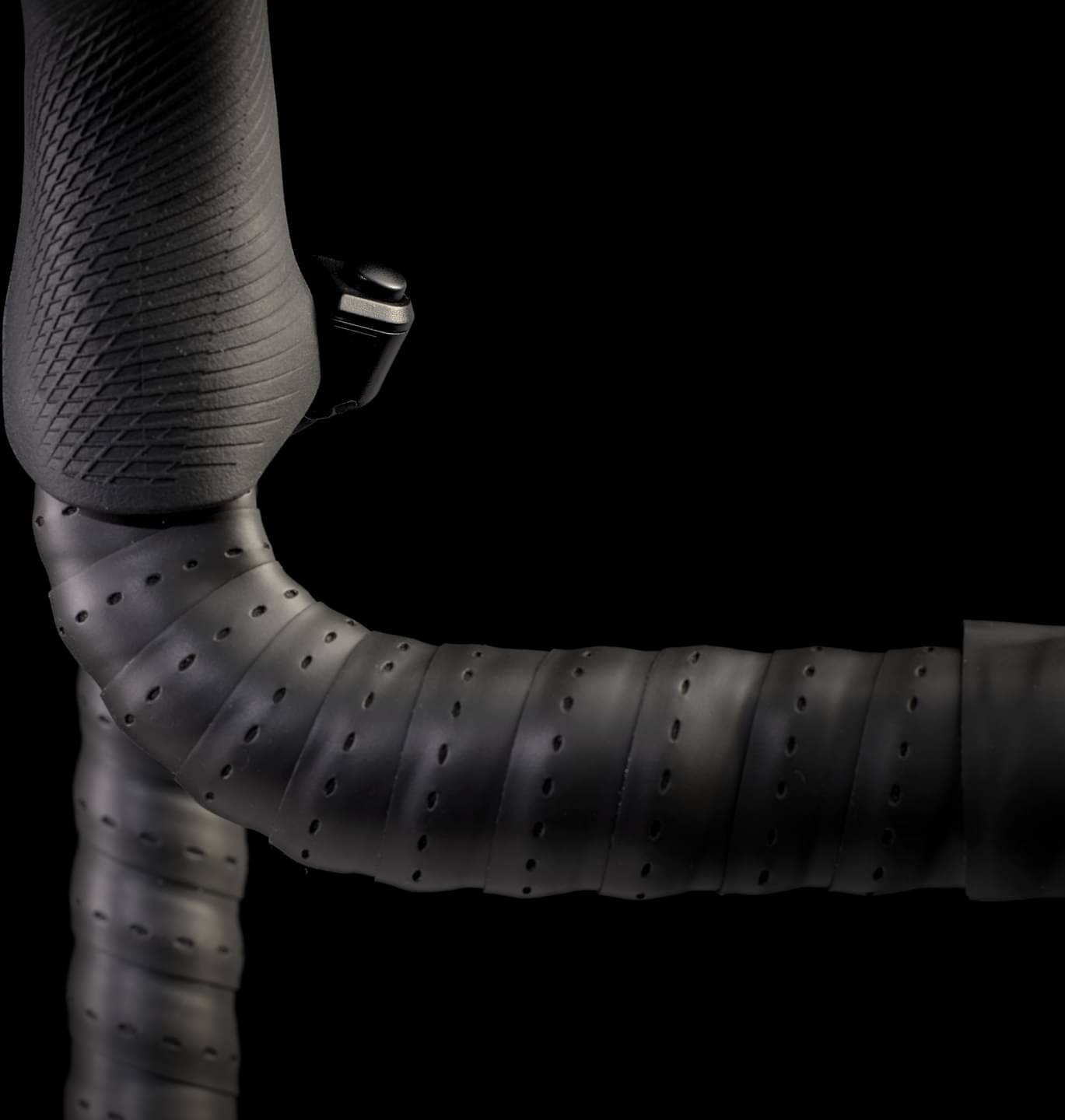

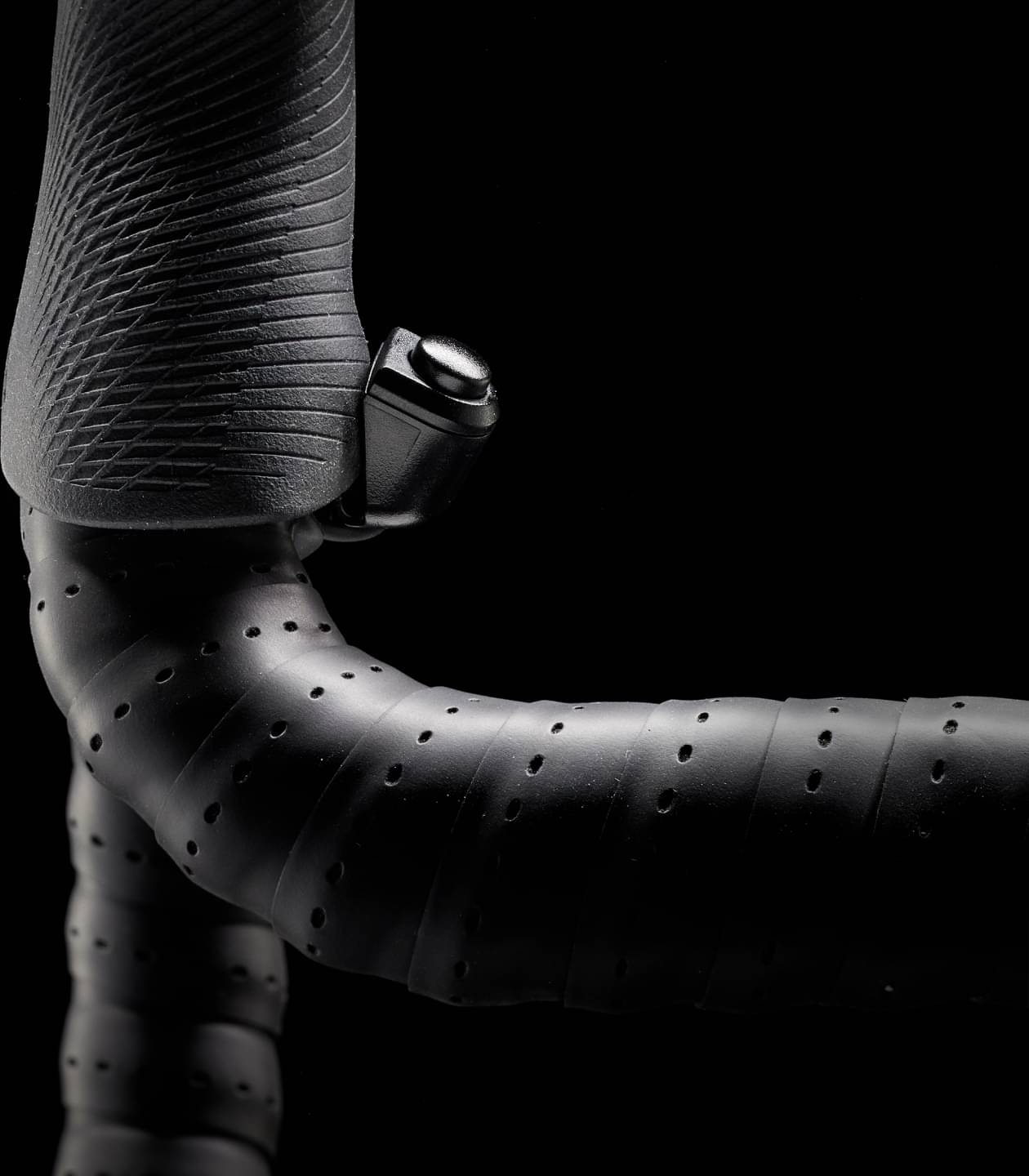

Handlebar
Size: 50, 52, Bontrager Pro IsoCore VR-SF, 40cm; Size: 54, 56, Bontrager Pro IsoCore VR-SF, 42cm; Size: 58, 60, 62, Bontrager Pro IsoCore VR-SF, 44cm
Seat
Saddle
Size: 50, 52, Verse Short Pro, carbon rails, 155mm width; Size: 54, 56, 58, 60, 62, Verse Short Pro, carbon rails, 145mm width
Seatpost
Size: 50, 52, 54, 56, Domane carbon seatpost, KVF shaping, 20mm offset, 280mm length; Size: 58, 60, 62, Domane carbon seatpost, KVF shaping, 20mm offset, 320mm length

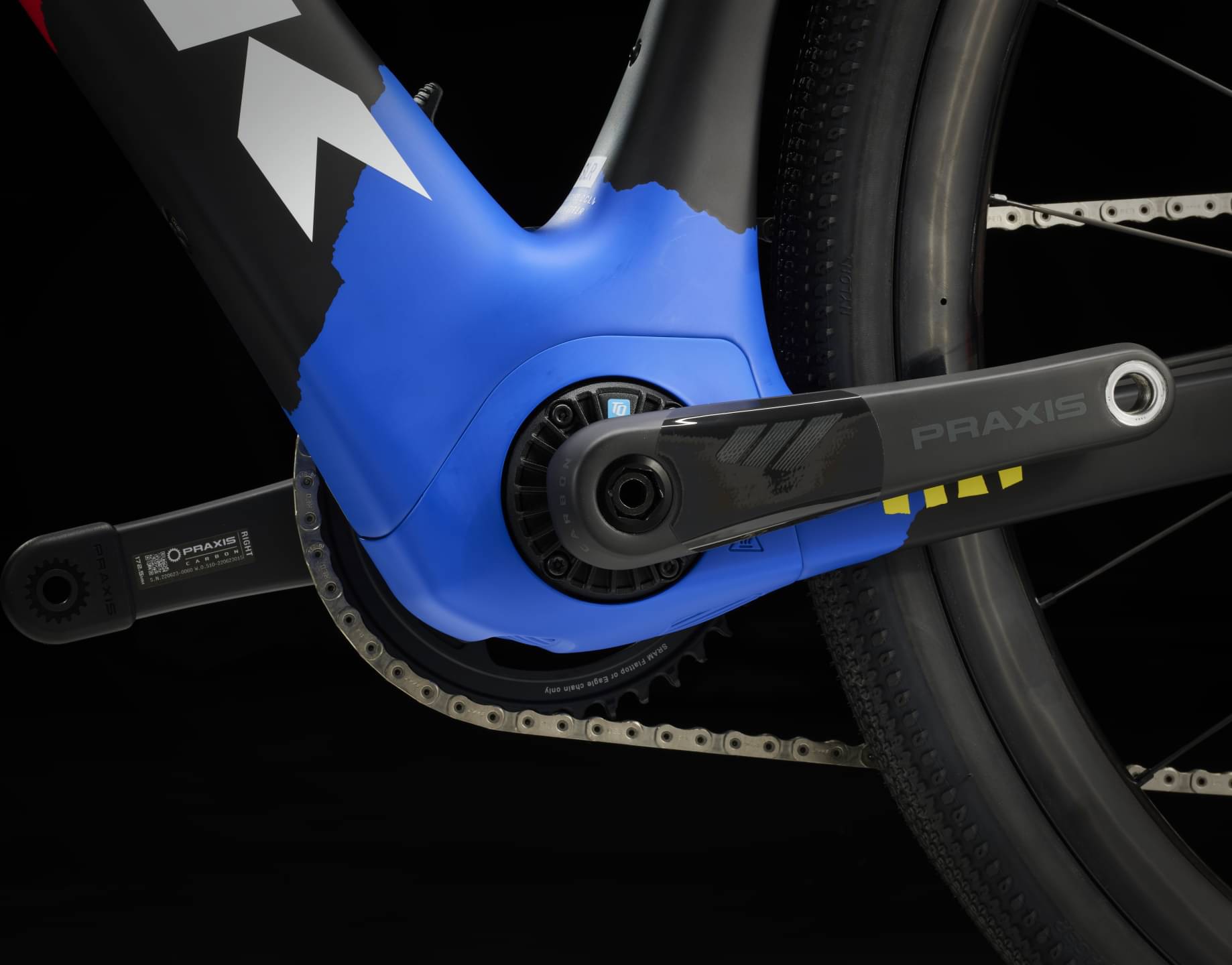

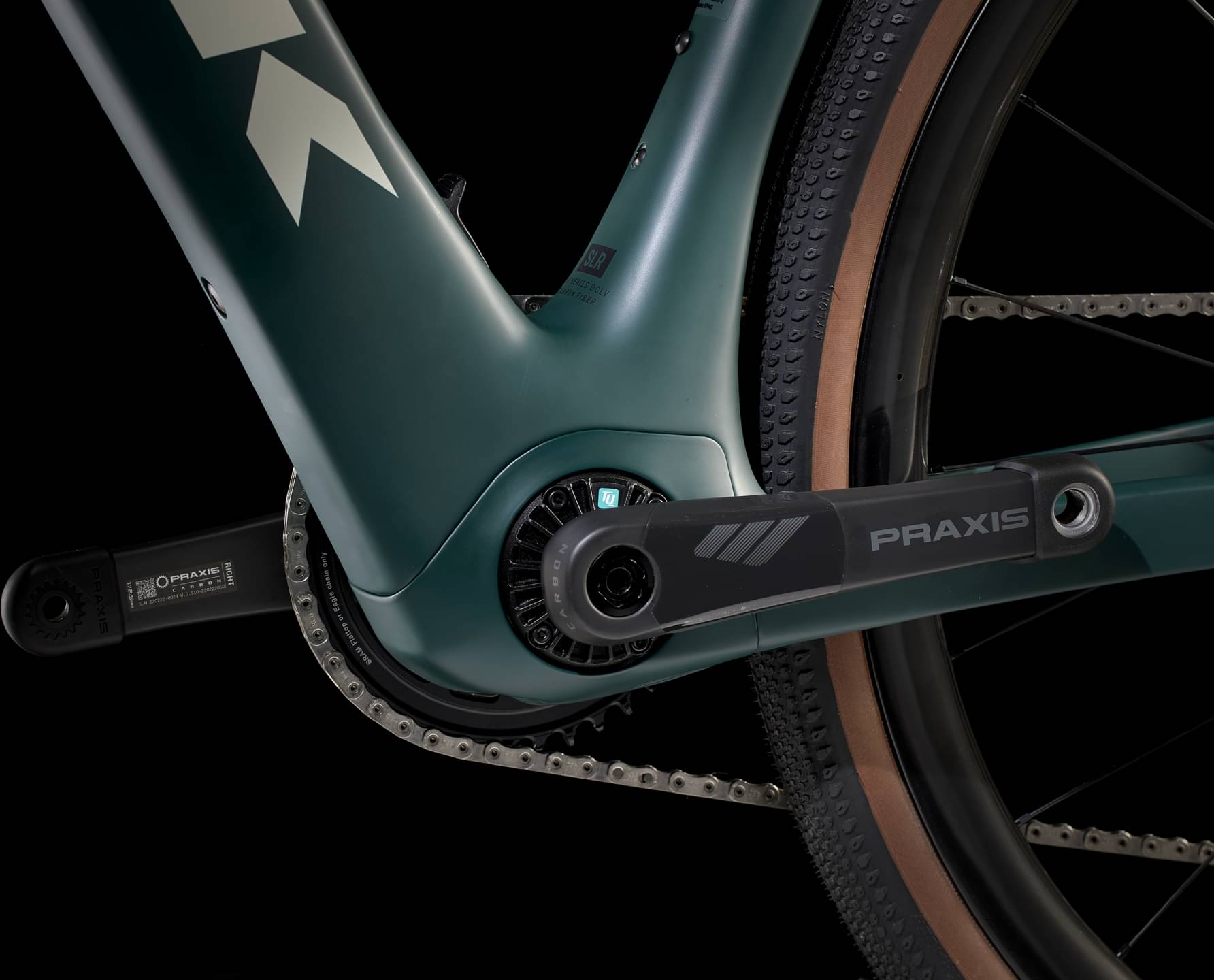

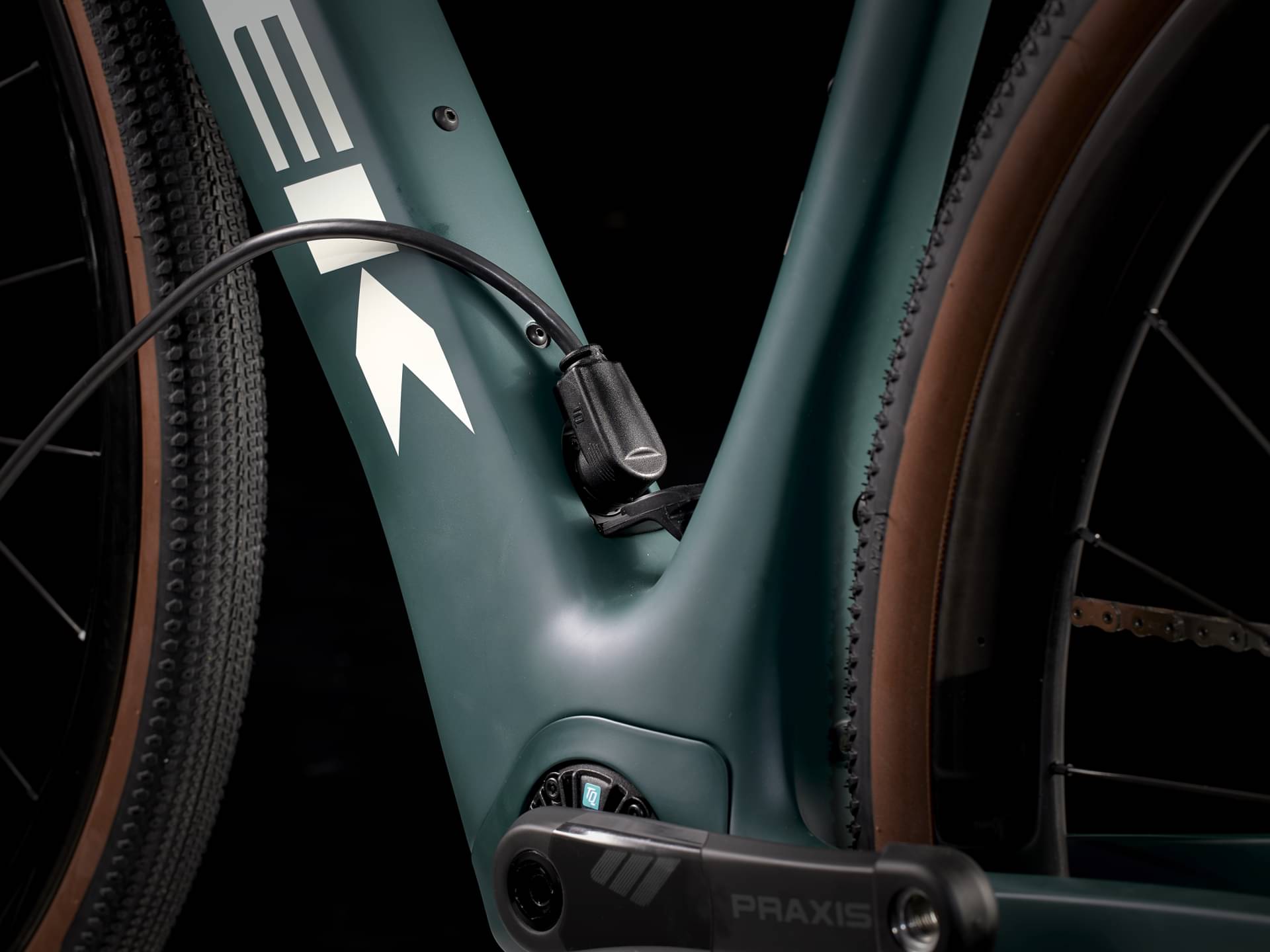

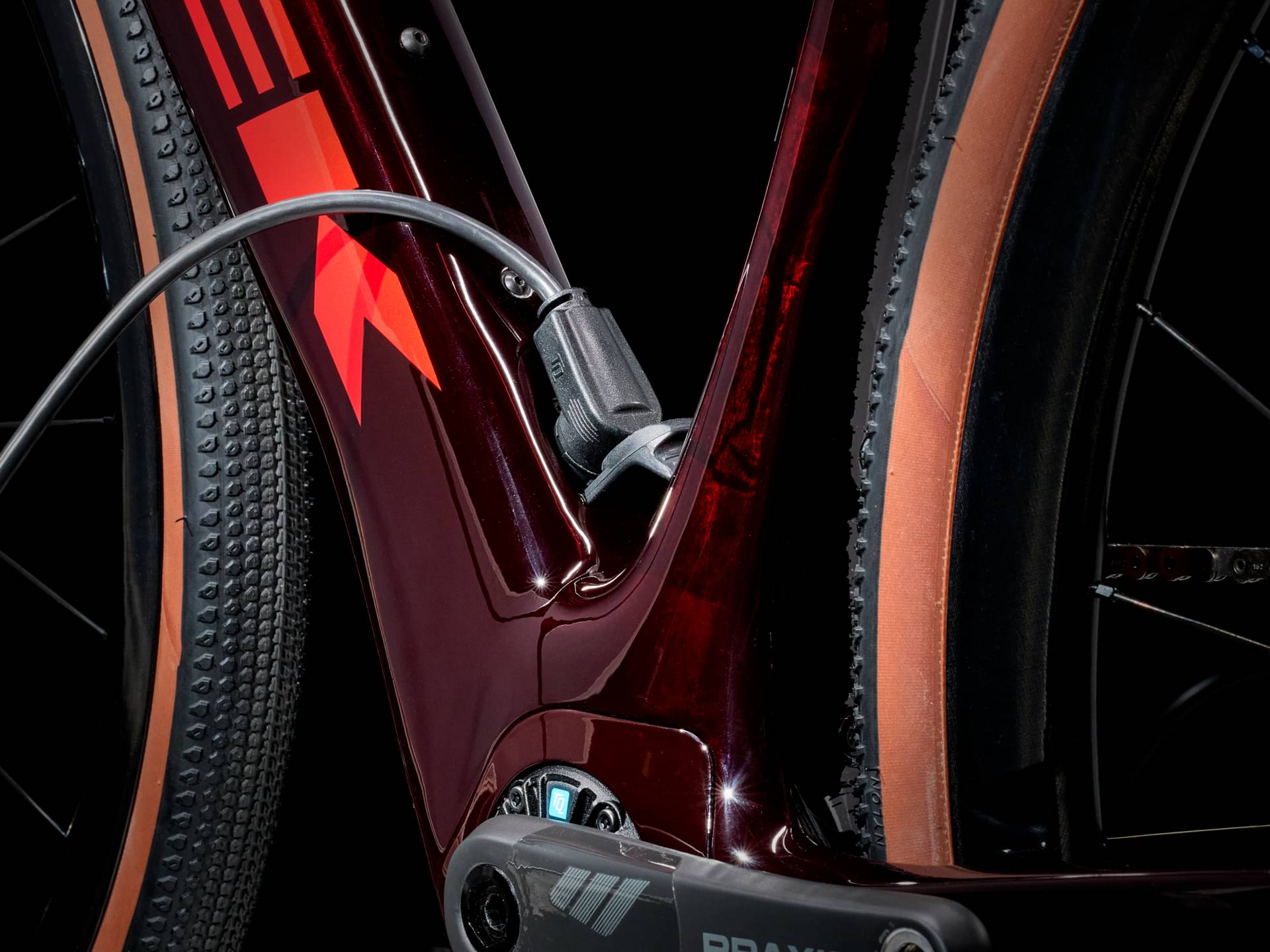

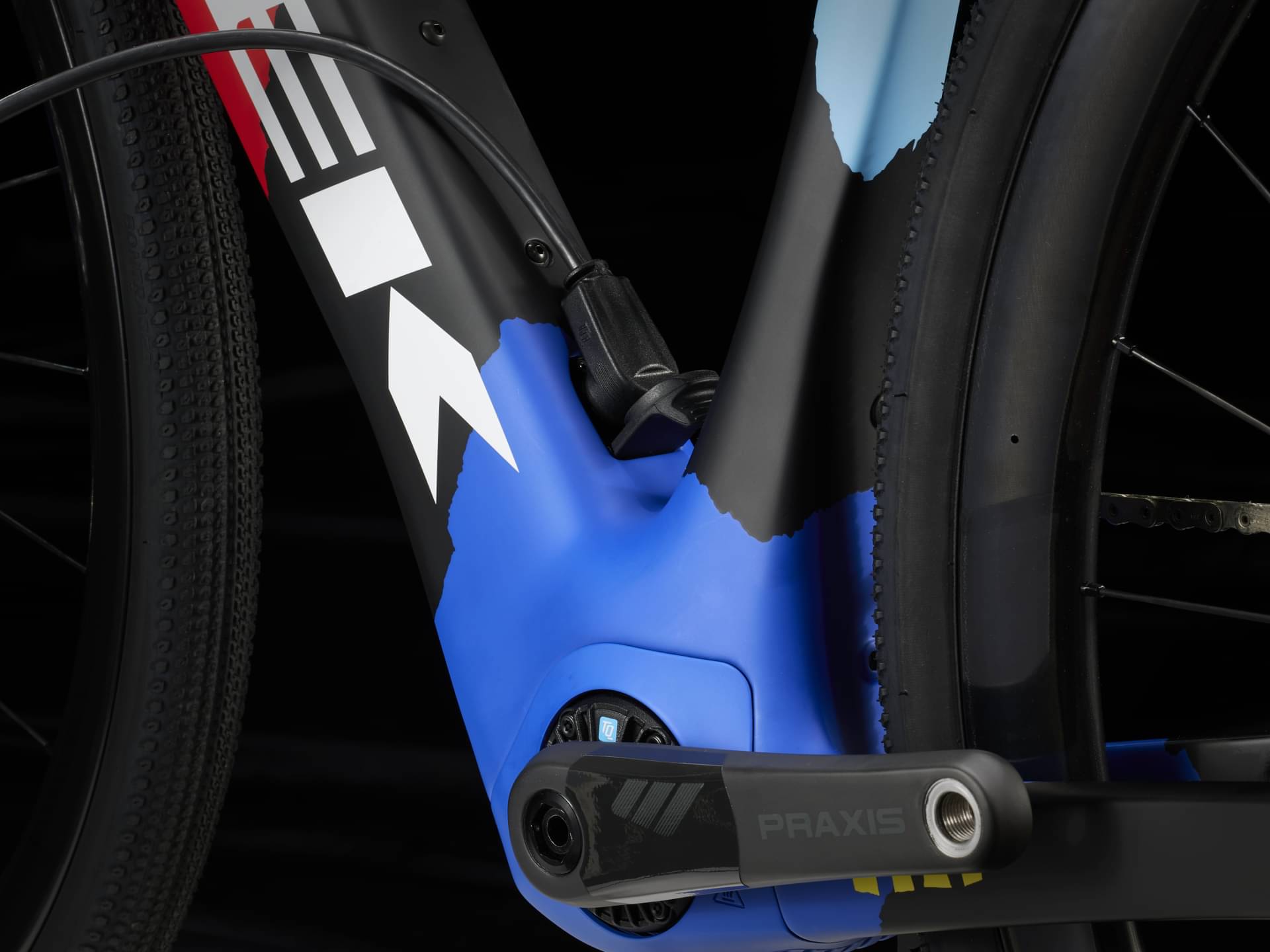

Motor & Battery
Motor
TQ-HPR50, 50 Nm, 250 watt maximum continuous rated power, 300 watt peak power
Battery
TQ 360Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm | 62cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.51 mm | 1.54 mm | 1.57 mm | 1.61 mm | 1.65 mm | 1.7 mm |
| Bottom Bracket Height | 256 mm | 256 mm | 256 mm | 258 mm | 258 mm | 261 mm | 261 mm |
| Front Center | 590 mm | 596 mm | 604 mm | 600 mm | 609 mm | 618 mm | 628 mm |
| Rake | 54 mm | 54 mm | 54 mm | 48 mm | 48 mm | 48 mm | 48 mm |
| Trail | 63 mm | 62 mm | 62 mm | 63 mm | 63 mm | 62 mm | 62 mm |
| Stack | 545 mm | 560 mm | 574 mm | 590 mm | 610 mm | 631 mm | 655 mm |
| Reach | 367 mm | 370 mm | 373 mm | 376 mm | 379 mm | 382 mm | 385 mm |
| Top Tube Length | 518 mm | 529 mm | 541 mm | 553 mm | 566 mm | 578 mm | 592 mm |
| Seat Tube Angle | 74.6 ° | 74.2 ° | 73.7 ° | 73.3 ° | 73 ° | 72.8 ° | 72.5 ° |
| Seat Tube Length | 450 mm | 475 mm | 500 mm | 525 mm | 548 mm | 567 mm | 586 mm |
| Head Tube Angle | 71.1 ° | 71.3 ° | 71.3 ° | 71.9 ° | 72 ° | 72.1 ° | 72.1 ° |
| Head Tube Length | 130 mm | 145 mm | 160 mm | 175 mm | 195 mm | 220 mm | 245 mm |
| Chainstay Length | 429 mm | 429 mm | 429 mm | 429 mm | 429 mm | 429 mm | 429 mm |
| Wheelbase | 1006 mm | 1012 mm | 1020 mm | 1017 mm | 1026 mm | 1036 mm | 1046 mm |
| Bottom Bracket Drop | 80 mm | 80 mm | 80 mm | 78 mm | 78 mm | 75 mm | 75 mm |
| Standover Height | 727 mm | 746 mm | 765 mm | 787 mm | 807 mm | 828 mm | 846 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 162 cm | 167 cm | 173 cm | 179 cm | 184 cm | 189 cm |
| Rider Max Height | 164 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm | 195 cm |
About this model
Domane+ SLR 9 AXS is a Trek E Domane model. Trek launched 42 e-bikes of this model so far. Take a sneak peek at all Trek E Domane e-bikes models from 2024, by clicking here.
Model range prices
Trek Domane+ AL 5 2024 is the cheapest e-bike model and costs 3499$. Trek Domane+ SLR 9 2024 is the most expensive one and costs 12999$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Endurance e-bikes average price
According to our math, the average price for a trustworthy Endurance e-bike is 3800$. However, even though the average price of an Endurance e-bike is lower, you might still be able to get a top-quality e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
When Trek released this model in 2024, its price was 12999$. Comparing this to the average Endurance e-bike price, we see that the price is 242.08% higher.
Endurance e-bikes average weight
If we make a quick analysis of the average weight of an Endurance e-bike, we get 13.82 kg (30.47 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
With a weight of 12.15 kg (26.79 lbs), Trek e-bike is considerably lighter than average. To sum up, it’s 13.74% lighter than the average weight of Endurance e-bikes.

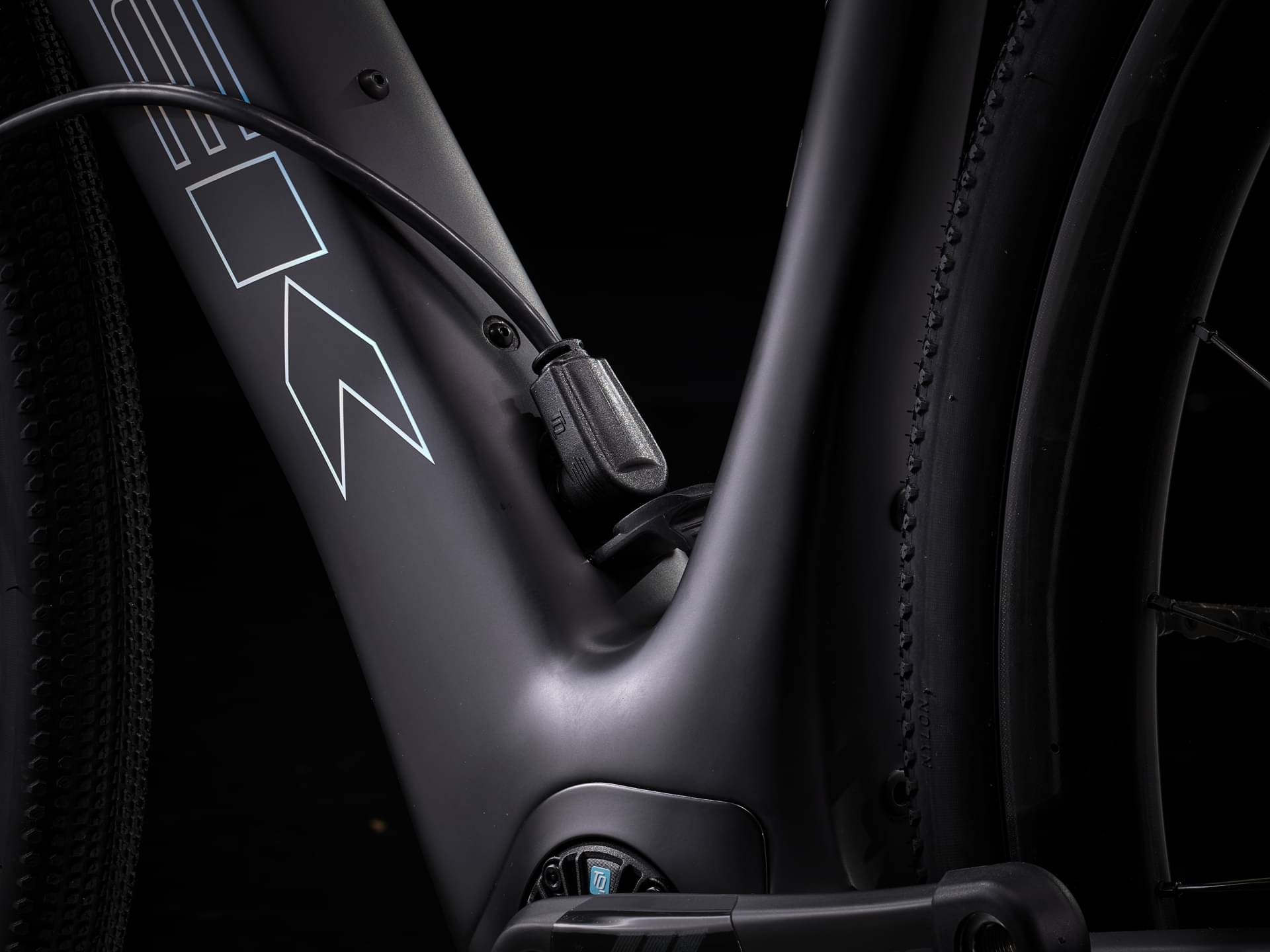

Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork material
The fork on this e-bike is made out of carbon, so, it’s a great addition to the e-bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
The Domane+ SLR 9 AXS 2024 e-bike is equipped with 700c carbon wheels when leaving the factory. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.

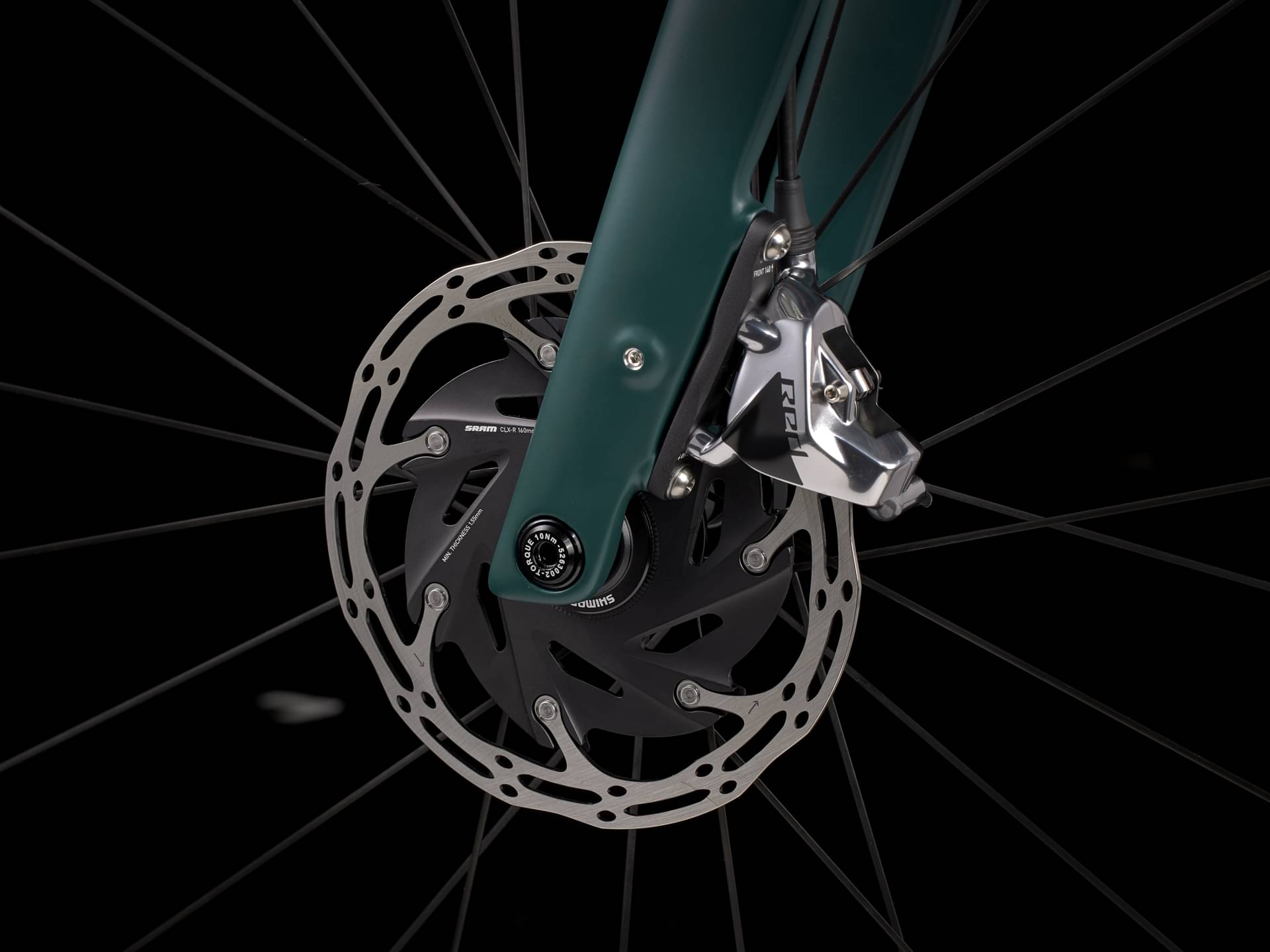

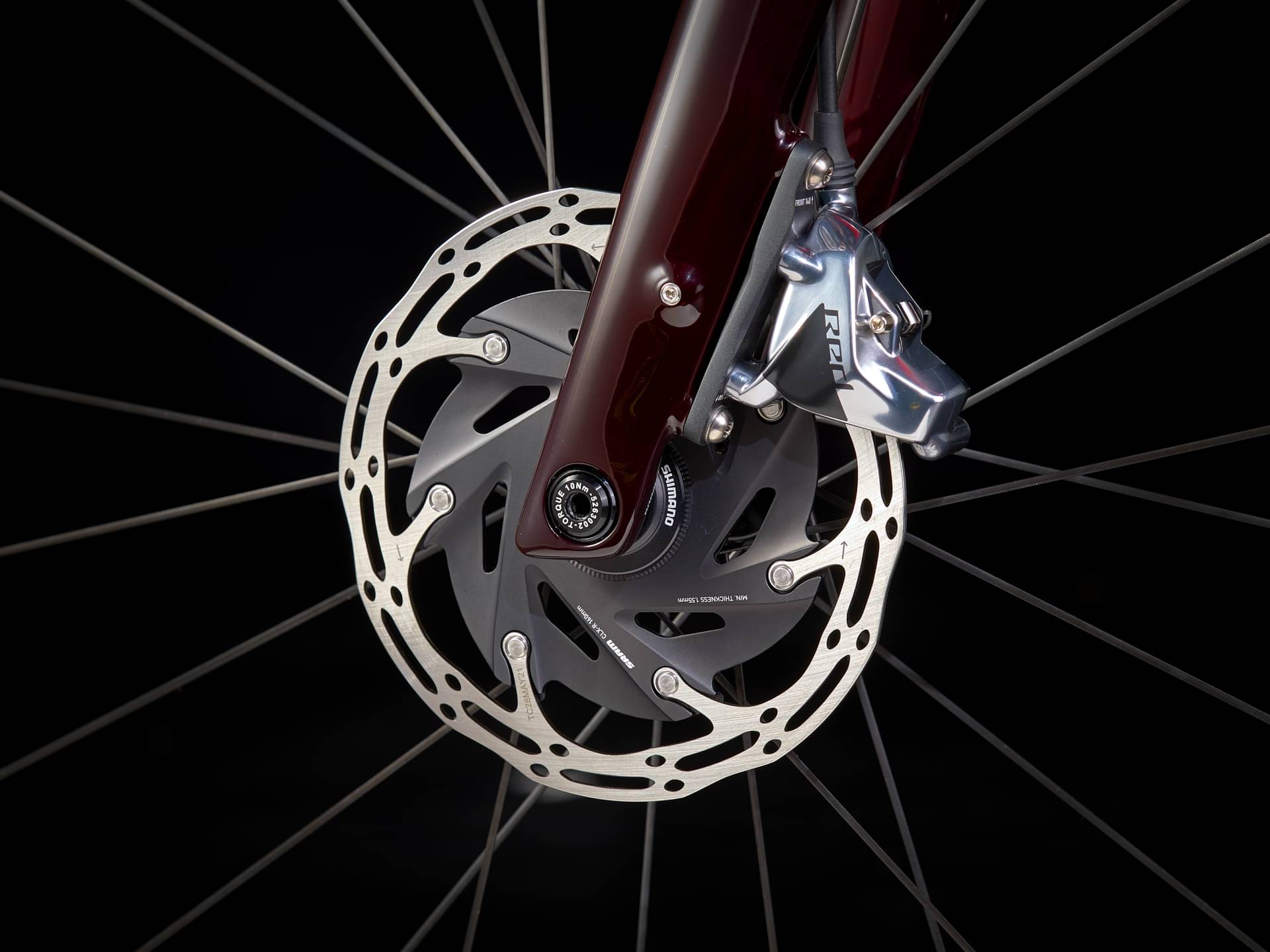

Brakes
Nothing is more important on a bike than its ability to brake properly. Trek Domane+ SLR 9 AXS is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
There are 7 sizes available for this model. Rider height can be anywhere between 158 cm – 195 cm (5.18 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
