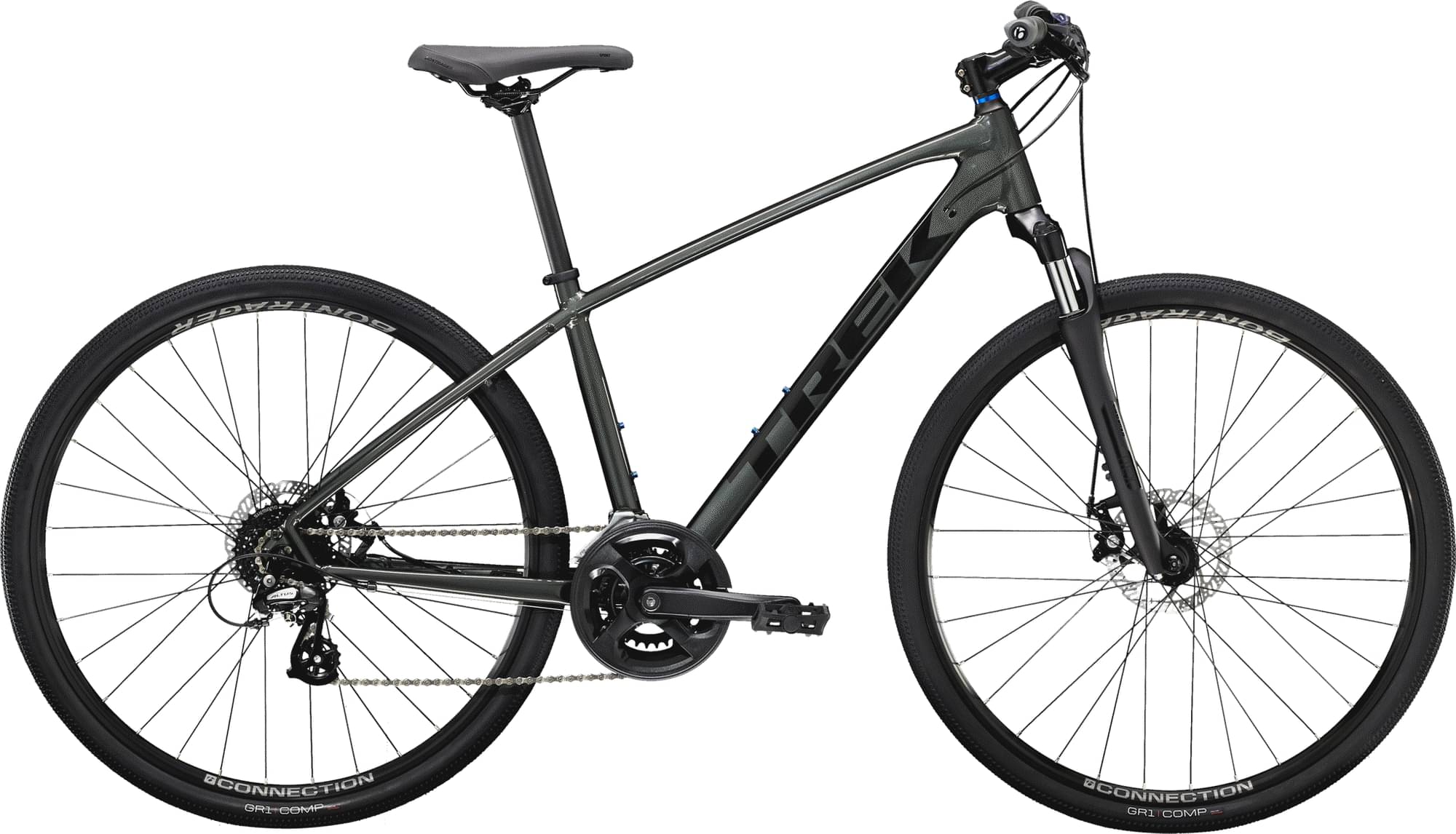

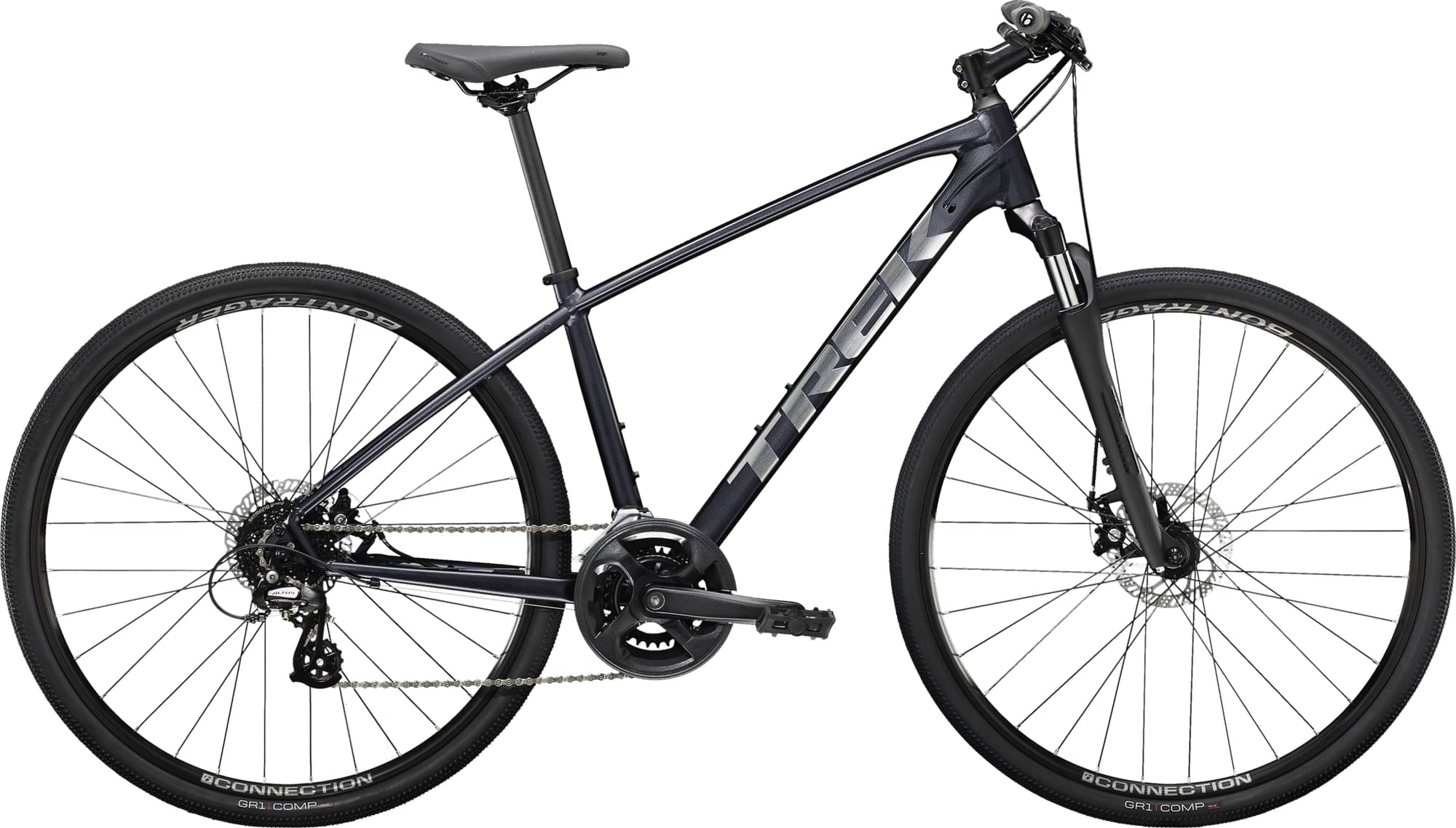

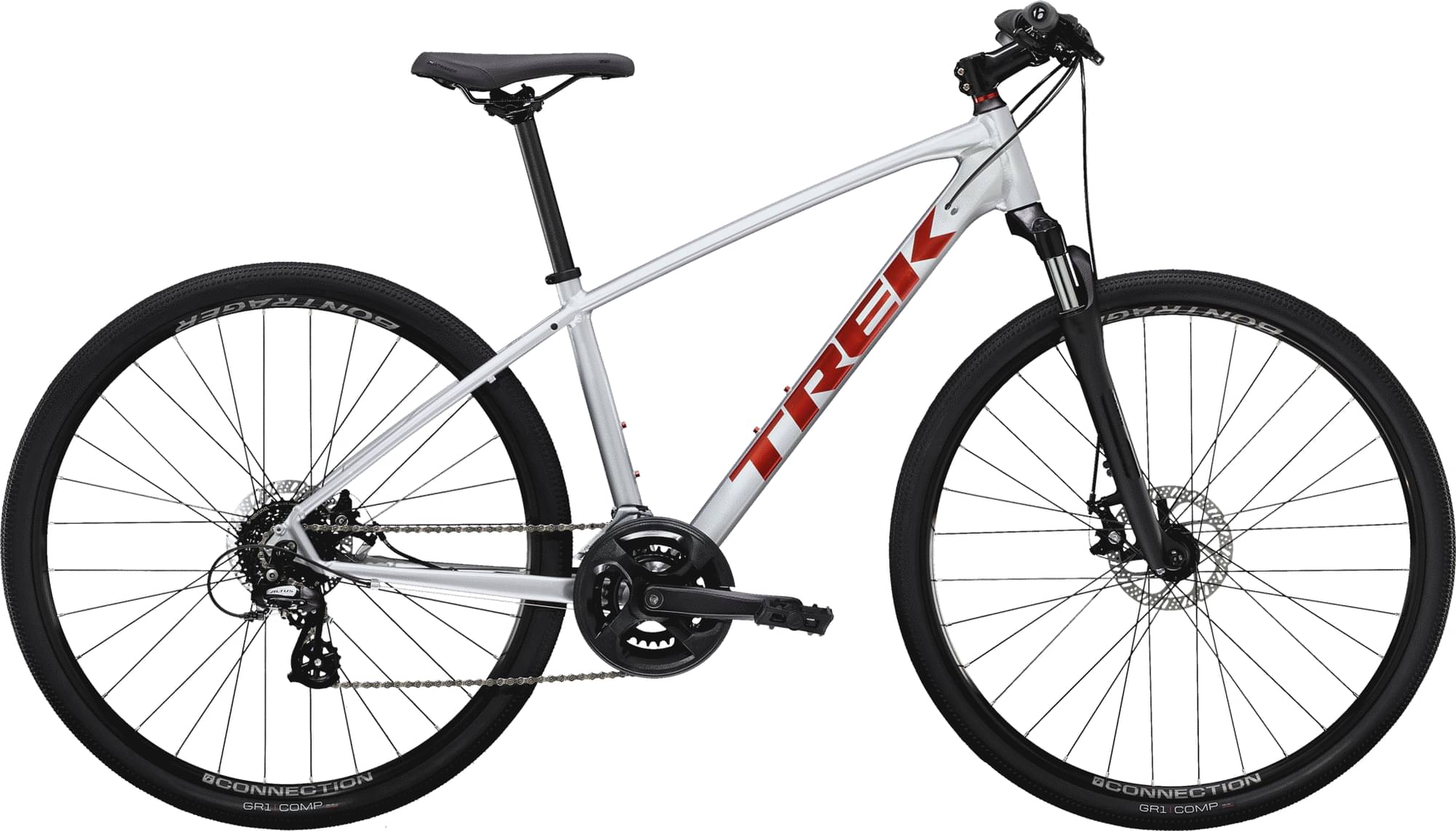

Trek Dual Sport 1 Gen 4 2023
2023 Urban
Estimate price |
649$
Weight | 13.54 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Altus, Tourney -
Suspension Hardtail -
Drivetrain 2 × 8 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
155cm - 166cm
MD
164cm - 176cm
LG
174cm - 187cm
XL
185cm - 197cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Size: S, Alpha Gold Aluminum, curved top tube, DuoTrap S compatible, internal cable routing, rack & fender mounts, post mount disc, kickstand mount, 135x5mm QR; Size: M, L, XL, Alpha Gold Aluminum, DuoTrap S compatible, internal cable routing, rack & fender mounts, post mount disc, kickstand mount, 135x5mm QR
Suspension Fork
SR Suntour NEX, coil spring, preload, 100x5mm QR, 63mm travel
Drivetrain
Rear Derailleur
Shimano Altus M310
Front Derailleur
Shimano Tourney TY710, 34.9mm clamp, top swing, dual pull
Shift Levers
Shimano EF500, 8 speed
Cassette
Shimano HG31, CS-HG31, 11-32, 8 speed
Crank
Forged alloy, 46/30, chainguard, 170mm length
Bottom Bracket
Sealed cartridge, 68mm
Chain
KMC Z8.3
Pedals
Wellgo nylon platform
Wheels
Front Hub
Formula DC-20, alloy, 6-bolt, 5x100mm QR
Rear Hub
Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR
Rims
Bontrager Connection, alloy, double-wall, 32-hole, schrader valve
Tires
Bontrager GR1 Comp, wire bead, 60 tpi, 700x40c
Brakes
Brakes
Tektro MD-M280 mechanical disc, 160mm rotor
Cockpit
Stem
Size: S, M, Bontrager alloy, 25.4mm clamp, 10 degree, 90mm length; Size: L, XL, Bontrager alloy, 25.4mm clamp, 10 degree, 110mm length
Handlebar
Size: S, M, Bontrager Riser, steel, 25.4mm, 30mm rise, 600mm width; Size: L, XL, Bontrager Riser, steel, 25.4mm, 30mm rise, 620mm width
Grips
Bontrager Satellite
Headset
1-1/8'' threadless, sealed cartridge bearings
Seat
Saddle
Bontrager Sport
Seatpost
Bontrager alloy, 27.2mm, 12mm offset, 330mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.46 mm | 1.46 mm | 1.47 mm |
| Bottom Bracket Height | 294 mm | 294 mm | 294 mm | 294 mm |
| Front Center | 643 mm | 647 mm | 652 mm | 657 mm |
| Rake | 33 mm | 38 mm | 33 mm | 30 mm |
| Trail | 85 mm | 82 mm | 82 mm | 75 mm |
| Stack | 593 mm | 604 mm | 614 mm | 637 mm |
| Reach | 408 mm | 414 mm | 421 mm | 432 mm |
| Top Tube Length | 573 mm | 588 mm | 603 mm | 633 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 72.5 ° |
| Seat Tube Length | 381 mm | 445 mm | 508 mm | 571 mm |
| Head Tube Angle | 70 ° | 71 ° | 71 ° | 72 ° |
| Head Tube Length | 115 mm | 125 mm | 135 mm | 155 mm |
| Chainstay Length | 458 mm | 458 mm | 458 mm | 458 mm |
| Wheelbase | 1094 mm | 1098 mm | 1103 mm | 1108 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 665 mm | 763 mm | 806 mm | 848 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 164 cm | 174 cm | 185 cm |
| Rider Max Height | 166 cm | 176 cm | 187 cm | 197 cm |
About this model
Dual Sport 1 Gen 4 is part of the Trek Dual Sport model. There are 54 bikes that carry this model name. Take a sneak peek at all Trek Dual Sport bikes models from 2023, by clicking here.
Model range prices
Trek Dual Sport 1 Gen 4 2023 is the cheapest bike model and costs 649$. Trek Dual Sport 3 Equipped Gen 5 2023 is the most expensive one and costs 1273$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Commuter bikes
If you want an acceptable Commuter bike you should know that the average price is 762$. However, even though the average price of a Commuter bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, Trek Dual Sport 1 Gen 4 price was 649$. Comparing this to the average Commuter bike price, we see that the price is 17.41% smaller.
Average weight for Commuter bikes
On a deeper look, we notice that the average weight of a Commuter bike is 14.29 kg (31.5 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
a bit lighter than average, Dual Sport 1 Gen 4 has a weight of 13.54 kg (29.85 lbs). In short, the average Commuter bike weight is 5.54% higher than this one.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Dual Sport 1 Gen 4 components
Fork
The fork installed on this bike is the Suntour NEX model. The travel on this model is 63mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
As for the wheels, Trek Dual Sport 1 Gen 4 2023, has a 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Mechanical Disc brakes. They are much easier to maintain than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
Sizes
Trek Dual Sport 1 Gen 4 bike has 4 sizes, in the range of 155 cm – 197 cm (5.09 ft – 6.46 ft). In short, it won’t be difficult to find the right one for you.
