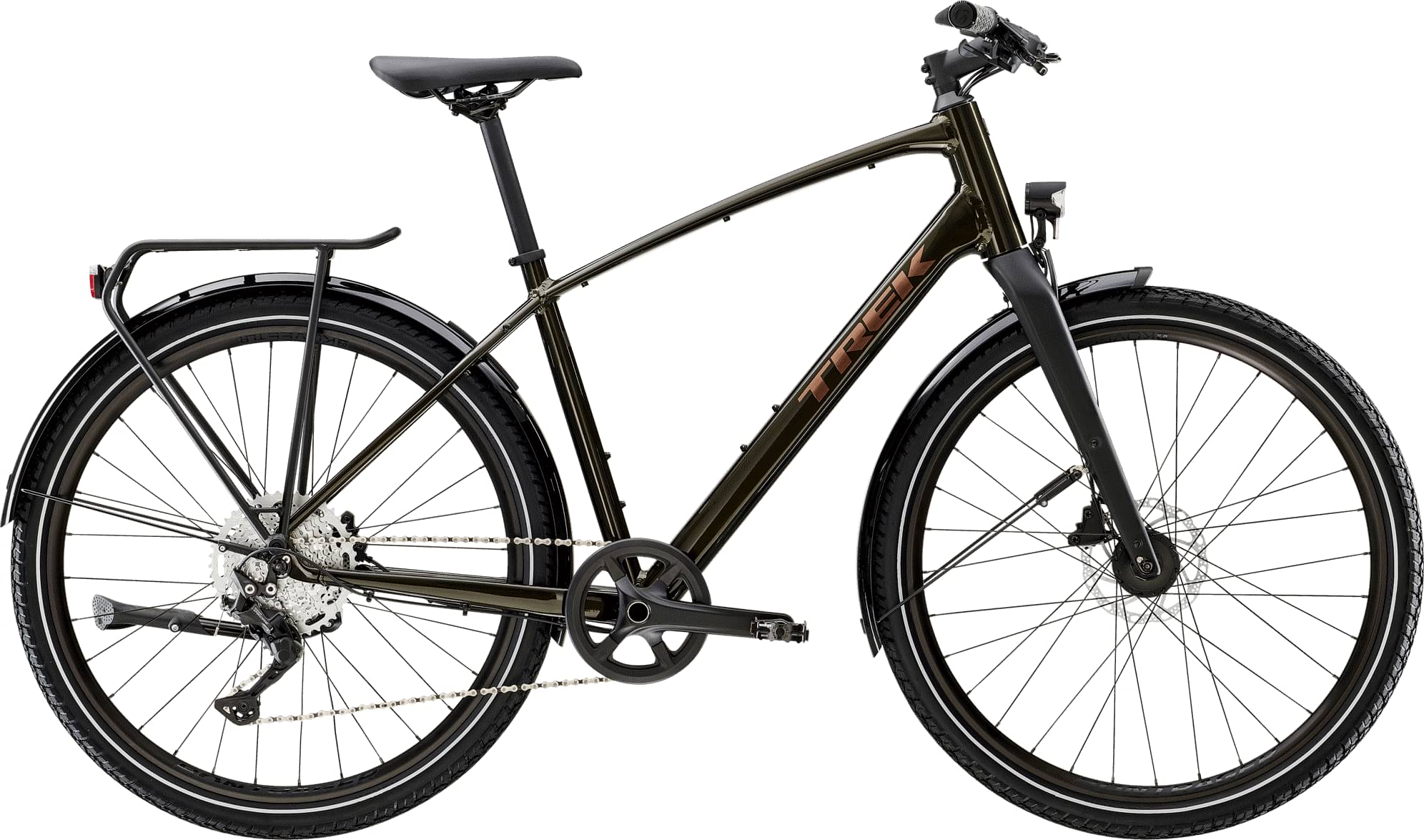

Trek Dual Sport 3 Equipped Gen 5 2023
2023 Urban
Estimate price |
1,375$
Weight | 14.4 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Deore -
Suspension Rigid -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 176cm
LG
174cm - 187cm
XL
185cm - 197cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alpha Gold Aluminium, internal cable routing, rack & mudguard mounts, post mount disc, kickstand mount. 135x5 mm QR
Suspension Fork
Dual Sport carbon, internal brake routing, fender mounts, rack mounts, ThruSkew 5mm QR
Drivetrain
Rear Derailleur
Shimano Deore M5120, long cage
Shift Levers
Shimano Deore M4100, 10-speed
Cassette
Shimano Deore M4100, 11-46, 10-speed
Crank
Size: M, Prowheel alloy, 40T narrow-wide ring, 170 mm length; Size: L, XL, Prowheel alloy, 40T narrow-wide ring, 175 mm length
Chain
KMC X10, 10-speed
Pedals
Wellgo nylon body, alloy cage
Wheels
Front Hub
Dynamo, 6V 3.0 W, 100x5 mm QR
Rear Hub
Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR
Rims
Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23 mm width, Presta valve
Tires
Bontrager GR0 Expert, wire bead, puncture protection, 60 tpi, 650x50c
Brakes
Brakes
Shimano hydraulic disc, MT201 lever, UR300 calliper
Cockpit
Stem
Size: M, L, Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length; Size: XL, Bontrager Elite, 31.8 mm clamp, Blendr-compatible, 7-degree, 110 mm length
Handlebar
Size: M, Bontrager Comp Lowriser, alloy, 31.8 mm, 15 mm rise, 600 mm width; Size: L, XL, Bontrager Comp Lowriser, alloy, 31.8 mm, 15 mm rise, 660 mm width
Grips
Bontrager XR Endurance Elite
Seat
Saddle
Bontrager H1
Seatpost
Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.55 mm | 1.59 mm | 1.62 mm |
| Bottom Bracket Height | 289 mm | 289 mm | 289 mm |
| Front Center | 623 mm | 632 mm | 639 mm |
| Rake | 40 mm | 39 mm | 38 mm |
| Trail | 83 mm | 80 mm | 74 mm |
| Stack | 601 mm | 627 mm | 655 mm |
| Reach | 388 mm | 394 mm | 404 mm |
| Top Tube Length | 568 mm | 588 mm | 618 mm |
| Seat Tube Angle | 73.3 ° | 72.8 ° | 71.8 ° |
| Seat Tube Length | 420 mm | 465 mm | 520 mm |
| Head Tube Angle | 70.3 ° | 70.8 ° | 71.8 ° |
| Head Tube Length | 165 mm | 190 mm | 215 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1066 mm | 1075 mm | 1082 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Standover Height | 764 mm | 803 mm | 846 mm |
| Wheels | 650 | 650 | 650 |
| Rider Min Height | 165 cm | 174 cm | 185 cm |
| Rider Max Height | 176 cm | 187 cm | 197 cm |
About this model
Dual Sport 3 Equipped Gen 5 is part of the Trek Dual Sport model. Trek launched 54 bikes of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Trek Dual Sport 1 Gen 4 2023 is the cheapest bike model and costs 649$. Trek Dual Sport 3 Equipped Gen 5 2023 is the most expensive one and costs 1273$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Commuter bikes
Our math shows that the average cost of a dependable Commuter bike is 762$. However, this doesn’t mean that if you spend less money on a Commuter bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2023 for 1273$. Comparing this to the average Commuter bike price, we see that the price is 67.06% more expensive.
Average weight for Commuter bikes
If we make a quick analysis of the average weight of a Commuter bike, we get 14.29 kg (31.5 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Dual Sport 3 Equipped Gen 5 weighs 14.4 kg (31.75 lbs) and is slightly heavier than the average. In other words, this model is 0.77% heavier than the average Commuter bike.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork material
The fork is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
As for the wheels, Trek Dual Sport 3 Equipped Gen 5 2023, has a aluminum model. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Trek Dual Sport 3 Equipped Gen 5 is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
This bike is available in 3 sizes. They vary from 165 cm – 197 cm (5.41 ft – 6.46 ft). In conclusion, finding one for you shouldn’t be a problem.
