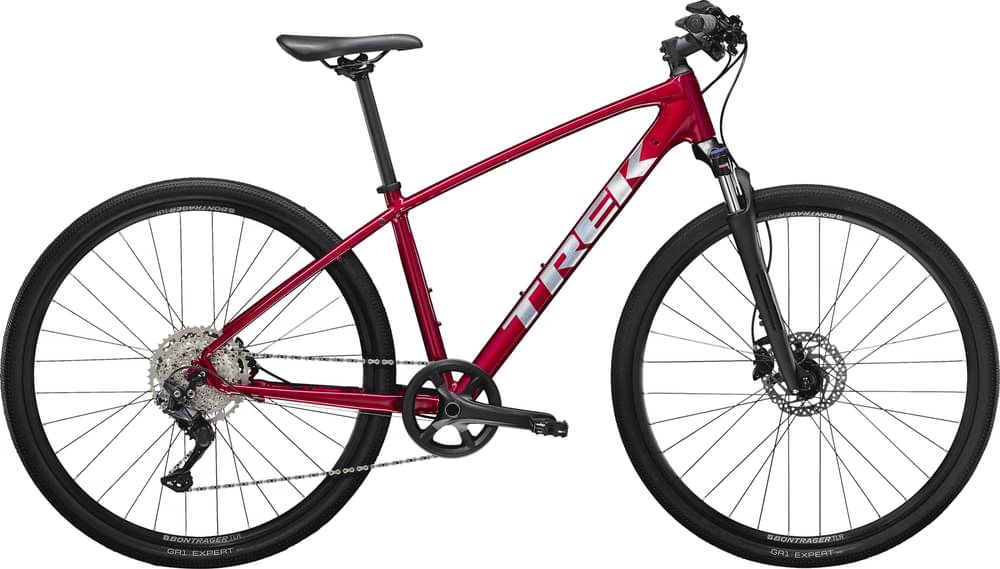

Trek Dual Sport 3 2022
2022 Urban
Estimate price |
949$
Weight | 13.01 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NEX
-
Groupset Deore -
Suspension Hardtail -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
155cm - 166cm
MD
164cm - 176cm
LG
174cm - 187cm
XL
185cm - 197cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alpha Gold Aluminum, DuoTrap S compatible, internal cable routing, rack & fender mounts, post mount disc, kickstand mount, 135x5mm QR
Suspension Fork
SR Suntour NEX, coil spring, preload, hydraulic lockout, 100x5mm QR, 63mm travel
Drivetrain
Rear Derailleur
Shimano Deore M5120, long cage
Shift Levers
Shimano Deore M4100, 10 speed
Cassette
Shimano Deore M4100, 11-46, 10 speed
Crank
Size: S, M, Prowheel alloy, 40T narrow-wide ring, 170mm length; Size: L, XL, Prowheel alloy, 40T narrow-wide ring, 175mm length
Chain
KMC X10, 10 speed
Wheels
Front Hub
Formula DC-20, alloy, 6-bolt, 5x100mm QR
Rear Hub
Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR
Rims
Bontrager Tubeless Ready Disc, 32-hole, presta valve
Spokes
14g stainless steel
Tires
Bontrager GR1 Expert, Hard-Case Lite, wire bead, 60 tpi, 700x40c
Brakes
Brakes
Shimano MT200 hydraulic disc
Disk Rotors
Shimano RT26, 6-bolt,160mm
Cockpit
Stem
Size: S, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length; Size: M, L, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length; Size: XL, Bontrager Elite, 31.8mm clamp, Blendr compatible, 7 degree, 110mm length
Handlebar
Size: S, M, Bontrager Comp Lowriser, alloy, 31.8mm, 15mm rise, 600mm width; Size: L, XL, Bontrager Comp Lowriser, alloy, 31.8mm, 15mm rise, 660mm width
Grips
Bontrager XR Endurance Elite, lock-on, ergonomic
Headset
1-1/8'' threadless, sealed cartridge bearings
Seat
Saddle
Bontrager H1
Seatpost
Bontrager alloy, 27.2mm, 12mm offset, 330mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.46 mm | 1.46 mm | 1.47 mm |
| Bottom Bracket Height | 294 mm | 294 mm | 294 mm | 294 mm |
| Front Center | 643 mm | 647 mm | 652 mm | 657 mm |
| Rake | 33 mm | 38 mm | 33 mm | 30 mm |
| Trail | 85 mm | 82 mm | 82 mm | 75 mm |
| Stack | 593 mm | 604 mm | 614 mm | 637 mm |
| Reach | 408 mm | 414 mm | 421 mm | 432 mm |
| Top Tube Length | 573 mm | 588 mm | 603 mm | 633 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 72.5 ° |
| Seat Tube Length | 381 mm | 445 mm | 508 mm | 571 mm |
| Head Tube Angle | 70 ° | 71 ° | 71 ° | 72 ° |
| Head Tube Length | 115 mm | 125 mm | 135 mm | 155 mm |
| Chainstay Length | 458 mm | 458 mm | 458 mm | 458 mm |
| Wheelbase | 1094 mm | 1098 mm | 1103 mm | 1108 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 665 mm | 763 mm | 806 mm | 848 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 164 cm | 174 cm | 185 cm |
| Rider Max Height | 166 cm | 176 cm | 187 cm | 197 cm |
Model Overview
Dual Sport 3 belongs to the Trek Dual Sport model. 54 bikes variations carry this model name so far. You can easily view all of the Trek Dual Sport bikes models from 2022, here.
Model range prices
Trek Dual Sport 1 2022 is the most economical model, with a starting price of 649$. Trek Dual Sport 3 Equipped Stagger 2022 on the other hand costs 1156$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Commuter bikes
According to our calculations, the average cost of a Commuter bike that is reliable is 762$. However, this doesn’t mean that if you spend less money on a Commuter bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 949$. Comparing this to the average Commuter bike price, we see that the price is 24.54% higher.
Average weight for Commuter bikes
Commuter bikes have an average weight of 14.29 kg (31.5 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Dual Sport 3 weighs 13.01 kg (28.68 lbs) and is a bit lighter than the average. In conclusion, the average Commuter bike weighs 9.84% more than Dual Sport 3.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork
This bike has the SunTour NEX fork installed. The fork’s travel is 63mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
The wheels on Dual Sport 3 are the 700c aluminum type. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
Dual Sport 3 comes in 4 sizes, that range from 155 cm – 197 cm (5.09 ft – 6.46 ft). In short, it won’t be difficult to find the right one for you.
