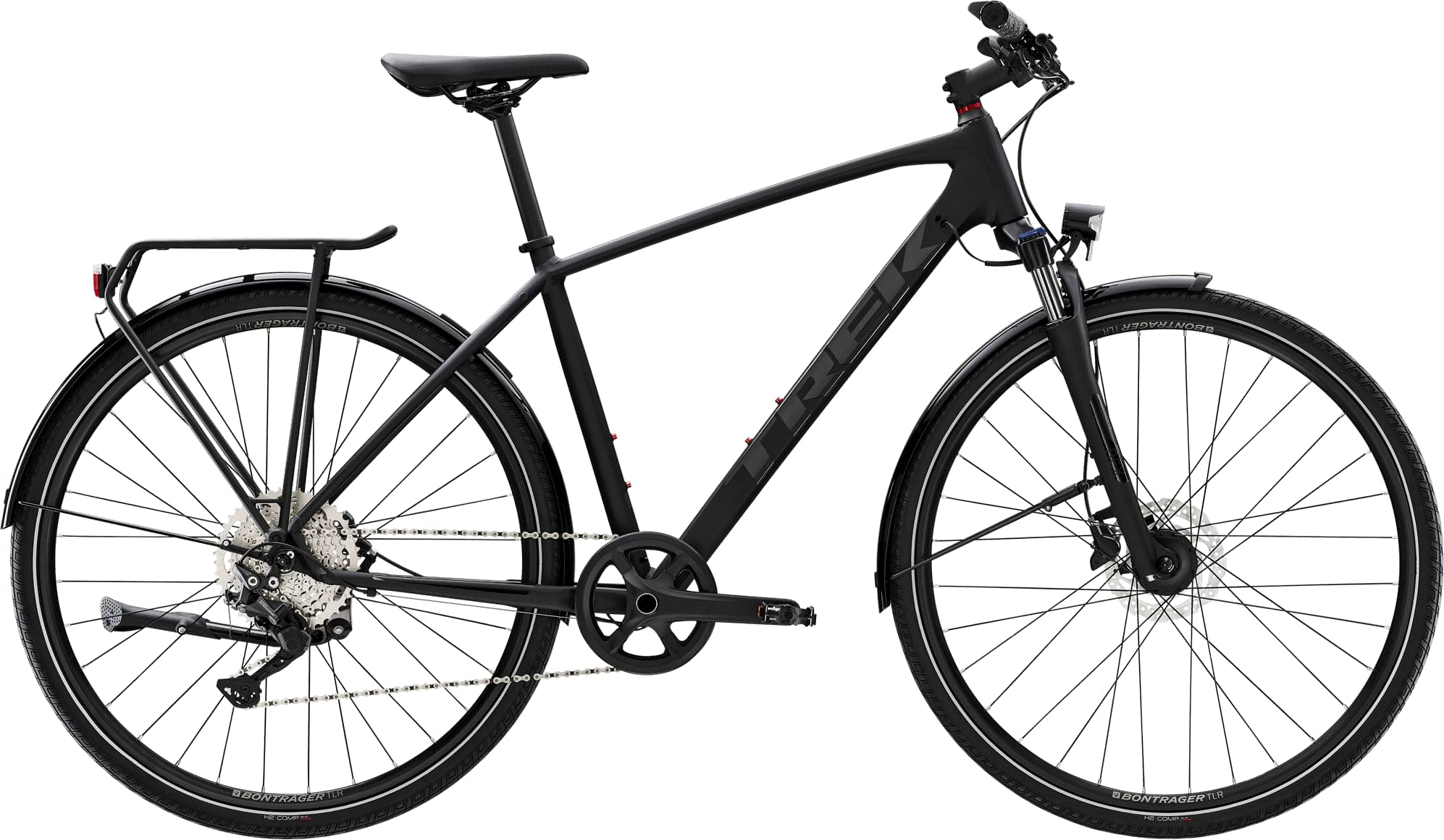

Trek Dual Sport 3 Equipped 2022
2022 Urban
Estimate price |
1,117$
Weight | 15.4 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 700c -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Deore -
Suspension Hardtail -
Drivetrain 1 × 10 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
MD
165cm - 176cm
LG
174cm - 187cm
XL
185cm - 197cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alpha Gold Aluminium, DuoTrap S-compatible, internal cable routing, rack and mudguard mounts, post-mount disc, kickstand mount, 135x5 mm QR
Suspension Fork
SR Suntour NEX, coil spring, preload, hydraulic lockout, 100x5 mm QR, 63 mm travel
Drivetrain
Rear Derailleur
Shimano Deore M5120, long cage
Shift Levers
Shimano Deore M4100, 10 speed
Cassette
Shimano Deore M4100, 11-46, 10-speed
Crank
Size: M, Prowheel alloy, 40T narrow-wide ring, 170 mm length; Size: L, XL, Prowheel alloy, 40T narrow-wide ring, 175 mm length
Chain
KMC X10, 10-speed
Wheels
Front Hub
Shimano 3.0 watt dynamo hub
Rear Hub
Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR
Rims
Bontrager Tubeless Ready Disc, 32-hole, Presta valve
Tires
Bontrager H2 Comp, reflective, wire bead, 30 tpi, 700x40c
Brakes
Brakes
mechanicalDisc
Disk Rotors
Size: M, L, XL, Shimano RT26, 6-bolt,160 mm; Size: M, L, XL, Shimano RT10, CenterLock, 160 mm
Cockpit
Stem
Size: M, L, Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length; Size: XL, Bontrager Elite, 31.8 mm clamp, Blendr-compatible, 7-degree, 110 mm length
Handlebar
Size: M, Bontrager Comp Lowriser, alloy, 31.8 mm, 15 mm rise, 600 mm width; Size: L, XL, Bontrager Comp Lowriser, alloy, 31.8 mm, 15 mm rise, 660 mm width
Grips
Bontrager XR Endurance Elite, lock-on, ergonomic
Seat
Saddle
Bontrager H1
Seatpost
Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.46 mm | 1.48 mm |
| Bottom Bracket Height | 294 mm | 294 mm | 294 mm |
| Front Center | 647 mm | 652 mm | 657 mm |
| Rake | 38 mm | 33 mm | 30 mm |
| Trail | 82 mm | 82 mm | 75 mm |
| Stack | 600 mm | 610 mm | 633 mm |
| Reach | 410 mm | 417 mm | 428 mm |
| Top Tube Length | 584 mm | 599 mm | 629 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 72.5 ° |
| Seat Tube Length | 445 mm | 508 mm | 571 mm |
| Head Tube Angle | 71 ° | 71 ° | 72 ° |
| Head Tube Length | 125 mm | 135 mm | 155 mm |
| Chainstay Length | 454 mm | 454 mm | 454 mm |
| Wheelbase | 1094 mm | 1099 mm | 1104 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Standover Height | 759 mm | 802 mm | 844 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 165 cm | 174 cm | 185 cm |
| Rider Max Height | 176 cm | 187 cm | 197 cm |
About this model
Dual Sport 3 Equipped belongs to the Trek Dual Sport model. There are 54 bikes that carry this model name. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
The most economical model, the Trek Dual Sport 1 2022 has a starting price of 649$. Trek Dual Sport 3 Equipped Stagger 2022 on the other hand is the most expensive at 1156$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Commuter bikes
If you want to purchase a solid Commuter bike, it is important to know that the average cost is 762$. However, you could also get a good Commuter bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2022 for 1034$. If we compare this with the average Commuter bike cost we notice that the price is 35.7% more expensive.
Average weight for Commuter bikes
On a deeper look, we notice that the average weight of a Commuter bike is 14.29 kg (31.5 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Dual Sport 3 Equipped weighs 15.4 kg (33.95 lbs) and is a bit heavier than the average. In short, the average Commuter bike weight is 7.77% lower than this one.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork
Trek Dual Sport 3 Equipped 2022 bike is equipped with the Suntour NEX fork, and has 63mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
The Dual Sport 3 Equipped 2022 bike is equipped with 700c aluminum wheels when leaving the factory. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Trek Dual Sport 3 Equipped has Mechanical Disc brakes installed. They deliver good performance and cost less than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
Sizes
This bike is available in 3 sizes. They vary from 165 cm – 197 cm (5.41 ft – 6.46 ft). In short, you can easily find one that suits you.
