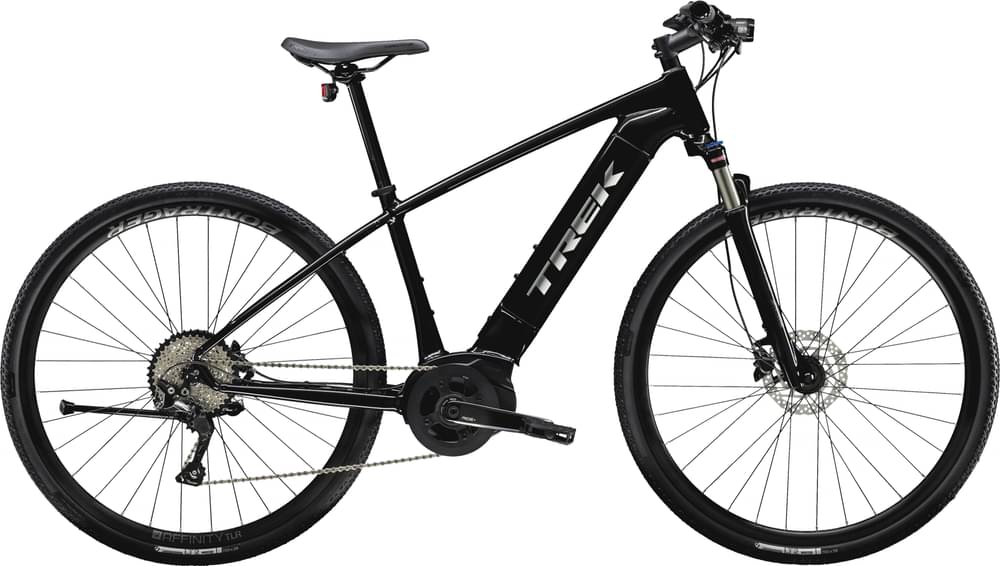

Trek Dual Sport+ 2020
2020 E-bike
Estimate price |
4,013$
Weight | 20.58 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NEX
-
Groupset Deore -
Suspension Hardtail -
Motor Bosch 250W 50Nm mid-drive -
Battery Bosch PowerTube, vertical, 500 wh -
Drivetrain Single Speed -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
155cm - 166cm
MD
164cm - 176cm
LG
174cm - 187cm
XL
185cm - 197cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alpha Gold Aluminium, Removable Integrated Battery (RIB), internal cable routing, rack and mudguard mounts, post-mount disc, kickstand mount, 135x5 mm QR
Suspension Fork
SR Suntour NEX, coil spring, preload, hydraulic lockout, 100x5 mm QR, 63 mm travel
Drivetrain
Rear Derailleur
Shimano Deore M6000, mid cage, 42T max cog
Shift Levers
Shimano Deore M4100, 10 speed
Cassette
Shimano HG500, 10-speed
Crank
ProWheel alloy, 38T steel ring, 170 mm length
Chain
KMC E10S
Wheels
Front Hub
Bontrager alloy, sealed bearing, 6-bolt disc, 100x5 mm QR
Rear Hub
Bontrager alloy, sealed bearing, 6-bolt disc, 135x5 mm QR
Rims
Bontrager Affinity Disc, Tubeless Ready, 32-hole, 21 mm width, presta valve
Spokes
Stainless steel black
Tires
Bontrager LT2 Comp, Hard-Case Lite, wire bead, 60 tpi, 700x38c
Brakes
Brakes
Shimano MT200 hydraulic disc
Disk Rotors
Shimano RT26, 6-bolt,160 mm
Cockpit
Stem
Size: S, Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length; Size: M, L, Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length; Size: XL, Bontrager Elite, 31.8 mm clamp, Blendr-compatible, 7-degree, 110 mm length
Handlebar
Size: S, M, Bontrager alloy, 31.8 mm, 15 mm rise, 600 mm width; Size: L, XL, Bontrager alloy, 31.8 mm, 15 mm rise, 660 mm width
Grips
Bontrager XR Endurance Elite, lock-on, ergonomic
Seat
Saddle
Bontrager Commuter Comp
Seatpost
Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 330 mm length
Motor & Battery
Motor
Bosch Active Line Plus, 250 watt, 50 Nm, 25 km/h (15.5 mph), 32 km/h for New Zealand
Battery
Bosch PowerTube, vertical, 500 wh
Charger
Bosch standard 4A (220-240 V) charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.46 mm | 1.46 mm | 1.47 mm |
| Bottom Bracket Height | 294 mm | 294 mm | 294 mm | 294 mm |
| Front Center | 643 mm | 647 mm | 657 mm | 662 mm |
| Rake | 33 mm | 38 mm | 37 mm | 35 mm |
| Trail | 85 mm | 82 mm | 82 mm | 75 mm |
| Stack | 593 mm | 604 mm | 614 mm | 637 mm |
| Reach | 408 mm | 414 mm | 421 mm | 432 mm |
| Top Tube Length | 573 mm | 588 mm | 603 mm | 633 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 72.5 ° |
| Seat Tube Length | 381 mm | 445 mm | 508 mm | 571 mm |
| Head Tube Angle | 70 ° | 71 ° | 71 ° | 72 ° |
| Head Tube Length | 115 mm | 125 mm | 135 mm | 155 mm |
| Chainstay Length | 453 mm | 453 mm | 453 mm | 453 mm |
| Wheelbase | 1089 mm | 1093 mm | 1103 mm | 1108 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 736 mm | 759 mm | 789 mm | 813 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 164 cm | 174 cm | 185 cm |
| Rider Max Height | 166 cm | 176 cm | 187 cm | 197 cm |
About this model
Dual Sport+ belongs to the Trek E Dual Sport model. Trek launched 7 e-bikes of this model so far. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
Trek Dual Sport+ Women’s 2020 is the most economical model, with a starting price of 3715$. Trek Dual Sport+ 2020 on the other hand costs 3715$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Hybrid e-bikes average price
According to our calculations, the average cost of a Hybrid e-bike that is reliable is 2480$. However, you could also get a good Hybrid e-bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
This e-bike was released in 2020 and its price was 3715$. Comparing this to the average Hybrid e-bike price, we see that the price is 49.8% higher.
Average weight for Hybrid e-bikes
Hybrid e-bikes have an average weight of 23.79 kg (52.45 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Trek Dual Sport+ it’s weighing 20.58 kg (45.37 lbs). At this weight, is much lighter than average. In conclusion, the average Hybrid e-bike weighs 15.6% more than Dual Sport+.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Dual Sport+ components
Fork
Trek Dual Sport+ 2020 e-bike is equipped with the SunTour NEX fork, and has 63mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
The Dual Sport+ 2020 e-bike is equipped with 700c aluminum wheels when leaving the factory. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Trek Dual Sport+ has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
This e-bike is available in 4 sizes. They vary from 155 cm – 197 cm (5.09 ft – 6.46 ft). In conclusion, you won’t have a problem finding one that suits you.
