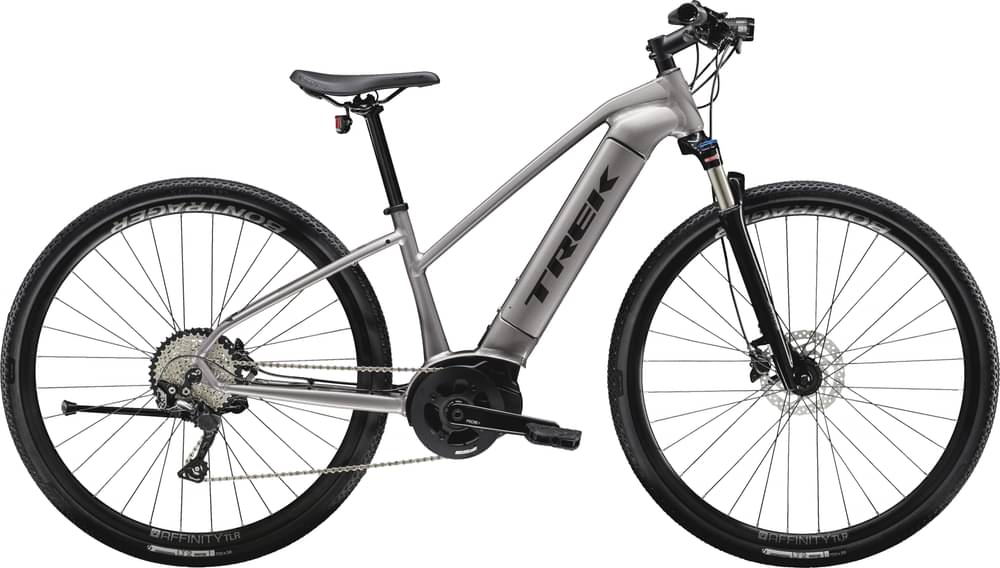

Trek Dual Sport+ Women’s 2020
2020 E-bike
Estimate price |
4,013$
Weight | 20.35 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NEX
-
Groupset Deore -
Suspension Hardtail -
Motor Bosch 250W 50Nm mid-drive -
Battery Bosch PowerTube, vertical, 500 wh -
Drivetrain Single Speed -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
147cm - 156cm
SM
154cm - 166cm
MD
164cm - 175cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alpha Gold Aluminium, Removable Integrated Battery (RIB), internal cable routing, rack and mudguard mounts, post-mount disc, kickstand mount, 135x5 mm QR
Suspension Fork
SR Suntour NEX, coil spring, preload, hydraulic lockout, 100x5 mm QR, 63 mm travel
Drivetrain
Rear Derailleur
Shimano Deore M6000, mid cage, 42T max cog
Shift Levers
Shimano Deore M4100, 10 speed
Cassette
Shimano HG500, 10-speed
Crank
ProWheel alloy, 38T steel ring, 170 mm length
Chain
KMC E10S
Wheels
Front Hub
Bontrager alloy, sealed bearing, 6-bolt disc, 100x5 mm QR
Rear Hub
Bontrager alloy, sealed bearing, 6-bolt disc, 135x5 mm QR
Rims
Bontrager Affinity Disc, Tubeless Ready, 32-hole, 21 mm width, presta valve
Spokes
Stainless steel black
Tires
Bontrager LT2 Comp, Hard-Case Lite, wire bead, 60 tpi, 700x38c
Brakes
Brakes
Shimano MT200 hydraulic disc
Disk Rotors
Shimano RT26, 6-bolt,160 mm
Cockpit
Stem
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length
Handlebar
Bontrager alloy, 31.8 mm, 15 mm rise, 660 mm width
Grips
Bontrager XR Endurance Elite, lock-on, ergonomic
Seat
Saddle
Bontrager Commuter Comp
Seatpost
Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 330 mm length
Motor & Battery
Motor
Bosch Active Line Plus, 250 watt, 50 Nm, 25 km/h (15.5 mph), 32 km/h for New Zealand
Battery
Bosch PowerTube, vertical, 500 wh
Charger
Bosch standard 4A (220-240 V) charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD |
|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.53 mm | 1.54 mm |
| Bottom Bracket Height | 294 mm | 294 mm | 294 mm |
| Front Center | 622 mm | 622 mm | 627 mm |
| Rake | 38 mm | 37 mm | 39 mm |
| Trail | 89 mm | 85 mm | 82 mm |
| Stack | 591 mm | 593 mm | 604 mm |
| Reach | 383 mm | 388 mm | 393 mm |
| Top Tube Length | 548 mm | 558 mm | 573 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° |
| Seat Tube Length | 330 mm | 381 mm | 445 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 71 ° |
| Head Tube Length | 115 mm | 115 mm | 125 mm |
| Chainstay Length | 453 mm | 453 mm | 453 mm |
| Wheelbase | 1068 mm | 1068 mm | 1073 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Standover Height | 692 mm | 714 mm | 743 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 147 cm | 154 cm | 164 cm |
| Rider Max Height | 156 cm | 166 cm | 175 cm |
Model Overview
Dual Sport+ Women’s belongs to the Trek E Dual Sport model. Trek launched 7 e-bikes of this model so far. You can easily view all of the Trek E Dual Sport e-bikes models from 2020, here.
Model range prices
The most economical model, the Trek Dual Sport+ 2020 has a starting price of 3715$. Trek Dual Sport+ Women’s 2020 on the other hand is the most expensive at 3715$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Hybrid e-bikes average price
According to our calculations, the average cost of a Hybrid e-bike that is reliable is 2480$. However, you could also get a good Hybrid e-bike even if you pay a lower amount than the average price. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, Trek Dual Sport+ Women’s price was 3715$. Doing a quick comparison, we notice that Dual Sport+ Women’s price is 49.8% higher than the average cost of a Hybrid e-bike.
Average weight for Hybrid e-bikes
On a deeper look, we notice that the average weight of a Hybrid e-bike is 23.79 kg (52.45 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
much lighter than average, Dual Sport+ Women’s has a weight of 20.35 kg (44.86 lbs). In other words, this model is 16.9% lighter than the average Hybrid e-bike.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork
This e-bike has the SunTour NEX fork installed. The fork’s travel is 63mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
The wheels on Dual Sport+ Women’s are the 700c aluminum type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 147 cm – 175 cm (4.82 ft – 5.74 ft). In conclusion, you won’t have a problem finding one that suits you.
