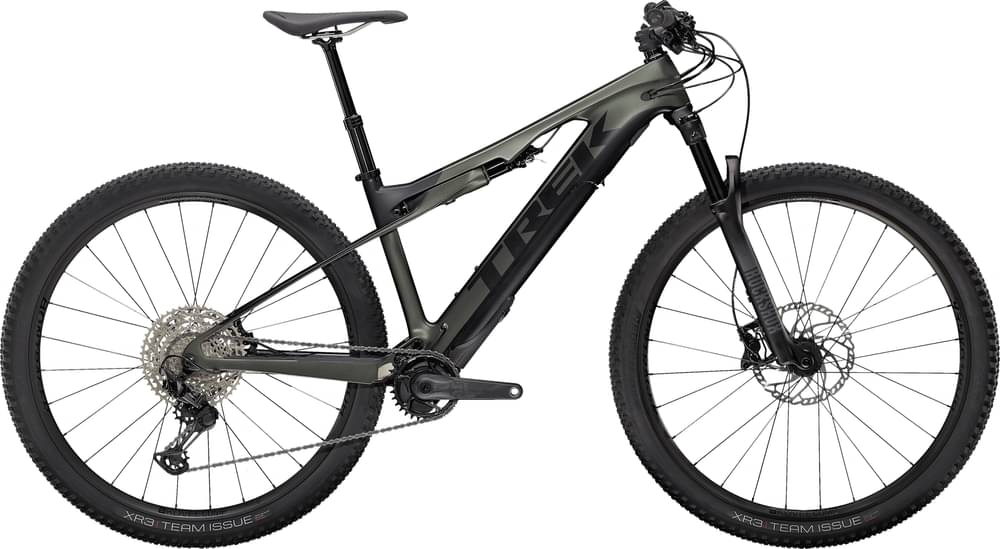

Trek E-Caliber 9.6 2022
2022 E-bike
Estimate price |
8,491$
Weight | 18.48 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 120mm -
Travel Rear 60mm -
Fork RockShox 35 Gold RL
-
Groupset XT, Deore -
Suspension Full -
Motor Fazua 250W 60Nm mid-drive -
Battery Size: S, M, L, XL, Fazua Evation, 250 Wh; Size: S, M, L, XL, Fazua Evation charger, 220-240V -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
153cm - 166cm
MD
161cm - 176cm
LG
173cm - 188cm
XL
186cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
OCLV Mountain Carbon main frame and stays, IsoStrut, tapered head tube, Knock Block, Control Freak internal routing, Boost148, 60 mm travel
Suspension Fork
RockShox 35 Gold RL, DebonAir spring, Motion Control damper, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 120 mm travel
Rear Shock
Trek IsoStrut, Fox Performance shock, air spring, DPS 2-position remote damper, 235x32.5 mm
Drivetrain
Rear Derailleur
Shimano XT M8100, long cage, 51T max cog
Shift Levers
Shimano Deore M6100, 12-speed
Cassette
Shimano Deore M6100, 10-51, 12-speed
Chain
Shimano Deore M6100
Wheels
Front Hub
Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
Rear Hub
Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru axle
Rims
Bontrager Kovee Comp, double-wall, Tubeless Ready, 28-hole, 23 mm width, Presta valve
Tires
Bontrager XR3 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120 tpi, 29x2.40"
Brakes
Brakes
Shimano 4-piston hydraulic disc, MT4100 lever, MT420 calliper
Disk Rotors
Shimano RT66, 6-bolt, 180mm
Cockpit
Stem
Size: S, M, Bontrager Rhythm Comp, 31.8mm, Knock Block, 0-degree, 60 mm length; Size: L, XL, Bontrager Rhythm Comp, 31.8 mm, Knock Block, 0-degree, 70 mm length
Handlebar
Size: S, Bontrager Comp, alloy, 31.8 mm, 5 mm rise, 720 mm width; Size: M, L, XL, Bontrager Comp, alloy, 31.8 mm, 15 mm rise, 750 mm width
Grips
Bontrager XR Trail Comp, nylon lock-on
Seat
Saddle
Bontrager Arvada, hollow chromoly rails, 138 mm width
Seatpost
Size: S, TranzX JD-YSP18, 100 mm travel, internal routing, 31.6 mm, 361 mm length; Size: M, L, XL, TranzX JD-YSP18, 130mm travel, internal routing, 31.6 mm, 425 mm length
Motor & Battery
Motor
Size: S, M, L, XL, Fazua Evation, 250 Wh; Size: S, M, L, XL, Fazua Evation charger, 220-240V
Battery
Size: S, M, L, XL, Fazua Evation, 250 Wh; Size: S, M, L, XL, Fazua Evation charger, 220-240V
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.41 mm | 1.33 mm | 1.28 mm |
| Bottom Bracket Height | 323 mm | 323 mm | 323 mm | 323 mm |
| Front Center | 684 mm | 723 mm | 754 mm | 776 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 109 mm | 109 mm | 109 mm | 109 mm |
| Stack | 603 mm | 612 mm | 616 mm | 621 mm |
| Reach | 399 mm | 434 mm | 464 mm | 484 mm |
| Top Tube Length | 574 mm | 611 mm | 642 mm | 664 mm |
| Seat Tube Angle | 72.3 ° | 72.6 ° | 72.8 ° | 72.8 ° |
| Seat Tube Length | 394 mm | 419 mm | 470 mm | 508 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 90 mm | 100 mm | 105 mm | 110 mm |
| Chainstay Length | 441 mm | 441 mm | 441 mm | 441 mm |
| Wheelbase | 1120 mm | 1159 mm | 1191 mm | 1213 mm |
| Bottom Bracket Drop | 50 mm | 50 mm | 50 mm | 50 mm |
| Standover Height | 762 mm | 762 mm | 762 mm | 762 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 153 cm | 161 cm | 173 cm | 186 cm |
| Rider Max Height | 166 cm | 176 cm | 188 cm | 196 cm |
About this model
E-Caliber 9.6 is a Trek E E Caliber model. Trek launched 26 e-bikes of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
Trek E-Caliber 9.6 Gen 2 2022 is the most economical model, with a starting price of 6649$. Trek E-Caliber 9.9 XX1 AXS 2022 on the other hand costs 13908$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Crosscountry e-bikes
If you want an acceptable Crosscountry e-bike you should know that the average price is 2453$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
When Trek released this model in 2022, its price was 7750$. If we compare this with the average Crosscountry e-bike cost we notice that the price is 215.94% higher.
Crosscountry e-bikes average weight
If we make a quick analysis of the average weight of a Crosscountry e-bike, we get 23.21 kg (51.17 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
much lighter than average, E-Caliber 9.6 has a weight of 18.48 kg (40.74 lbs). To sum up, it’s 25.6% lighter than the average weight of Crosscountry e-bikes.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
E-Caliber 9.6 components
Fork
The RockShox 35 Gold RL is included from the factory. It has a travel distance of 120mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
The E-Caliber 9.6 has a rear shock with a travel of 60mm. The model Trek IsoStrut is the one installed in this e-bike. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
The wheels on E-Caliber 9.6 are the 29″ aluminum type. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
Trek E-Caliber 9.6 e-bike has 4 sizes, in the range of 153 cm – 196 cm (5.02 ft – 6.43 ft). In short, you can easily find one that suits you.
Dropper post
Trek E-Caliber 9.6 comes with a dropper post. Therefore, climbing or descending will be a breeze.
