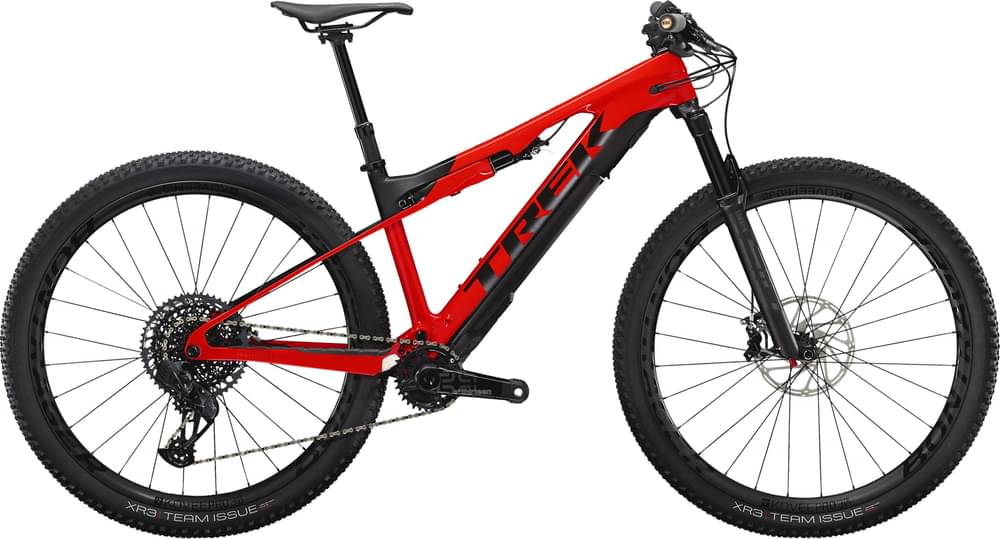

Trek E-Caliber 9.8 GX AXS 2022
2022 E-bike
Estimate price |
11,283$
Weight | 17.47 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 120mm -
Travel Rear 60mm -
Fork RockShox SID Select
-
Groupset GX Eagle AXS, e*thirteen -
Suspension Full -
Motor Fazua 250W 60Nm mid-drive -
Battery Size: S, M, L, XL, Fazua Evation, 250 Wh; Size: S, M, L, XL, Fazua Evation charger, 220-240V -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
153cm - 166cm
MD
161cm - 176cm
LG
173cm - 188cm
XL
186cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
OCLV Mountain Carbon main frame and stays, IsoStrut, tapered head tube, Knock Block, Control Freak internal routing, Boost148, 60 mm travel
Suspension Fork
RockShox SID Select+, DebonAir spring, Charger 2 RL damper, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 120 mm travel
Rear Shock
Trek IsoStrut, Fox Performance shock, air spring, DPS 2-position remote damper, 235x32.5 mm
Drivetrain
Rear Derailleur
SRAM GX Eagle AXS
Shift Levers
SRAM GX Eagle AXS, 12-speed
Cassette
SRAM Eagle XG-1275, 10-52, 12-speed
Crank
Size: S, M, E*thirteen E*spec Race Carbon, 32T, 170 mm length; Size: L, XL, E*thirteen E*spec Race Carbon, 32T, 175 mm length
Chain
SRAM GX Eagle, 12-speed
Wheels
Rims
Bontrager Kovee Pro 30 carbon, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle
Tires
Bontrager XR3 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120 tpi, 29x2.40"
Brakes
Brakes
SRAM G2 RSC hydraulic disc
Disk Rotors
Size: S, M, L, XL, SRAM CenterLine, 6-bolt, round edge, 180 mm; Size: S, M, L, XL, SRAM CenterLine, 6-bolt, round edge, 200 mm
Cockpit
Stem
Size: S, M, Bontrager Kovee Pro, 35 mm, Knock Block, Blendr-compatible, 13-degree, 60 mm length; Size: L, XL, Bontrager Kovee Pro, 35 mm, Knock Block, Blendr-compatible, 13-degree, 70 mm length
Handlebar
Bontrager Line Pro, OCLV Carbon, 35 mm, 15 mm rise, 750 mm width
Grips
ESI Chunky
Seat
Saddle
Bontrager P3 Verse Elite, stainless steel rails, 145 mm width
Seatpost
Size: S, Bontrager Line Elite Dropper, 100 mm travel, MaxFlow, internal routing, 31.6 mm, 340 mm length; Size: M, L, XL, Bontrager Line Elite Dropper, 150 mm travel, MaxFlow, internal routing, 31.6 mm, 440 mm length
Motor & Battery
Motor
Size: S, M, L, XL, Fazua Evation, 250 Wh; Size: S, M, L, XL, Fazua Evation charger, 220-240V
Battery
Size: S, M, L, XL, Fazua Evation, 250 Wh; Size: S, M, L, XL, Fazua Evation charger, 220-240V
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.41 mm | 1.33 mm | 1.28 mm |
| Bottom Bracket Height | 323 mm | 323 mm | 323 mm | 323 mm |
| Front Center | 684 mm | 723 mm | 754 mm | 776 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 109 mm | 109 mm | 109 mm | 109 mm |
| Stack | 603 mm | 612 mm | 616 mm | 621 mm |
| Reach | 399 mm | 434 mm | 464 mm | 484 mm |
| Top Tube Length | 574 mm | 611 mm | 642 mm | 664 mm |
| Seat Tube Angle | 72.3 ° | 72.6 ° | 72.8 ° | 72.8 ° |
| Seat Tube Length | 394 mm | 419 mm | 470 mm | 508 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 90 mm | 100 mm | 105 mm | 110 mm |
| Chainstay Length | 441 mm | 441 mm | 441 mm | 441 mm |
| Wheelbase | 1120 mm | 1159 mm | 1191 mm | 1213 mm |
| Bottom Bracket Drop | 50 mm | 50 mm | 50 mm | 50 mm |
| Standover Height | 762 mm | 762 mm | 762 mm | 762 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 153 cm | 161 cm | 173 cm | 186 cm |
| Rider Max Height | 166 cm | 176 cm | 188 cm | 196 cm |
Model Overview
E-Caliber 9.8 GX AXS belongs to the Trek E E Caliber model. 26 e-bikes variations carry this model name so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
The most economical model, the Trek E-Caliber 9.6 Gen 2 2022 has a starting price of 6649$. Trek E-Caliber 9.9 XX1 AXS 2022 on the other hand is the most expensive at 13908$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Crosscountry e-bikes average price
Our math shows that the average cost of a dependable Crosscountry e-bike is 2453$. However, you could also get a good Crosscountry e-bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2022 for 10298$. Comparing the average cost of a Crosscountry e-bike to this one, you will see that E-Caliber 9.8 GX AXS price is 319.81% more expensive.
Average weight for Crosscountry e-bikes
Crosscountry e-bikes weigh an average of 23.21 kg (51.17 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Weighing 17.47 kg (38.51 lbs), the E-Caliber 9.8 GX AXS model is much lighter than average. In short, the average Crosscountry e-bike weight is 32.86% higher than this one.
Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork
Trek E-Caliber 9.8 GX AXS 2022 e-bike is equipped with the RockShox SID Select fork, and has 120mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
From the factory, it comes with the Trek IsoStrut rear shock model, which has a travel of 60mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
The wheels on E-Caliber 9.8 GX AXS are the 29″ carbon type. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Nothing is more important on a bike than its ability to brake properly. Trek E-Caliber 9.8 GX AXS is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
This e-bike is available in 4 sizes. They vary from 153 cm – 196 cm (5.02 ft – 6.43 ft). In short, you can easily find one that suits you.
Dropper post
Every bike should have a dropper post, and this one does. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
