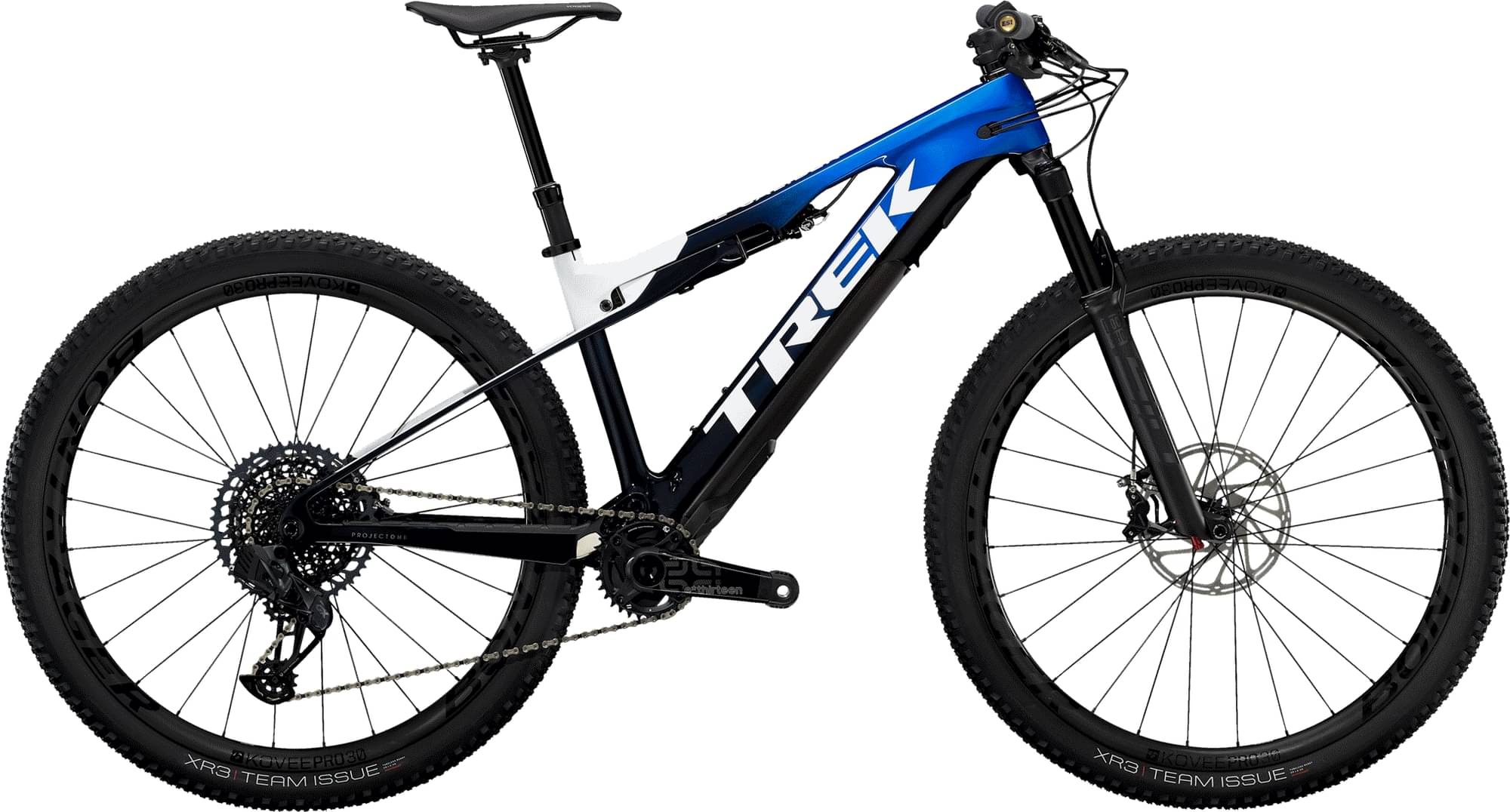

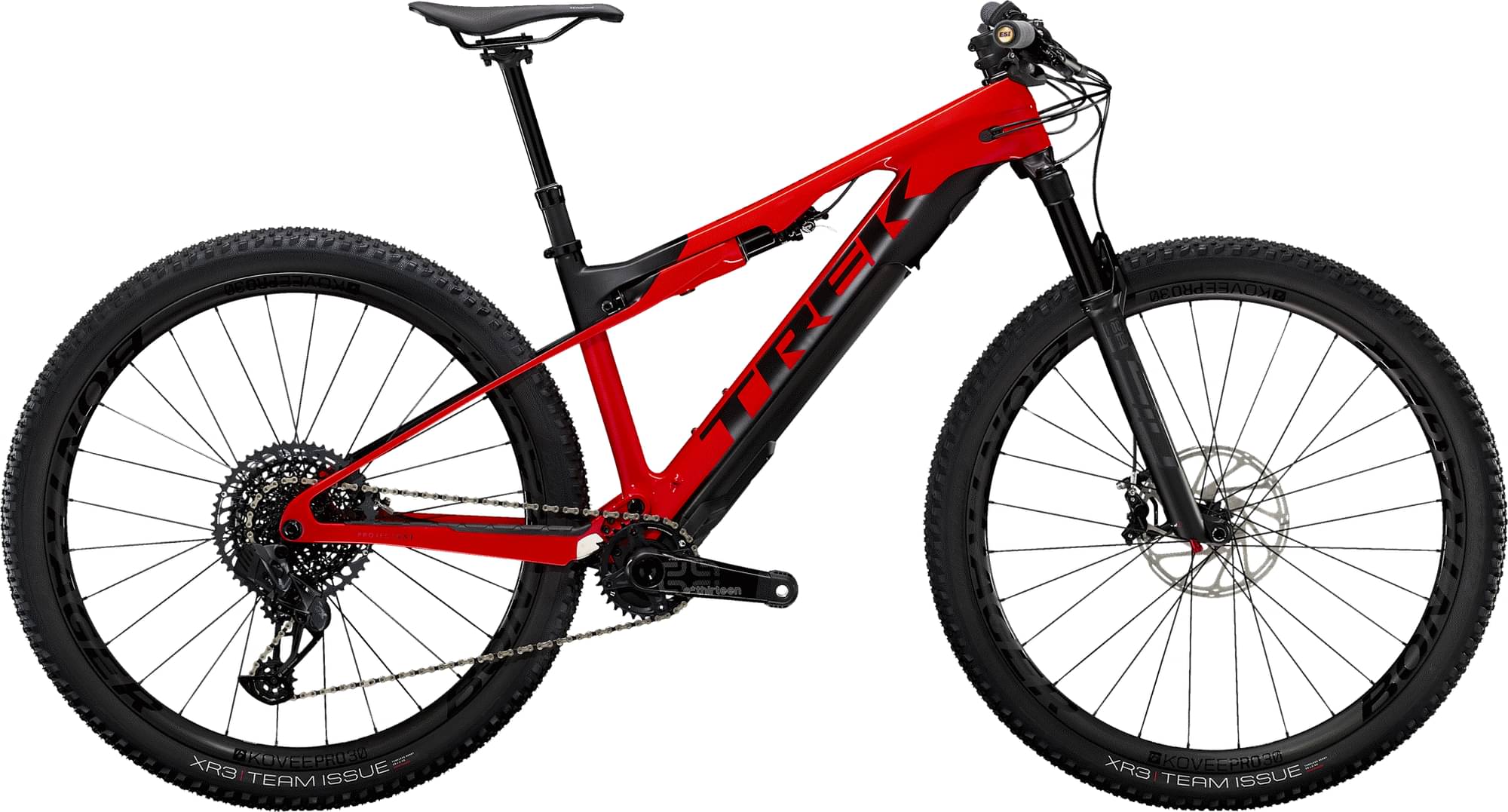

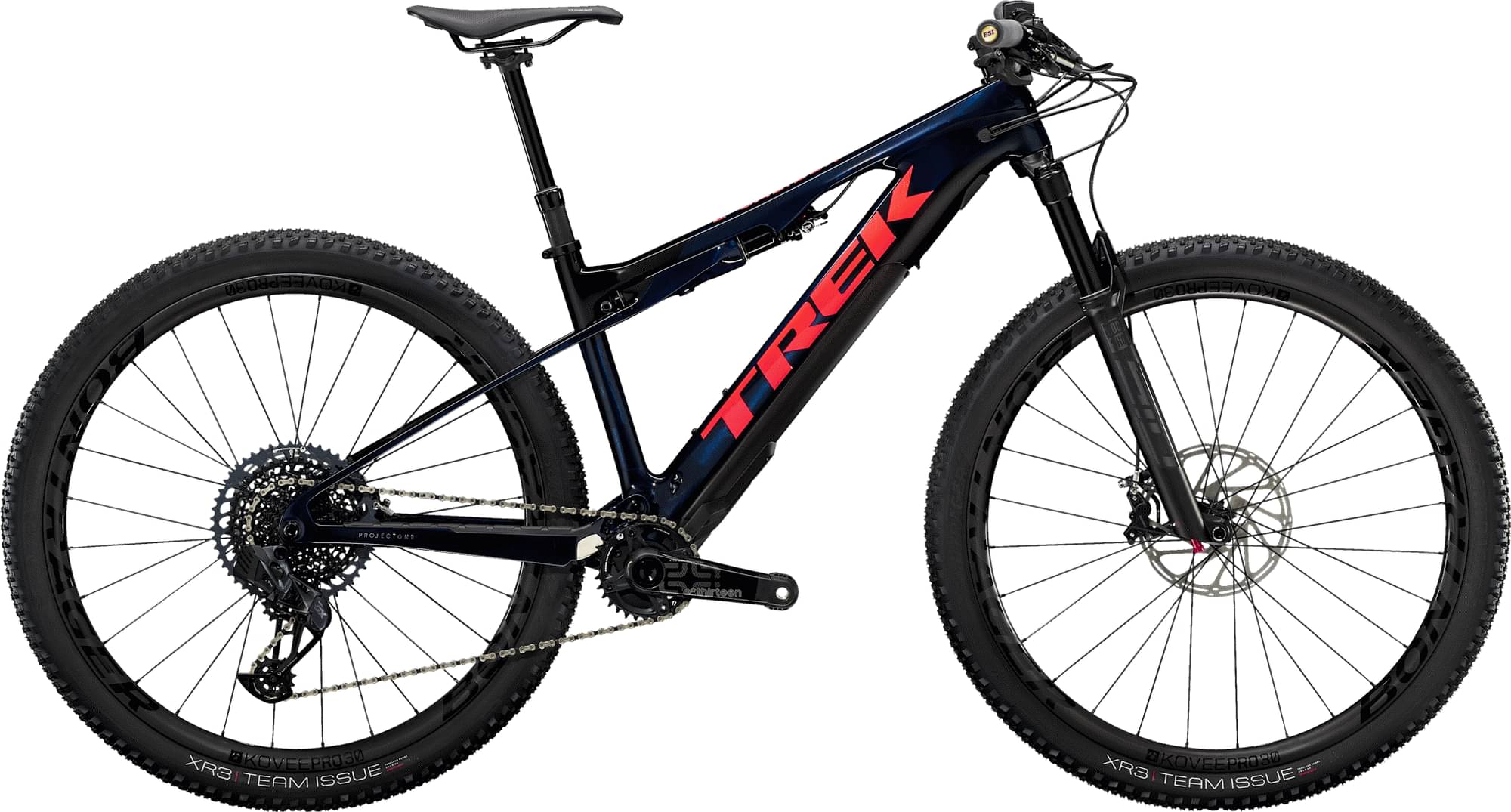

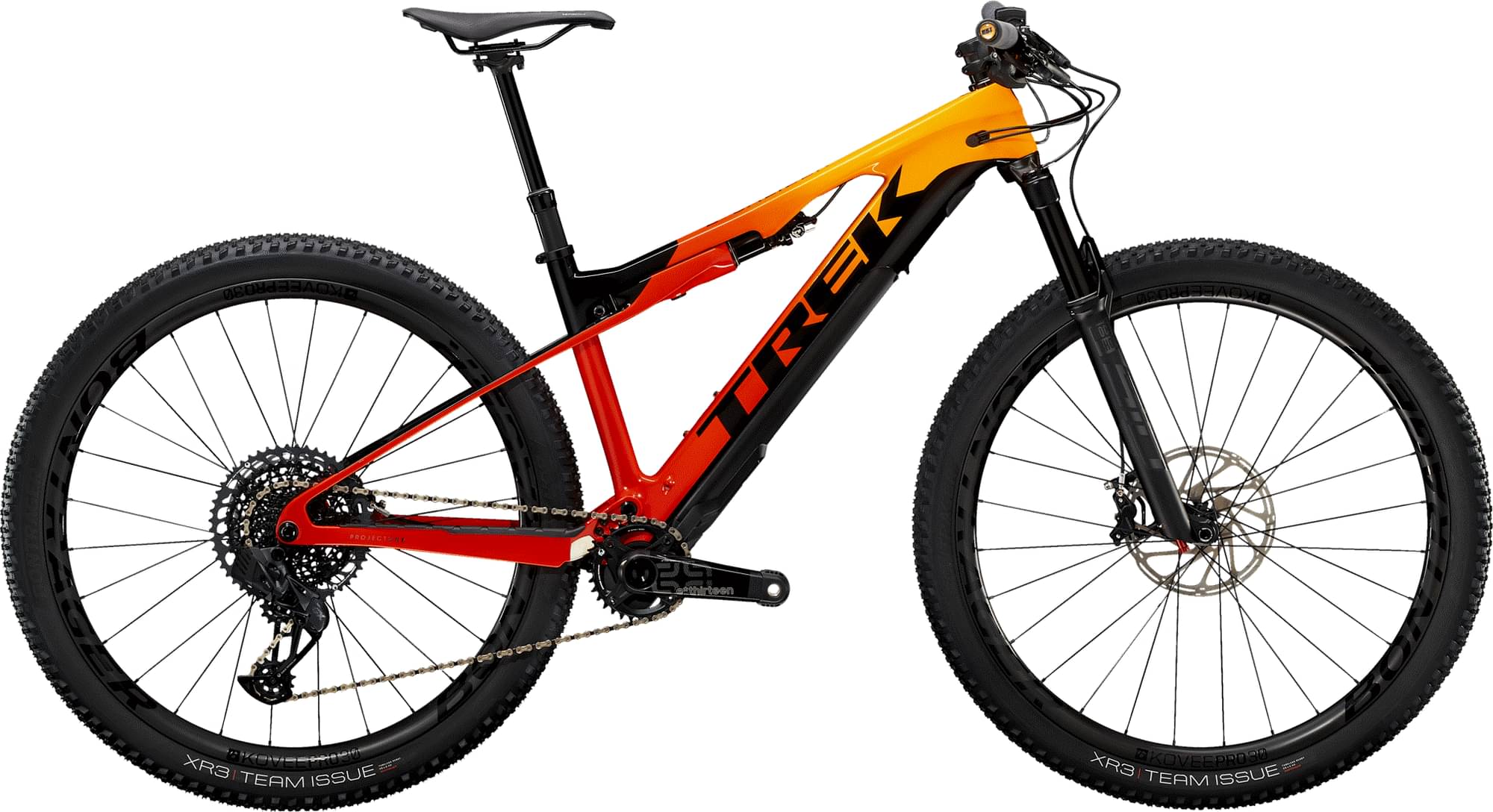

Trek E-Caliber 9.8 GX AXS Gen 2 2022
2022 E-bike
Estimate price |
10,199$
Weight | 17.47 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 120mm -
Travel Rear 60mm -
Fork RockShox SID Select+
-
Groupset GX Eagle AXS, e*thirteen -
Suspension Full -
Motor Fazua mid-drive -
Battery Fazua Evation battery, 250Wh -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
155cm - 166cm
MD
164cm - 178cm
LG
175cm - 189cm
XL
187cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
OCLV Mountain Carbon main frame & stays, IsoStrut, tapered head tube, Knock Block, Control Freak internal routing, Boost148, 60mm travel
Suspension Fork
RockShox SID Select+, DebonAir spring, Charger 2 RL damper, tapered steerer, 44mm offset, Boost110, 15mm Maxle Stealth, 120mm travel
Rear Shock
Size: S, Trek IsoStrut, Fox Performance shock, air spring, DPS 2-position remote damper, 235x32.5mm; Size: M, L, XL, Trek IsoStrut, Fox Performance shock, air spring, DPS 2-position remote damper, 235mm x 32.5mm
Drivetrain
Rear Derailleur
SRAM GX Eagle AXS
Shift Levers
SRAM GX Eagle AXS, 12 speed
Cassette
SRAM Eagle XG-1275, 10-52, 12 speed
Crank
E*thirteen E*spec Race Carbon, 32T, 175mm length
Chain
SRAM GX Eagle, 12 speed
Wheels
Rims
Front: Bontrager Kovee Pro 30 carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, Rear: Bontrager Kovee Pro 30 carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD driver, Boost148, 12mm thru axle
Tires
Bontrager XR3 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120tpi, 29x2.40''
Brakes
Brakes
SRAM G2 RSC 4-piston hydraulic disc
Cockpit
Stem
Size: S, M, Bontrager Kovee Pro, 35mm, Knock Block, Blendr compatible, 13 degree, 60mm length; Size: L, XL, Bontrager Kovee Pro, 35mm, Knock Block, Blendr compatible, 13 degree, 70mm length
Handlebar
Bontrager Line Pro, OCLV Carbon, 35mm, 15mm rise, 750mm width
Grips
ESI Chunky
Headset
Knock Block Integrated, 62-degree radius, cartridge bearing, 1-1/8'' top, 1.5'' bottom
Seat
Saddle
Bontrager Verse Elite, austenite rails, 145mm width
Seatpost
Size: S, Bontrager Line Elite Dropper, 100mm travel, MaxFlow, internal routing, 31.6mm, 340mm length; Size: M, L, XL, Bontrager Line Elite Dropper, 150mm travel, MaxFlow, internal routing, 31.6mm, 440mm length
Motor & Battery
Motor
Fazua Ride Trail 50 motor
Battery
Fazua Evation battery, 250Wh
Charger
Fazua Evation charger, 90-120V
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.41 mm | 1.33 mm | 1.28 mm |
| Bottom Bracket Height | 323 mm | 323 mm | 323 mm | 323 mm |
| Front Center | 684 mm | 723 mm | 754 mm | 776 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 109 mm | 109 mm | 109 mm | 109 mm |
| Stack | 603 mm | 612 mm | 616 mm | 621 mm |
| Reach | 399 mm | 434 mm | 464 mm | 484 mm |
| Top Tube Length | 574 mm | 611 mm | 642 mm | 664 mm |
| Seat Tube Angle | 72.3 ° | 72.6 ° | 72.8 ° | 72.8 ° |
| Seat Tube Length | 394 mm | 419 mm | 470 mm | 508 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 90 mm | 100 mm | 105 mm | 110 mm |
| Chainstay Length | 441 mm | 441 mm | 441 mm | 441 mm |
| Wheelbase | 1120 mm | 1159 mm | 1191 mm | 1213 mm |
| Bottom Bracket Drop | 50 mm | 50 mm | 50 mm | 50 mm |
| Standover Height | 762 mm | 762 mm | 762 mm | 762 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 155 cm | 164 cm | 175 cm | 187 cm |
| Rider Max Height | 166 cm | 178 cm | 189 cm | 195 cm |
Model Overview
E-Caliber 9.8 GX AXS Gen 2 belongs to the Trek E E Caliber model. Trek released 26 e-bikes variations of this model so far. You can easily view all of the Trek E E Caliber e-bikes models from 2022, here.
Model range prices
The most economical model, the Trek E-Caliber 9.6 Gen 2 2022 has a starting price of 6649$. Trek E-Caliber 9.9 XX1 AXS 2022 on the other hand is the most expensive at 13908$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Crosscountry e-bikes average price
According to our math, the average price for a trustworthy Crosscountry e-bike is 2453$. However, even though the average price of a Crosscountry e-bike is lower, you might still be able to get a top-quality e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 10199$. In conclusion, this e-bike price is 315.78% more expensive than the price of the average Crosscountry e-bike.
Crosscountry e-bikes average weight
The average weight for Crosscountry e-bikes is 23.21 kg (51.17 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
With a weight of 17.47 kg (38.51 lbs), Trek e-bike is much lighter than average. In conclusion, the average Crosscountry e-bike weighs 32.86% more than E-Caliber 9.8 GX AXS Gen 2.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
E-Caliber 9.8 GX AXS Gen 2 components
Fork
Trek E-Caliber 9.8 GX AXS Gen 2 2022 e-bike is equipped with the RockShox SID Select+ fork, and has 120mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
The shock that’s installed on this e-bike is Size: S, with a travel distance of 60mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
The E-Caliber 9.8 GX AXS Gen 2 2022 e-bike is equipped with 29″ carbon wheels when leaving the factory. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, these wheels are not ideal for smaller people.
Brakes
Nothing is more important on a bike than its ability to brake properly. Trek E-Caliber 9.8 GX AXS Gen 2 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
E-Caliber 9.8 GX AXS Gen 2 comes in 4 sizes, that range from 155 cm – 195 cm (5.09 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Every bike should have a dropper post, and this one does. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
