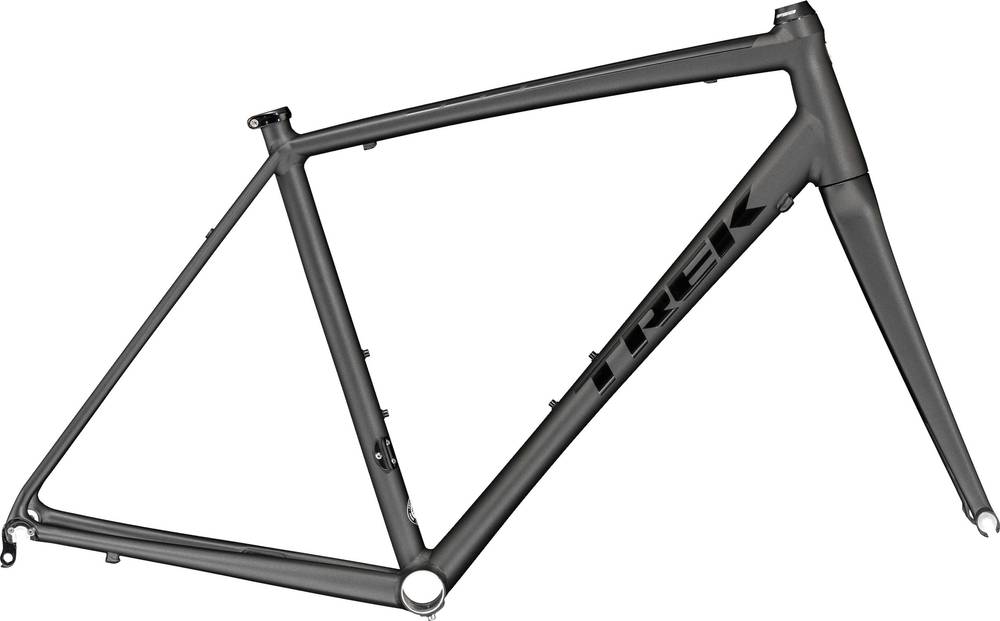

Trek Émonda ALR Frameset 2017
2017 Road
Estimate price |
989$
Weight | 1.78 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Aluminum -
Wheels 700c -
Suspension Rigid
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Ultralight 300 Series Alpha Aluminum, Invisible Weld Technology, DuoTrap S compatible, E2 tapered head tube, BB86.5
Suspension Fork
Émonda full carbon, carbon E2 tapered steerer
Drivetrain
Bottom Bracket
BB86/BB92, 86.5mm, press-fit
Cockpit
Headset
Integrated, cartridge bearing, sealed, 1-1/8" top, 1.5" bottom
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 50cm | 52cm | 60cm | 62cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.42 mm | 1.44 mm | 1.55 mm | 1.58 mm |
| Bottom Bracket Height | 264 mm | 264 mm | 264 mm | 268 mm | 268 mm |
| Front Center | 575 mm | 575 mm | 578 mm | 600 mm | 607 mm |
| Rake | 46 mm | 45 mm | 45 mm | 41 mm | 41 mm |
| Trail | 67 mm | 61 mm | 57 mm | 56 mm | 55 mm |
| Stack | 529 mm | 542 mm | 554 mm | 622 mm | 641 mm |
| Reach | 376 mm | 381 mm | 386 mm | 402 mm | 405 mm |
| Top Tube Length | 520 mm | 528 mm | 541 mm | 593 mm | 605 mm |
| Seat Tube Angle | 74.6 ° | 74.6 ° | 74.2 ° | 72.8 ° | 72.5 ° |
| Seat Tube Length | 424 mm | 456 mm | 473 mm | 553 mm | 573 mm |
| Head Tube Angle | 71.2 ° | 72.1 ° | 72.8 ° | 73.9 ° | 73.9 ° |
| Head Tube Length | 115 mm | 130 mm | 140 mm | 210 mm | 230 mm |
| Chainstay Length | 417 mm | 417 mm | 417 mm | 418 mm | 419 mm |
| Wheelbase | 981 mm | 981 mm | 984 mm | 1008 mm | 1017 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 68 mm | 68 mm |
| Standover Height | 705 mm | 714 mm | 736 mm | 811 mm | 829 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
About this model
Émonda ALR Frameset is part of the Trek Emonda model. Trek launched 251 frames of this model so far. You can easily view all of the Trek Emonda frames models from 2017, here.
Model range prices
The most economical model, the Trek Émonda ALR Frameset 2017 has a starting price of 989$. Trek Émonda SLR Race Shop Limited Frameset 2017 on the other hand is the most expensive at 3999$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Race frames
According to our math, the average price for a trustworthy Race frame is 2445$. However, even if your budget is less than the average, you might still be able to get a top-quality Race frame. As a general rule of thumb, you should always read reviews about the frame and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 989$. In conclusion, this frame price is 147.22% lower than the price of the average Race frame.
Average weight for Race frames
On a deeper look, we notice that the average weight of a Race frame is 1.41 kg (3.11 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Weighing 1.78 kg (3.92 lbs), the Émonda ALR Frameset model is much heavier than average. To sum up, it’s 26.24% heavier than the average weight of Race frames.
Émonda ALR Frameset components
Fork material
Émonda ALR Frameset has a carbon fork, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
