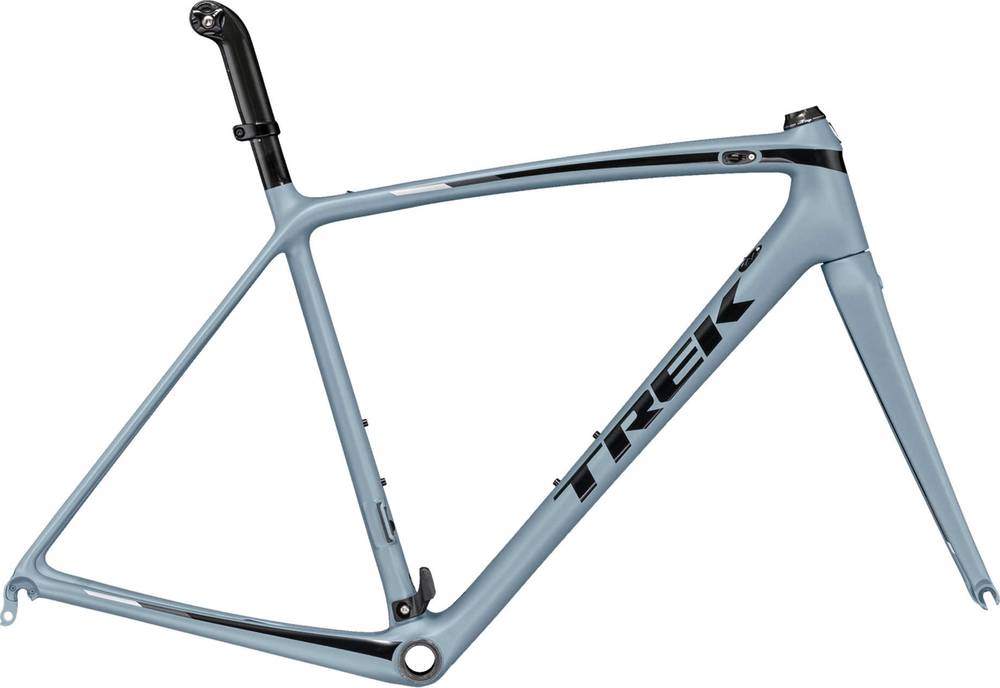

Trek Émonda SLR Race Shop Limited Frameset 2017
2017 Road
Estimate price |
3,999$
Weight | 1.33 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 700c -
Suspension Rigid
Sizing
Recommended size guide.
50cm
157cm - 164cm
52cm
161cm - 169cm
56cm
172cm - 181cm
58cm
178cm - 186cm
60cm
183cm - 191cm
62cm
188cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Ultralight 700 Series OCLV Carbon, ride-tuned performance tube optimization, E2 tapered head tube, BB90, internal cable routing, DuoTrap S compatible, Ride Tuned seatmast
Suspension Fork
Émonda full carbon, carbon E2 tapered steerer, carbon dropouts
Drivetrain
Bottom Bracket
BB90, 90.5mm, press-fit
Cockpit
Headset
Cane Creek IS-8 carbon, integrated, stainless sealed cartridge bearings, 1-1/8 top, 1.5" bottom
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 52cm | 56cm | 58cm | 60cm | 62cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.32 mm | 1.33 mm | 1.39 mm | 1.42 mm | 1.45 mm | 1.49 mm |
| Bottom Bracket Height | 264 mm | 264 mm | 266 mm | 268 mm | 268 mm | 268 mm |
| Front Center | 575 mm | 578 mm | 583 mm | 591 mm | 600 mm | 607 mm |
| Rake | 45 mm | 45 mm | 40 mm | 40 mm | 40 mm | 40 mm |
| Trail | 61 mm | 57 mm | 58 mm | 56 mm | 56 mm | 55 mm |
| Stack | 508 mm | 520 mm | 551 mm | 569 mm | 588 mm | 608 mm |
| Reach | 385 mm | 390 mm | 397 mm | 402 mm | 406 mm | 409 mm |
| Top Tube Length | 524 mm | 537 mm | 562 mm | 575 mm | 588 mm | 600 mm |
| Seat Tube Angle | 74.6 ° | 74.2 ° | 73.3 ° | 73 ° | 72.8 ° | 72.5 ° |
| Seat Tube Length | 453 mm | 482 mm | 525 mm | 553 mm | 573 mm | 593 mm |
| Head Tube Angle | 72.1 ° | 72.8 ° | 73.5 ° | 73.8 ° | 73.9 ° | 73.9 ° |
| Head Tube Length | 100 mm | 110 mm | 140 mm | 160 mm | 180 mm | 200 mm |
| Chainstay Length | 412 mm | 412 mm | 412 mm | 413 mm | 413 mm | 414 mm |
| Wheelbase | 976 mm | 979 mm | 985 mm | 994 mm | 1003 mm | 1012 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 70 mm | 68 mm | 68 mm | 68 mm |
| Standover Height | 698 mm | 722 mm | 760 mm | 785 mm | 803 mm | 822 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 161 cm | 172 cm | 178 cm | 183 cm | 188 cm |
| Rider Max Height | 164 cm | 169 cm | 181 cm | 186 cm | 191 cm | 195 cm |
Model Overview
Émonda SLR Race Shop Limited Frameset belongs to the Trek Emonda model. 251 frames variations carry this model name so far. Check out the entire range from 2017 of this model, by clicking this link.
Model range prices
The most economical model, the Trek Émonda ALR Frameset 2017 has a starting price of 989$. Trek Émonda SLR Race Shop Limited Frameset 2017 on the other hand is the most expensive at 3999$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Race frames
If you want to purchase a solid Race frame, it is important to know that the average cost is 2445$. However, this doesn’t mean that if you spend less money on a Race frame, you couldn’t get a decent one. To sum up, when you purchase your frame, make sure to check if it has reviews, and also do some components research.
When Trek released this model in 2017, its price was 3999$. Comparing this to the average Race frame price, we see that the price is 63.56% more expensive.
Race frames average weight
Race frames have an average weight of 1.41 kg (3.11 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Weighing 1.33 kg (2.93 lbs), the Émonda SLR Race Shop Limited Frameset model is a bit lighter than average. In conclusion, the average Race frame weighs 6.02% more than Émonda SLR Race Shop Limited Frameset.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Émonda SLR Race Shop Limited Frameset components
Fork material
The fork is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Sizes
Émonda SLR Race Shop Limited Frameset comes in 6 sizes, that range from 157 cm – 195 cm (5.15 ft – 6.4 ft). In short, you can easily find one that suits you.
