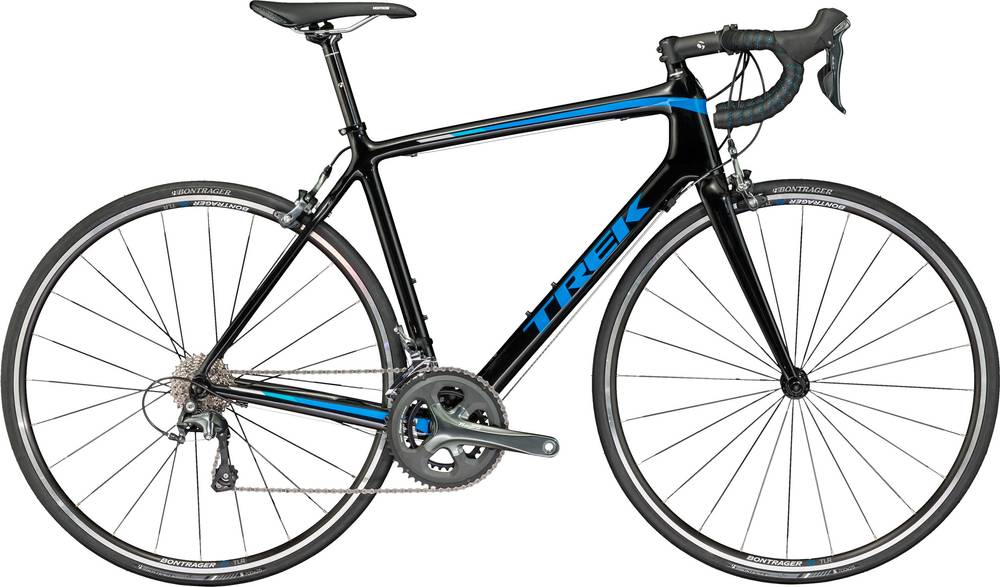

Trek Émonda S 4 2017
2017 Road
Estimate price |
1,579$
Weight | 8.96 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Tiagra -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Ultralight 300 Series OCLV Carbon, ride-tuned performance tube optimization, E2 tapered head tube, BB86.5, DuoTrap compatible
Suspension Fork
Émonda carbon, E2 tapered steerer
Drivetrain
Rear Derailleur
Shimano Tiagra
Front Derailleur
Shimano Tiagra
Shift Levers
Shimano Tiagra, 10 speed
Cassette
Shimano Tiagra, 11-28, 10 speed
Crank
Shimano Tiagra, 50/34 (compact)
Bottom Bracket
Press Fit
Chain
Shimano Tiagra
Wheels
Front Hub
Alloy
Rear Hub
Alloy
Rims
Bontrager Tubeless Ready
Tires
Bontrager R1 Hard-Case Lite, 700x25c
Brakes
Brakes
Shimano Tiagra
Cockpit
Stem
Bontrager Elite, 31.8mm, 7 degree, w/computer & light mounts
Handlebar
Bontrager Race VR-C, 31.8mm
Grips
Bontrager Microfiber tape
Headset
Integrated, cartridge bearing, sealed, 1-1/8" top, 1.5" bottom
Seat
Saddle
Bontrager Montrose Comp
Seatpost
Bontrager alloy, 2-bolt head, 27.2mm, 8mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 44cm | 47cm | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm | 62cm |
|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.43 mm | 1.44 mm | 1.45 mm | 1.47 mm | 1.5 mm | 1.54 mm | 1.57 mm | 1.61 mm |
| Bottom Bracket Height | 264 mm | 264 mm | 264 mm | 264 mm | 266 mm | 266 mm | 268 mm | 268 mm | 268 mm |
| Front Center | 572 mm | 575 mm | 575 mm | 578 mm | 581 mm | 583 mm | 591 mm | 600 mm | 607 mm |
| Rake | 50 mm | 46 mm | 45 mm | 45 mm | 46 mm | 40 mm | 41 mm | 41 mm | 41 mm |
| Trail | 68 mm | 67 mm | 61 mm | 57 mm | 56 mm | 58 mm | 56 mm | 56 mm | 55 mm |
| Stack | 490 mm | 513 mm | 526 mm | 538 mm | 546 mm | 568 mm | 587 mm | 606 mm | 625 mm |
| Reach | 353 mm | 360 mm | 365 mm | 370 mm | 372 mm | 378 mm | 382 mm | 386 mm | 389 mm |
| Top Tube Length | 490 mm | 504 mm | 512 mm | 525 mm | 534 mm | 551 mm | 564 mm | 577 mm | 589 mm |
| Seat Tube Angle | 74.6 ° | 74.6 ° | 74.6 ° | 74.2 ° | 73.7 ° | 73.3 ° | 73 ° | 72.8 ° | 72.5 ° |
| Seat Tube Length | 408 mm | 444 mm | 476 mm | 493 mm | 506 mm | 533 mm | 553 mm | 573 mm | 593 mm |
| Head Tube Angle | 70.4 ° | 71.2 ° | 72.1 ° | 72.8 ° | 73 ° | 73.5 ° | 73.8 ° | 73.9 ° | 73.9 ° |
| Head Tube Length | 100 mm | 115 mm | 130 mm | 140 mm | 155 mm | 170 mm | 190 mm | 210 mm | 230 mm |
| Chainstay Length | 401 mm | 401 mm | 401 mm | 401 mm | 401 mm | 401 mm | 402 mm | 402 mm | 403 mm |
| Wheelbase | 962 mm | 965 mm | 965 mm | 968 mm | 972 mm | 974 mm | 983 mm | 992 mm | 1001 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 72 mm | 70 mm | 70 mm | 68 mm | 68 mm | 68 mm |
| Standover Height | 673 mm | 689 mm | 698 mm | 720 mm | 733 mm | 758 mm | 777 mm | 795 mm | 813 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview
Émonda S 4 is a Trek Emonda model. There are 251 bikes that carry this model name. You can easily view all of the Trek Emonda bikes models from 2017, here.
Model range prices
The most economical model, the Trek Émonda 650 2017 has a starting price of 1099$. Trek Émonda SLR 10 2017 on the other hand is the most expensive at 14999$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Race bikes
According to our math, the average price for a trustworthy Race bike is 3350$. However, even though the average price of a Race bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2017 for 1579$. If we compare this with the average Race bike cost we notice that the price is 112.16% lower.
Average weight for Race bikes
The average weight for Race bikes is 6.82 kg (15.04 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
With a weight of 8.96 kg (19.75 lbs), Trek bike is much heavier than average. To sum up, it’s 31.38% heavier than the average weight of Race bikes.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
The wheels on Émonda S 4 are the 700c aluminum type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Trek Émonda S 4 is equipped with Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, they have problems in wet conditions.
