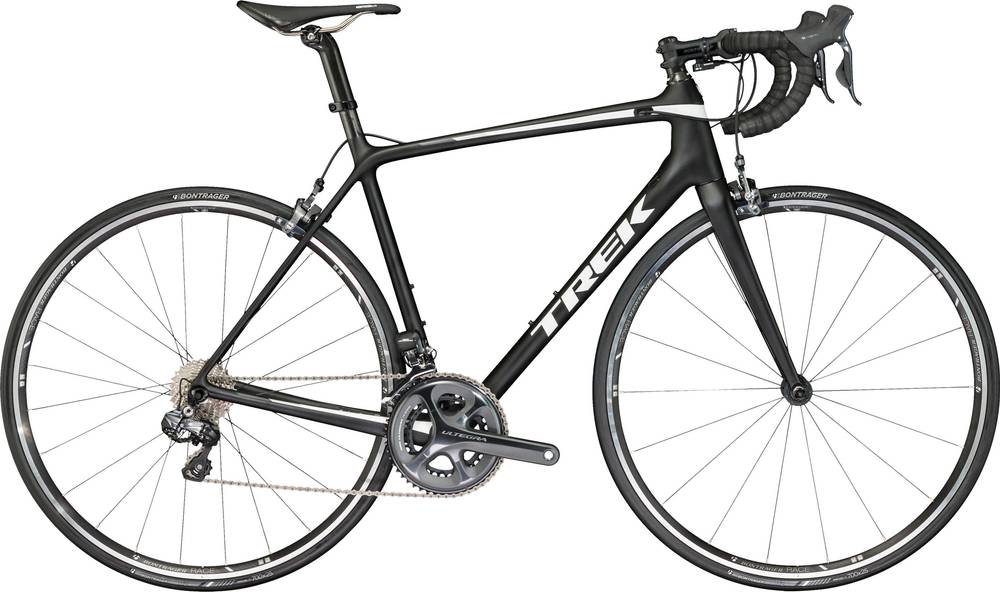

Trek Émonda SL 7 2017
2017 Road
Estimate price |
3,699$
Weight | 7.41 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra Di2 -
Suspension Rigid -
Drivetrain 2 × 11 Electronic -
Brakes Rim
Sizing
Recommended size guide.
50cm
157cm - 164cm
52cm
161cm - 169cm
54cm
166cm - 175cm
56cm
172cm - 181cm
58cm
178cm - 186cm
60cm
183cm - 191cm
62cm
188cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Ultralight 500 Series OCLV Carbon, ride-tuned performance tube optimization, E2 tapered head tube, BB90, internal cable routing, DuoTrap S compatible, Ride Tuned seatmast
Suspension Fork
Émonda full carbon, carbon E2 tapered steerer
Drivetrain
Rear Derailleur
Shimano Ultegra Di2
Front Derailleur
Shimano Ultegra Di2, braze-on
Shift Levers
Shimano Ultegra Di2, 11 speed
Cassette
Shimano Ultegra, 11-28, 11 speed
Crank
Shimano Ultegra, 50/34 (compact)
Bottom Bracket
BB90
Chain
Shimano Ultegra
Wheels
Rims
Bontrager Race Tubeless Ready
Tires
Bontrager R2 Hard-Case Lite, aramid bead, 700x25c
Brakes
Brakes
Shimano Ultegra
Cockpit
Stem
Bontrager Pro, 31.8mm, 7 degree, w/computer & light mounts
Handlebar
Bontrager Elite VR-C, 31.8mm
Grips
Bontrager gel cork tape
Headset
Integrated, cartridge bearing, sealed, 1-1/8" top, 1.5" bottom
Seat
Saddle
Bontrager Montrose Comp, titanium rails
Seatpost
Bontrager Ride Tuned carbon seatmast cap, 20mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm | 62cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.45 mm | 1.47 mm | 1.5 mm | 1.54 mm | 1.57 mm | 1.61 mm |
| Bottom Bracket Height | 264 mm | 264 mm | 266 mm | 266 mm | 268 mm | 268 mm | 268 mm |
| Front Center | 575 mm | 578 mm | 581 mm | 583 mm | 591 mm | 600 mm | 607 mm |
| Rake | 45 mm | 45 mm | 46 mm | 40 mm | 41 mm | 41 mm | 41 mm |
| Trail | 61 mm | 57 mm | 56 mm | 58 mm | 56 mm | 56 mm | 55 mm |
| Stack | 526 mm | 538 mm | 546 mm | 568 mm | 587 mm | 606 mm | 625 mm |
| Reach | 365 mm | 370 mm | 372 mm | 378 mm | 382 mm | 386 mm | 389 mm |
| Top Tube Length | 512 mm | 525 mm | 534 mm | 551 mm | 564 mm | 577 mm | 589 mm |
| Seat Tube Angle | 74.6 ° | 74.2 ° | 73.7 ° | 73.3 ° | 73 ° | 72.8 ° | 72.5 ° |
| Seat Tube Length | 476 mm | 493 mm | 506 mm | 533 mm | 553 mm | 573 mm | 593 mm |
| Head Tube Angle | 72.1 ° | 72.8 ° | 73 ° | 73.5 ° | 73.8 ° | 73.9 ° | 73.9 ° |
| Head Tube Length | 130 mm | 140 mm | 155 mm | 170 mm | 190 mm | 210 mm | 230 mm |
| Chainstay Length | 401 mm | 401 mm | 401 mm | 401 mm | 402 mm | 402 mm | 403 mm |
| Wheelbase | 965 mm | 968 mm | 972 mm | 974 mm | 983 mm | 992 mm | 1001 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 70 mm | 70 mm | 68 mm | 68 mm | 68 mm |
| Standover Height | 698 mm | 720 mm | 733 mm | 758 mm | 777 mm | 795 mm | 813 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 161 cm | 166 cm | 172 cm | 178 cm | 183 cm | 188 cm |
| Rider Max Height | 164 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm | 195 cm |
About this model
Émonda SL 7 is a Trek Emonda model. Trek launched 251 bikes of this model so far. You can get a glimpse at all models from 2017, by clicking on this link.
Model range prices
Trek Émonda 650 2017 is the most affordable bike of this model and has a price of 1099$. On the other hand, Trek Émonda SLR 10 2017, is the most expensive and costs 14999$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Race bikes average price
Our math shows that the average cost of a dependable Race bike is 3350$. However, this doesn’t mean that if you spend less money on a Race bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3699$. Comparing this to the average Race bike price, we see that the price is 10.42% more expensive.
Average weight for Race bikes
If we make a quick analysis of the average weight of a Race bike, we get 6.82 kg (15.04 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Weighing 7.41 kg (16.34 lbs), the Émonda SL 7 model is a bit heavier than average. In conclusion, the average Race bike weighs 8.65% less than Émonda SL 7.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork material
The fork is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
When leaving the production line, the Émonda SL 7 model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Trek Émonda SL 7 has Rim brakes installed. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, you could spend a little extra and get a bike that has hydraulic brakes.
Sizes
This bike is available in 7 sizes. They vary from 157 cm – 195 cm (5.15 ft – 6.4 ft). In conclusion, finding one for you shouldn’t be a problem.
