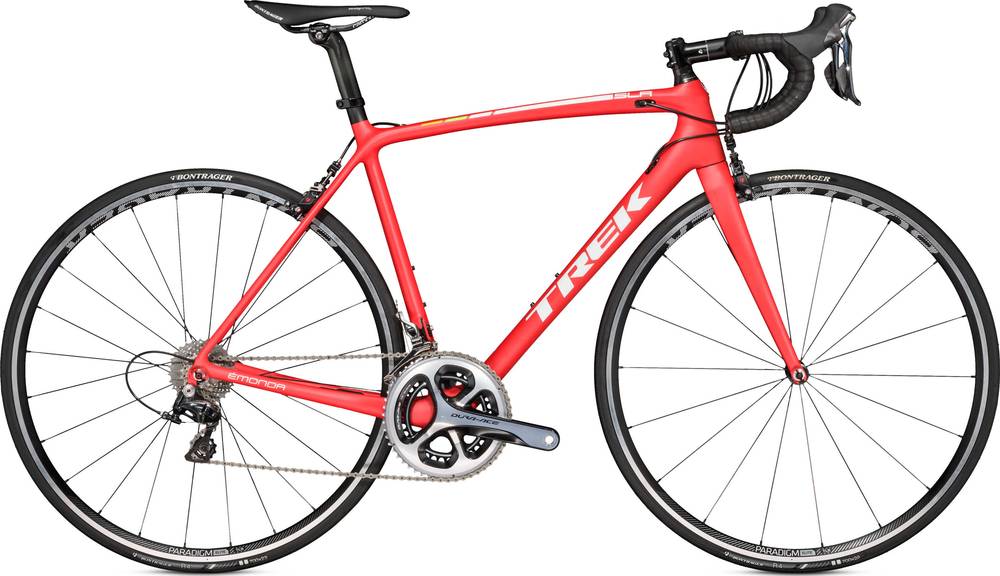

Trek Émonda SLR 8 (H1 fit) 2017
2017 Road
Estimate price |
7,499$
Weight | 6.28 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Dura-Ace -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Ultralight 700 Series OCLV Carbon, ride-tuned performance tube optimization, E2 tapered head tube, BB90, internal cable routing, DuoTrap S compatible, Ride Tuned seatmast
Suspension Fork
Émonda full carbon, carbon E2 asymmetric steerer, carbon dropouts
Drivetrain
Rear Derailleur
Shimano Dura-Ace
Front Derailleur
Shimano Dura-Ace, braze-on
Shift Levers
Shimano Dura-Ace, 11 speed
Cassette
Shimano Dura-Ace, 11-28, 11 speed
Crank
Shimano Dura-Ace, 53/39 (double)
Bottom Bracket
BB90
Chain
Shimano Dura-Ace
Wheels
Rims
Bontrager Paradigm Elite Tubeless Ready
Tires
Bontrager R4 Hard-Case Lite, 220tpi, aramid bead, 700x23c
Brakes
Brakes
Bontrager Speed Stop, direct mount
Cockpit
Stem
Bontrager Race X Lite, 31.8mm, 7 degree
Handlebar
Bontrager XXX, OCLV carbon, VR-C, 31.8mm
Grips
Bontrager gel cork tape
Headset
Cane Creek IS-8 integrated, stainless cartridge bearings, sealed, alloy, 1-1/8" top, 1.5" bottom
Seat
Saddle
Bontrager Paradigm RXL, carbon rails
Seatpost
Bontrager Ride Tuned carbon seatmast cap, 20mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 52cm | 54cm | 58cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.32 mm | 1.33 mm | 1.35 mm | 1.42 mm |
| Bottom Bracket Height | 264 mm | 264 mm | 266 mm | 268 mm |
| Front Center | 575 mm | 578 mm | 581 mm | 591 mm |
| Rake | 45 mm | 45 mm | 46 mm | 40 mm |
| Trail | 61 mm | 57 mm | 56 mm | 56 mm |
| Stack | 508 mm | 520 mm | 528 mm | 569 mm |
| Reach | 385 mm | 390 mm | 392 mm | 402 mm |
| Top Tube Length | 524 mm | 537 mm | 546 mm | 575 mm |
| Seat Tube Angle | 74.6 ° | 74.2 ° | 73.7 ° | 73 ° |
| Seat Tube Length | 453 mm | 482 mm | 496 mm | 553 mm |
| Head Tube Angle | 72.1 ° | 72.8 ° | 73 ° | 73.8 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 160 mm |
| Chainstay Length | 412 mm | 412 mm | 412 mm | 413 mm |
| Wheelbase | 976 mm | 979 mm | 983 mm | 994 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 70 mm | 68 mm |
| Standover Height | 698 mm | 722 mm | 735 mm | 785 mm |
| Wheels | 700 | 700 | 700 | 700 |
Model Overview
Émonda SLR 8 (H1 fit) belongs to the Trek Emonda model. Trek released 251 bikes variations of this model so far. You can easily view all of the Trek Emonda bikes models from 2017, here.
Model range prices
Trek Émonda 650 2017 is the cheapest bike model and costs 1099$. Trek Émonda SLR 10 2017 is the most expensive one and costs 14999$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Race bikes
Our math shows that the average cost of a dependable Race bike is 3350$. However, even if your budget is less than the average, you might still be able to get a top-quality Race bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 7499$. Doing a quick comparison, we notice that Émonda SLR 8 (H1 fit) price is 123.85% more expensive than the average cost of a Race bike.
Race bikes average weight
The average weight for Race bikes is 6.82 kg (15.04 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Émonda SLR 8 (H1 fit) weighs 6.28 kg (13.85 lbs) and is a bit lighter than the average. In short, the average Race bike weight is 8.6% higher than this one.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork material
The fork is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
As for the wheels, Trek Émonda SLR 8 (H1 fit) 2017, has a 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The Émonda SLR 8 (H1 fit) has Rim brakes. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, they are not nearly as effective as hydraulic brakes are.
