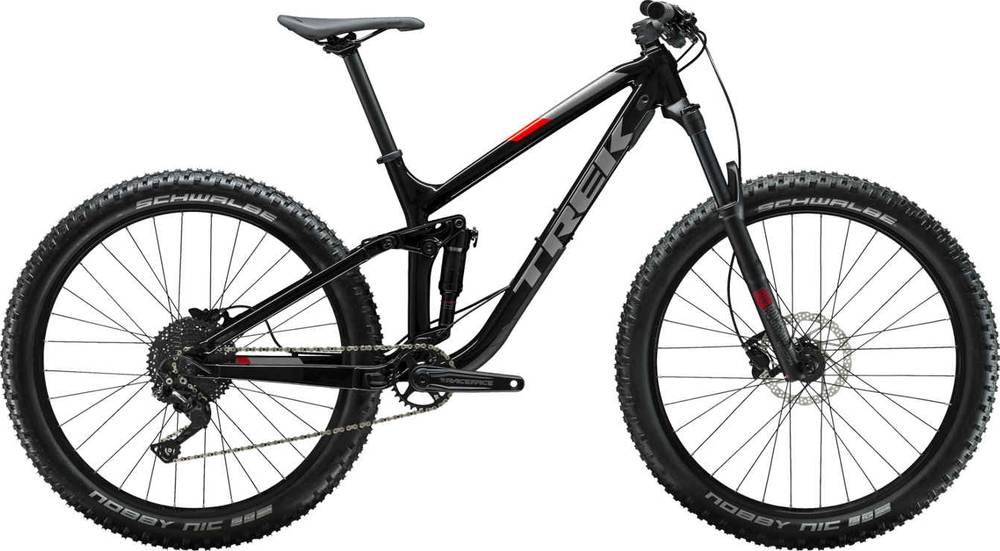

Trek Fuel EX 5 Plus 2019
2019 Mountain
Estimate price |
2,249$
Weight | 15.1 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 140mm -
Travel Rear 130mm -
Fork RockShox Recon Silver RL
-
Groupset Deore, Race Face -
Suspension Full -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alpha Platinum Aluminum, ABP, Boost148, Knock Block steerer stop, Full Floater, EVO link, tapered head tube, Mino Link, Control Freak internal routing, down tube guard, PF92, ISCG 05, G2 Geometry, 130mm travel
Suspension Fork
RockShox Recon RL, Solo Air spring, Motion Control damper, tapered steerer, G2 Geometry w/51mm offset, Boost110, 140mm travel
Rear Shock
RockShox Deluxe RL, 210mm x 52.5mm
Drivetrain
Rear Derailleur
Shimano Deore M6000, Shadow Plus
Front Derailleur
N/A
Shift Levers
Shimano Deore M6000, 10 speed
Cassette
SunRace, 11-42, 10 speed
Crank
Race Face Ride, 30T Cinch (direct mount)
Bottom Bracket
PF92
Chain
KMC X10
Chain Guide
Not included
Pedals
Not included
Wheels
Front Hub
Bontrager Boost110
Rear Hub
Bontrager sealed bearing alloy axle, Boost148
Rims
Alex MD35, 32-hole double-walled, tubeless strips and valves sold separately
Tires
Schwalbe Nobby Nic Performance, Tubeless Ready, 27.5x2.80?
Brakes
Brakes
Shimano MT200 hydraulic disc
Brake Levers
Shimano MT200
Cockpit
Stem
Bontrager Rhythm Comp, 31.8mm clamp, 0 degree
Handlebar
Bontrager alloy, 31.8mm, 15mm rise, 720mm width
Grips
Bontrager XR Trail Comp, nylon lock-on
Headset
Knock Block Integrated, sealed cartridge bearing, 1-1/8? top, 1.5? bottom
Seat
Saddle
Bontrager Arvada
Seatpost
Bontrager alloy, 2-bolt head, 31.6mm, 12mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM High | SM Low | MD High | MD Low | MD/LG High | MD/LG Low | LG High | LG Low | XL High | XL Low | XXL High | XXL Low |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.59 mm | 1.42 mm | 1.46 mm | 1.36 mm | 1.4 mm | 1.32 mm | 1.35 mm | 1.28 mm | 1.31 mm | 1.28 mm | 1.31 mm |
| Bottom Bracket Height | 329 mm | 323 mm | 329 mm | 323 mm | 329 mm | 323 mm | 329 mm | 323 mm | 329 mm | 323 mm | 329 mm | 323 mm |
| Front Center | 690 mm | 693 mm | 725 mm | 728 mm | 742 mm | 745 mm | 757 mm | 760 mm | 783 mm | 786 mm | 816 mm | 818 mm |
| Rake | 47 mm | 52 mm | 48 mm | 52 mm | 49 mm | 52 mm | 49 mm | 52 mm | 49 mm | 52 mm | 44 mm | 47 mm |
| Trail | 102 mm | 106 mm | 102 mm | 106 mm | 102 mm | 106 mm | 102 mm | 106 mm | 102 mm | 106 mm | 102 mm | 106 mm |
| Stack | 601 mm | 607 mm | 600 mm | 606 mm | 600 mm | 606 mm | 600 mm | 606 mm | 609 mm | 615 mm | 642 mm | 647 mm |
| Reach | 389 mm | 381 mm | 424 mm | 416 mm | 440 mm | 433 mm | 455 mm | 448 mm | 477 mm | 470 mm | 501 mm | 494 mm |
| Top Tube Length | 559 mm | 560 mm | 594 mm | 595 mm | 611 mm | 612 mm | 626 mm | 627 mm | 651 mm | 651 mm | 680 mm | 680 mm |
| Seat Tube Angle | 74.2 ° | 73.5 ° | 74.2 ° | 73.5 ° | 74.2 ° | 73.6 ° | 74.2 ° | 73.6 ° | 74.2 ° | 73.6 ° | 74.2 ° | 73.6 ° |
| Seat Tube Length | 394 mm | 394 mm | 419 mm | 419 mm | 440 mm | 440 mm | 470 mm | 470 mm | 510 mm | 510 mm | 560 mm | 560 mm |
| Head Tube Angle | 67.2 ° | 66.6 ° | 67.2 ° | 66.6 ° | 67.2 ° | 66.6 ° | 67.2 ° | 66.6 ° | 67.2 ° | 66.6 ° | 67.2 ° | 66.6 ° |
| Head Tube Length | 100 mm | 100 mm | 100 mm | 100 mm | 100 mm | 100 mm | 100 mm | 100 mm | 110 mm | 110 mm | 145 mm | 145 mm |
| Chainstay Length | 427 mm | 426 mm | 427 mm | 426 mm | 427 mm | 426 mm | 427 mm | 426 mm | 427 mm | 426 mm | 427 mm | 426 mm |
| Wheelbase | 1115 mm | 1116 mm | 1150 mm | 1151 mm | 1167 mm | 1168 mm | 1182 mm | 1183 mm | 1208 mm | 1209 mm | 1241 mm | 1241 mm |
| Bottom Bracket Drop | 30 mm | 39 mm | 30 mm | 39 mm | 30 mm | 39 mm | 30 mm | 39 mm | 30 mm | 39 mm | 30 mm | 39 mm |
| Standover Height | 761 mm | 754 mm | 741 mm | 734 mm | 736 mm | 729 mm | 731 mm | 724 mm | 741 mm | 734 mm | 781 mm | 774 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" | 27" | 27" | 27" | 27" | 27" | 27" | 27" |
About this model
Fuel EX 5 Plus is part of the Trek Fuel model. There are 277 bikes that carry this model name. Take a sneak peek at all Trek Fuel bikes models from 2019, by clicking here.
Model range prices
The most economical model, the Trek Fuel EX 5 29 2019 has a starting price of 1999$. Trek Fuel EX 9.9 29 2019 on the other hand is the most expensive at 7799$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Trail bikes average price
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
When Trek released this model in 2019, its price was 2249$. Comparing the average cost of a Trail bike to this one, you will see that Fuel EX 5 Plus price is 22.81% smaller.
Trail bikes average weight
On a deeper look, we notice that the average weight of a Trail bike is 12.98 kg (28.62 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
With a weight of 15.1 kg (33.29 lbs), Trek bike is much heavier than average. In other words, this model is 16.33% heavier than the average Trail bike.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Fuel EX 5 Plus components
Fork
This bike has the RockShox Recon Silver RL fork installed. The fork’s travel is 140mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
From the factory, it comes with the RockShox Deluxe RL rear shock model, which has a travel of 130mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
When leaving the production line, the Fuel EX 5 Plus model has 27.5″ aluminum wheels. These wheels will provide you with more control over the bike. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Trek Fuel EX 5 Plus is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
