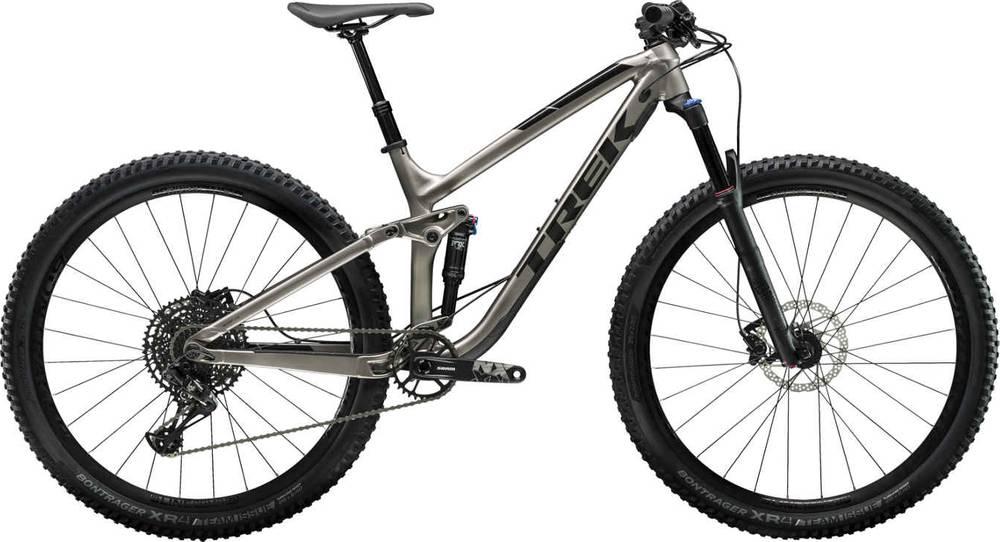

Trek Fuel EX 7 29 2019
2019 Mountain
Estimate price |
2,829$
Weight | 14.29 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 130mm -
Travel Rear 130mm -
Fork RockShox Reba
-
Groupset NX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alpha Platinum Aluminum, ABP, Boost148, Knock Block steerer stop, Full Floater, EVO link, tapered head tube, Mino Link, Control Freak internal routing, down tube guard, PF92, ISCG 05, G2 Geometry, 130mm travel
Suspension Fork
RockShox Reba RL, Solo Air, Motion Control RL damper, tapered steerer, Boost110, G2 Geometry w/51mm offset, 130mm travel
Drivetrain
Rear Derailleur
SRAM NX Eagle, Roller Bearing Clutch
Shift Levers
SRAM NX Eagle, 12 speed
Cassette
SRAM XG-1230 Eagle, 11-50, 12 speed
Crank
SRAM NX Eagle DUB, 32T Direct Mount
Bottom Bracket
SRAM DUB Press Fit, 92mm
Chain
SRAM NX Eagle
Pedals
Not included
Wheels
Rims
Bontrager Line Comp 30, Tubeless Ready, 54T Rapid Drive, Boost110 front, Boost148 rear, tubeless strips and valves sold separately
Tires
Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, 120tpi, aramid bead, 29x2.40?
Brakes
Brakes
Shimano MT400 hydraulic disc
Cockpit
Stem
Bontrager Rhythm Comp, 31.8mm clamp, 0 degree
Handlebar
Bontrager alloy, 31.8mm, 15mm rise, 750mm width
Grips
Bontrager XR Trail Comp, nylon lock-on
Headset
Knock Block Integrated, sealed cartridge bearing, 1-1/8? top, 1.5? bottom
Seat
Saddle
Bontrager Arvada
Seatpost
Dropper post, Bontrager lever, 31.6mm, internal routing
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM High | SM Low | MD High | MD Low | MD/LG High | MD/LG Low | LG High | LG Low | XL High | XL Low | XXL High | XXL Low |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.57 mm | 1.4 mm | 1.44 mm | 1.34 mm | 1.38 mm | 1.3 mm | 1.33 mm | 1.26 mm | 1.29 mm | 1.27 mm | 1.3 mm |
| Bottom Bracket Height | 344 mm | 335 mm | 344 mm | 335 mm | 344 mm | 335 mm | 344 mm | 335 mm | 344 mm | 335 mm | 344 mm | 335 mm |
| Front Center | 691 mm | 692 mm | 726 mm | 727 mm | 743 mm | 744 mm | 758 mm | 759 mm | 784 mm | 785 mm | 817 mm | 818 mm |
| Rake | 51 mm | 53 mm | 53 mm | 53 mm | 53 mm | 53 mm | 53 mm | 53 mm | 53 mm | 53 mm | 53 mm | 53 mm |
| Trail | 99 mm | 103 mm | 99 mm | 103 mm | 99 mm | 103 mm | 99 mm | 103 mm | 99 mm | 103 mm | 99 mm | 103 mm |
| Stack | 598 mm | 603 mm | 597 mm | 603 mm | 597 mm | 603 mm | 597 mm | 603 mm | 606 mm | 612 mm | 638 mm | 644 mm |
| Reach | 393 mm | 385 mm | 427 mm | 420 mm | 444 mm | 437 mm | 459 mm | 452 mm | 481 mm | 474 mm | 501 mm | 494 mm |
| Top Tube Length | 559 mm | 560 mm | 594 mm | 595 mm | 611 mm | 612 mm | 626 mm | 627 mm | 651 mm | 651 mm | 680 mm | 680 mm |
| Seat Tube Angle | 74.7 ° | 74 ° | 74.7 ° | 74 ° | 74.7 ° | 74 ° | 74.7 ° | 74 ° | 74.7 ° | 74 ° | 74.6 ° | 74 ° |
| Seat Tube Length | 394 mm | 394 mm | 419 mm | 419 mm | 440 mm | 440 mm | 470 mm | 470 mm | 510 mm | 510 mm | 560 mm | 560 mm |
| Head Tube Angle | 67.7 ° | 67 ° | 67.7 ° | 67 ° | 67.7 ° | 67 ° | 67.7 ° | 67 ° | 67.7 ° | 67 ° | 67.7 ° | 67 ° |
| Head Tube Length | 100 mm | 100 mm | 100 mm | 100 mm | 100 mm | 100 mm | 100 mm | 100 mm | 110 mm | 110 mm | 145 mm | 145 mm |
| Chainstay Length | 426 mm | 427 mm | 426 mm | 427 mm | 426 mm | 427 mm | 426 mm | 427 mm | 426 mm | 427 mm | 426 mm | 427 mm |
| Wheelbase | 1115 mm | 1116 mm | 1150 mm | 1151 mm | 1167 mm | 1168 mm | 1182 mm | 1183 mm | 1208 mm | 1209 mm | 1241 mm | 1242 mm |
| Bottom Bracket Drop | 30 mm | 39 mm | 30 mm | 39 mm | 30 mm | 39 mm | 30 mm | 39 mm | 30 mm | 39 mm | 30 mm | 39 mm |
| Standover Height | 761 mm | 754 mm | 741 mm | 734 mm | 736 mm | 729 mm | 731 mm | 724 mm | 741 mm | 734 mm | 781 mm | 774 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
About this model
Fuel EX 7 29 is part of the Trek Fuel model. Trek launched 277 bikes of this model so far. Check out the entire range from 2019 of this model, by clicking this link.
Model range prices
Trek Fuel EX 5 29 2019 is the most affordable bike of this model and has a price of 1999$. On the other hand, Trek Fuel EX 9.9 29 2019, is the most expensive and costs 7799$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Trail bikes
According to our math, the average price for a trustworthy Trail bike is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2019 for 2829$. Comparing this to the average Trail bike price, we see that the price is 2.43% higher.
Average weight for Trail bikes
Trail bikes weigh an average of 12.98 kg (28.62 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Fuel EX 7 29 weighs 14.29 kg (31.5 lbs) and is considerably heavier than the average. In short, the average Trail bike weight is 10.09% lower than this one.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork
This bike has the RockShox Reba fork installed. The fork’s travel is 130mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
The wheels on Fuel EX 7 29 are the 29″ aluminum type. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
Nothing is more important on a bike than its ability to brake properly. Trek Fuel EX 7 29 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Dropper post
The Trek model is also equipped with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
