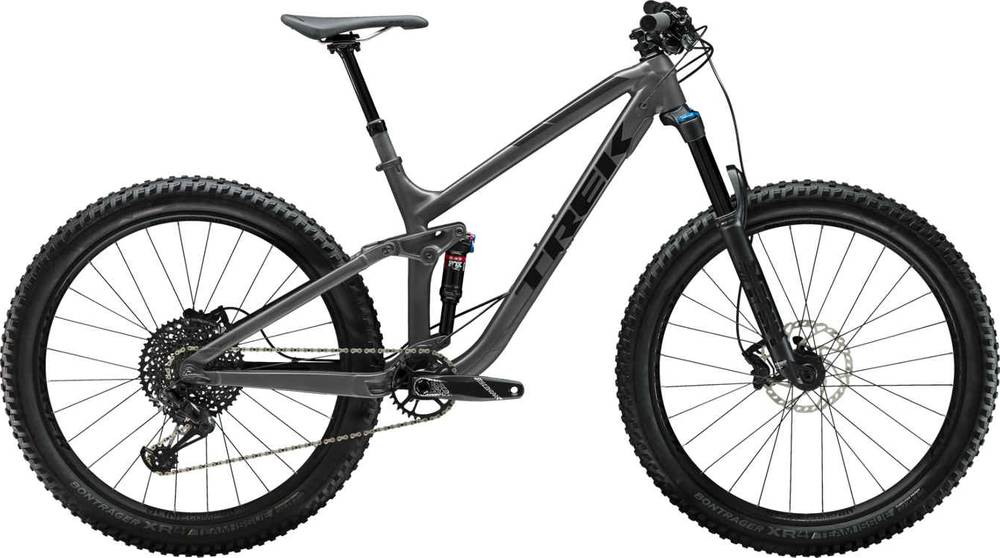

Trek Fuel EX 8 Plus 2019
2019 Mountain
Estimate price |
3,599$
Weight | 14.51 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 140mm -
Travel Rear 130mm -
Fork Fox Rhythm Float 34
-
Groupset GX Eagle, Truvativ Descendant -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alpha Platinum Aluminum, ABP, Boost148, Knock Block steerer stop, Full Floater, EVO link, tapered head tube, Mino Link, Control Freak internal routing, down tube guard, PF92, ISCG 05, G2 Geometry, 130mm travel
Suspension Fork
Fox Rhythm 34 Float, GRIP adjustable damper, tapered steerer, G2 Geometry w/51mm offset, Boost110, 140mm travel
Rear Shock
FOX Performance Float EVOL, RE:aktiv damper, 210mm x 52.5mm
Drivetrain
Rear Derailleur
SRAM GX Eagle, Roller Bearing Clutch
Front Derailleur
N/A
Shift Levers
SRAM GX Eagle, 12 speed
Cassette
SRAM XG-1275 Eagle, 10-50, 12 speed
Crank
Truvativ Descendant 6k Eagle DUB, 32T Direct Mount
Bottom Bracket
SRAM DUB Press Fit, 92mm
Chain
SRAM GX Eagle
Chain Guide
None included
Pedals
Not included
Wheels
Front Hub
Rapid Drive, boost 110mm front, boost 148mm rear
Rear Hub
Rapid Drive, boost 110mm front, boost 148mm rear
Rims
Bontrager Line Comp 40, Tubeless Ready, 54T Rapid Drive, Boost110 front, Boost148 rear, tubeless strips included, valves sold separately
Spokes
DT Swiss Nailhead 14/15G spokes with Alpina alloy locking nipples
Tires
Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, 120tpi, aramid bead, 27.5x2.80?
Brakes
Brakes
Shimano Deore M6000 hydraulic disc
Brake Levers
Shimano Deore
Cockpit
Stem
Bontrager Line, Knock Block, 35mm clamp, 0 degree
Handlebar
Bontrager Line, 35mm, 15mm rise, 750mm width
Grips
Bontrager XR Trail Elite, alloy lock-on
Headset
Knock Block Integrated, sealed cartridge bearing, 1-1/8? top, 1.5? bottom
Seat
Saddle
Bontrager Arvada, hollow chromoly rails
Seatpost
Bontrager Line, internal routing, 31.6mm, 15.5: 100mm, 17.5 & 18.5: 125mm, 19.5 & 21.5: 150mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM High | SM Low | MD High | MD Low | MD/LG High | MD/LG Low | LG High | LG Low | XL High | XL Low | XXL High | XXL Low |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.59 mm | 1.42 mm | 1.46 mm | 1.36 mm | 1.4 mm | 1.32 mm | 1.35 mm | 1.28 mm | 1.31 mm | 1.28 mm | 1.31 mm |
| Bottom Bracket Height | 329 mm | 323 mm | 329 mm | 323 mm | 329 mm | 323 mm | 329 mm | 323 mm | 329 mm | 323 mm | 329 mm | 323 mm |
| Front Center | 690 mm | 693 mm | 725 mm | 728 mm | 742 mm | 745 mm | 757 mm | 760 mm | 783 mm | 786 mm | 816 mm | 818 mm |
| Rake | 47 mm | 52 mm | 48 mm | 52 mm | 49 mm | 52 mm | 49 mm | 52 mm | 49 mm | 52 mm | 44 mm | 47 mm |
| Trail | 102 mm | 106 mm | 102 mm | 106 mm | 102 mm | 106 mm | 102 mm | 106 mm | 102 mm | 106 mm | 102 mm | 106 mm |
| Stack | 601 mm | 607 mm | 600 mm | 606 mm | 600 mm | 606 mm | 600 mm | 606 mm | 609 mm | 615 mm | 642 mm | 647 mm |
| Reach | 389 mm | 381 mm | 424 mm | 416 mm | 440 mm | 433 mm | 455 mm | 448 mm | 477 mm | 470 mm | 501 mm | 494 mm |
| Top Tube Length | 559 mm | 560 mm | 594 mm | 595 mm | 611 mm | 612 mm | 626 mm | 627 mm | 651 mm | 651 mm | 680 mm | 680 mm |
| Seat Tube Angle | 74.2 ° | 73.5 ° | 74.2 ° | 73.5 ° | 74.2 ° | 73.6 ° | 74.2 ° | 73.6 ° | 74.2 ° | 73.6 ° | 74.2 ° | 73.6 ° |
| Seat Tube Length | 394 mm | 394 mm | 419 mm | 419 mm | 440 mm | 440 mm | 470 mm | 470 mm | 510 mm | 510 mm | 560 mm | 560 mm |
| Head Tube Angle | 67.2 ° | 66.6 ° | 67.2 ° | 66.6 ° | 67.2 ° | 66.6 ° | 67.2 ° | 66.6 ° | 67.2 ° | 66.6 ° | 67.2 ° | 66.6 ° |
| Head Tube Length | 100 mm | 100 mm | 100 mm | 100 mm | 100 mm | 100 mm | 100 mm | 100 mm | 110 mm | 110 mm | 145 mm | 145 mm |
| Chainstay Length | 427 mm | 426 mm | 427 mm | 426 mm | 427 mm | 426 mm | 427 mm | 426 mm | 427 mm | 426 mm | 427 mm | 426 mm |
| Wheelbase | 1115 mm | 1116 mm | 1150 mm | 1151 mm | 1167 mm | 1168 mm | 1182 mm | 1183 mm | 1208 mm | 1209 mm | 1241 mm | 1241 mm |
| Bottom Bracket Drop | 30 mm | 39 mm | 30 mm | 39 mm | 30 mm | 39 mm | 30 mm | 39 mm | 30 mm | 39 mm | 30 mm | 39 mm |
| Standover Height | 761 mm | 754 mm | 741 mm | 734 mm | 736 mm | 729 mm | 731 mm | 724 mm | 741 mm | 734 mm | 781 mm | 774 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" | 27" | 27" | 27" | 27" | 27" | 27" | 27" |
About this model
Fuel EX 8 Plus is a Trek Fuel model. Trek released 277 bikes variations of this model so far. You can easily view all of the Trek Fuel bikes models from 2019, here.
Model range prices
The most economical model, the Trek Fuel EX 5 29 2019 has a starting price of 1999$. Trek Fuel EX 9.9 29 2019 on the other hand is the most expensive at 7799$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Trail bikes
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
When Trek released this model in 2019, its price was 3599$. Comparing the average cost of a Trail bike to this one, you will see that Fuel EX 8 Plus price is 30.3% higher.
Trail bikes average weight
If we make a quick analysis of the average weight of a Trail bike, we get 12.98 kg (28.62 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Trek Fuel EX 8 Plus it’s weighing 14.51 kg (31.99 lbs). At this weight, is considerably heavier than average. To sum up, it’s 11.79% heavier than the average weight of Trail bikes.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Fuel EX 8 Plus components
Fork
The fork installed on this bike is the Fox Rhythm Float 34 model. The travel on this model is 140mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
The shock that’s installed on this bike is FOX Performance Float EVOL, with a travel distance of 130mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
The Fuel EX 8 Plus 2019 bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Fuel EX 8 Plus comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Dropper post
Every bike should have a dropper post, and this one does. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
